Lada Niva Shift Gear Low Range Diff Lock Knobs

I don't like the rubber gear knobs that come standard in the Lada Niva, so i made my own.

These knobs have internal threads and can easily threaded onto the levers. The threads are designed as deep as possible into the knobs, so that they do not increase the overall height of the levers.

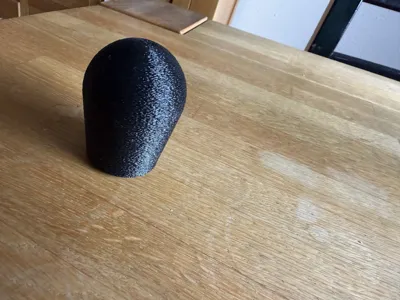

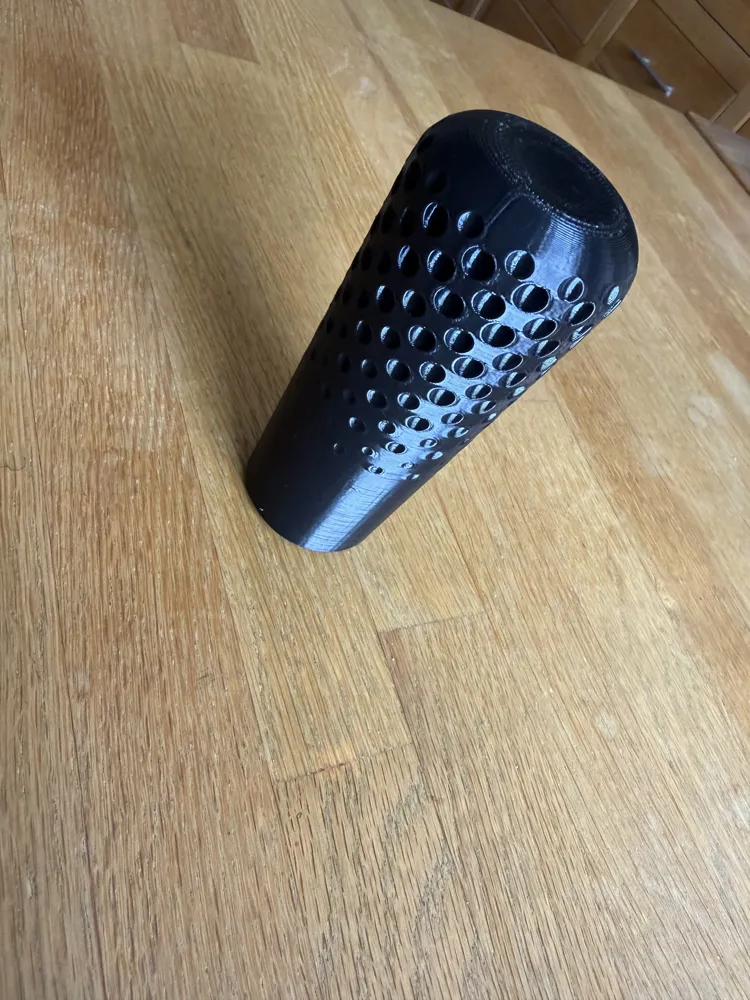

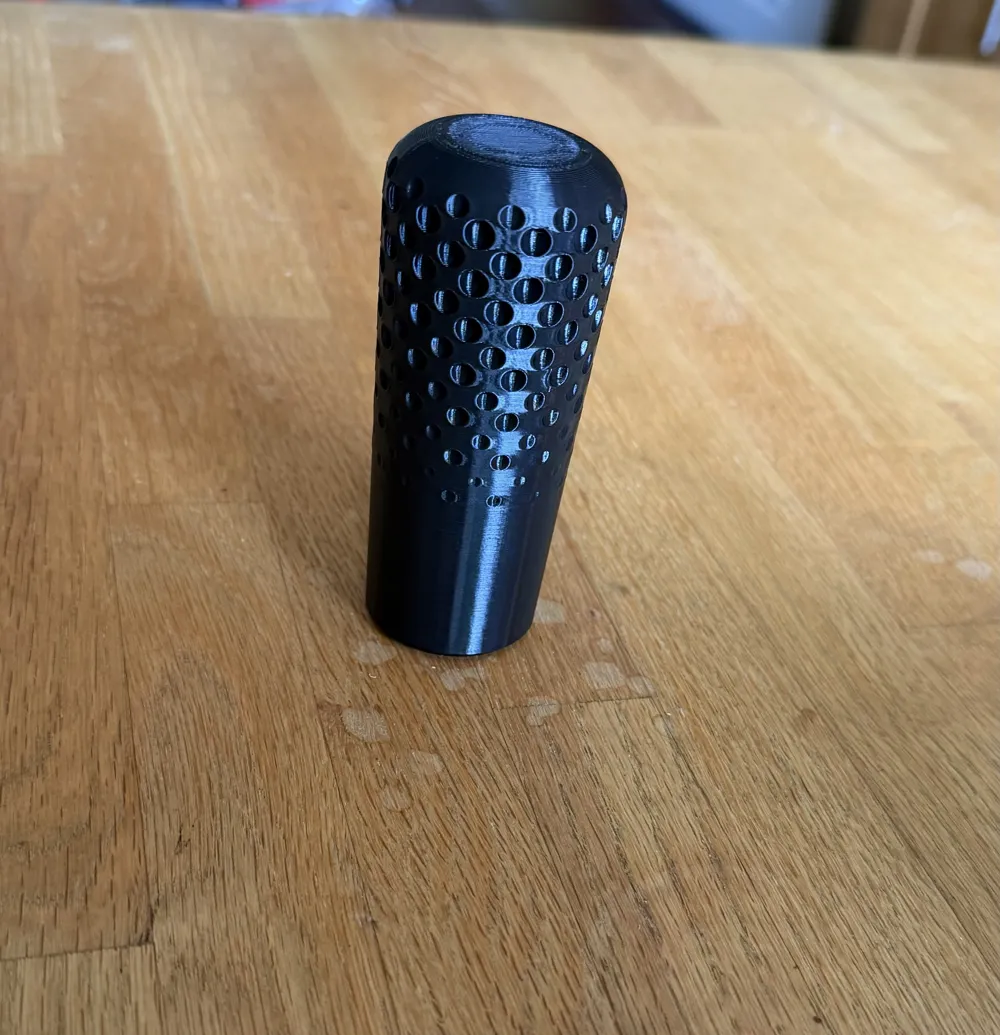

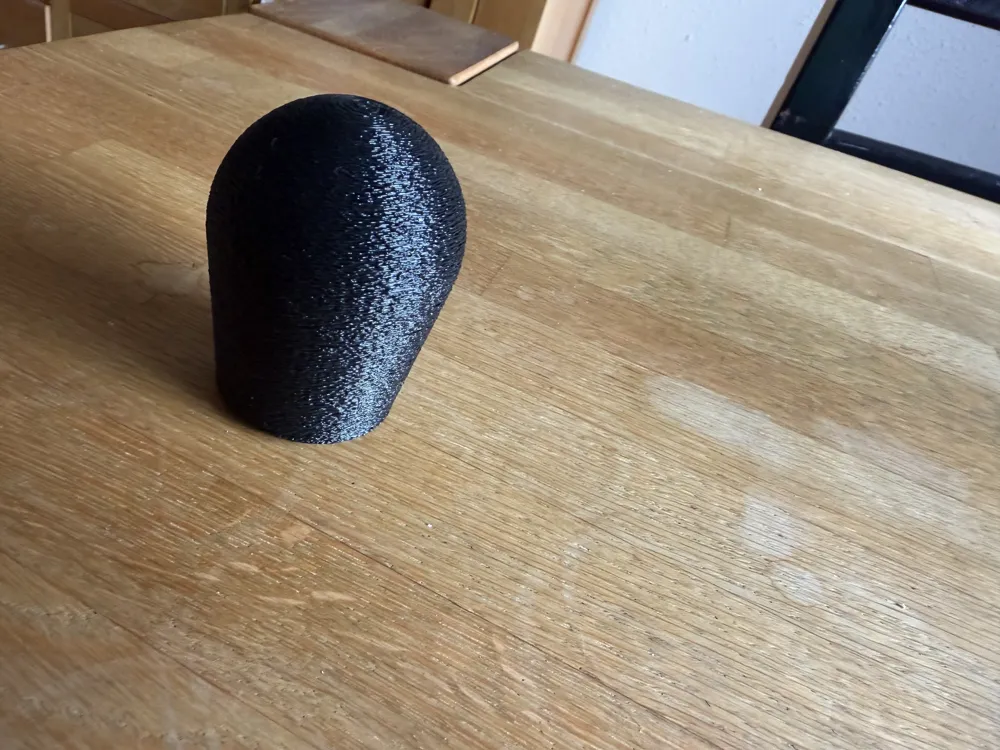

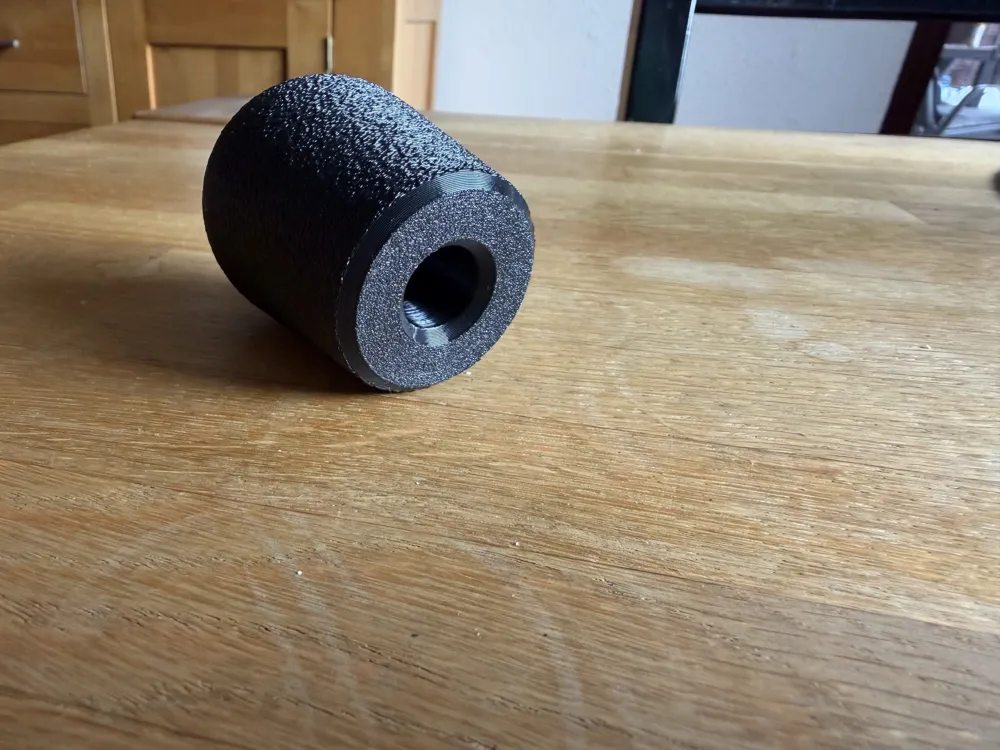

There are two shift knobs to choose from, the tall dimpled one and the rounded one, which has fuzzy skin applied to it for a grippy surface.

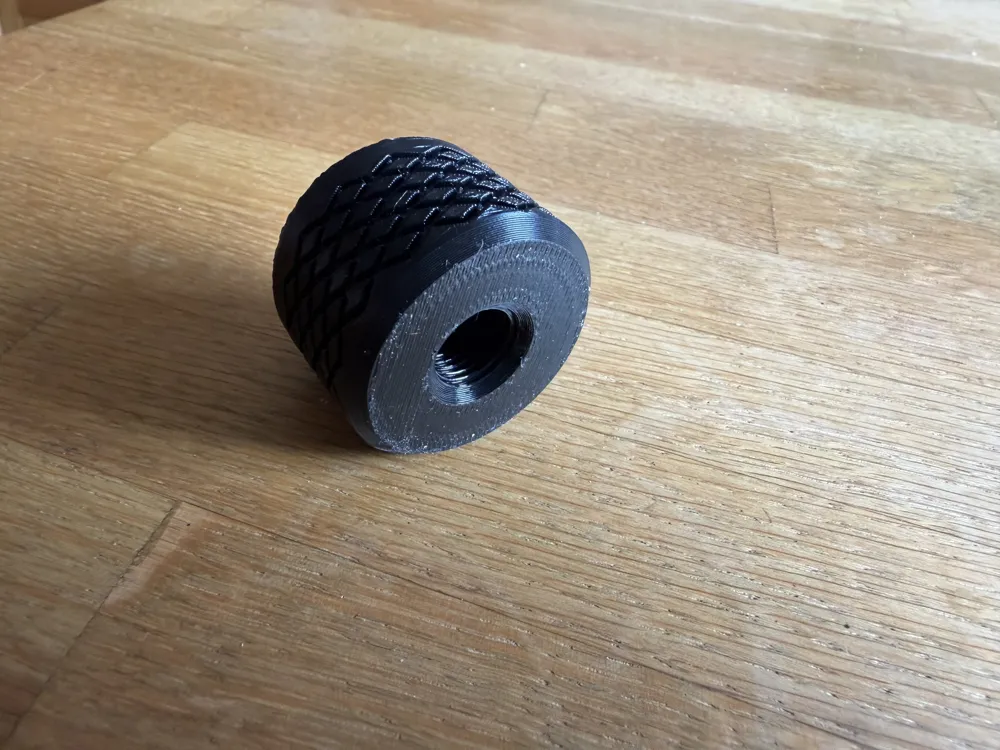

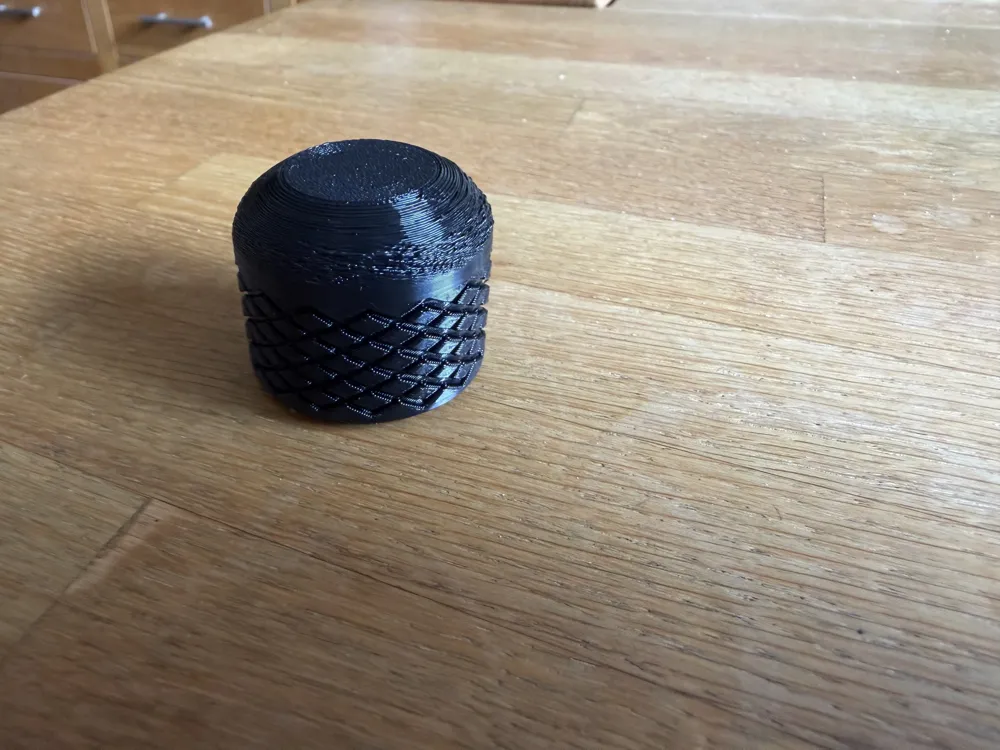

The smallest knobs on the plate are identical, one is for the Diff Lock lever and one for the Low Range lever.

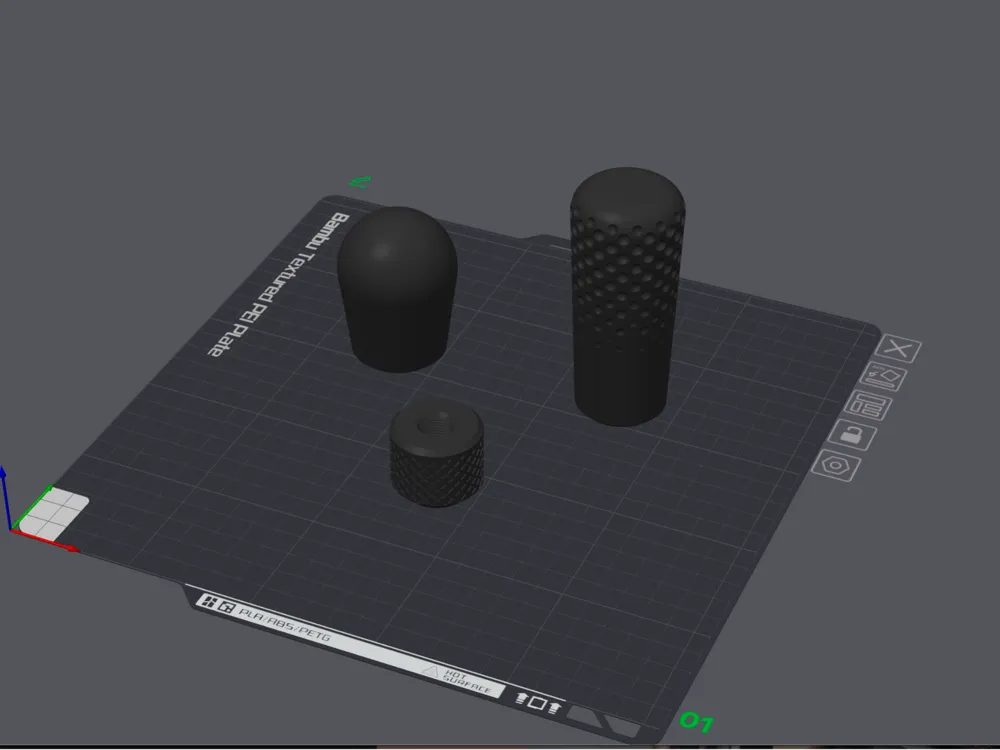

If you're using the 3mf file, i already included the Diff Lock / Low Range knob twice.

For the shift knob, just delete the one you don't like from the plate and print.

For best results, do not change print settings or the print orientation.

I do recommended 0.16mm layer height because of the internal threads.

Use PETG or other heat and UV resistant material.

Fot those of you that may want to use these in other cars. Thread pitch for the dimpled and the rounded shift knobs is M10x1.25. Thread pitch for the small Diff Lock / Low Range Knob is M12x1.25

Have fun and leave me a comment!
