Eero 7 Underside Mount

Tuck your Eero 7 out of sight without giving up airflow, adjustability, or a secure fit.

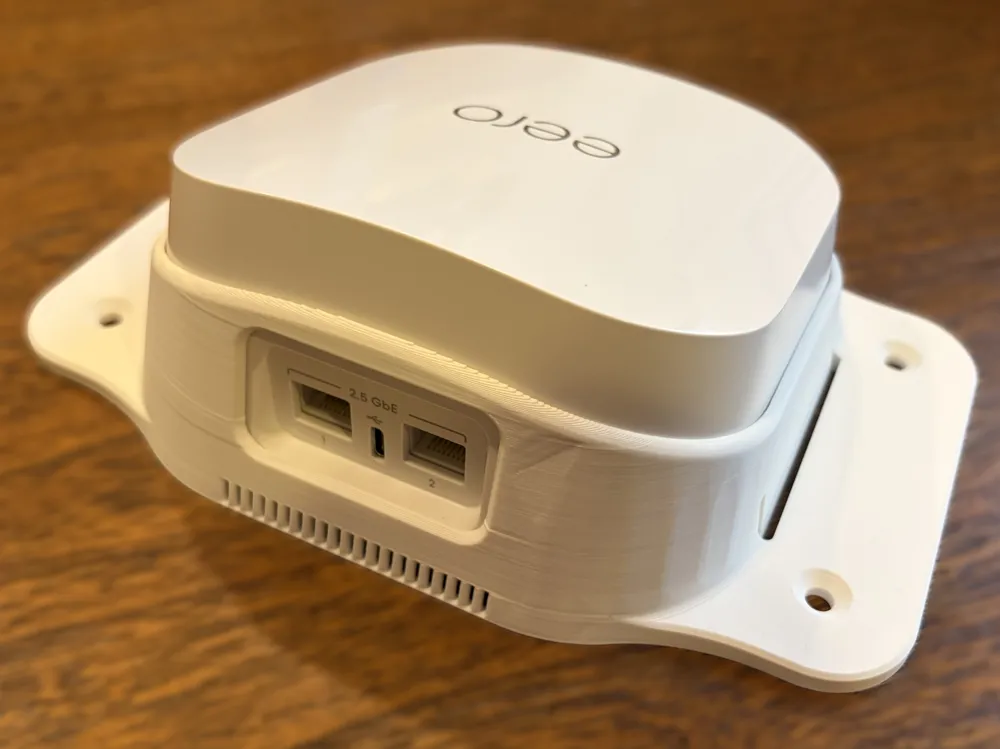

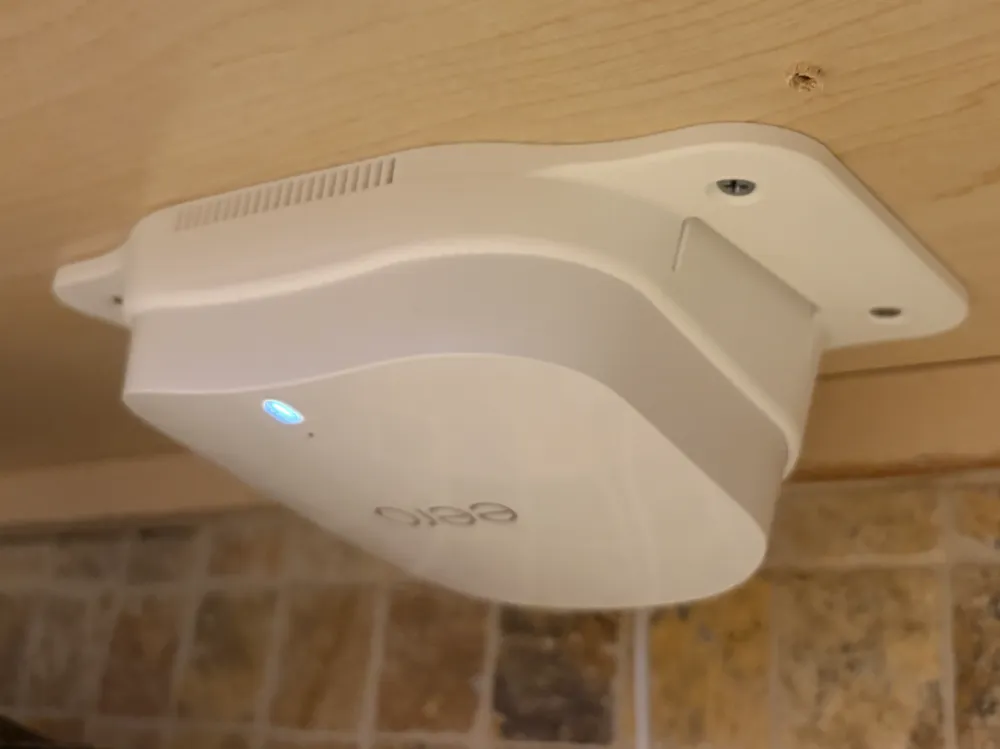

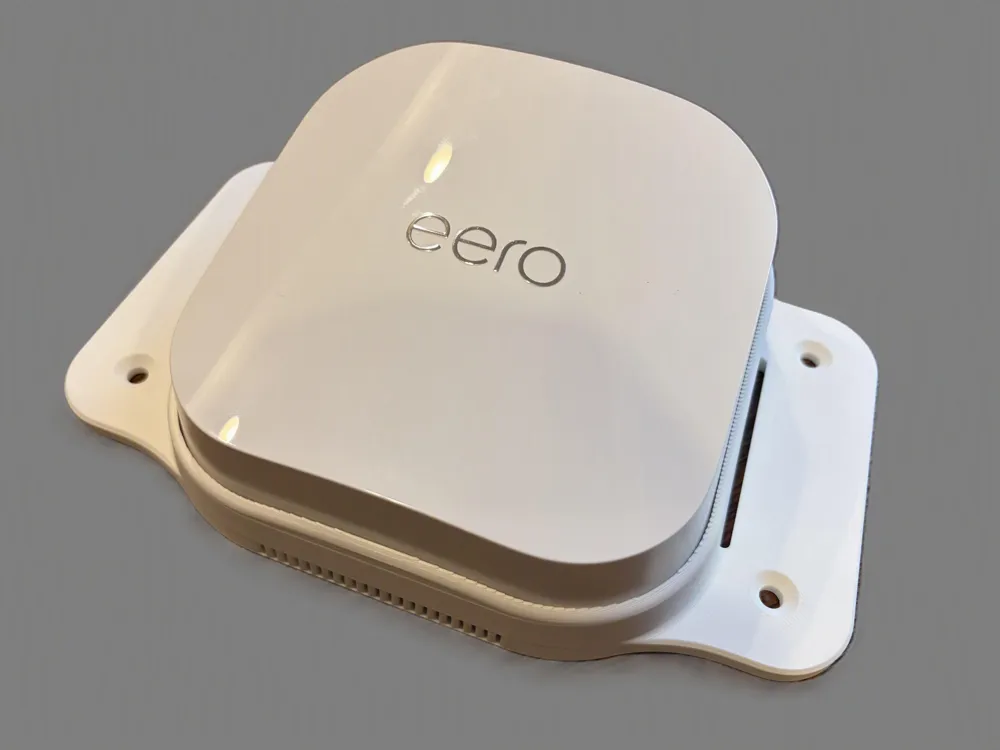

This underside mount (vertical wall mount too!) is a form-fitting cradle for the Eero 7, designed to hide your router under a desk, cabinet, shelf, or table while still letting it breathe and stay put. The main body wraps flush around the Eero 7's body for a clean, factory-like look, and the mounting wings extend out to the sides allowing easy installation.

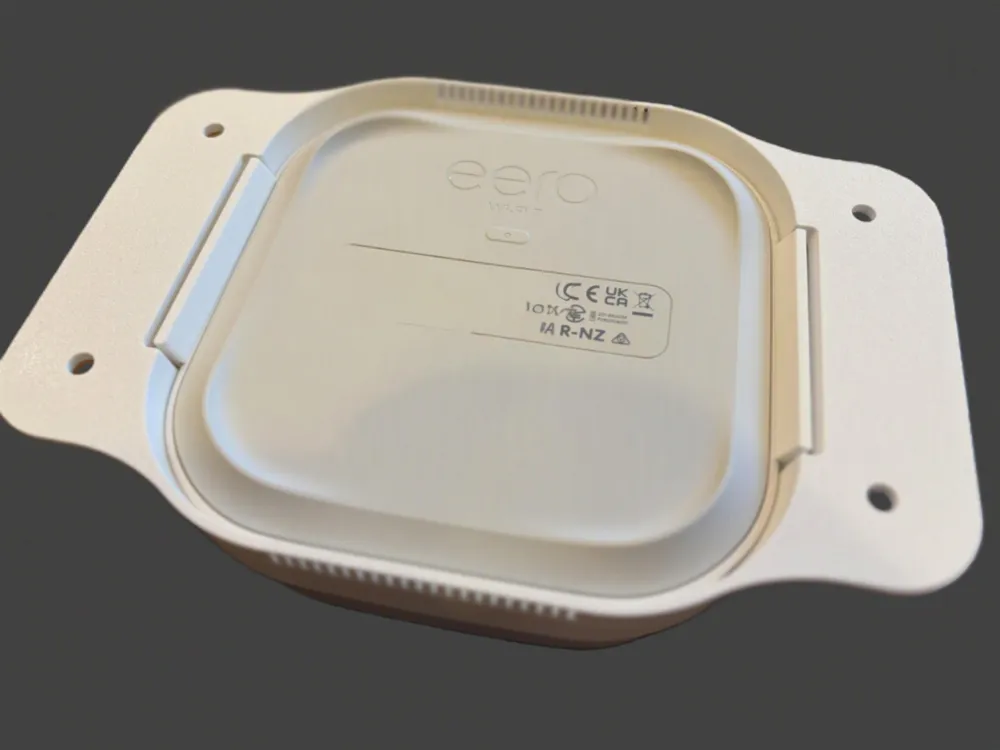

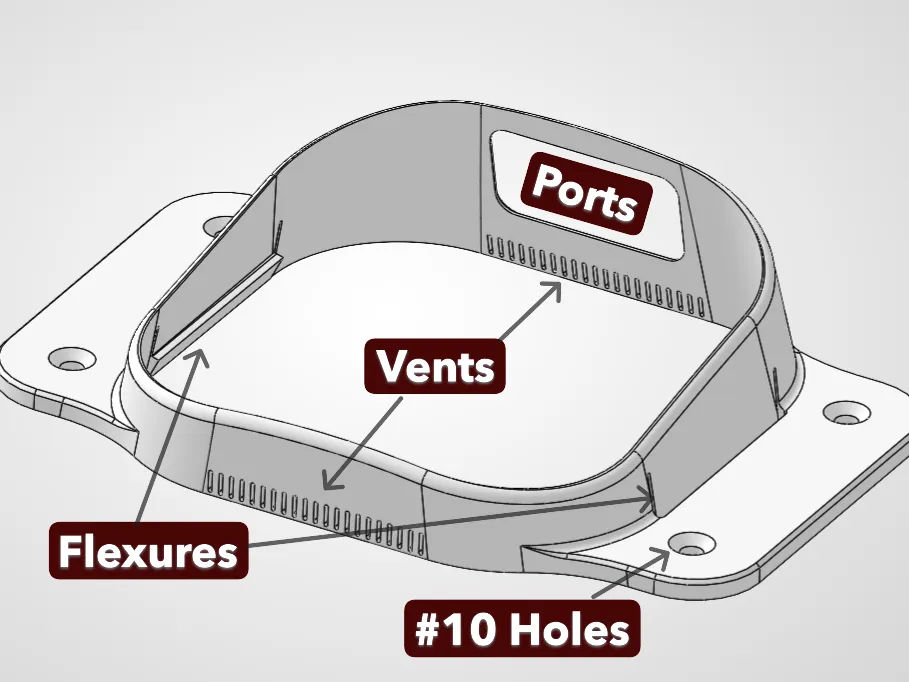

Two integrated flexure snaps grip the Eero 7 during installation, holding it in position while you drive screws or press the wings up into place — no third hand required. Once seated, the Eero 7 stays fully supported, with generous cutouts and vent-aligned openings across the mount so heat has somewhere to go instead of building up against the ceiling of your cabinet or desk.

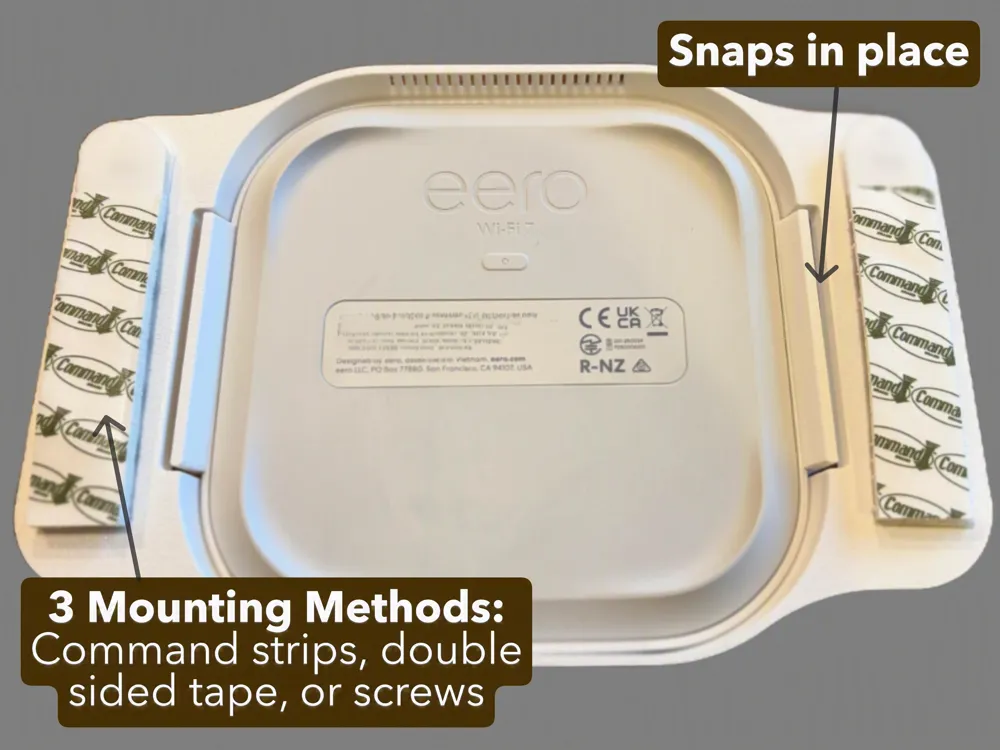

Mounting is flexible by design. Each wing has a screw hole for #8 or #10 screws (0.5" length minimum), or you can skip hardware entirely and use Command strips or double-sided mounting tape for a no-drill install. Pick whichever method fits your surface — screws for permanence, tape or Command strips for rentals or anywhere you don't want to commit to holes.

Features:

• Form-fitting geometry sits flush against the Eero 7 body for a clean, low-profile mount
• Maximized open/vented surface area for passive heat dissipation
• Dual flexure snaps hold the eero 7 secure during and after mounting
• Mounting wings support three install methods: #8/#10 screws (0.5" min length recommended), Command strips, or double-sided mounting tape
• Mounts underneath desks, cabinets, shelves, or tables — keeps the router out of sight without blocking signal or airflow

Print notes:

• PLA or PETG recommended
• 3-4 perimeters recommended around the snap features for durability
