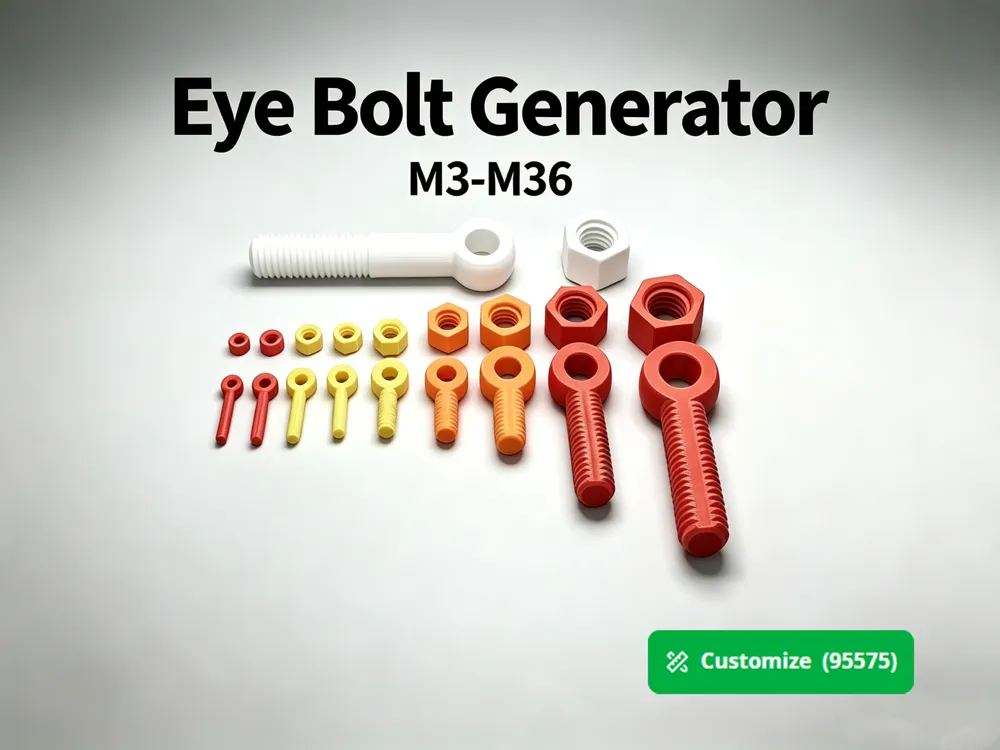

Eye Bolt Generator
Print Profile(1)
Description

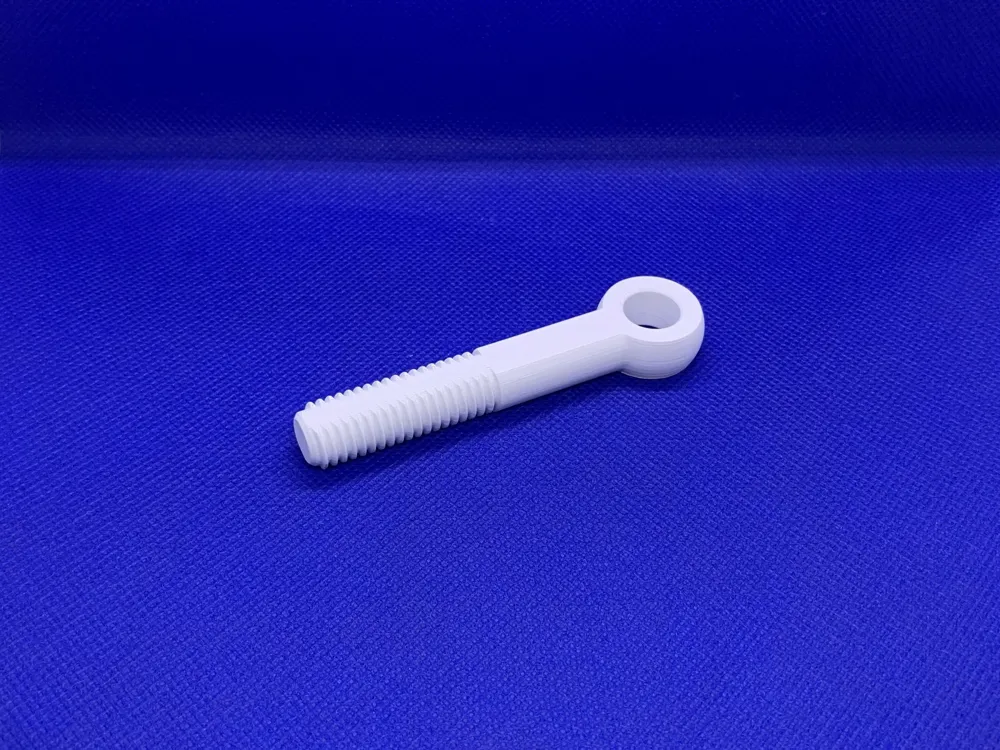

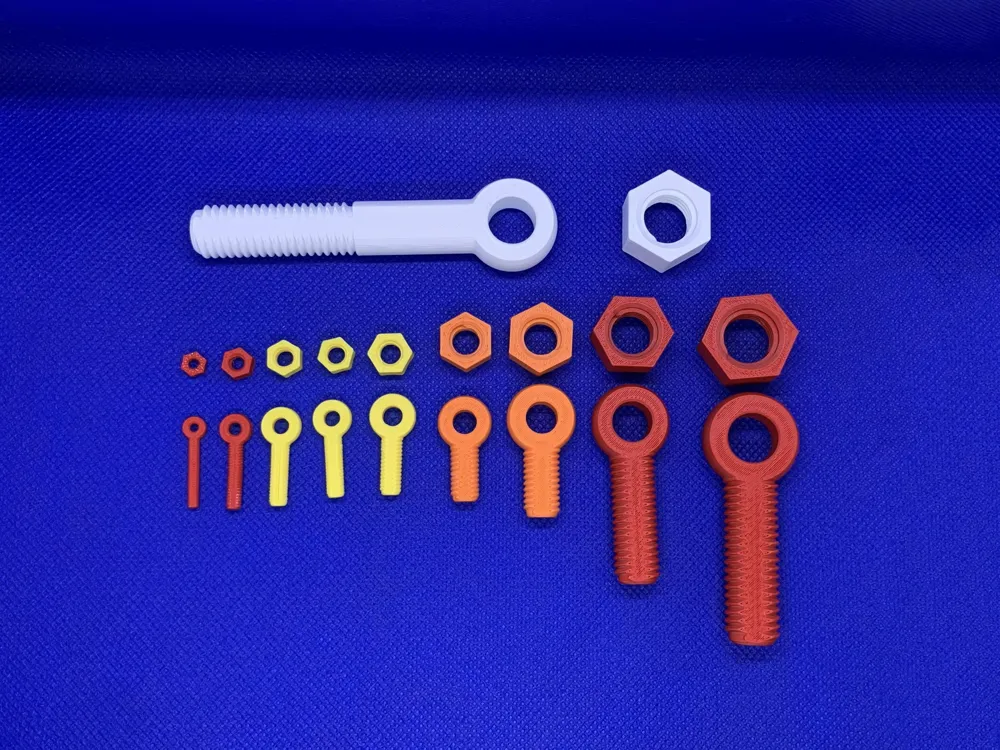

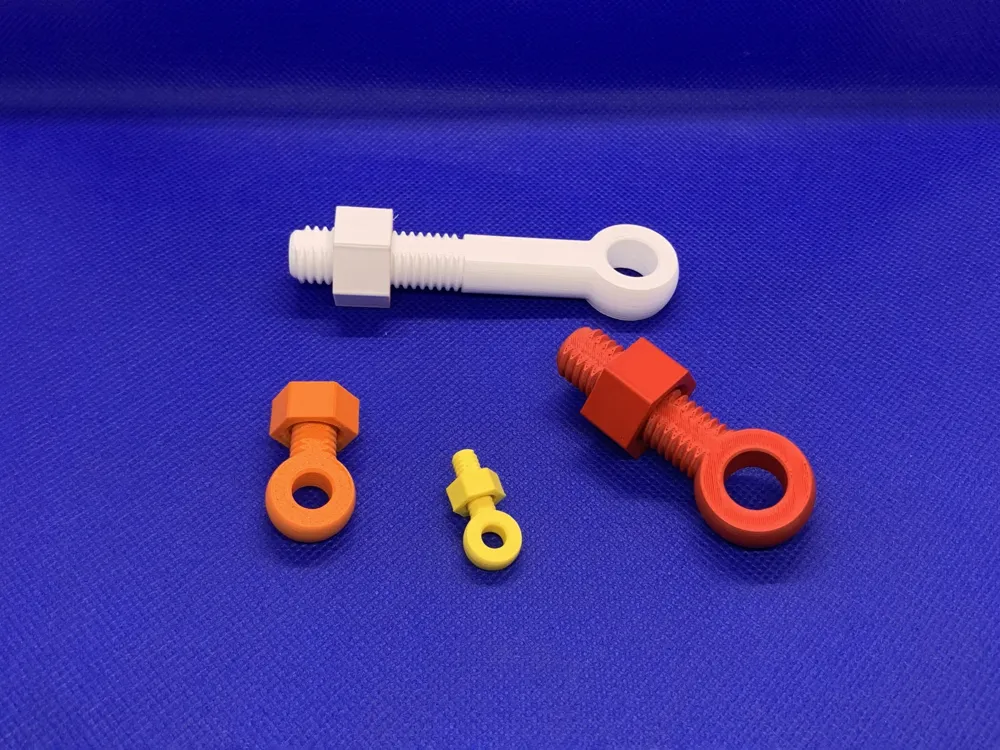

This is a generator that can quickly create lifting eye bolts.

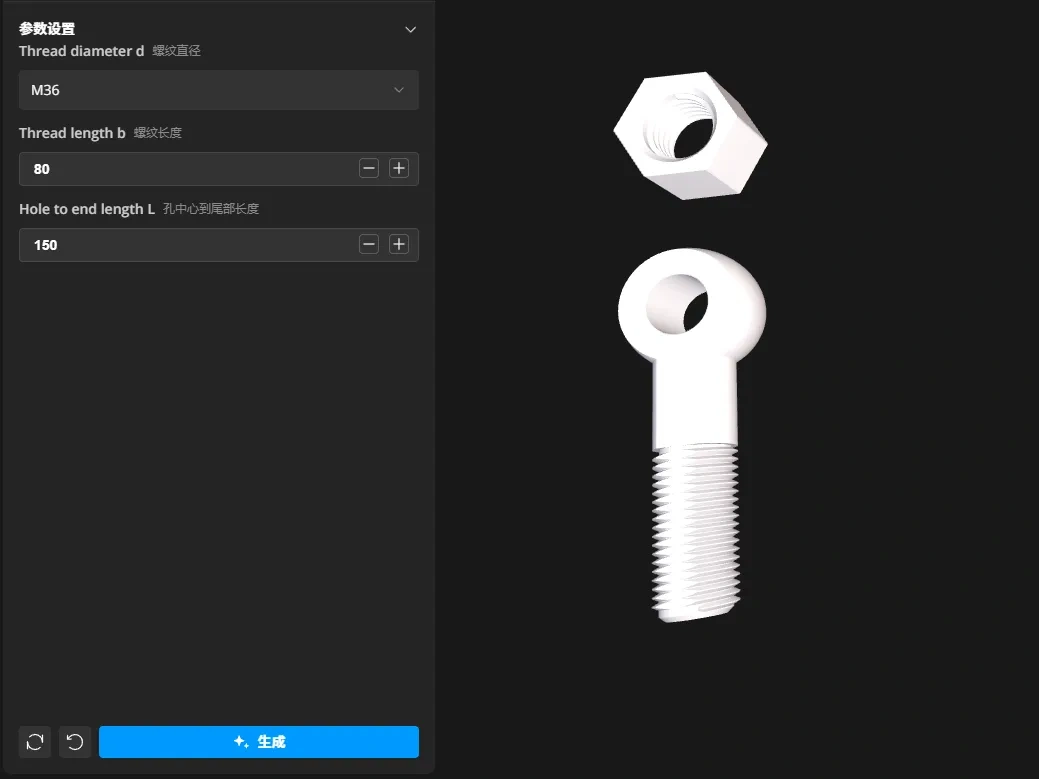

The setup interface is as follows:
The corresponding parameters for specific thread diameters are as follows:

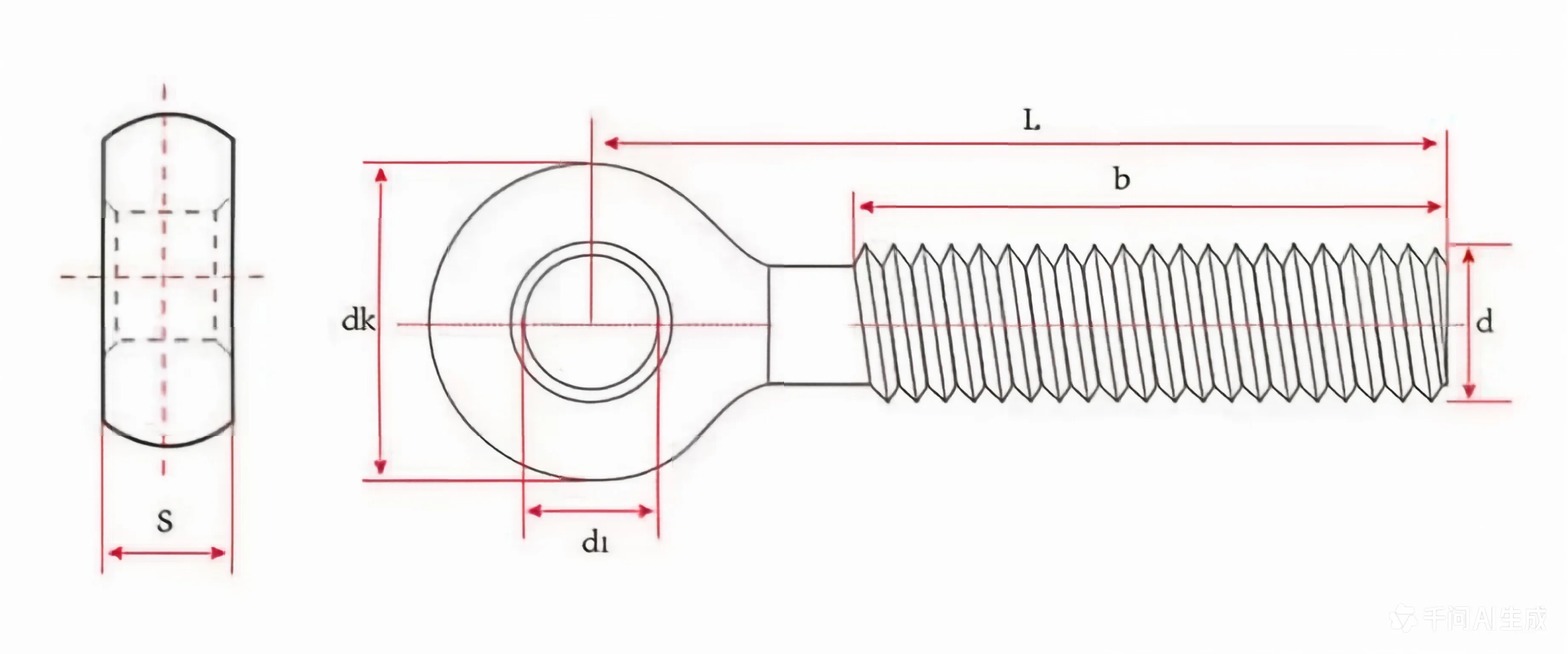

Among them, 'd' (thread diameter), 'b' (thread length), and 'L' (distance from hole center to tail end) can be set via parameters.
| Specification (d) | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M30 | M36 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d1 (Hole diameter) | 2.2 | 3.2 | 4.2 | 5.2 | 6.2 | 8.2 | 10.2 | 12.3 | 14.3 | 15.3 | 16.3 | 18.3 | 20.3 | 25.3 | 30.3 |
| S (Thickness) | 2.2 | 2.9 | 3.8 | 4.5 | 6.1 | 7.6 | 9.4 | 10.8 | 13.0 | 14.2 | 16.2 | 18.2 | 19.6 | 25.0 | 30.2 |
| dk (Head outer diameter) | 6 | 8 | 10 | 12 | 14 | 18 | 20 | 24 | 28 | 31 | 34 | 38 | 42 | 52 | 64 |
Notes:
1. For easier printing, coarse threads are used.
2. For M3 and M4, due to their small threads, it is recommended to use a 0.2mm nozzle for printing.
3. The code is open source; if you want more specific customization, simply change the corresponding parameters in the code.
