SUP Trolley
Print Profile(1)
Description

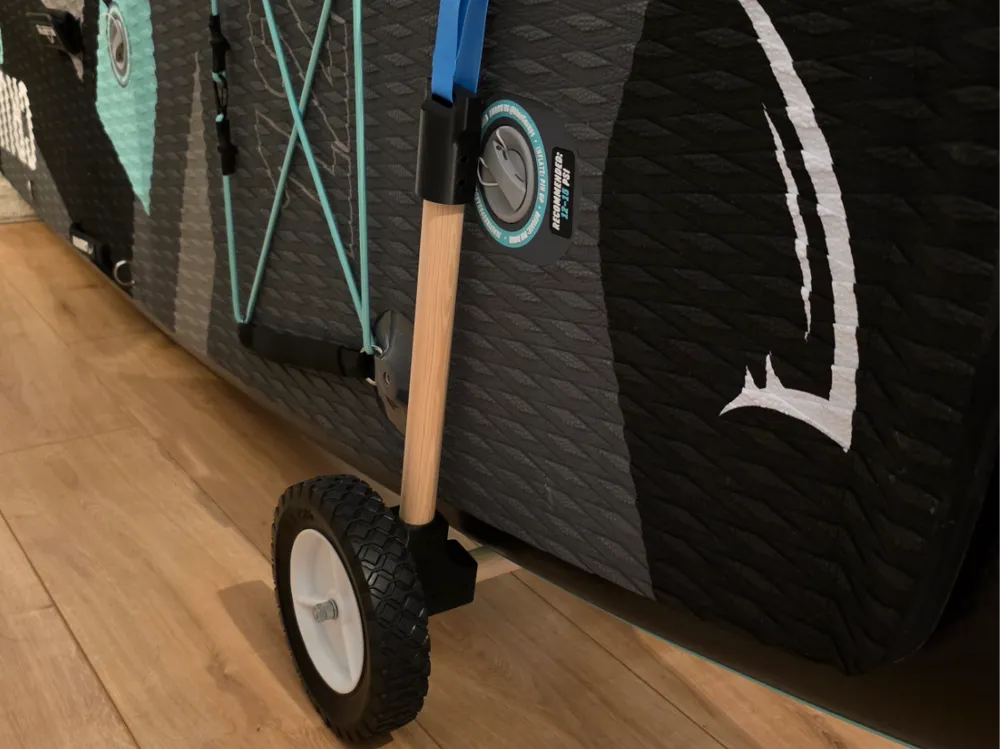

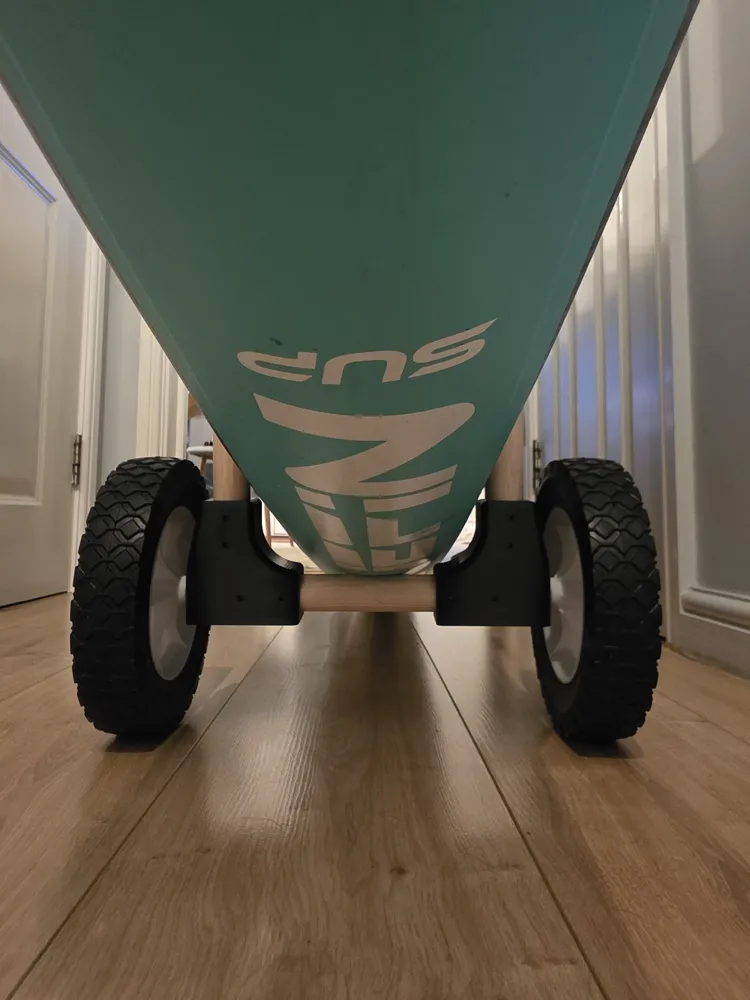

3D printed parts to make a SUP trolley. It uses 28mm dowel, the size is customizable to fit different sized sups. The wheels I got here are 20cm in size. It requires 12 wood screws, 2 bolts which are 8mm in dia, 4 washers and 4 nuts to secure the wheel. The round wheel shaft is reguired to put inside the wheel hub before adding the bolts so the wheel runs freely.

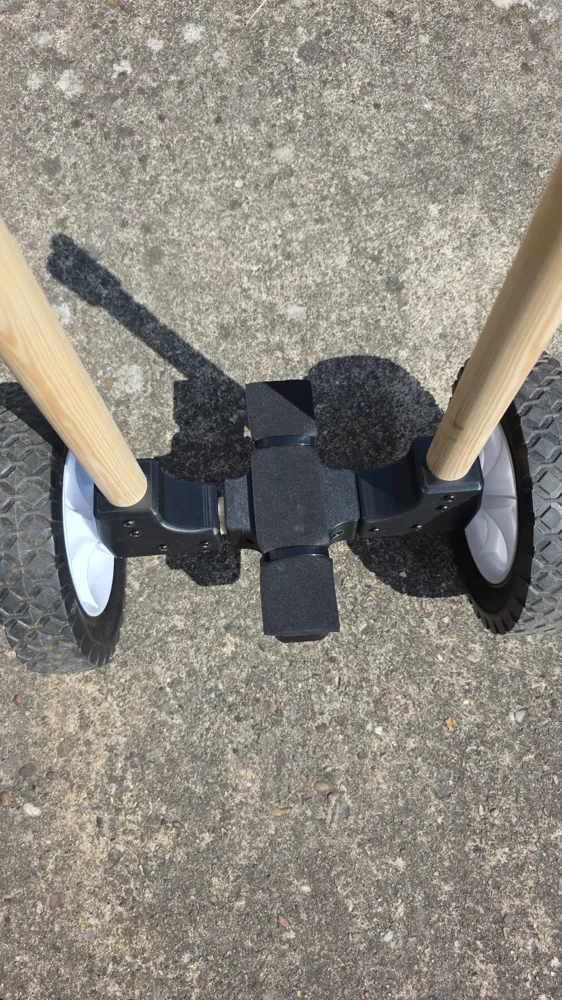

The middle piece with the foam is added so the paddleboard has a bigger area to sit on, and its free moving, not screwed down.

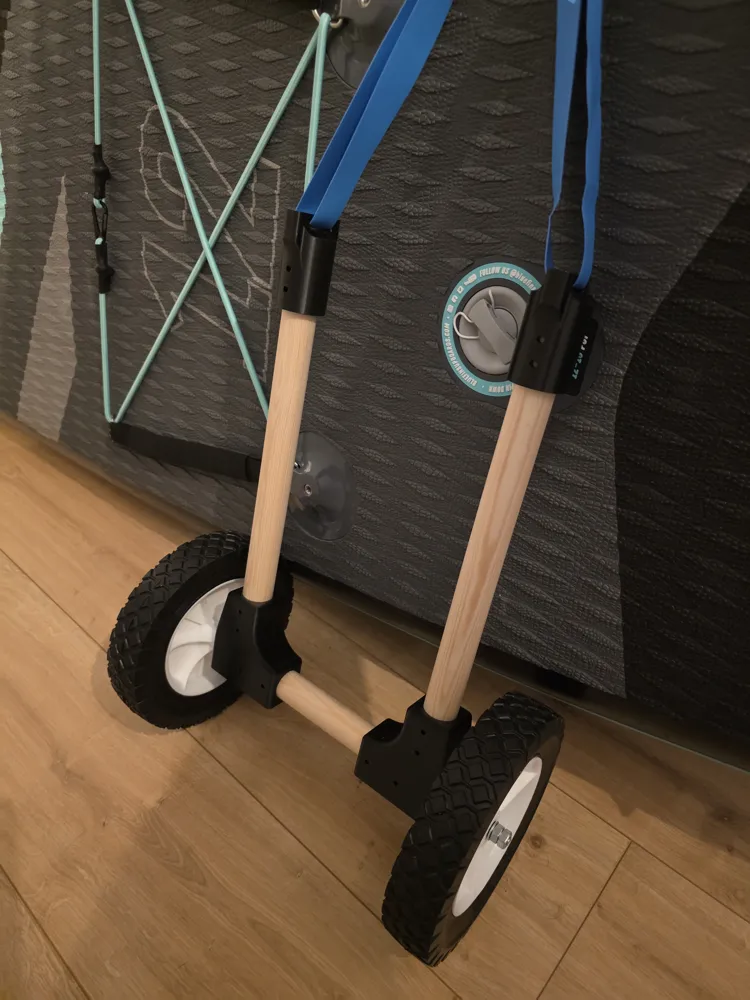

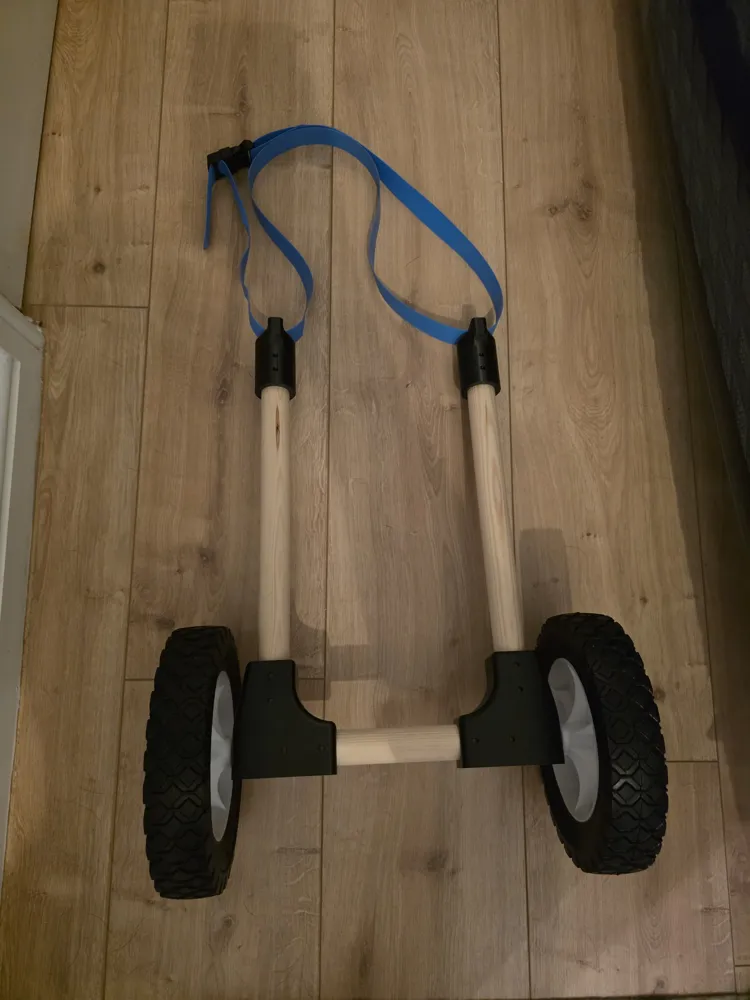

The trolley uses 2 straps, one is at the end of the dowels, and additionally one more longer strap which goes through the middle seat part.
