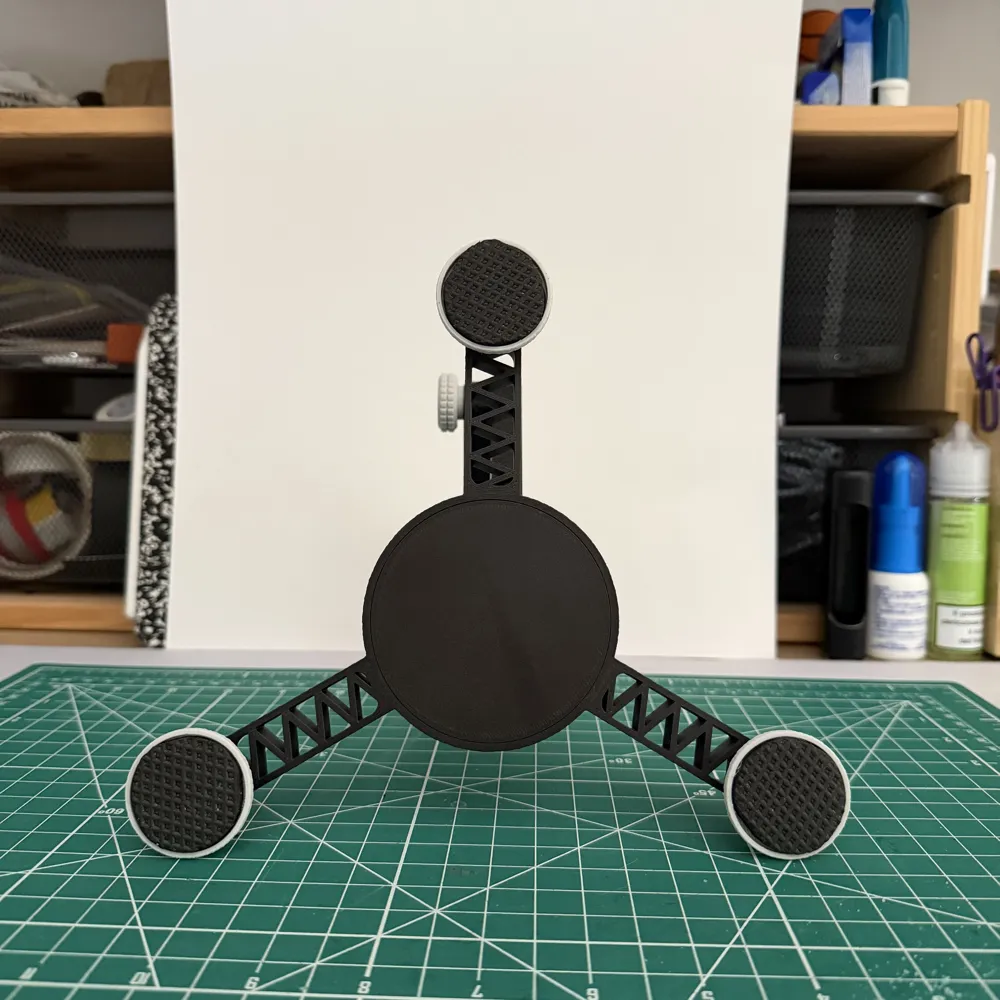

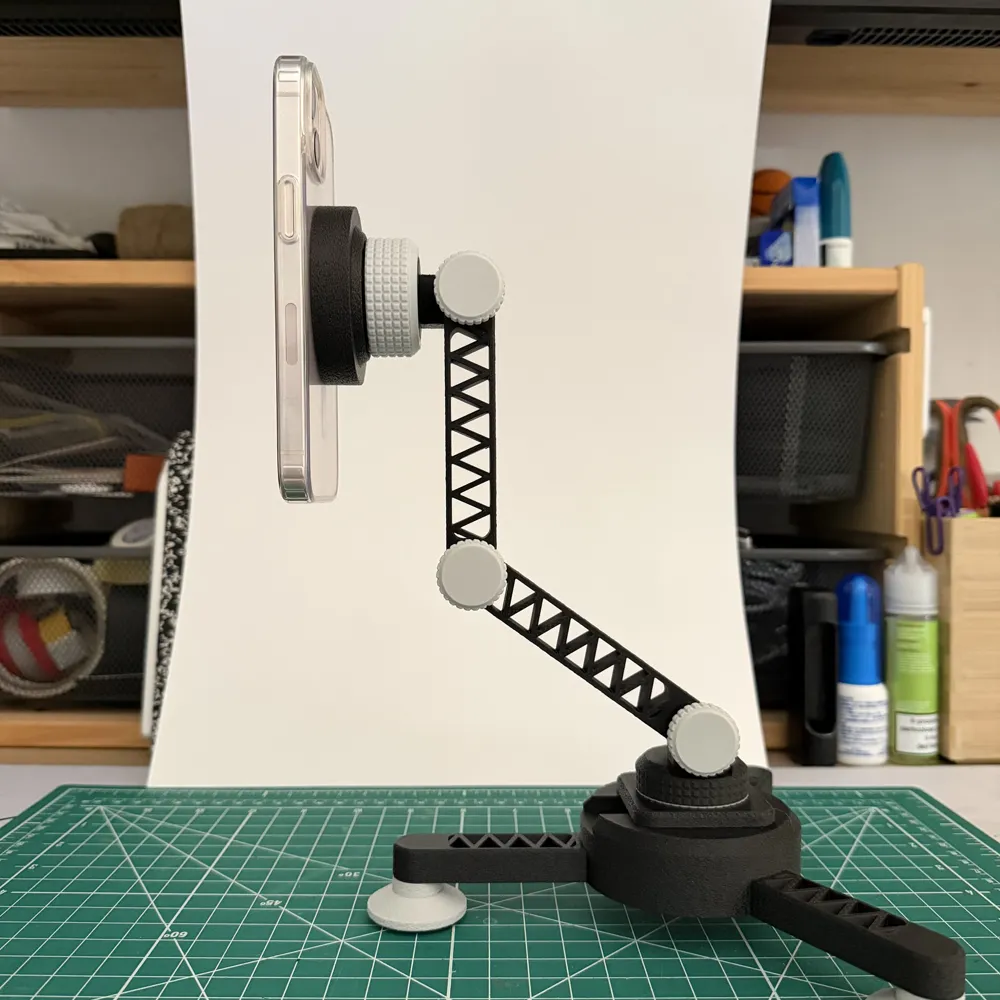

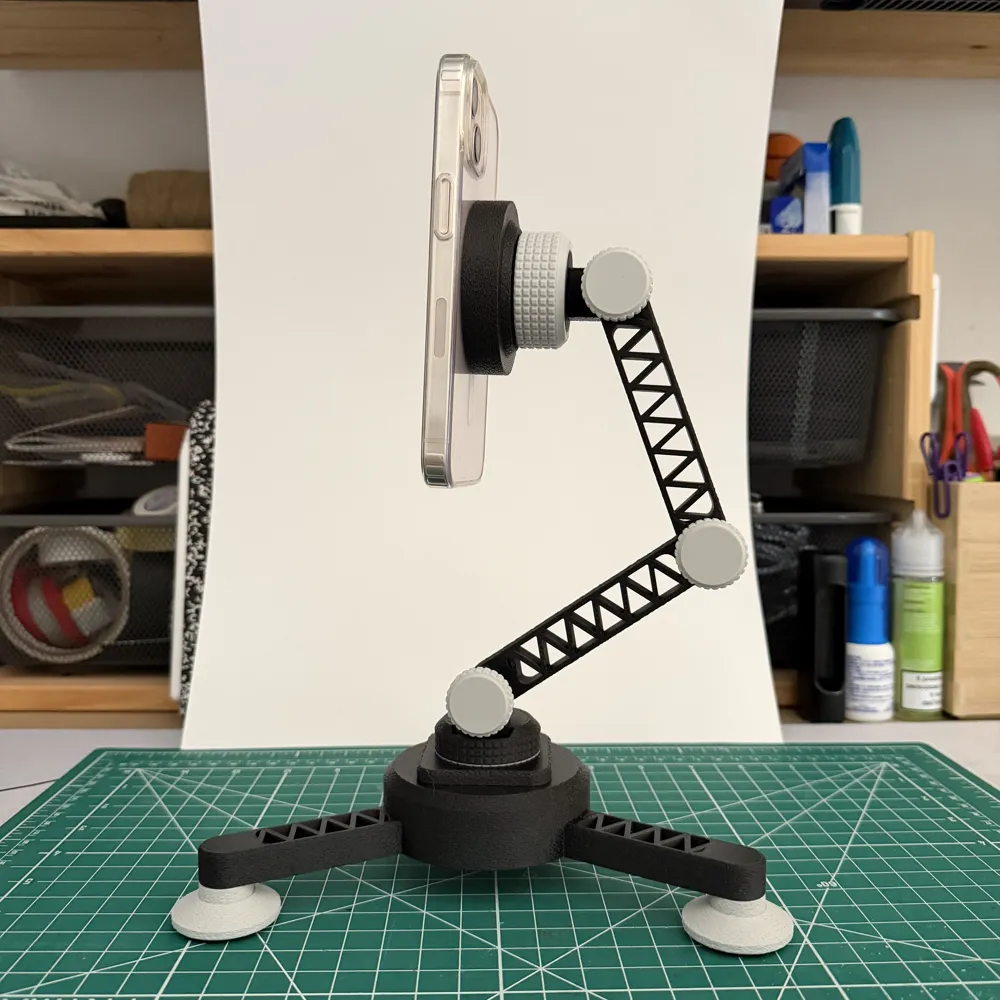

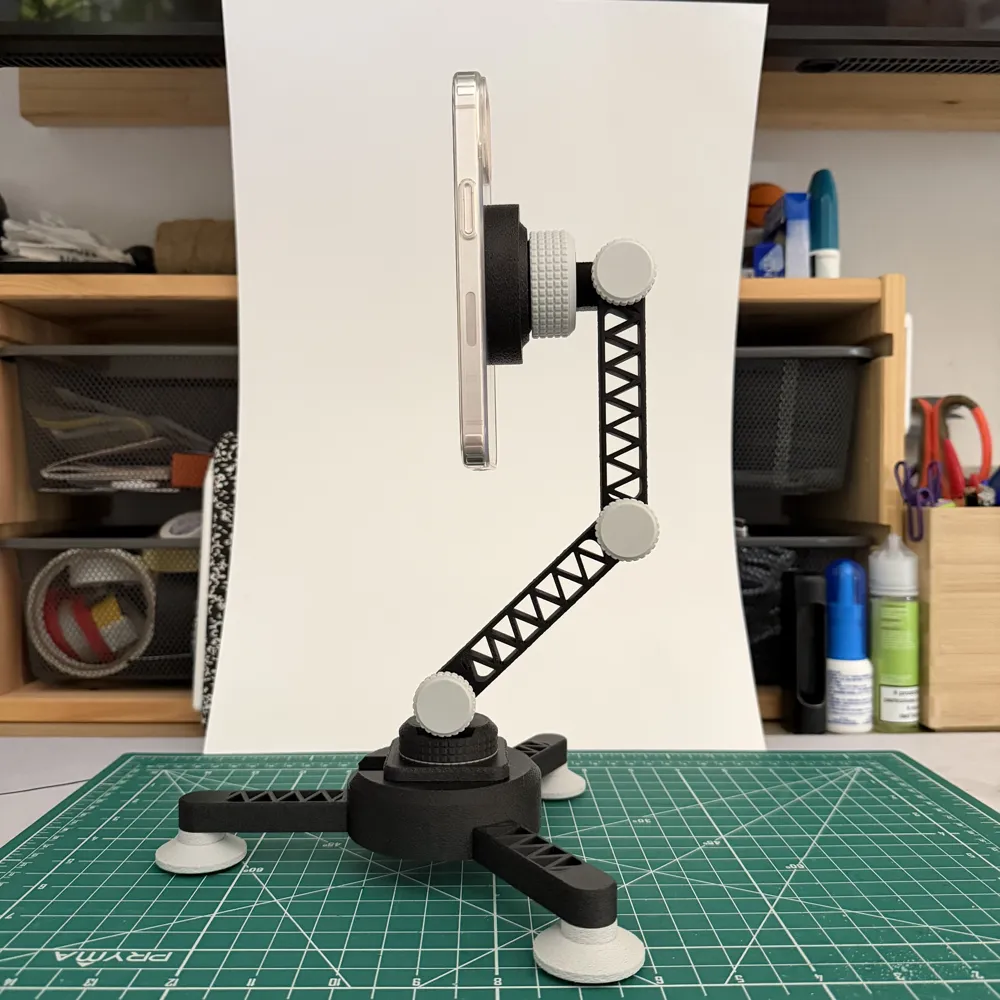

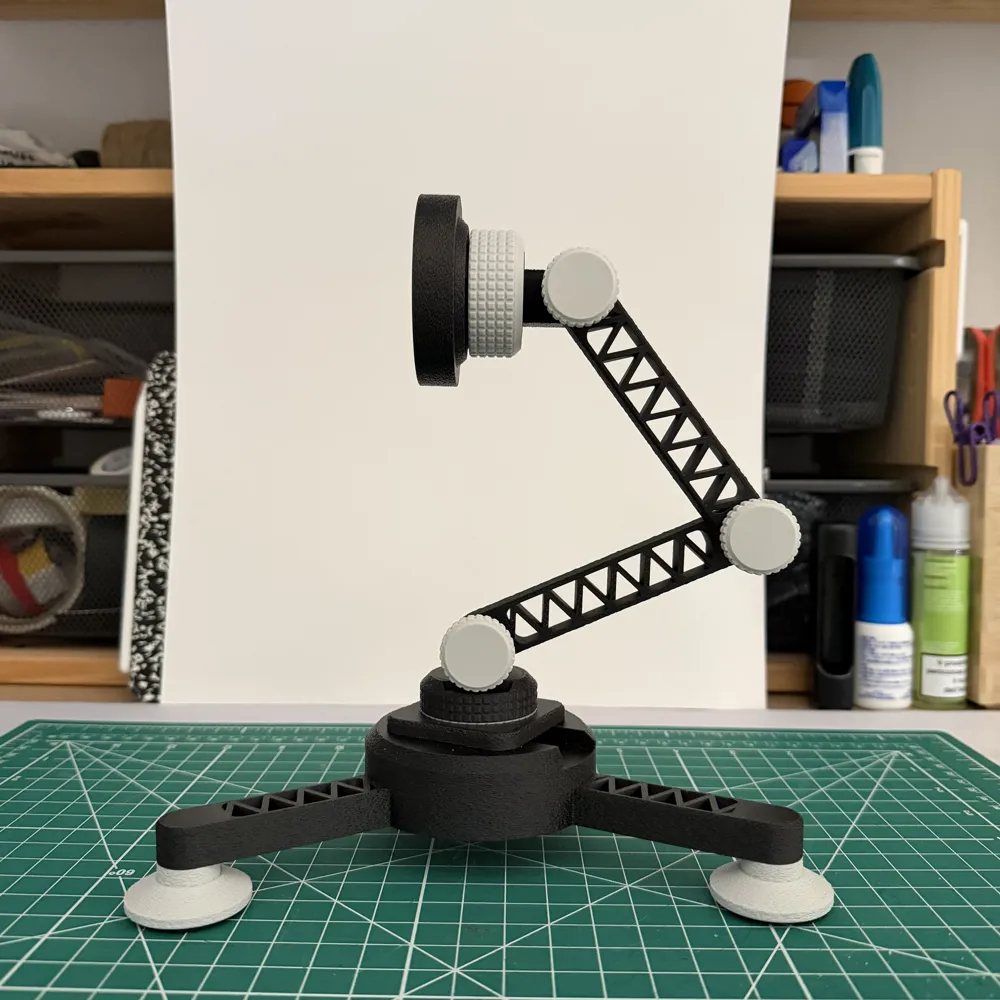

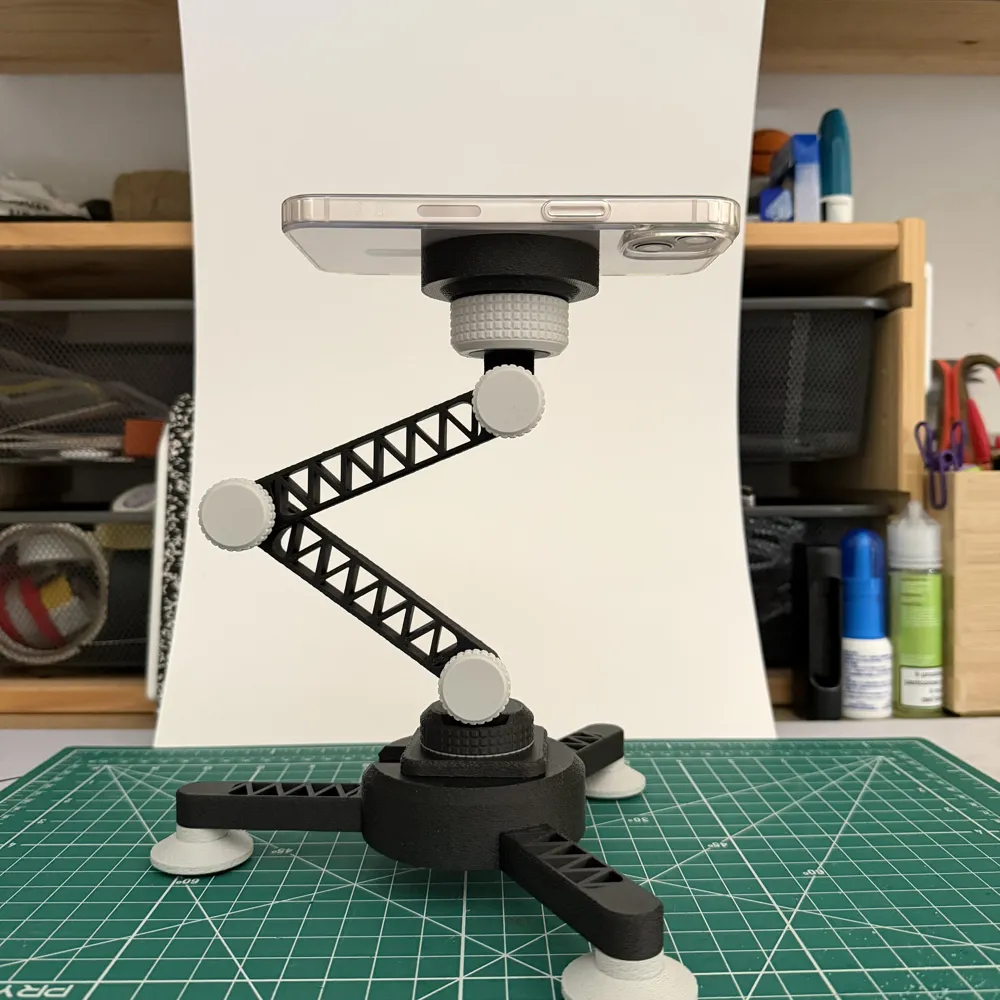

MAGSAFE TRIPOD

I created this remix starting from the excellent model "Phone Holder"(https://makerworld.com/it/models/1188611-phone-holder#profileId-1200013), keeping most of its original structure but introducing some modifications to improve its functionality, stability, and aesthetics.

The main modifications are:

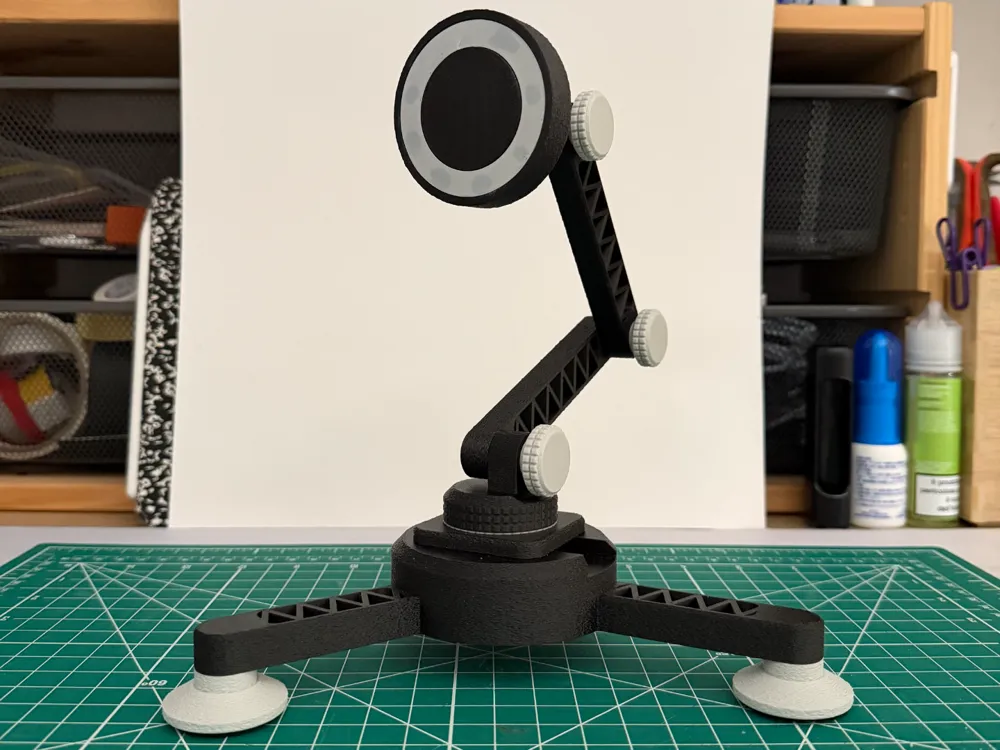

• New attachment head compatible with a MagSafe magnet recovered from a car mount (https://www.amazon.it/dp/B0CR3P1SVL?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1).

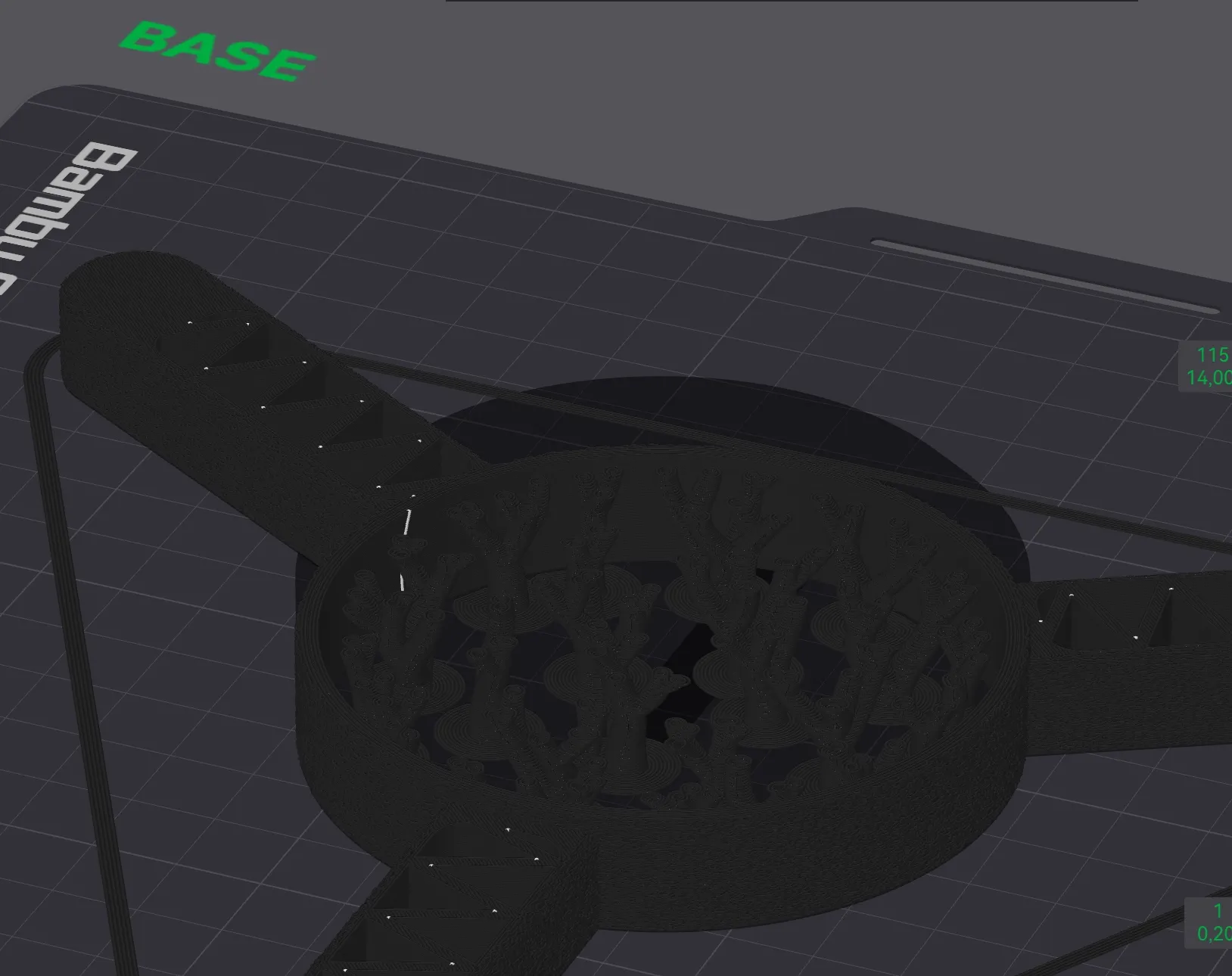

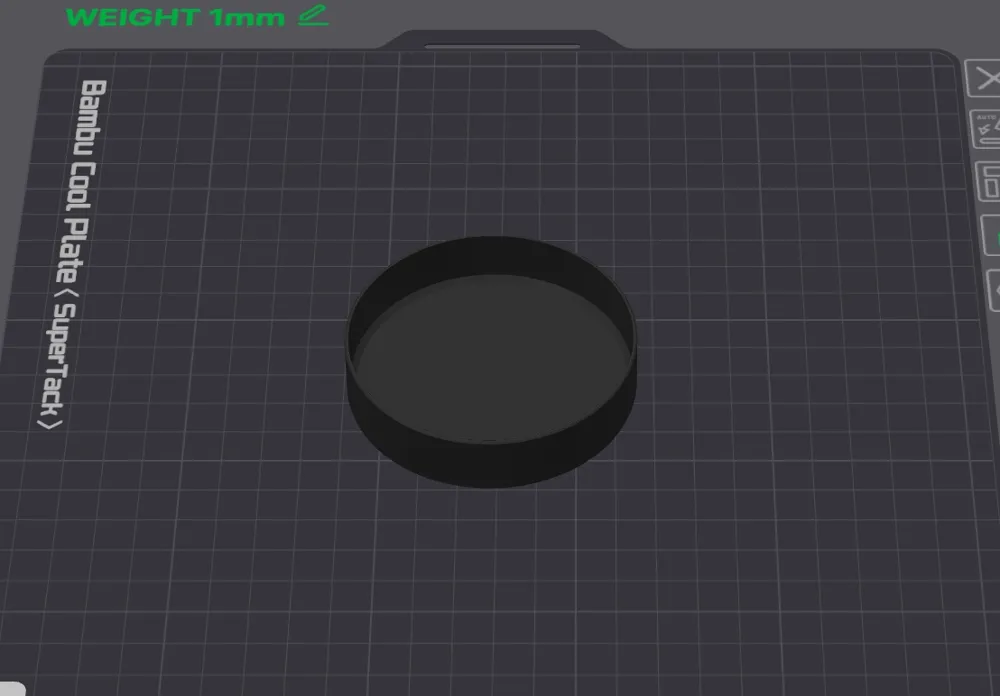

• Redesigned base with a hidden compartment that can be filled with iron filings, sand, screws, or other material to increase its weight. In my case, using iron filings, the base reaches a total weight of approximately 330 g, significantly improving stability. Once the compartment is filled, I sealed it with a simple cyanoacrylate adhesive (https://www.amazon.it/Colla-gel-stampa-50-anti-secchezza/dp/B0CBSGWZRW/ref=sr_1_1_sspa?dib=eyJ2IjoiMSJ9.c_qokZx_TwrJau4UCsrtvu4uM8X2ZYV0UJPSD8KznZa4ovM1PyAgN8AIWLSHssGx5PWeUlT9hiAtu8PgBbEmYLsU8rlG9B2K4eFRGm7vzSAeS_KvyT5cTn9fRlFeTjxSsmouMMIAj9S9rJdfJRggB22GBa_caAAGOILzXmxlBzyRk9WRaVwSxbeVSEEHnQSr5BExeCkHoJ7rn29ZxsiI3rDAyVkvjrhTK2evqvIREwUXpUG4xwUb7pzfHY__h6h3WzRHd-zEOsbL5Pk3c37HjlZWhxYOgg2x8k4SA70Z4g8.zgQNZnGcdurp_Lquyi6ozHphepCZn9F_nDpg5-zhDKI&dib_tag=se&keywords=arka%2B3d%2Bdruck&qid=1784298053&sr=8-1-spons&aref=98yUd9oEif&sp_csd=d2lkZ2V0TmFtZT1zcF9hdGY&th=1) compatible with PETG.
• Dedicated slots in the three feet for inserting non-slip pads (https://www.amazon.it/KEJOL-cuscinetti-antiscivolo-ammortizzazione-antigraffio/dp/B0FMJB9X5S/ref=sr_1_26?__mk_it_IT=ÅMÅŽÕÑ&crid=W30Z1H3TNG2X&dib=eyJ2IjoiMSJ9.Z4ftZ_xmm9uNQ1uUvEkIMo-q-6roCvCaZ0RTCT7wZY54tPVBq0yqV6ipylHbhypmWtgWqZE1FDQuUuvsSkNTPgzuBuc7JSU9LZQi9uNw7IcR0x9ANxi_01mtCVNEiTpsp3LIfmJOe5wVY90Fq7Tnt_6MUcmMN_WldWcIMB0kVXT_tAwlD6J6YZWmSEO0hYsDmHTmpSE9YutY5iXe8urrJA6wvR3Qt71NiFIsSJWXdKgiiZ3Rp015_UmQOfPryhb3q_gAC-PPBBNGzfx4yTlG8xEYdIsn-t9HRrC_OZ3Axuk.ACYAAHtW3WO3QdSwJJ5ndWizta-r0lsb76GJk8TlQXw&dib_tag=se&keywords=foglio%2Bantiscivolo%2B3mm&qid=1784299365&sprefix=foglio%2Bantiscivolo%2B3mm%2Caps%2C127&sr=8-26&th=1).
• Added a TPU gasket between the base and arm to increase joint friction and make the stand more stable during use.

To improve the model's appearance, I applied Fuzzy Skin to various surfaces, achieving a more uniform, pleasant-to-touch finish with a more premium and professional look.

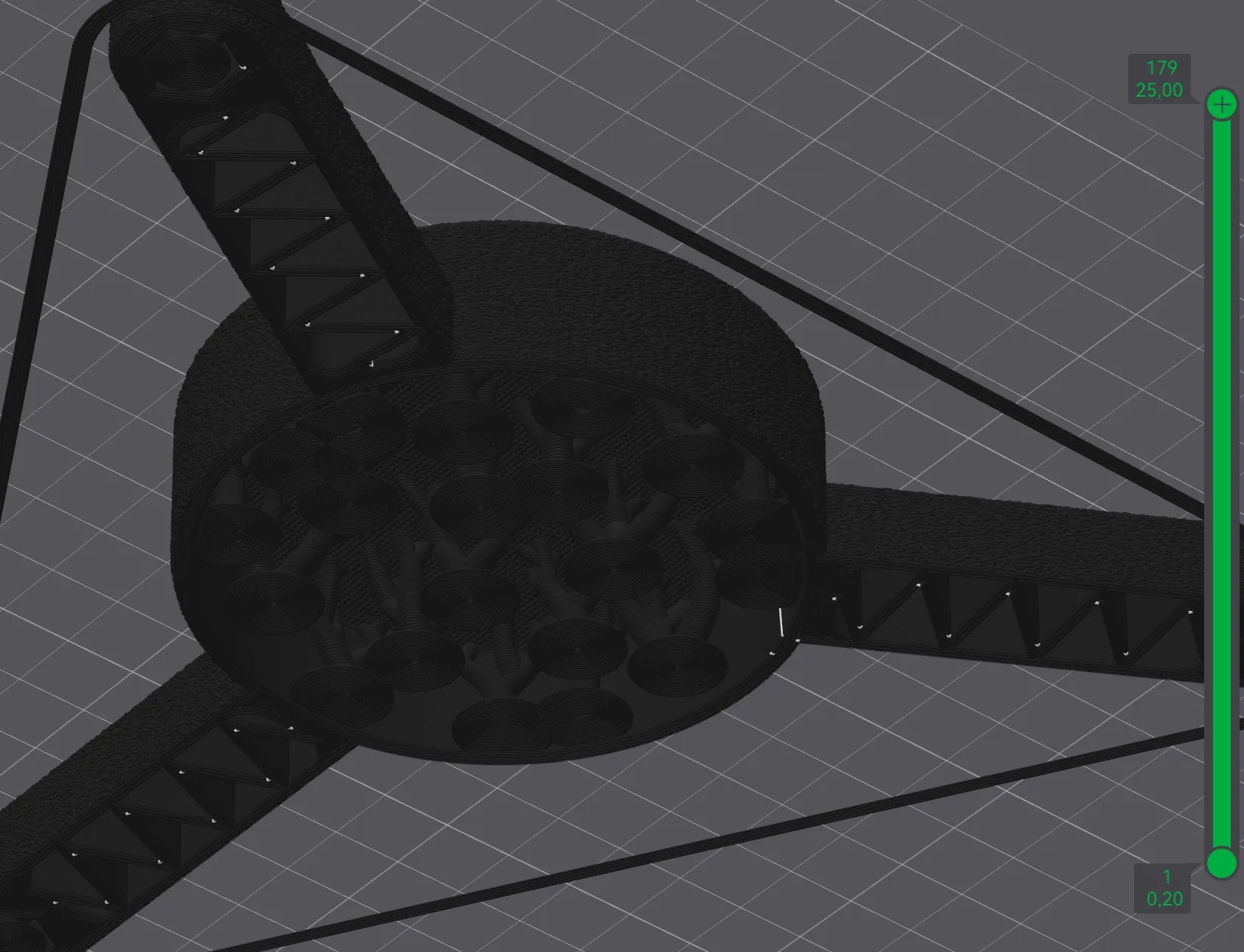

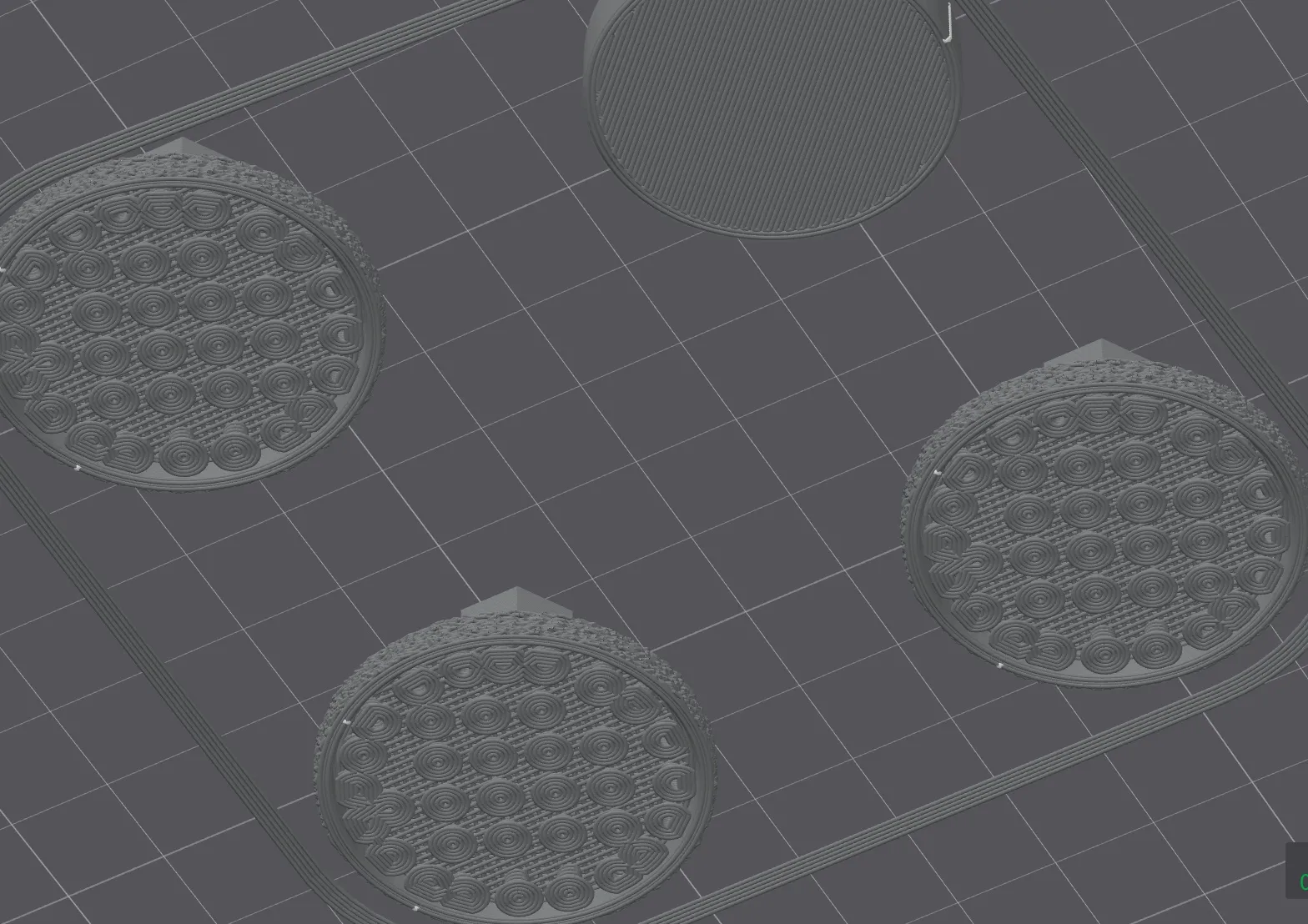

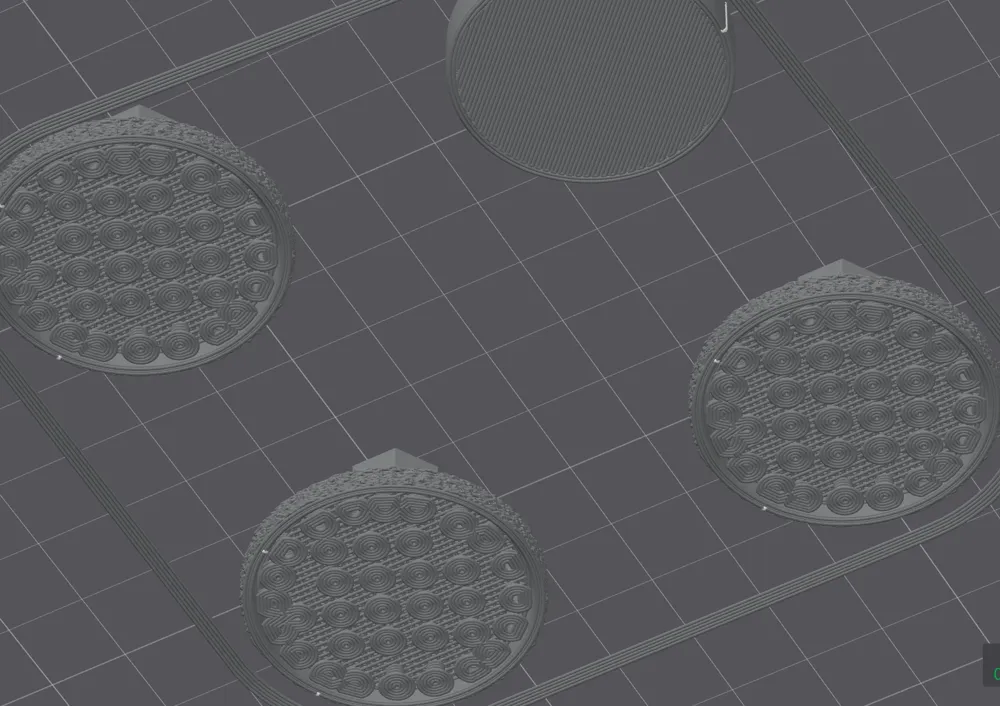

In the 3MF file, you will find all supports already configured where necessary. I always prefer to place them manually to achieve the best possible quality; I also use 3 Top Interface Layers, a configuration that has given me excellent results in terms of supported surface finish.

Note on the MagSafe magnet: from the indicated car mount, only the magnetic ring needs to be used. I removed it from its mount with a Dremel: with a little skill, it's a simple operation that only takes a few minutes. Once inserted in the correct orientation inside the holder's head, it is enclosed by a thin PETG cover, just 0.2 mm thick, to be glued with the same adhesive used for the other parts. Such a reduced thickness does not perceptibly affect the magnetic force. I chose this type of magnet because it offers excellent retention: it is strong enough to keep the phone stable even with a non-MagSafe cover, as long as it's thin (in my case, a cover of about 0.3 mm). Without a cover, or with a MagSafe cover, the attachment is extremely solid.

Materials used:

• PETG-CF for all structural parts.
• TPU for the gasket.

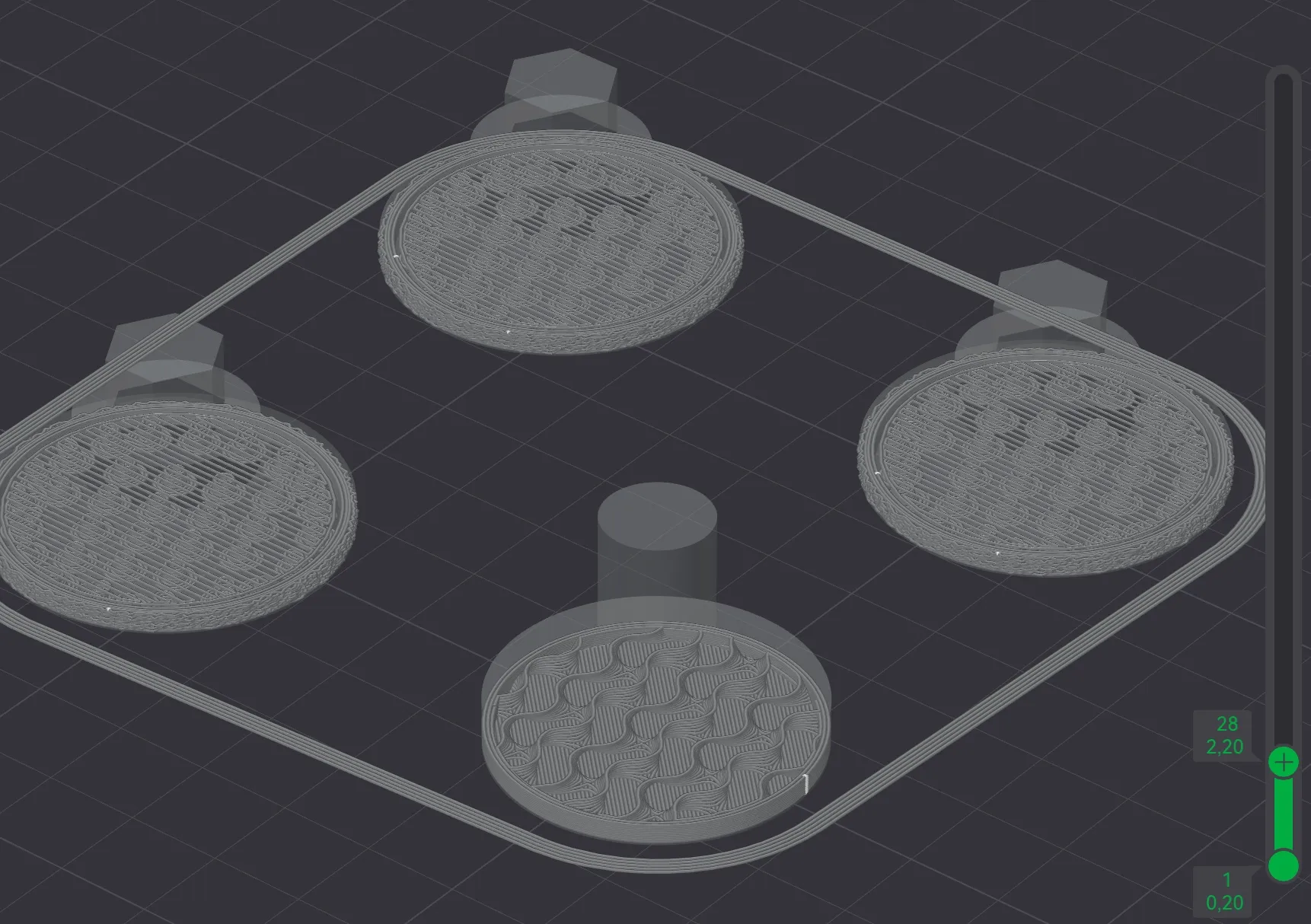

• Standard PETG for the clamping screws.

I hope this remix can also be useful to others. If you have suggestions or ideas for further improvements, let me know!
