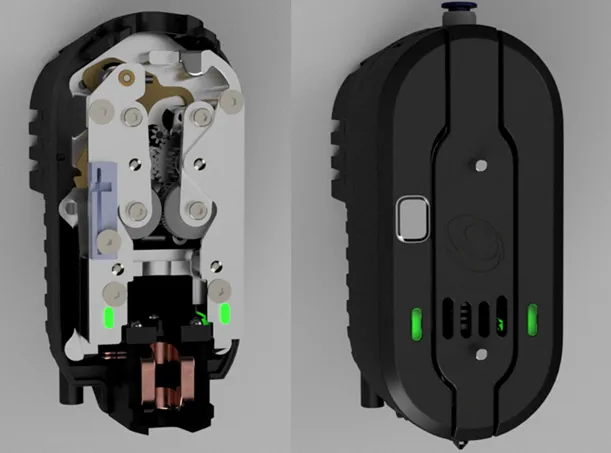

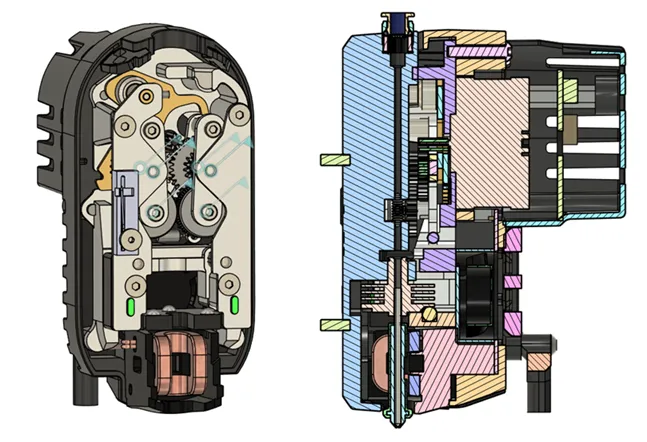

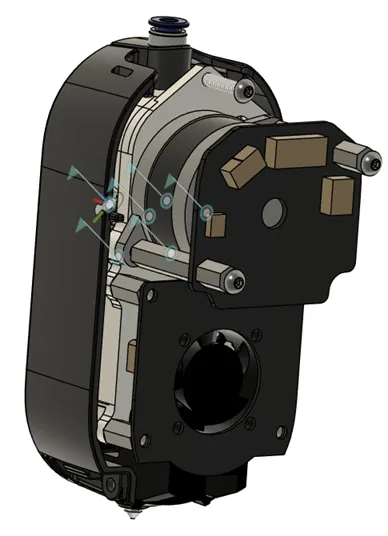

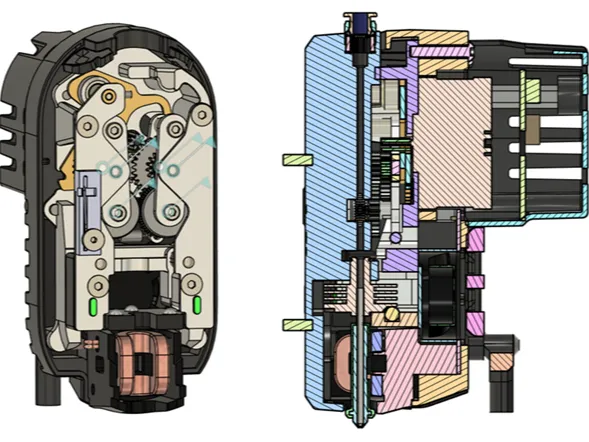

INDX CAD model

reverse engineered CAD from Prusa's printable model with internal geometry. Mirror of my CAD repo available here https://github.com/robertsamples/INDX-CAD

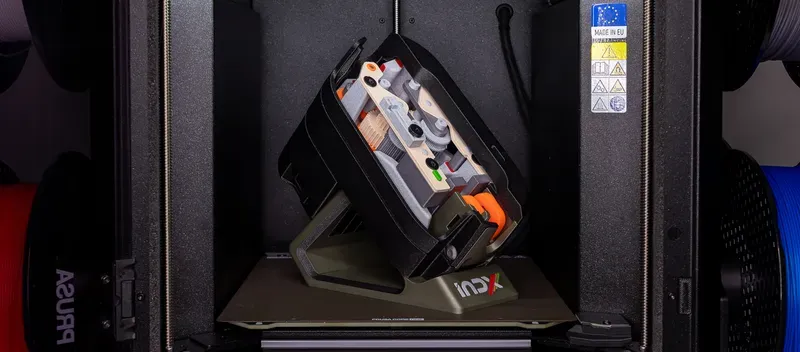

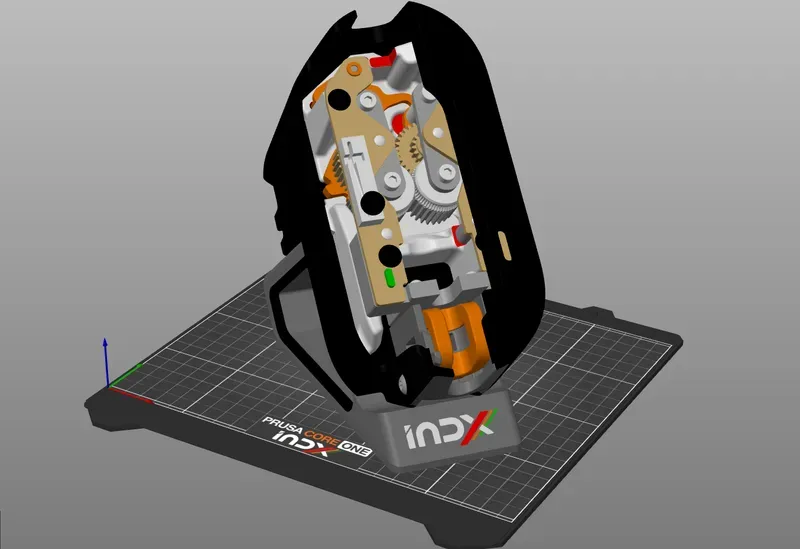

Reverse engineered geometry from Prusa's printable which was licensed under CC BY-SA 4.0 (original 3mf included here for archival purposes- since deleted, see archived version https://web.archive.org/web/20260000000000*/https://www.printables.com/model/1761468-indx-toolhead). Originally uploaded to printables but the original model and remixes were removed. The model uploaded by prusa was meshed well enough for parametric geometry to be extracted for STEP conversion. It should be near complete and somewhat functional in terms of movement when I tried though the gears can be hard to render well and slight modifications were needed  (bushings added).

See also original printables model page PDF for the base model I remixed available including original description for the model, as well as showing the terms under which it was licensed to me.
