Description

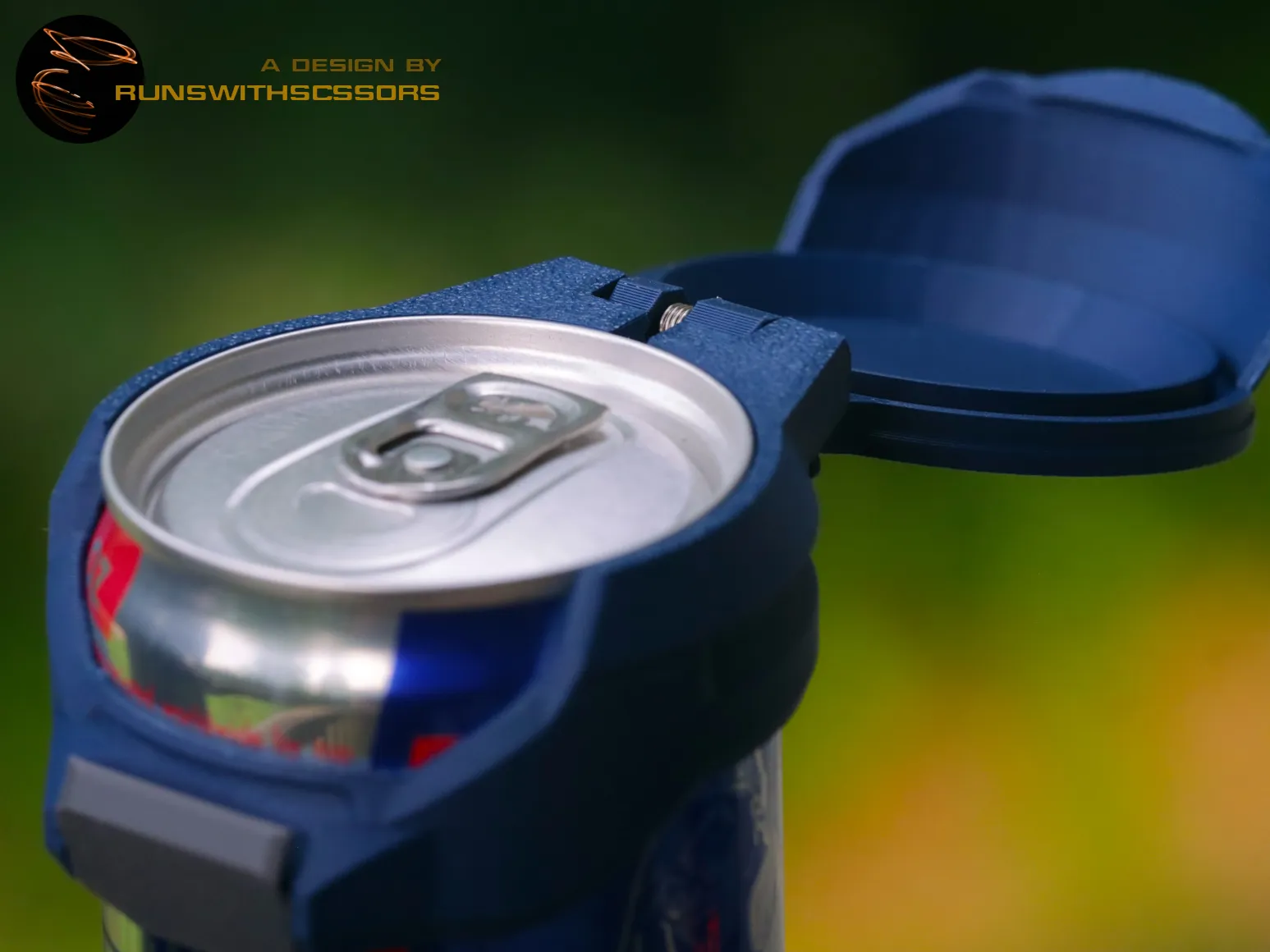

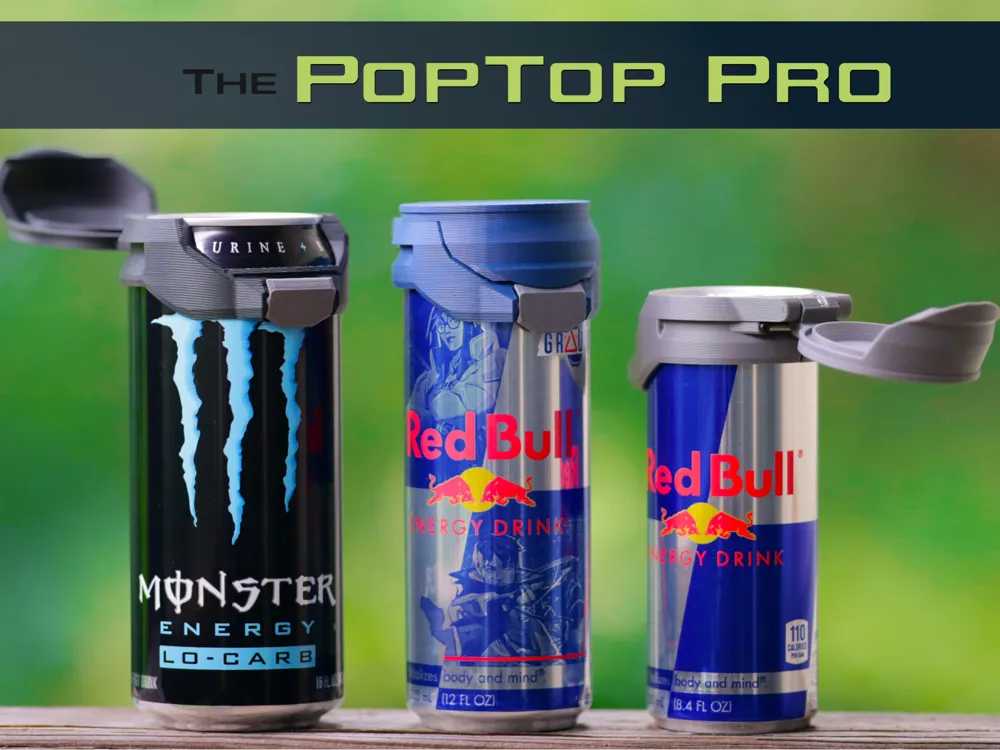

PopTop Pro Series
Say goodbye to rubber bands. The next evolution in drink covers features all-metal hardware. The PopTop Pro series are lightweight, spring-loaded lids for various sizes of aluminum cans and drink coolers. They quickly snap into place on your favorite beverage and are ready to open at the press of a button!
- Close fitting lid keeps bugs, ash, and debris from getting into your drink while you recline by the campfire.
- Lid springs open at the push of a button.
- Custom text and logos can easily be added to the large flat surface of the lid.

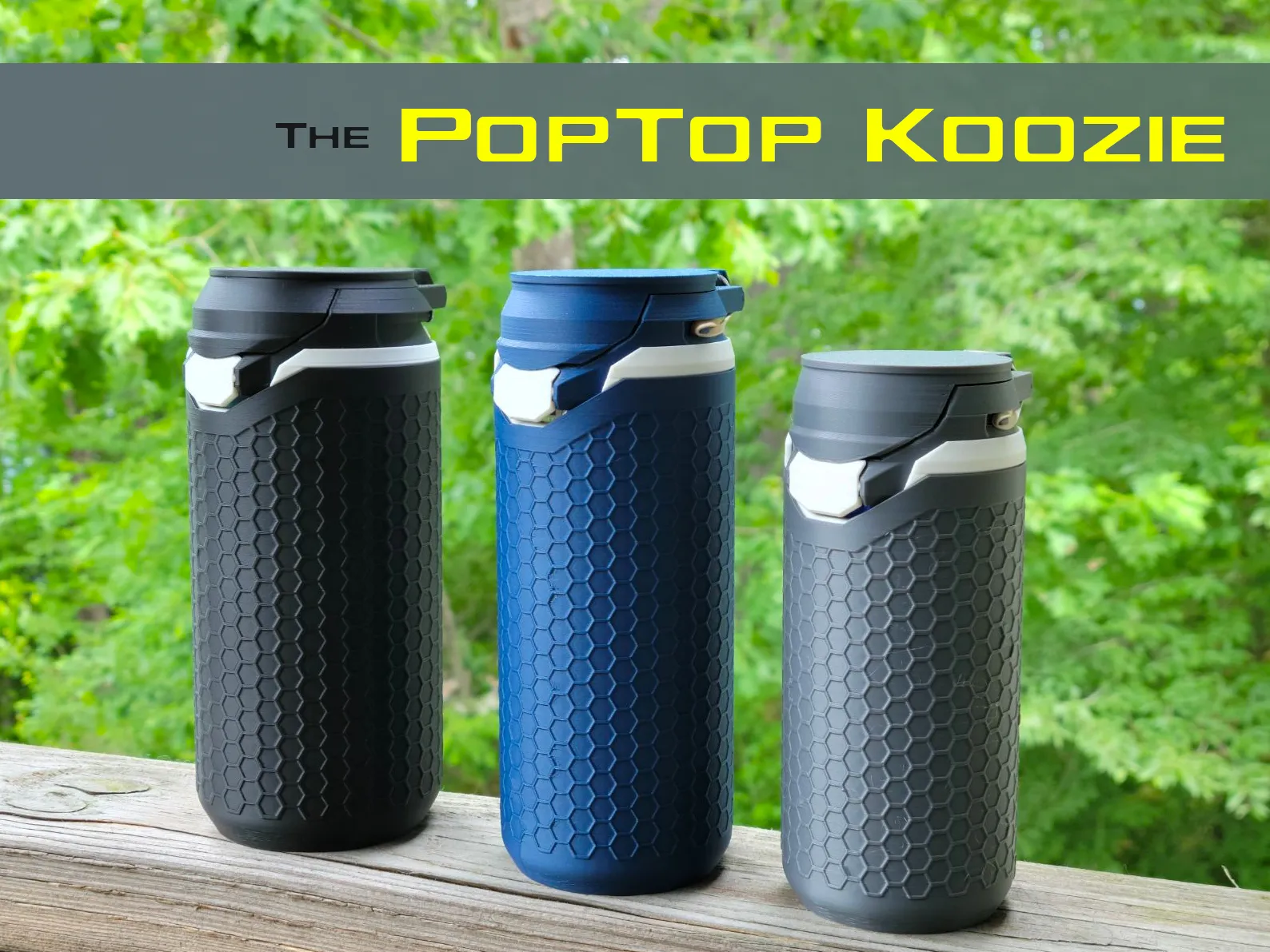

- Compatible with the PopTop Koozie
When your beverage is finished and you wish to remove the PopTop:
- Open the PopTop's lid.
- Use two hands to gently pry open the hinge at the rear of the collar.
- Lift the PopTop off of the can.
Print Profile Sizes
| PopTop Pro Version | Can/Cooler Size | Common Volumes | Such As |
|---|---|---|---|
| Lite | Standard width (Ø2.60" / Ø66mm) | 12oz / 355mL 16oz / 473mL 16.9oz / 500mL 19.2oz / 568mL | Coca-Cola, Monster |
| Slim | Slim width (US) (Ø2.27" / Ø57.6mm) | 7.5oz / 222mL 12oz / 355mL | Celsius, Red Bull |
| Mini | Narrow width (Ø2.09" / Ø53mm) | 8.4oz / 250mL | Red Bull |
| Max | Ultra wide (Ø2.86" / Ø72.6mm) | 22oz / 650mL | Arizona Iced Tea |
| Yeti | Yeti Colster (quarter & full turn) | ||
| Yeti Slim | Yeti Slim Colster | ||
| Buddy | Frost Buddy Universal Buddy |
Printing Tips
- Due to natural variation in filaments and printers, the paddle's press fit into the collar can vary. Some print profiles include two sizes of the paddle. The smaller is marked with a “-” and the larger with a “+”.
- Always clean your build plate with water and mild soap.
- Supports must be enabled - The collar and lid are designed to be printed with supports.
- Layer Heights - The collar and lid are printed at 0.2mm layer heights, while the paddle/button must be printed at 0.12mm.
- No Brims - Brims are not required for any components.
- Recommended Material - PLA Basic, PLA Matte, PLA Silk, ABS-GF, and PETG filaments have all been tested successfully.
Membership
Commercial Licensing for the PopTop series is available for members.
Boost Me (for free)
The PopTop series has been a challenging and fun design task. With dozens of revisions and multiple rounds of third-party Beta testing, the designs are something that I am quite proud of. If you would like to show your appreciation for my work and would like to see more, please consider giving me a Boost!
Revision History
2026-7-16 v1.0 Released.
