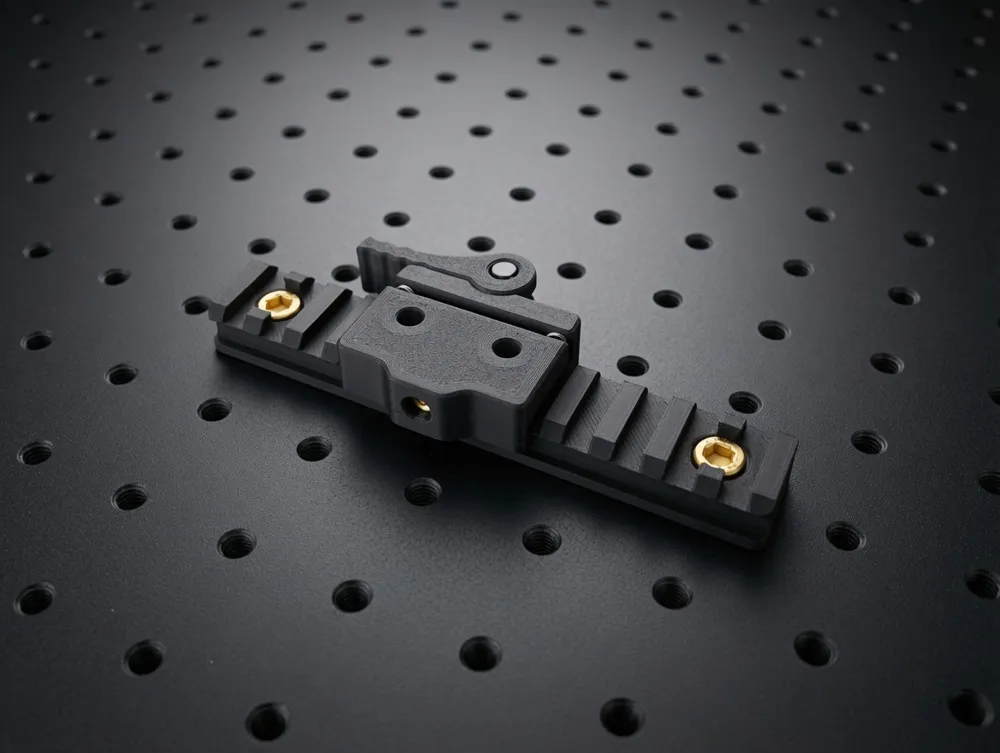

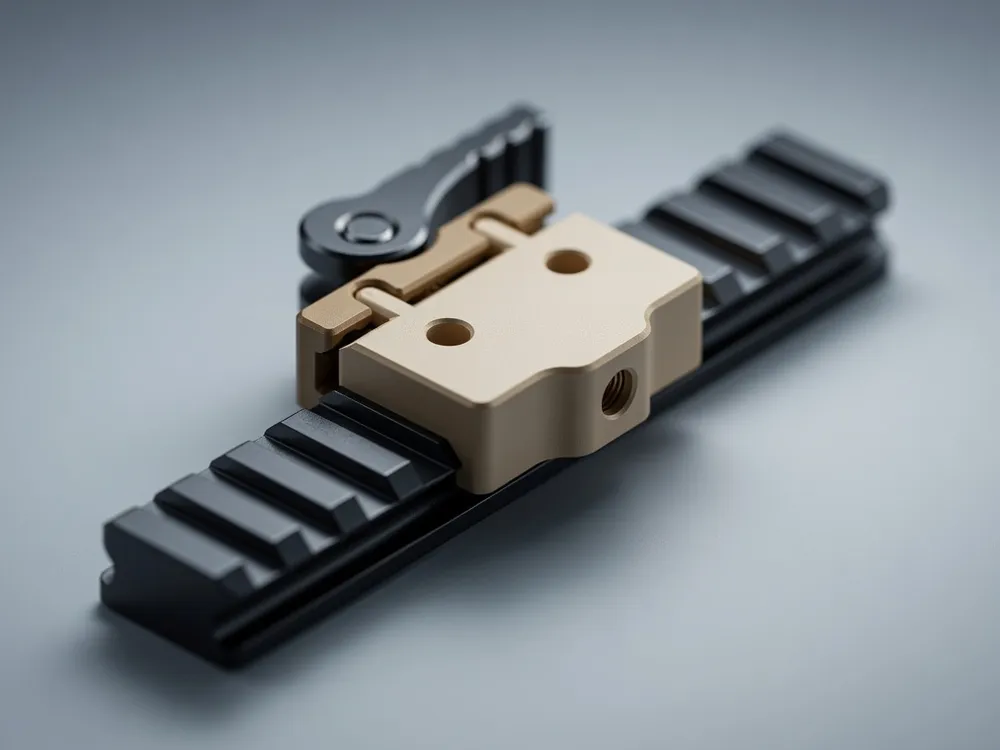

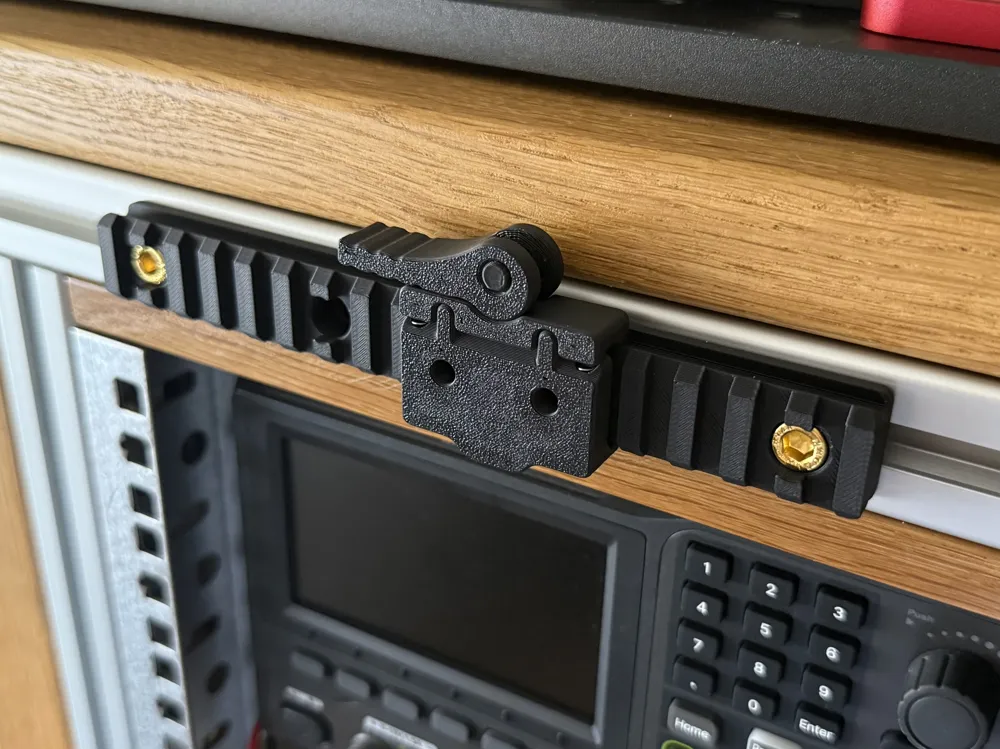

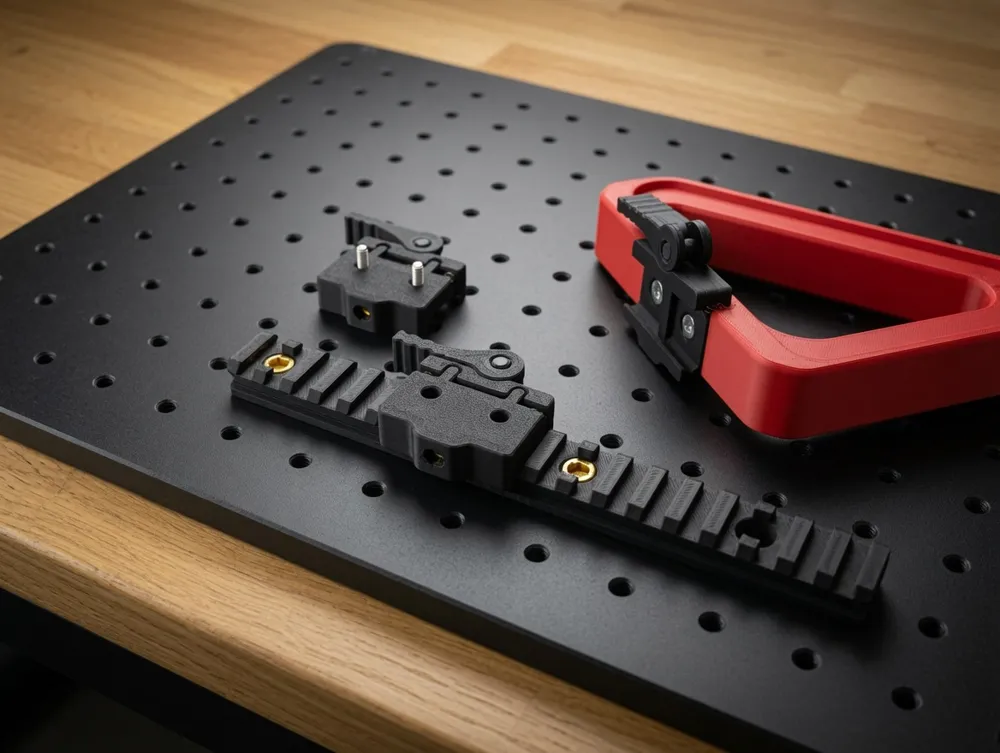

NATO rail clamp (spring loaded)
Print Profile(1)
Description
NATO rail clamp - spring loaded!
Hardware required:
- 1x M3x35mm socket head screw
- 2x 304 stainless steel spring (0.4 x 4 x 30mm)
Assembly:

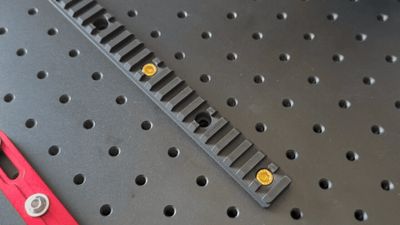

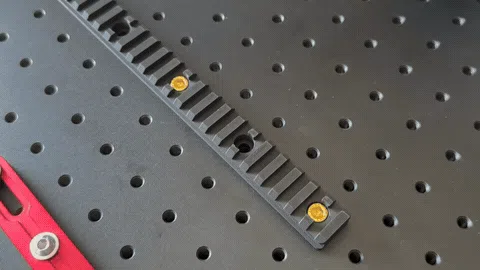

Perfect in combination with my NATO rails!
Following the official STANAG 4694 specification.
Fully compatible with the picatinny rail (MIL-STD-1913) standard.
I had a lot of those specific springs laying around because they are the same used in the mechanism mount.

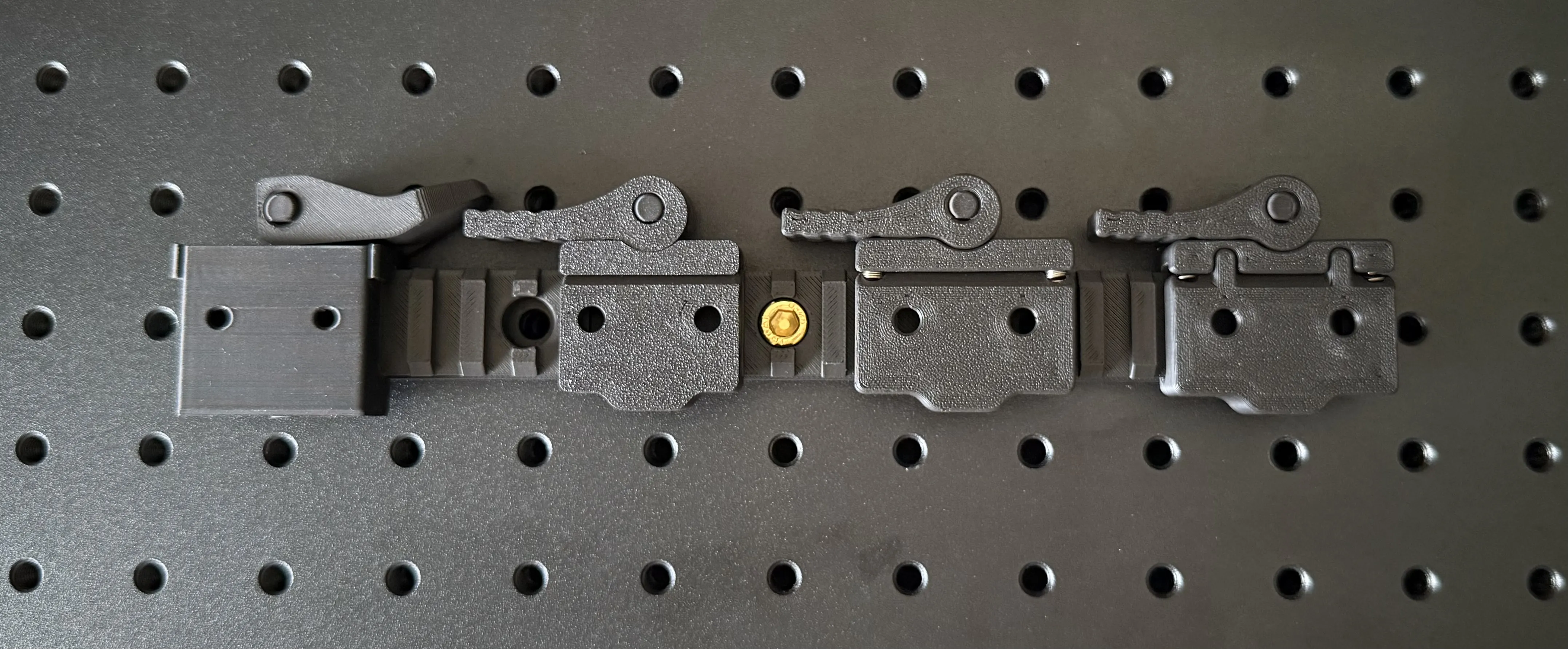

Multiple iterations led to the final design:
