Customizable 3D Layered Text - All Connected

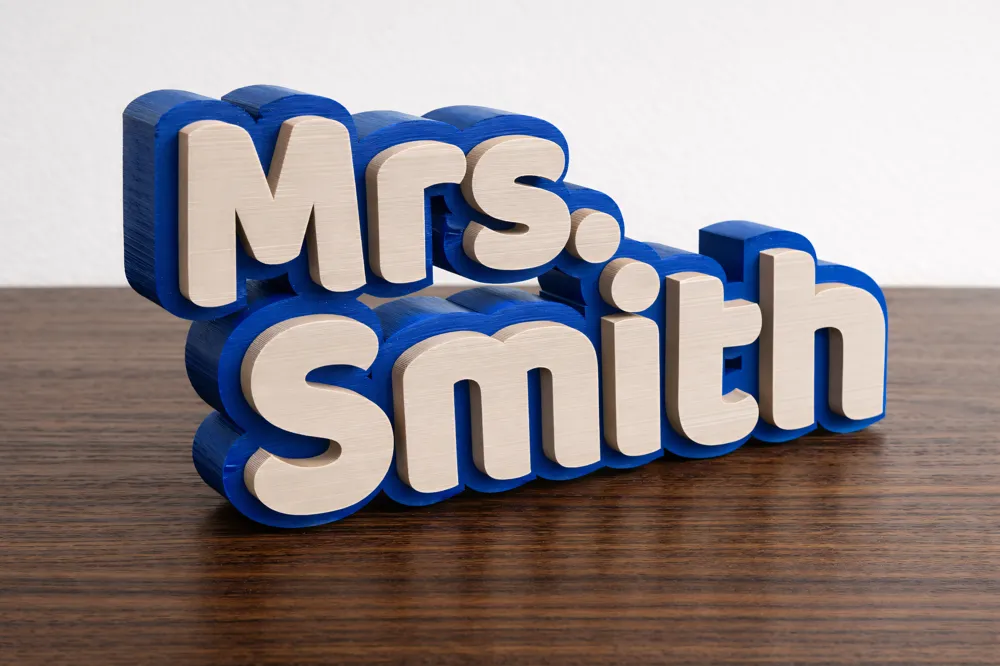

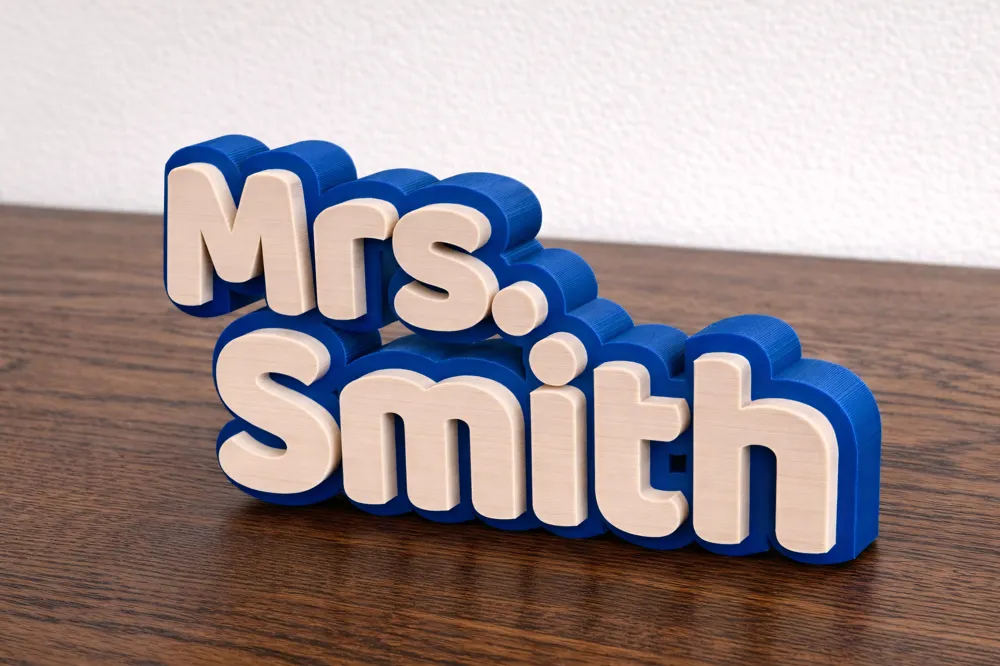

🔧 All Linked 2‑Line Customizable Name Plate — Clean, Connected, Two‑Layer Design

This model is a fully parametric two‑line linked name plate generator featuring bold connected lettering, unified background layers, and a crisp multi‑color workflow. Every component - background extrusion, main text layers, and optional underline logic - is generated through a synchronized parametric architecture. Adjust any parameter and the entire model updates instantly with clean geometry and reliable printability.

🛠️ What You Can Customize

✏️ Two Independent Text Lines

• Line 1: Main name
• Line 2: Secondary text

Both lines support full font control, spacing, offsets, and height adjustments. Compatible with 8000+ system fonts, including bold, rounded, script, serif, and decorative styles.

🧱 Linked Background Layers

Each text line includes a background layer:

• Adjustable background depth
• Adjustable background thickness
• Smooth offset logic for clean outlines
• Unified background color for a cohesive look

The background is extruded behind the text to create a strong, connected base.

📏 Precise Positioning & Spacing

• Independent X‑offsets for each line
• Adjustable spacing between lines
• Dynamic Y‑positioning based on text height
• Auto‑calculated underline width (if enabled)

Everything stays perfectly centered and aligned.

➖ Underline Capsule (Optional)

If enabled, the underline uses a capsule shape for smooth curves:

• Auto‑width based on combined text length
• Extra length adjustment
• Thickness control
• Spacing between text and underline
• Independent underline color
• Background underline layer for multi‑color printing

⚙️ Automated Parametric Structure

The generator uses a fully modular architecture:

• Background layers extruded first for structural support
• Text layers extruded above with clean offsets
• Underline capsule generated using auto‑width logic
• All spacing and offsets calculated automatically
• Colors applied per‑layer for clean multi‑color prints

This ensures perfect alignment, no floating geometry, and no manual tweaking.

🖨️💡 Printing Tips

• 🧵 Material: PLA, PETG, Matte PLA
• 🧱Support‑Free: All geometry is designed to print cleanly without supports
• ✨Ironing Recommended: Apply ironing on the top text layer for a smooth, premium finish
• 🧱Infill: 10–20% Gyroid or Cubic
• 🧱Walls: 2–3 perimeters

🎨 Color Swap (Manual Multicolor)

If you don’t have an AMS, this model prints perfectly with manual filament swaps. Add pauses at every layer where a color layer ends. Each time the printer pauses, change filament and resume printing for clean, sharp transitions.

🅰️ Font Preview Guidance

MakerWorld currently does not provide a built‑in visual catalog of its available fonts. A reliable way to preview styles is through Google Fonts, where most typefaces closely match those offered in MakerWorld. Browsing there allows you to quickly compare letterforms, weights, and spacing, making it easy to identify a visually similar font for your customization.
