E3D V6 Volcano
Print Profile(1)
Description

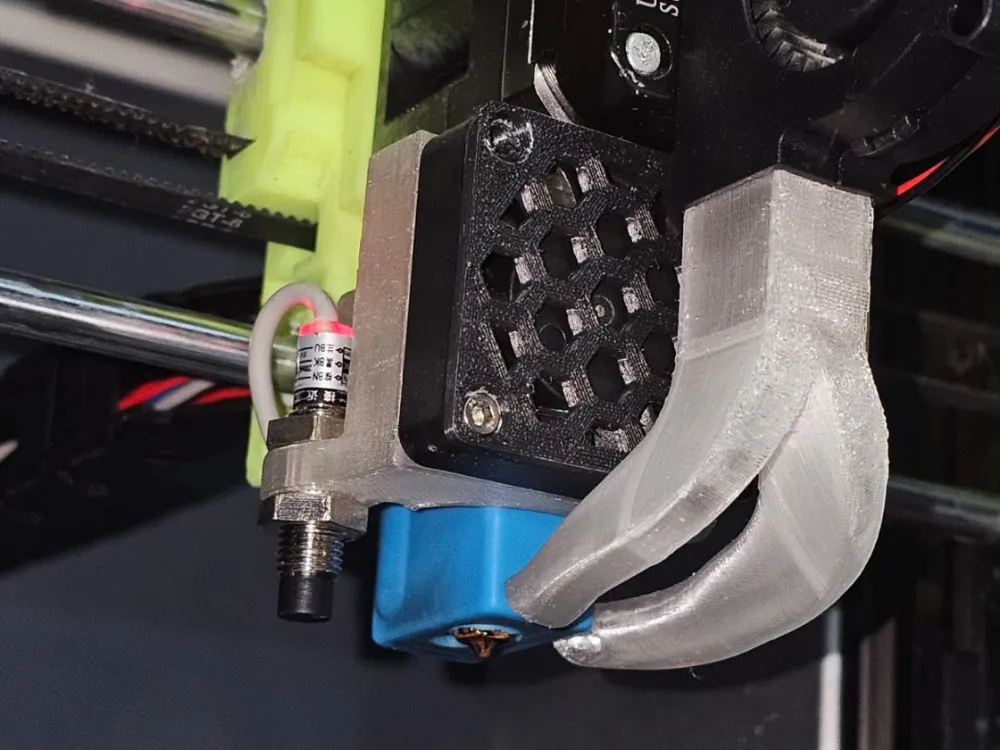

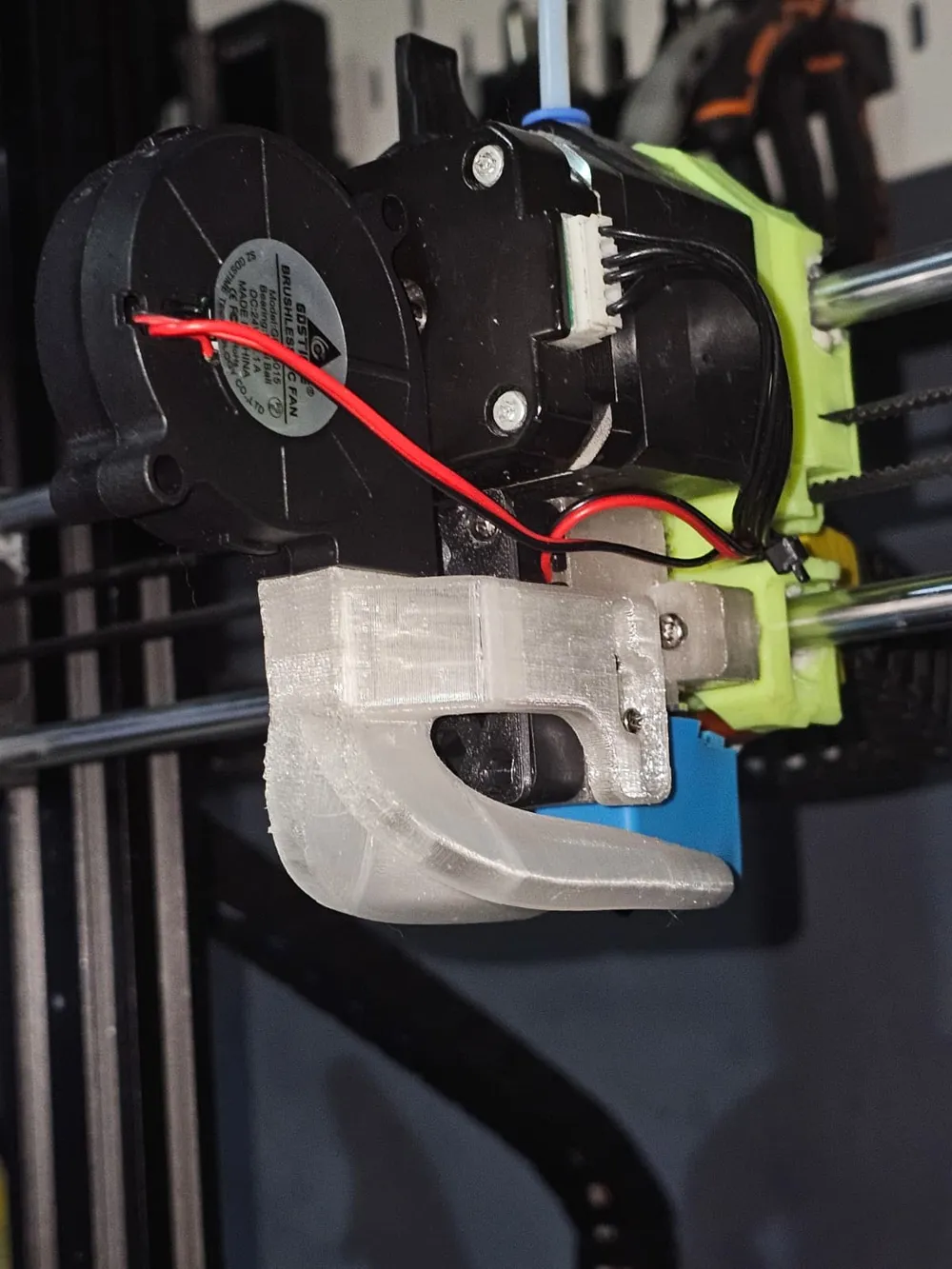

This adapter is designed for the standard E3D V6 Volcano hotend. It features a 27 mm tall mounting collar that clamps around the heatsink and is designed to use a 40×40×10 mm (4010) hotend cooling fan. It also includes a mounting interface for a 5015 blower fan used for part cooling.

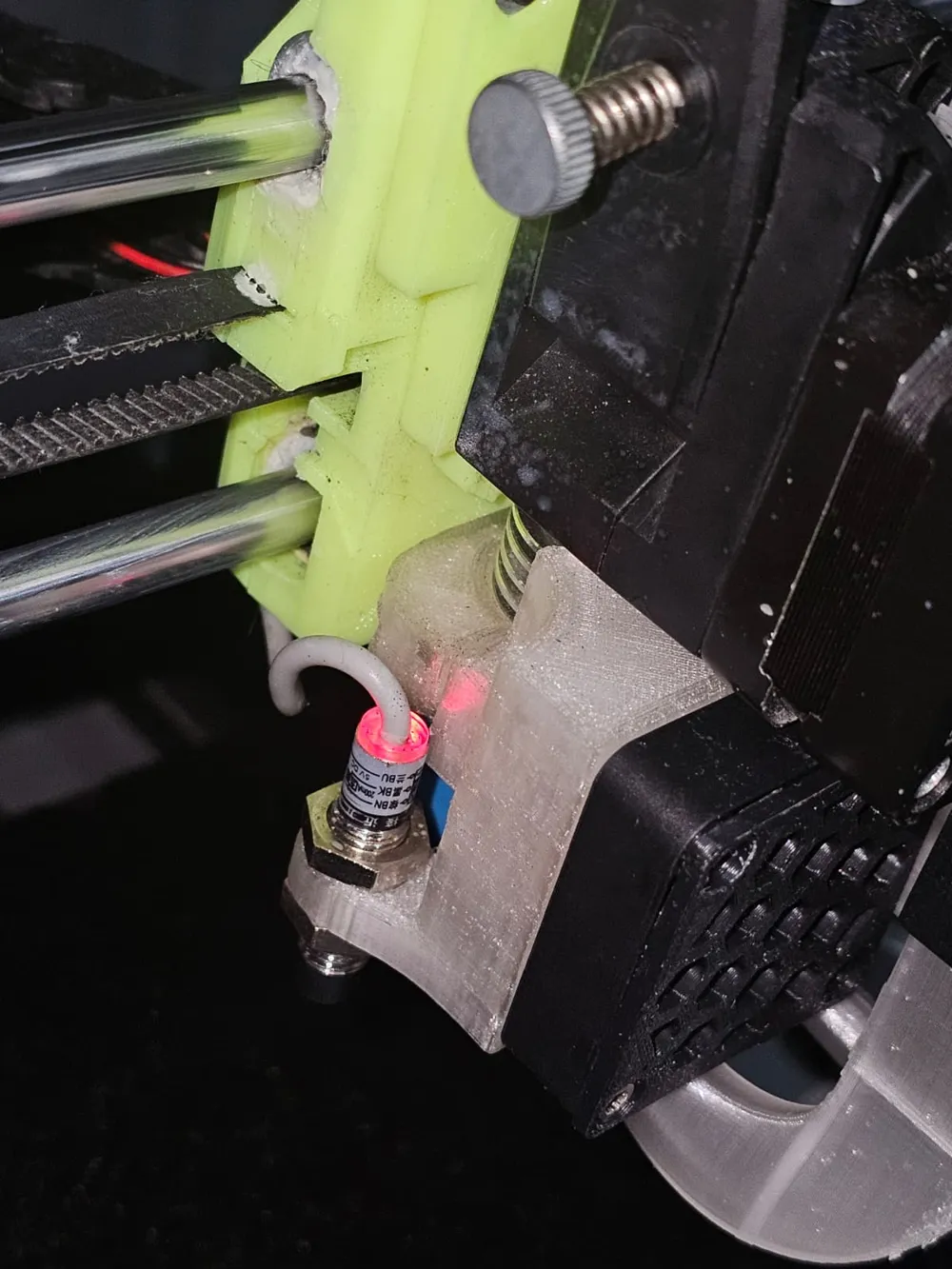

Additionally, the adapter features an integrated mount for an 8 mm magnetic probe with an X offset of -25 mm and a Y offset of 0 mm.
Specifications:
- Compatible with standard E3D V6 / Volcano heatsinks
- Nominal heatsink diameter: 25 mm
- Designed fit diameter: 24.5 mm
- Mounting collar height: 27 mm
- Hotend cooling fan: 4010 (40×40×10 mm)
- Part cooling fan: 5015 blower
- Magnetic probe diameter: 8 mm
- Probe offset: X -25 mm, Y 0 mm
Hardware Note:
- The screws shown in the photos are simply spare hardware I had available.
- All printed screw holes are designed for self-tapping screws, which cut their own threads into the printed parts.
- The brace is assembled using M3 screws and M3 nuts.
