Description

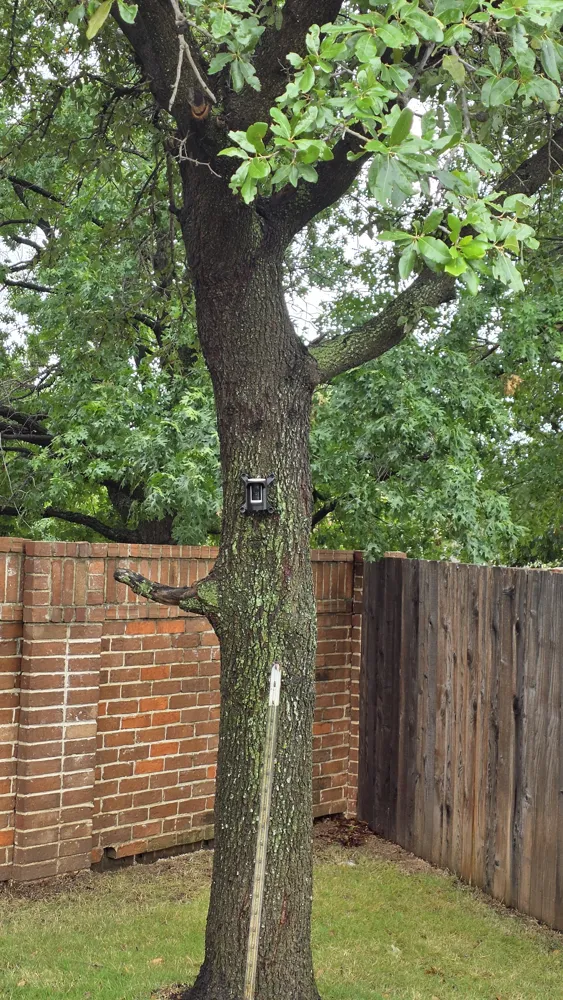

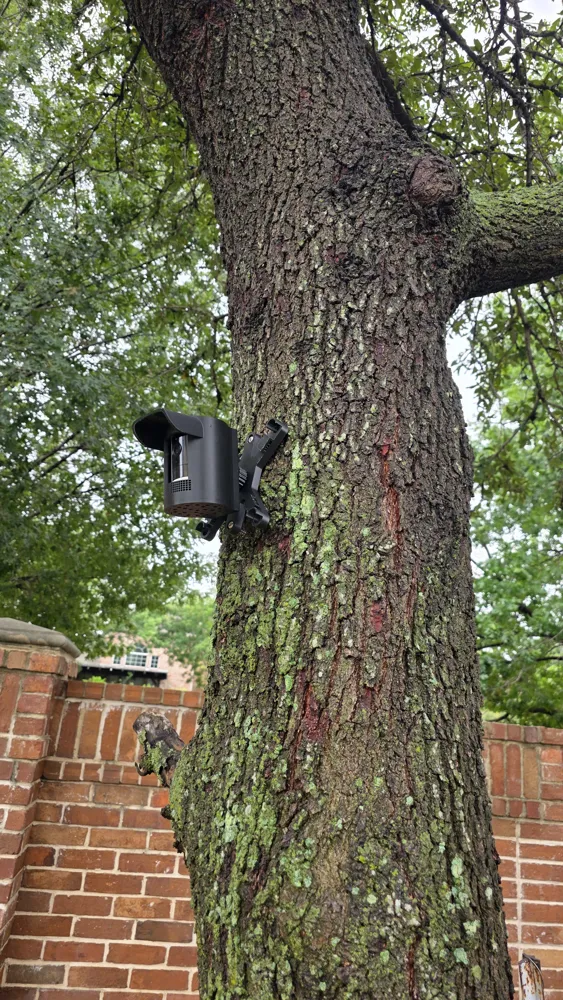

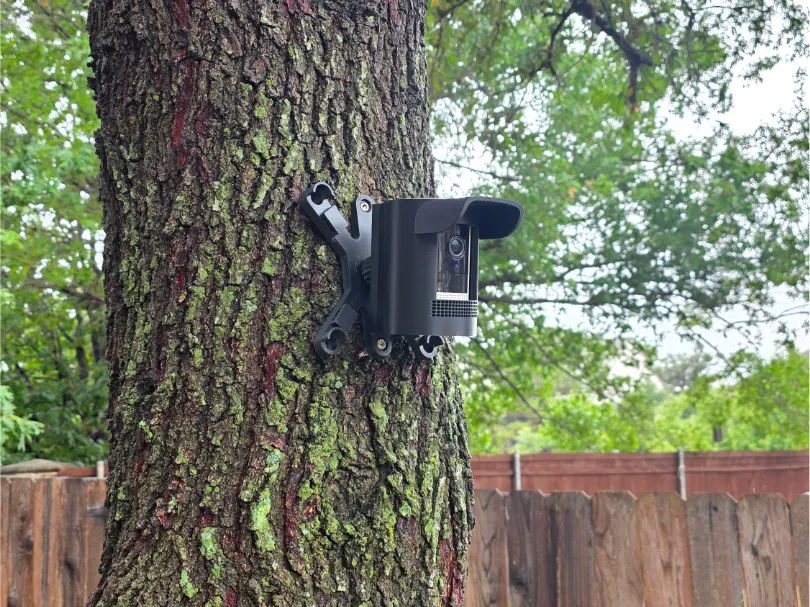

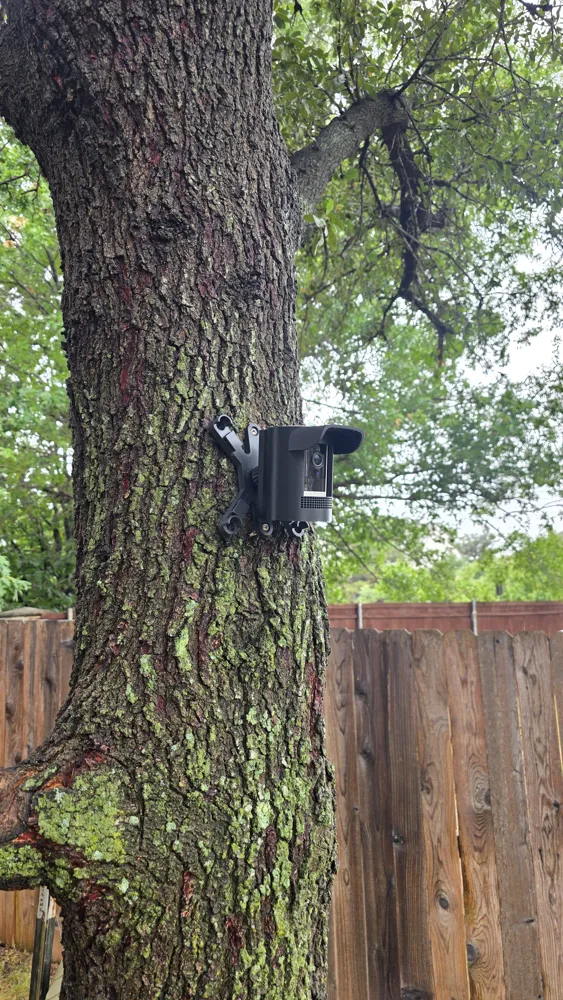

Upgrade your outdoor security with this heavy-duty, versatile tree mount designed specifically for outdoor smart cameras. Whether you need to monitor your backyard, driveway, or property perimeter, this design gives you a rugged, professional solution that blends seamlessly into nature.
Boost Me (for free)
If this mount saves your camera (or your trees), throw it a Boost! A lot of time went into prototyping, fitting, and integrating the weather shield to make sure this thing actually performs outdoors. Dropping a Boost helps support future functional designs, prototyping materials, and other upgrades for the community. Thank you so much for the support!
Key Features
- Dual Mounting Options: Secure it your way! Features 6 screw holes for rock-solid permanent mounting, or built-in slots for straps/heavy-duty zip-ties if you want a tree-safe installation that won't damage live bark.

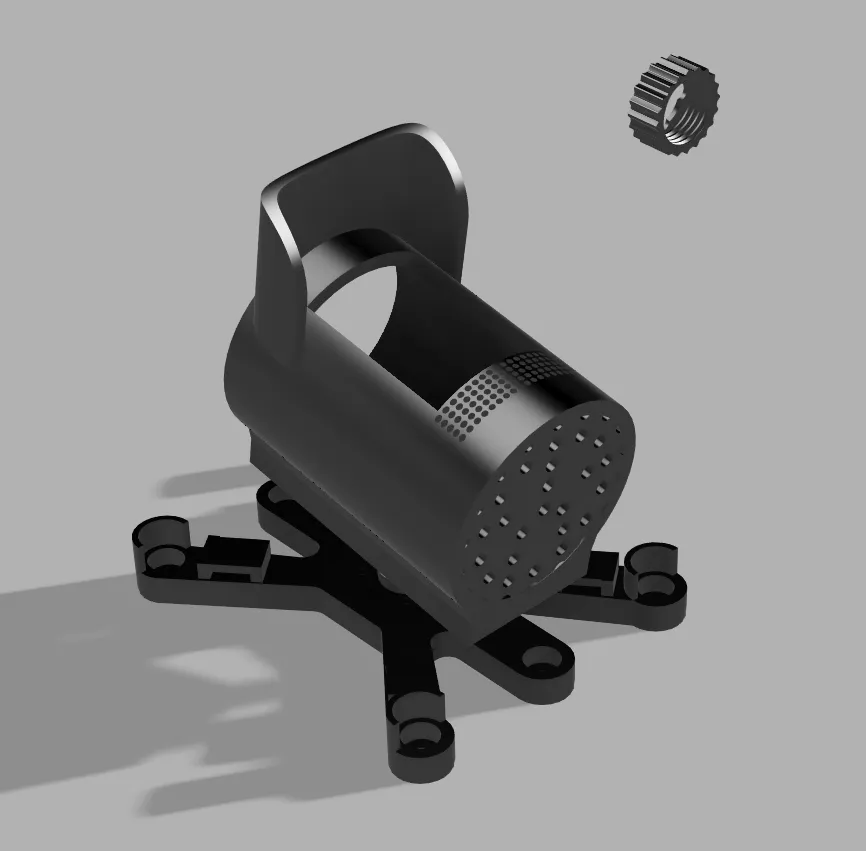

- Full Ball Joint Movement: Don't get stuck with a rigid view. The integrated ball joint system allows you to effortlessly tilt, swivel, and lock your camera at the perfect angle. (Tested)
- Integrated Weather Hood: The built-in sun and rain shield keeps harsh sunlight glare off your lens and protects the camera face from downpours. (Tested)
- Rain Drain: If water ever does get into the camera area there is holes at the bottom so water does not flood your camera (Tested)
Recommended Print Settings & Materials
⚠️ Important: Because this mount lives outdoors and supports an expensive camera, do not print this in standard PLA, as it will warp and melt in the summer sun.
- ASA (Highly Recommended): The absolute best choice for outdoor utility prints. It offers incredible UV resistance and handles extreme summer heat without deforming.
- PETG (Great Alternative): Very easy to print, highly durable, and has excellent weather/heat resistance compared to PLA.
- ABS: Strong and highly heat-resistant, though it requires a heated enclosure to print reliably without warping.
- Infill: 25%–35% (Gyroid recommended for structural strength).
- Walls/Perimeters: 4–5 walls to ensure the screw holes and strap loops are completely solid.
⚠️ Ball Joint screw cap may wear down over time if not printed with high filament levels!
Credits to CP - 正大美国 for his Ball and Socket Joint model linked here:
https://makerworld.com/en/models/1344690-ball-and-socket-joint-locking-heavy-duty#profileId-1386004
