Clothes rail support
Print Profile(1)
Description

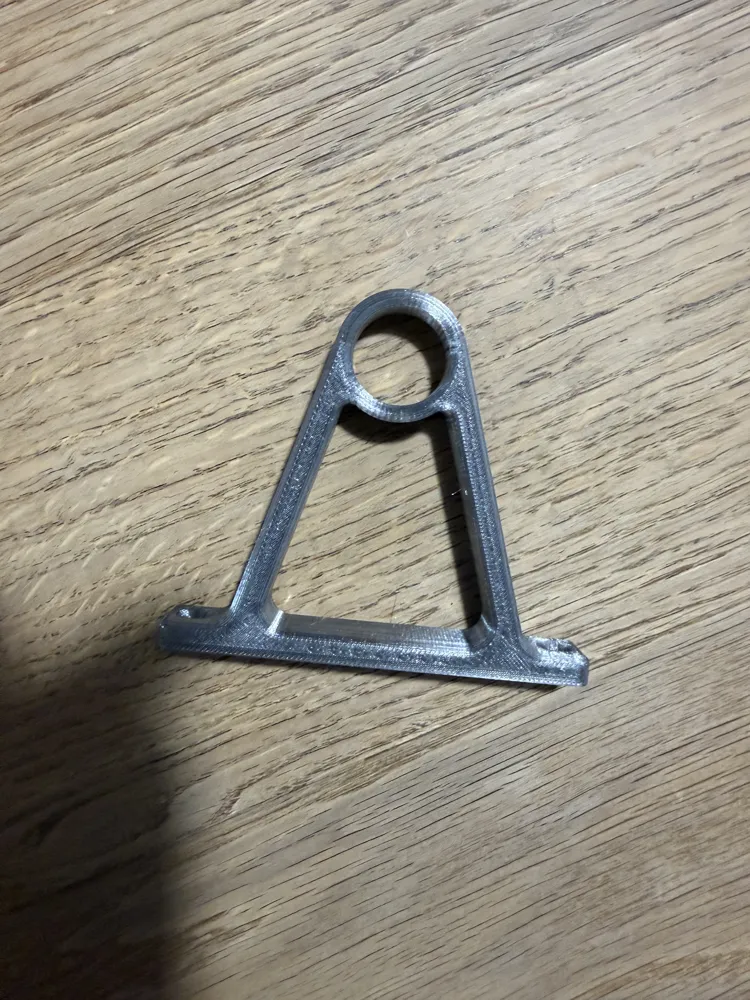

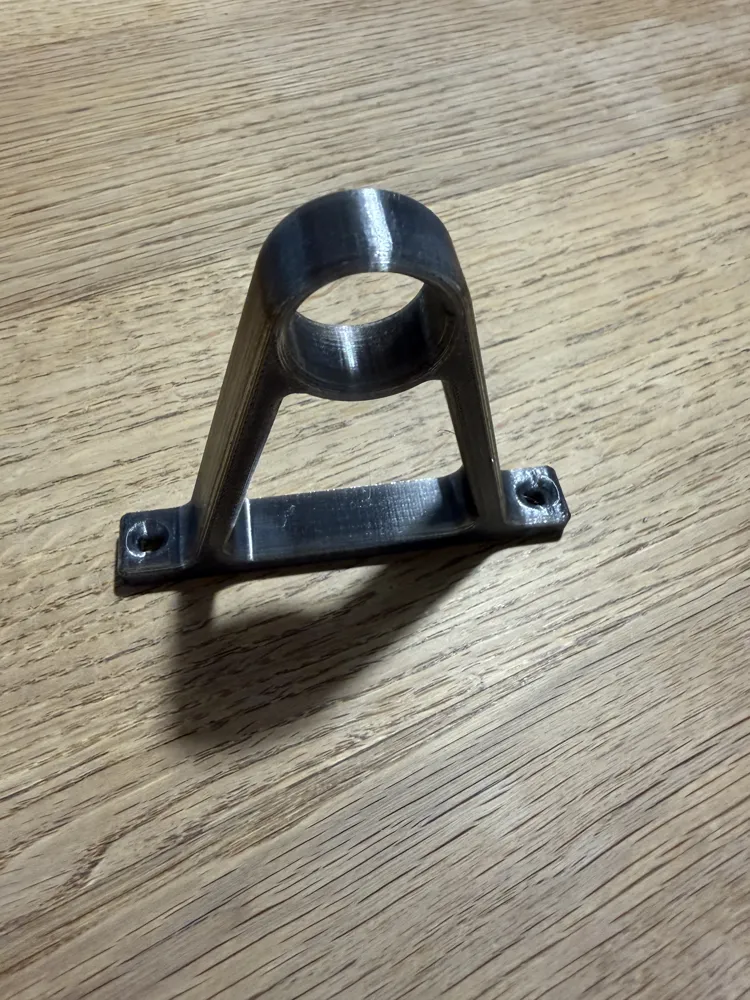

Wall support for Ø22 mm hanger rail
Optimize your storage space with this wall support designed to hold a 22 mm diameter rail. Ideal for creating a clothes rack in a dressing room, laundry room, workshop, or any other storage area.

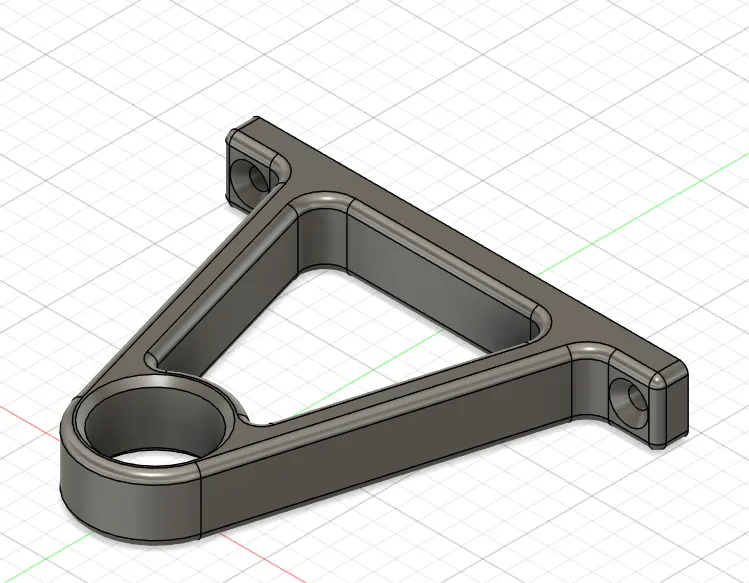

Its triangular design ensures excellent rigidity while limiting the amount of material used. The rail slides easily into the circular housing and is held stably once both supports are installed.
The model was also designed to be printable on a Bambu Lab A1 Mini.
Features
- ✅ Compatible with 22 mm diameter rails.
- ✅ Triangular structure offering good mechanical resistance.
- ✅ Wall mounting with 2 screws.
- ✅ Simple and robust design.
- ✅ Format adapted to the Bambu Lab A1 Mini print bed.
- ✅ Printing without supports.
Printing tips
- Recommended materials: PETG, ASA or ABS for better mechanical resistance and durable use.
- PLA can be suitable for light or indoor use.
- Recommended infill: 30 to 40%.
- 4 to 5 perimeters to ensure good solidity.
Dimensions
- Rail diameter: 22 mm
- Fastening: 2 screws (adapt diameter as needed)
Notes

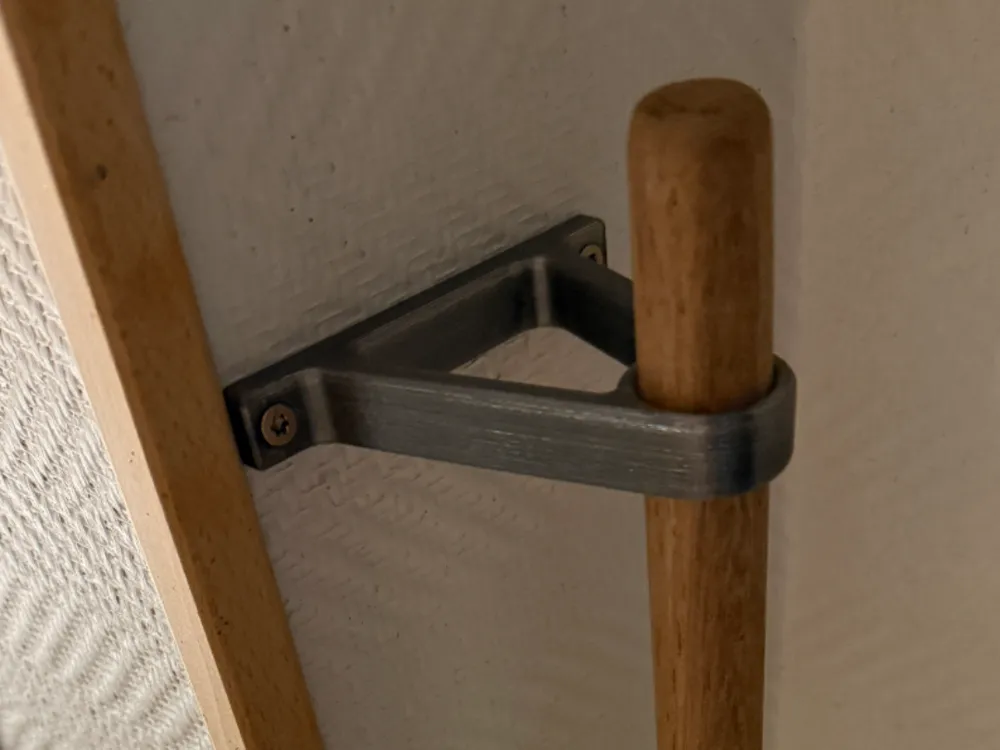

For good load distribution, use at least two supports, one at each end of the rail. If the span is significant or the load is high (many hangers, heavy clothes), plan for one or more intermediate supports.
Feel free to share your impressions, photos, and any improvements. If this model is useful to you, a Like or a Boost on MakerWorld is always greatly appreciated!
