Copper wire stripper
Print Profile(2)
Description

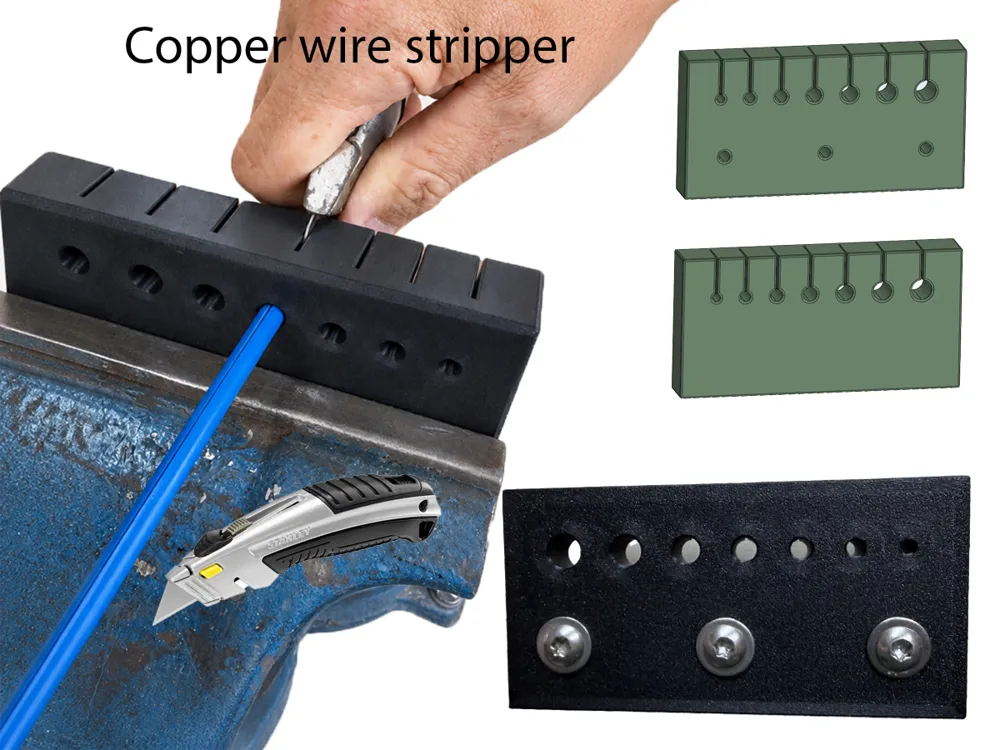

Copper wire stripper.
Very handy tool for stripping and scrapping your copper wires.

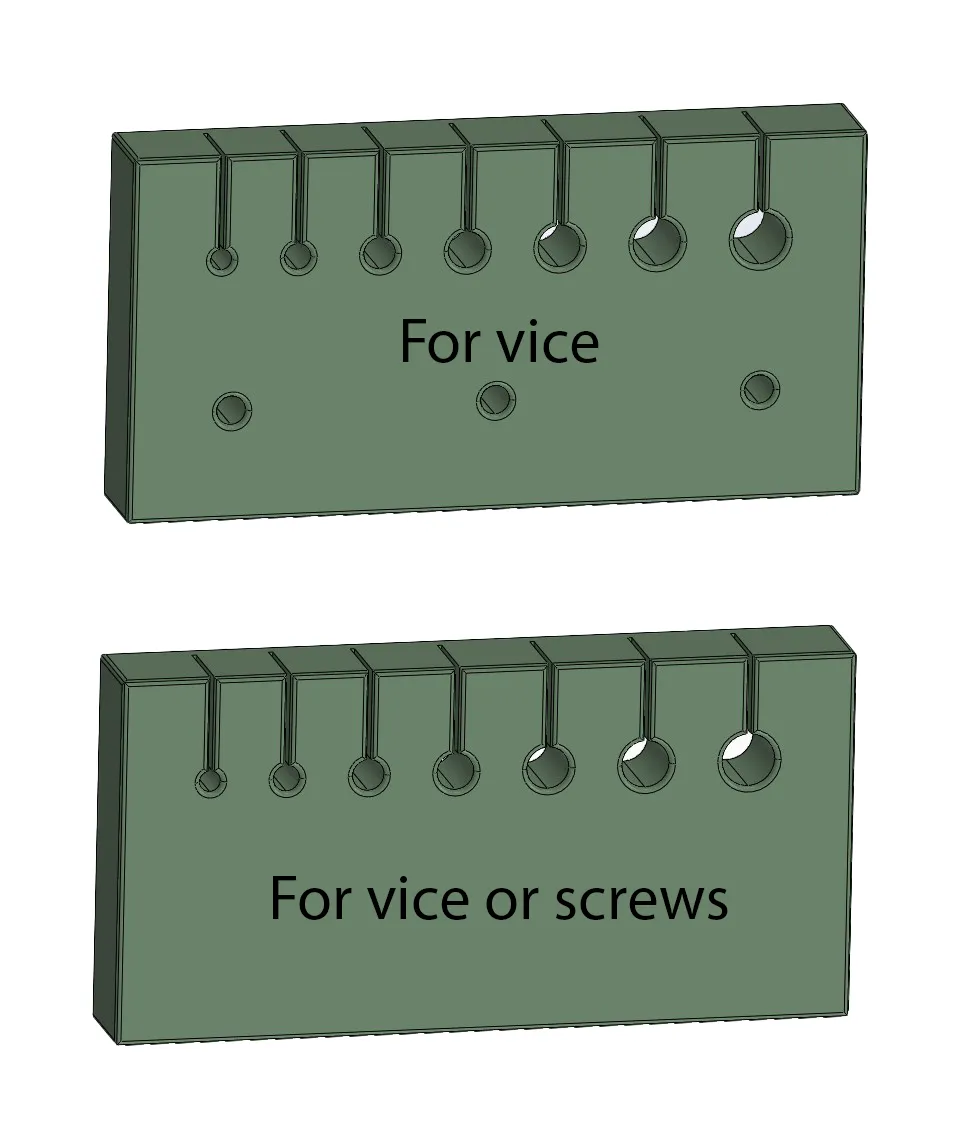

I have uploaded two print profiles. One without fixing holes, this one you can fix in your vice.
The second one is with three 5,5 millimeter fixing holes so you can also screw it to your workbench.
It has a 4, 5, 6, 7, 8, 9 and 10 mm hole.

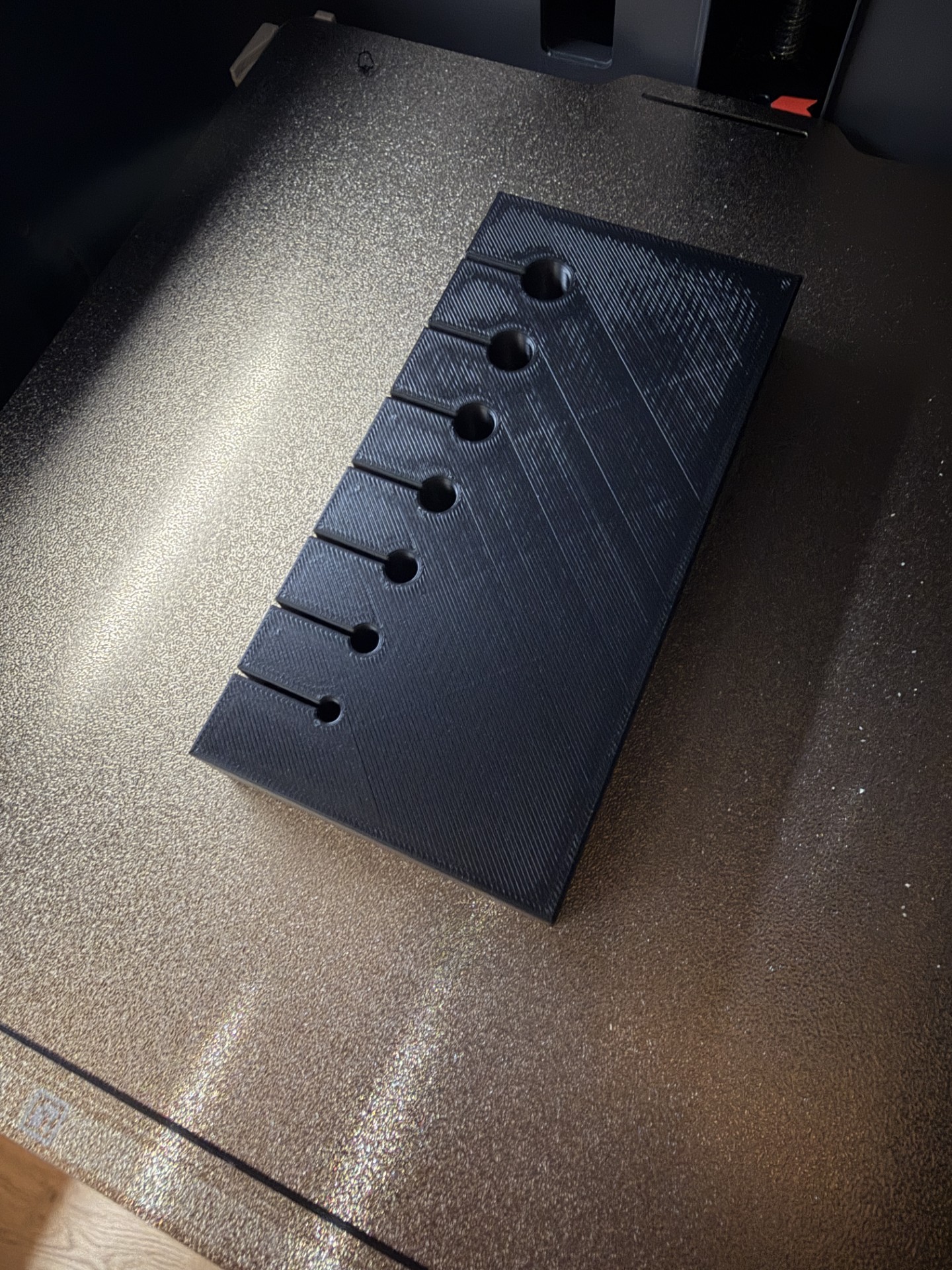

It is printed with my Bambu Lab P1S with Bambu Lab PETG HF with a 0,4 mm hotend on a Bambu Textured PEI Plate.
It is printed with the settings “0.20mm Strength @BBL X1C”. 8 Walls and 50 % infill for extra strength.

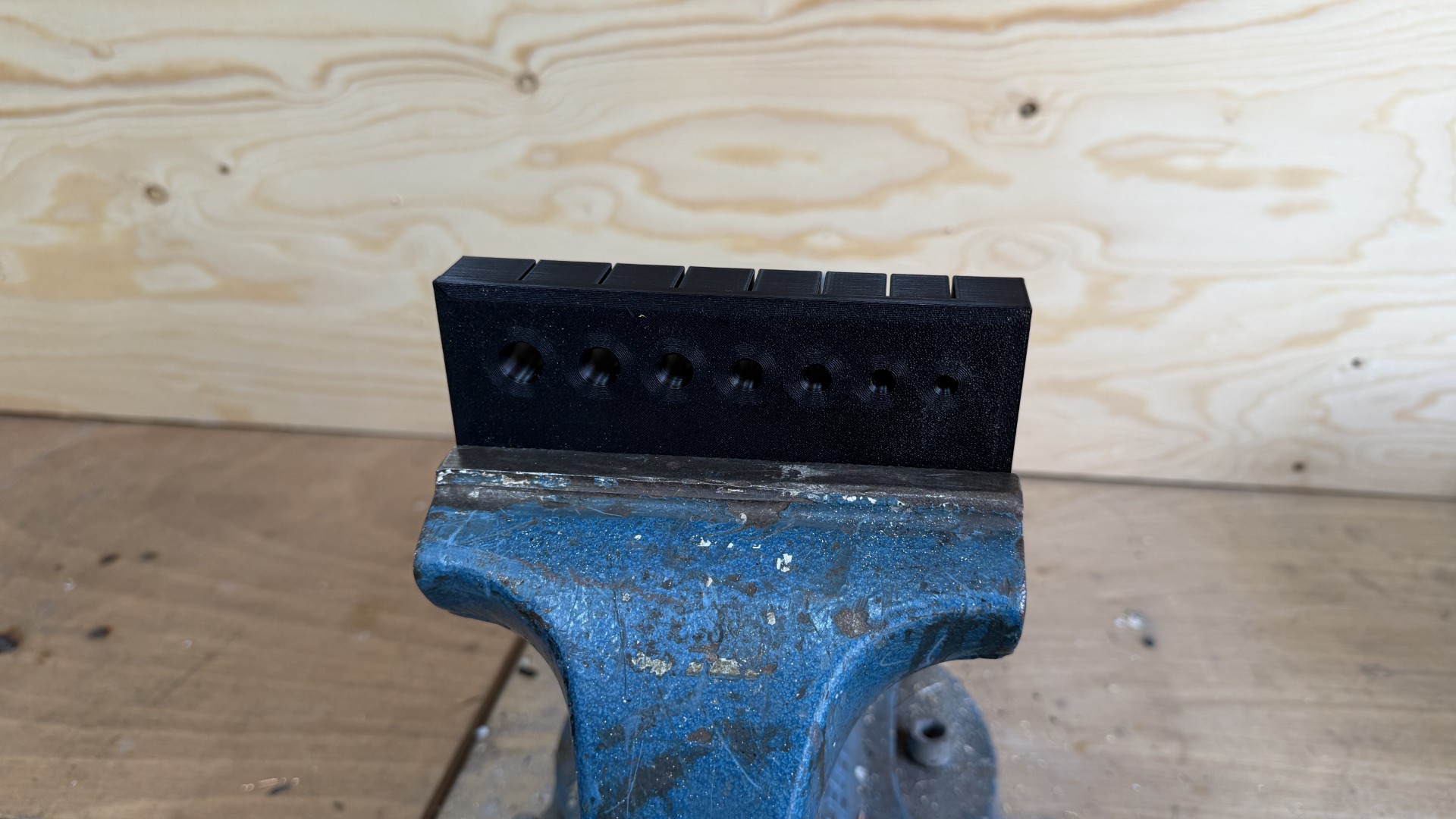

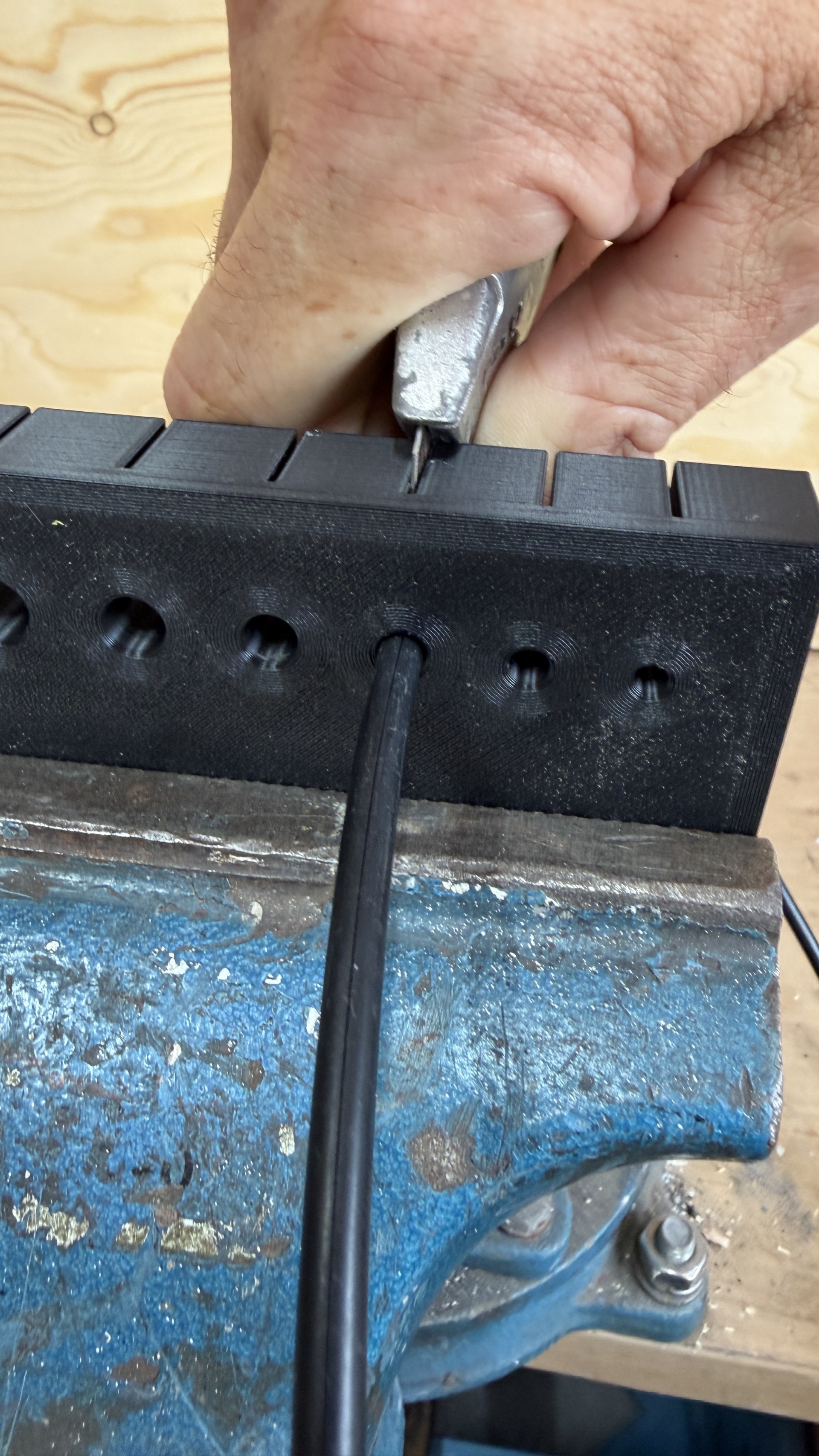

Clamp the wire stripper in your vice so you have both hands free to do the stripping. Use one hand to hold the utility knife and the other to pull the wire through.
