Double parametric box with support

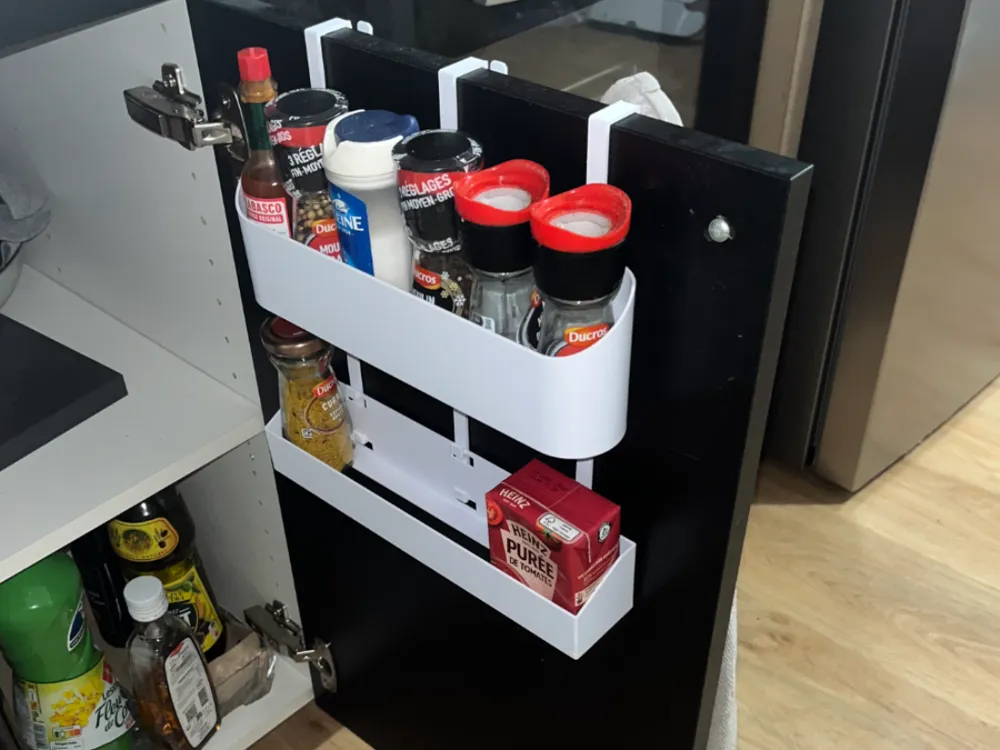

Optimize your kitchen space without drilling! This modular, hanging organization system clips directly onto your cabinet doors (inside or outside)

Thanks to the [Customize] button, this model adapts precisely to your needs (door thickness, size of spices, sponges, or bottles)

⚡ Why this model is essential:

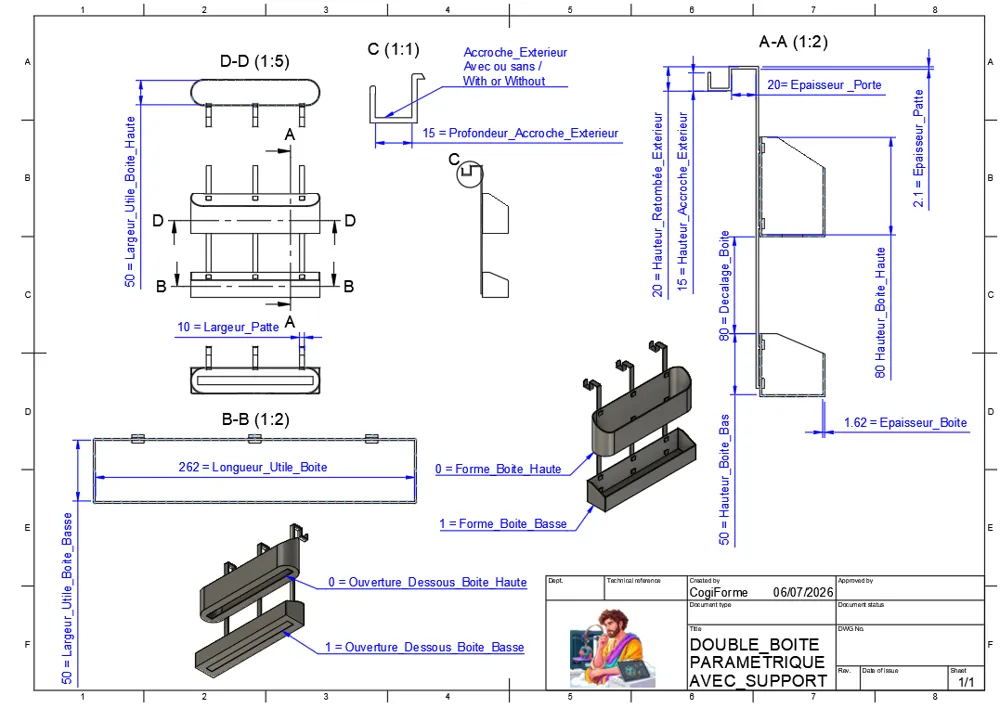

• 📐 100% custom-made: Adjust your door thickness (e.g. 20 mm), the spacing between boxes, and the usable size of each tray

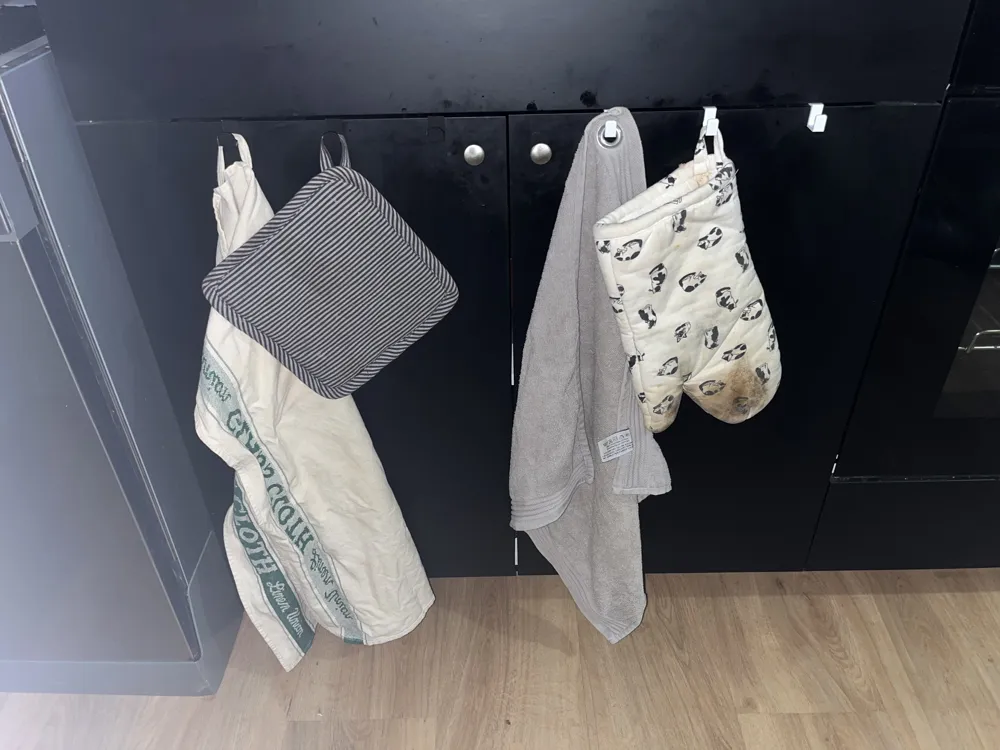

• 🪝 Dish Towel Hook Option: Activate or deactivate with one click an integrated outer hook to hang your dish towels or oven mitts
• 📦 2-box configuration: (for a single box, see the model I created ➔ here)
• 🎨 Style choice: Modern design with rounded edges or classic rectangular style

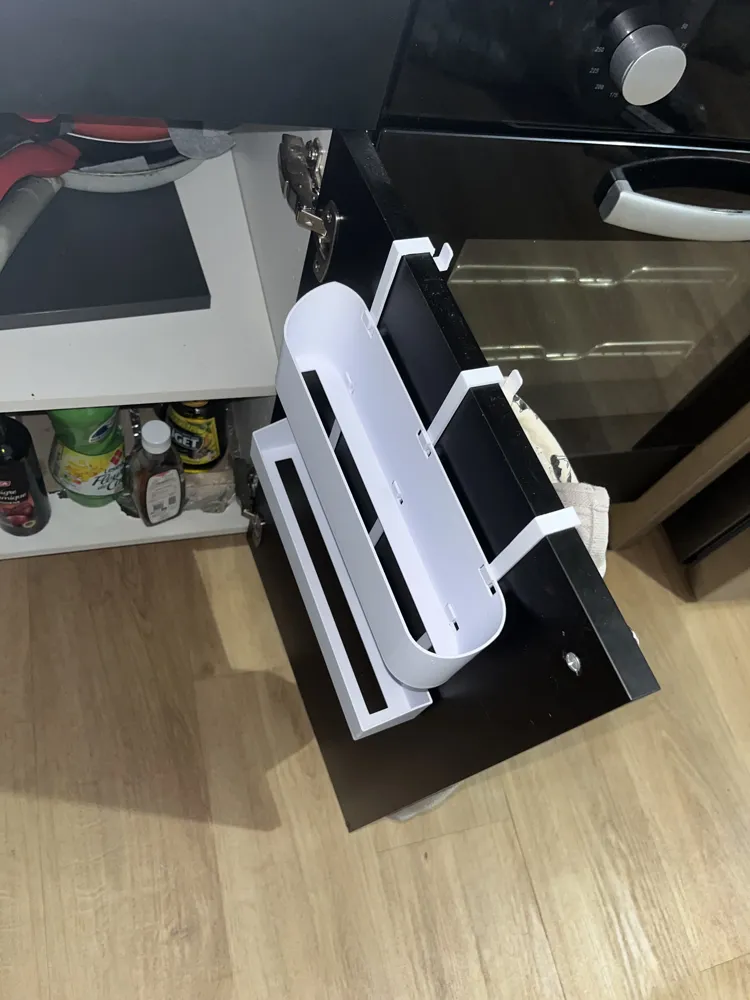

• 🧹 Easy maintenance: Integrated opening option at the bottom of the boxes
• 🛠️ Support: Only on the boxes for the "Classic (auto) Adjusted" clips

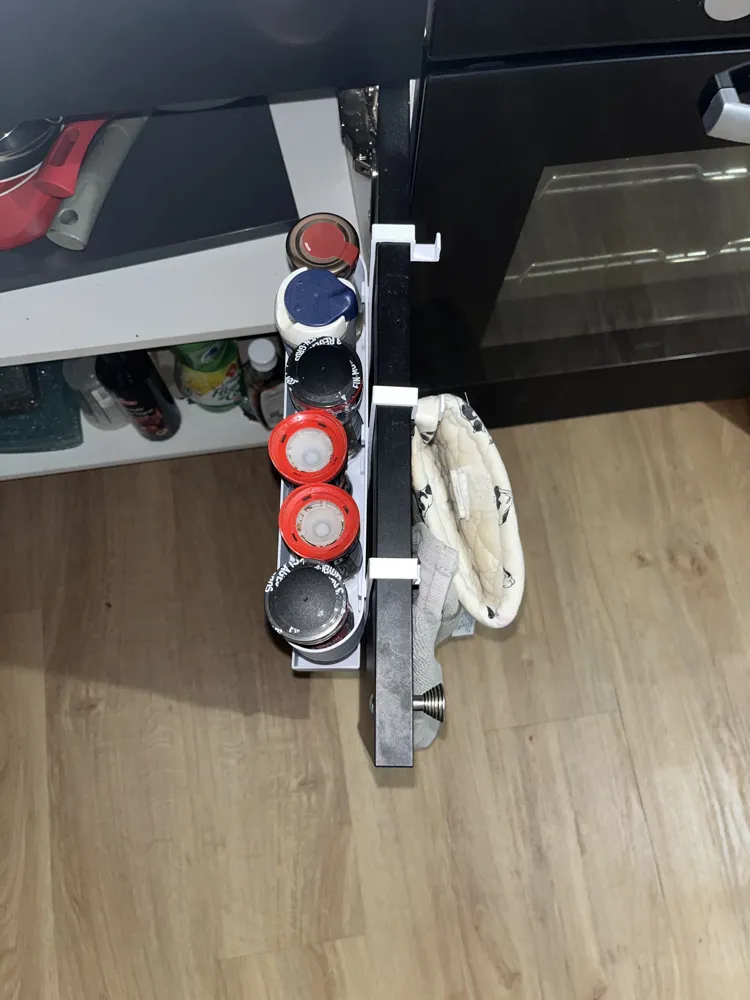

✅ No drilling, no glue — clips onto the door edge
✅ Parametric: adapts to any available thickness and height
✅ Perforated bottom (top) / closed (bottom) depending on use
✅ Simple disassembly for cleaning

⚙️ How to prepare your print in Bambu Studio:

The generated parametric file groups all parts. Follow these two simple steps after import: (SEE INSTRUCTIONS)

1. Separate the parts: Right-click on the model ➔ Split ➔ To Objects: Your boxes and your support become independent
2. Arrange the plates: grid creation ➔  Rotation ➔  Movement
3. Modification of the boxes: Set borders / Bring to auto

🖨️ Recommended print settings:

• Layer height: 0.20 mm (Standard) or 0.24 mm
• Walls (Wall Loops): 3 or 4 for maximum support strength
• Infill: 15% (Grid or Gyroid)
• Supports: for the boxes
• Brim: For the clip supports
