Description

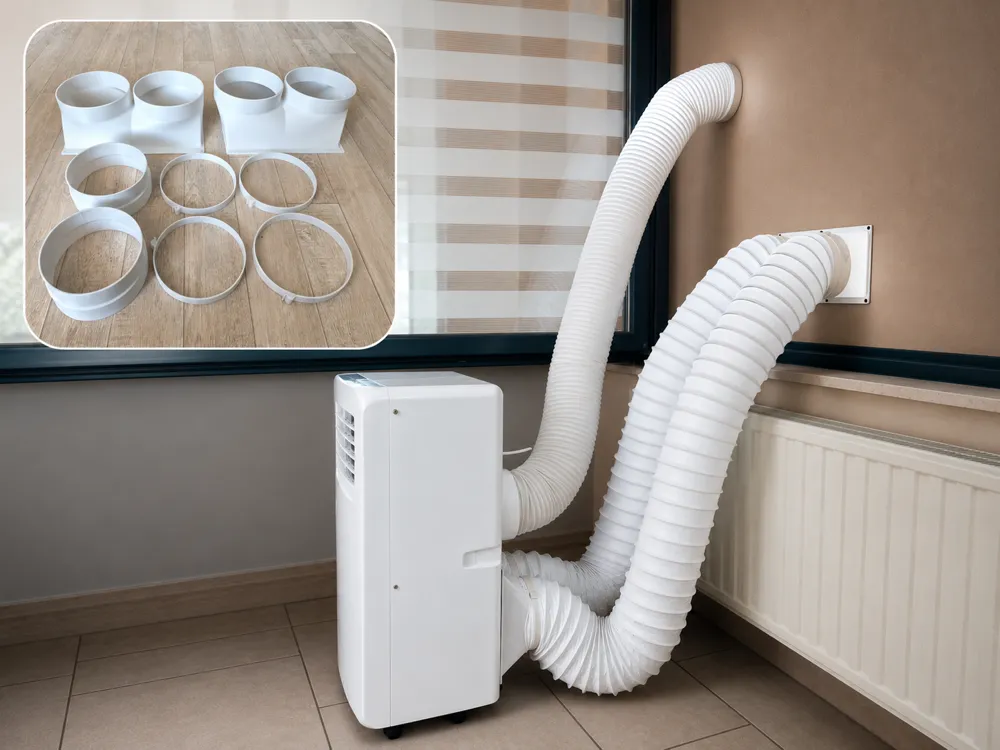

Conversion kit to a two-hose system suitable for a Eurom PAC 2.9

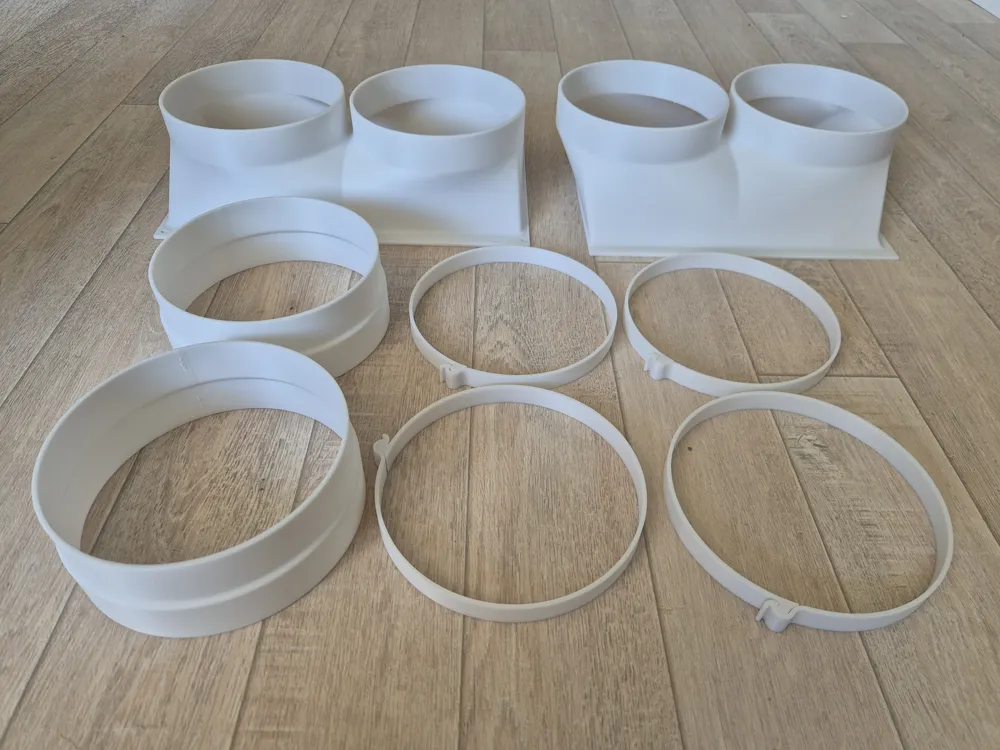

The set includes:

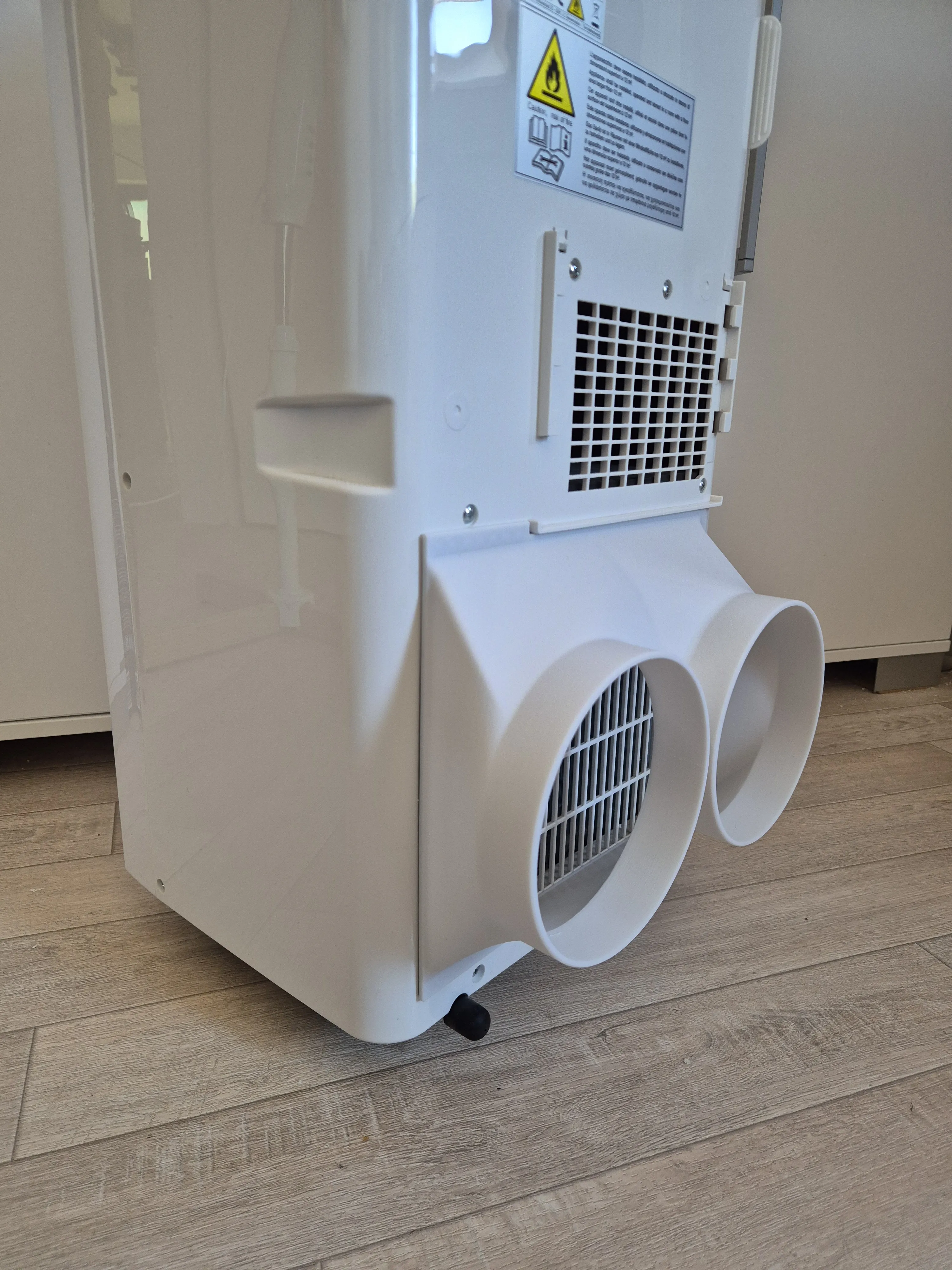

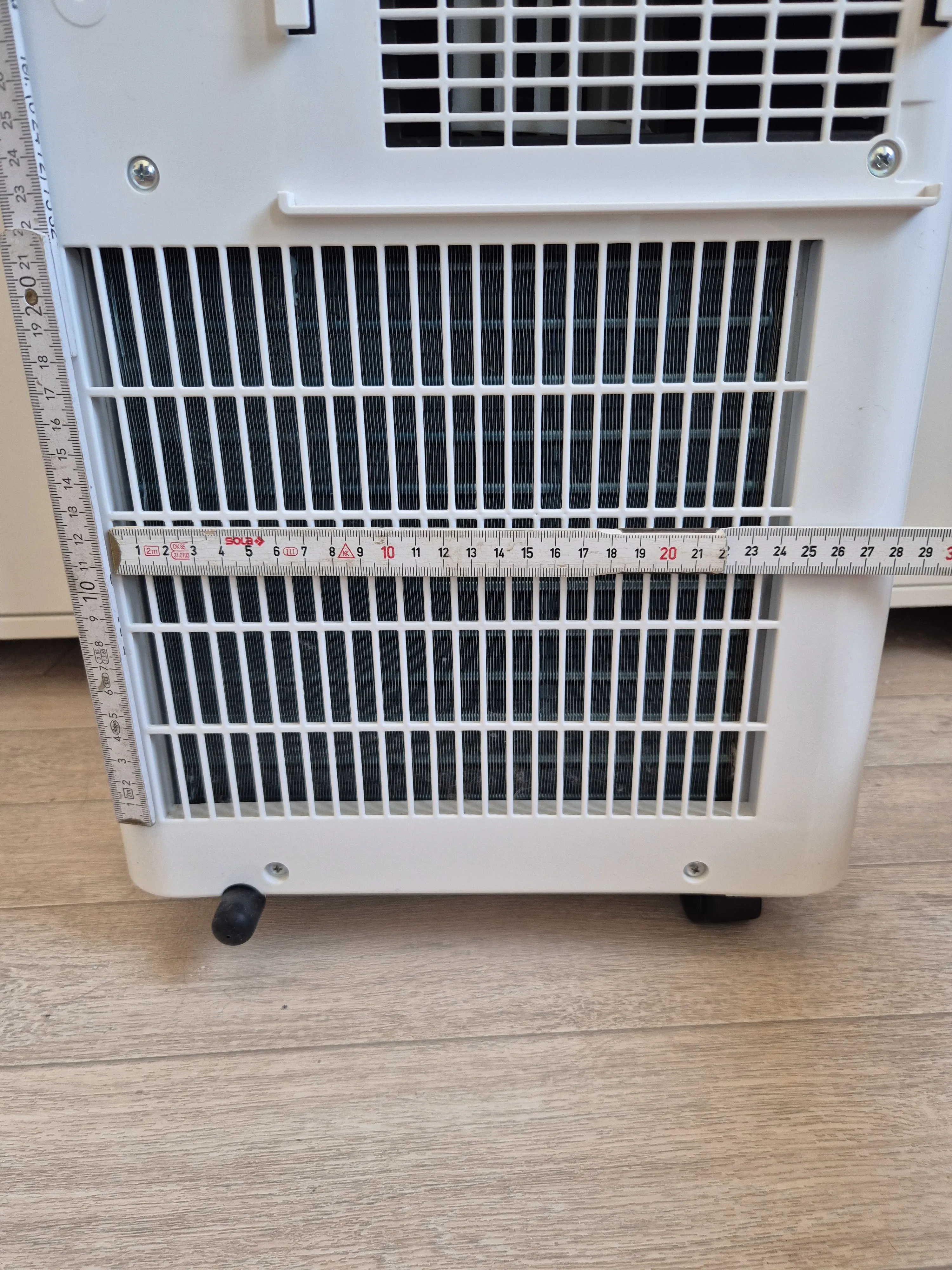

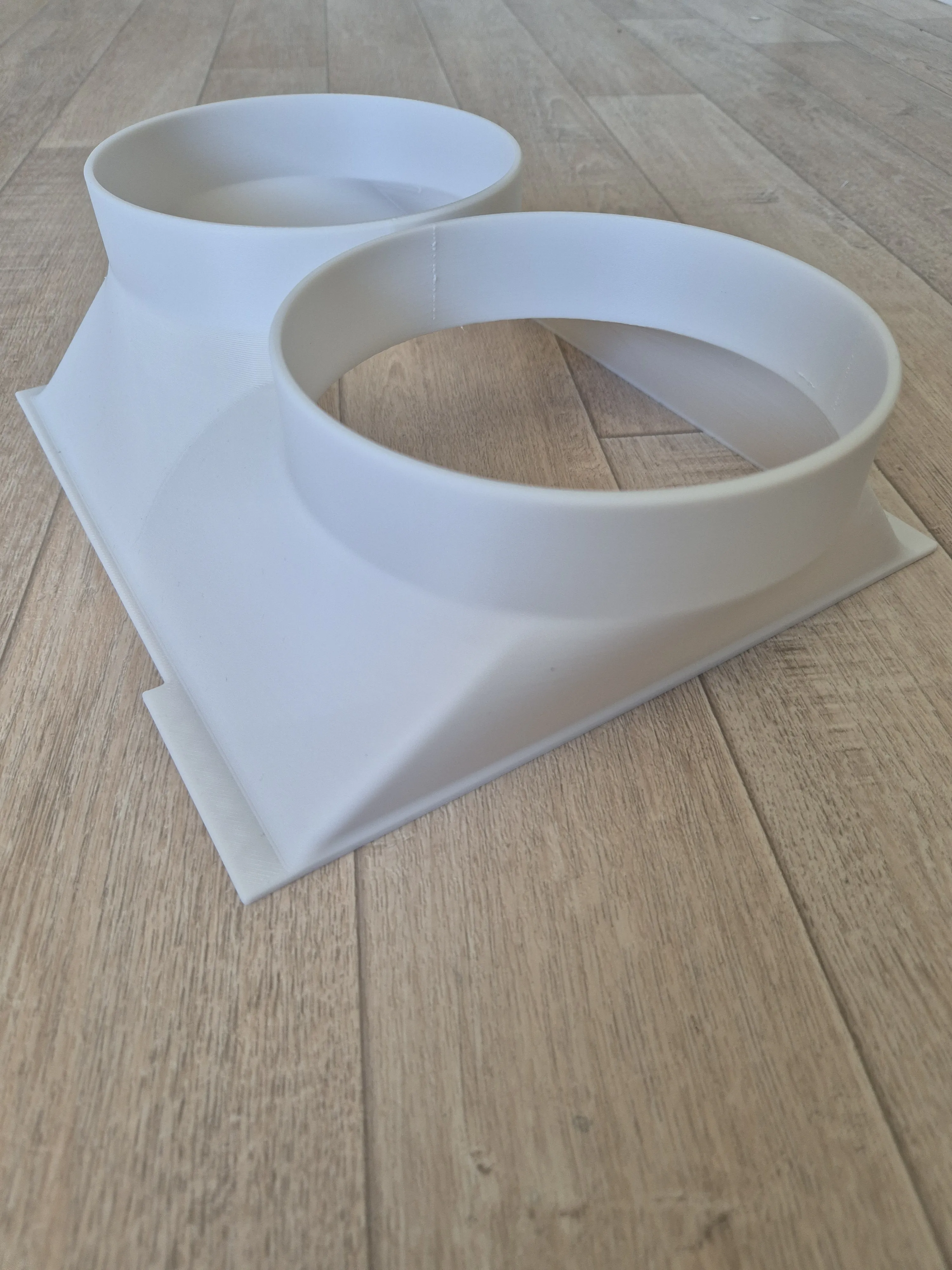

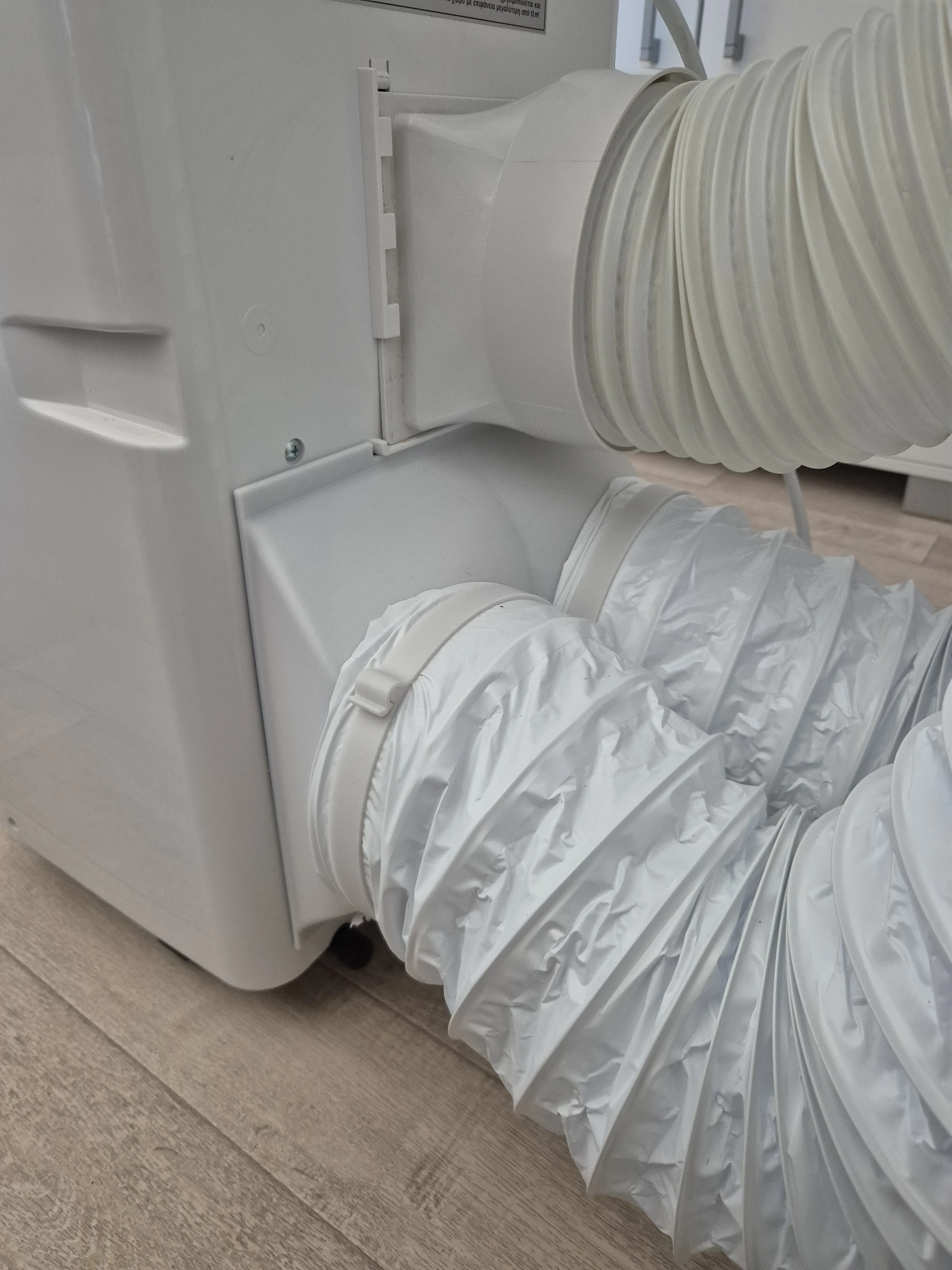

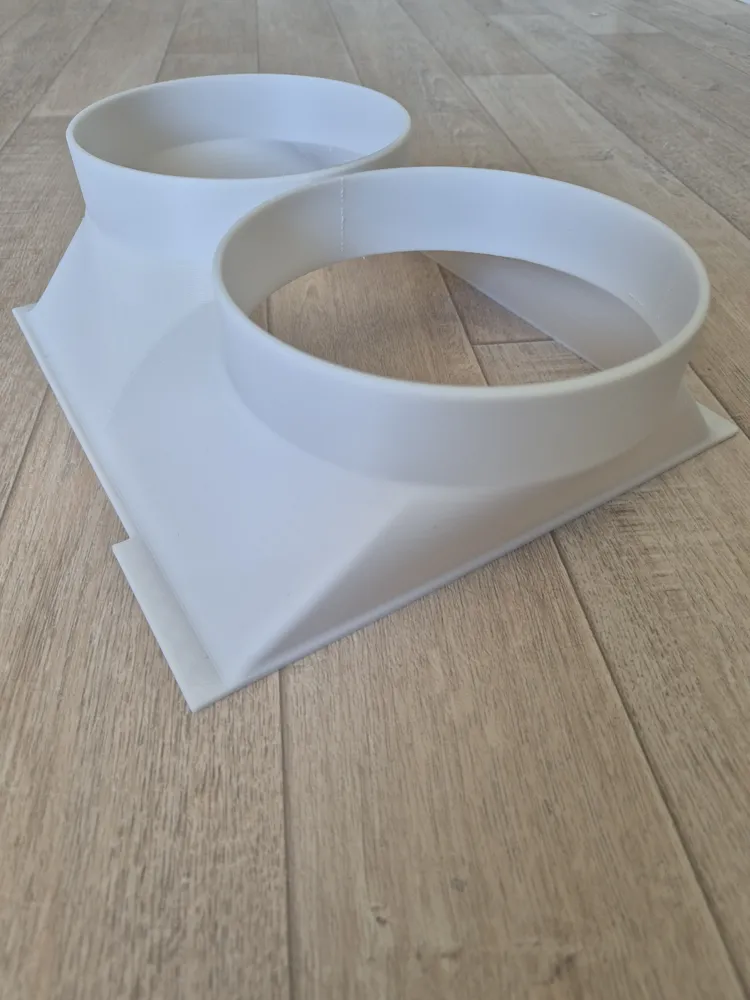

Adapter for the air conditioner with connection for 2 x 150mm hoses. This ensures that the air conditioner is supplied with sufficient air. The adapter covers an intake opening of 215 x 245mm. I attached the adapter with double-sided foam adhesive tape (mirror tape, body tape)

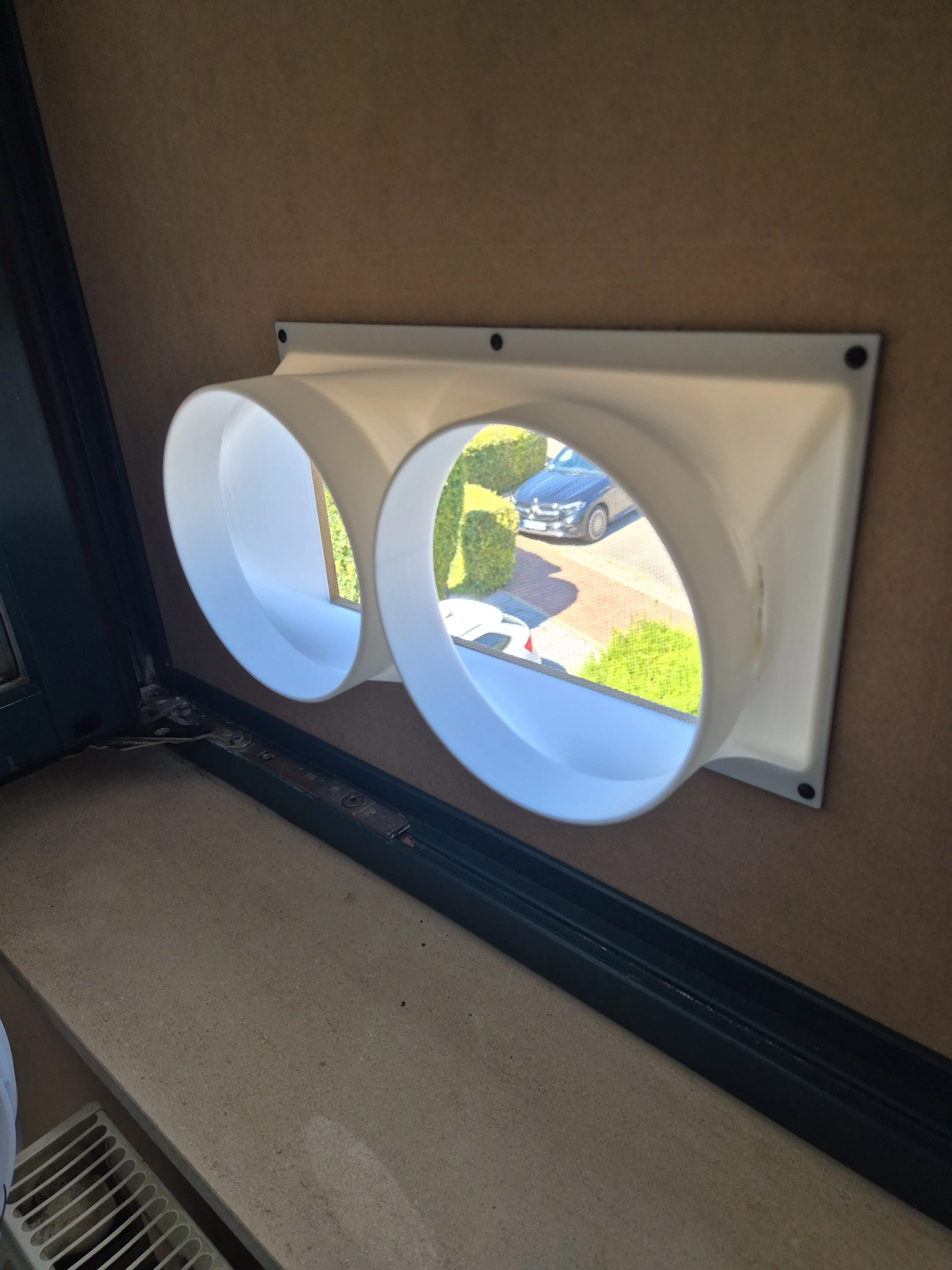

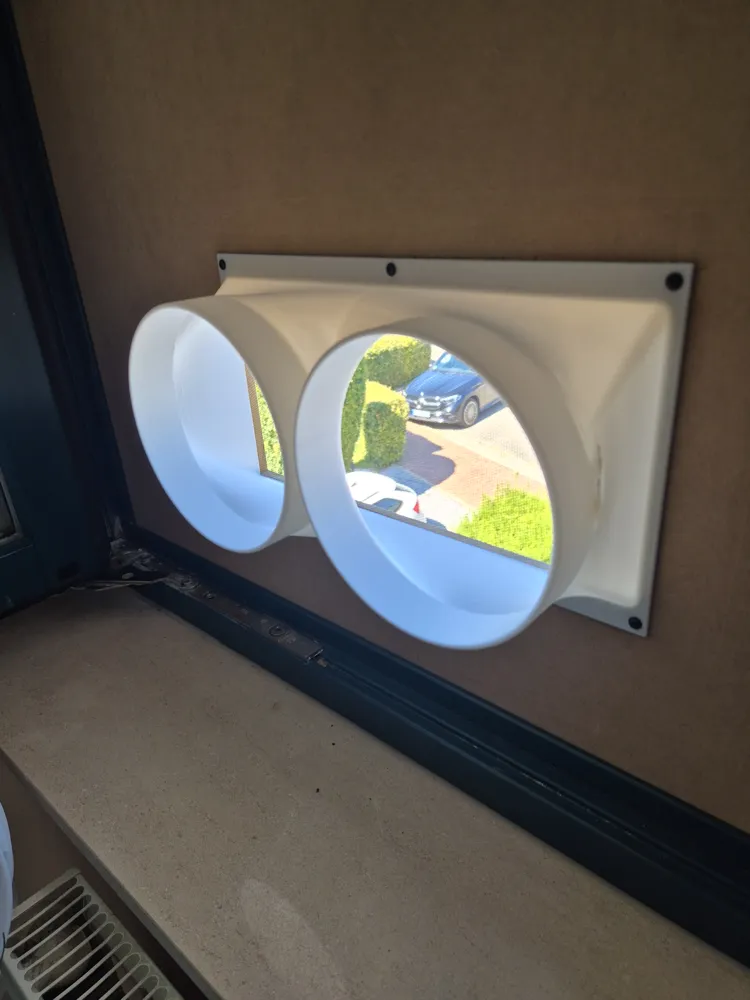

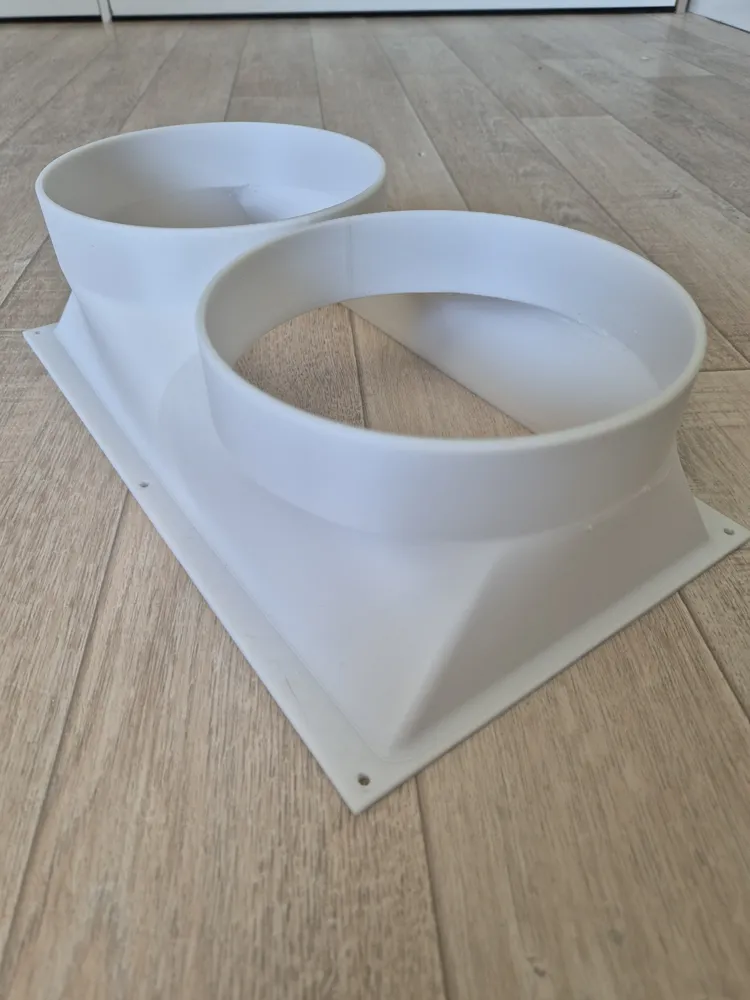

Window pass-through for screwing. The screw holes have a diameter of 3.8 mm.

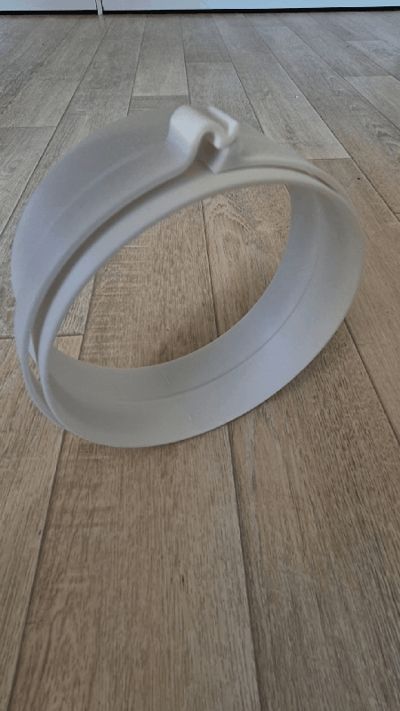

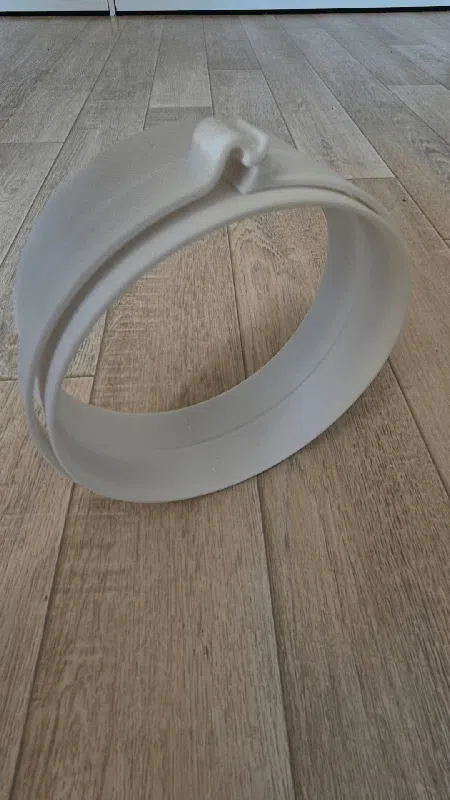

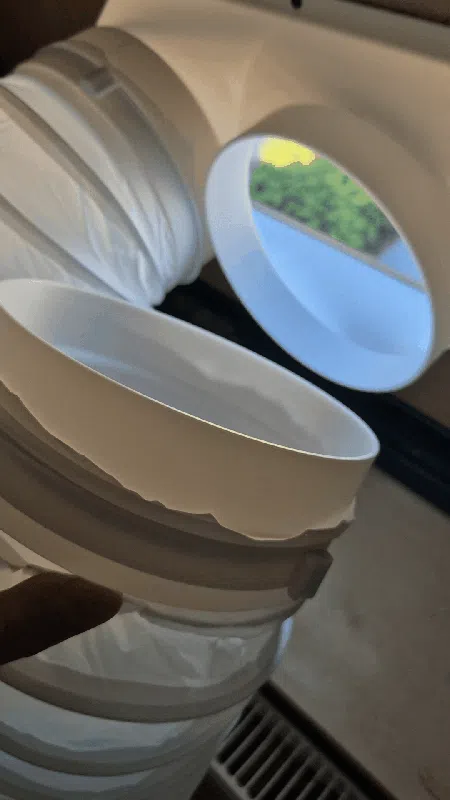

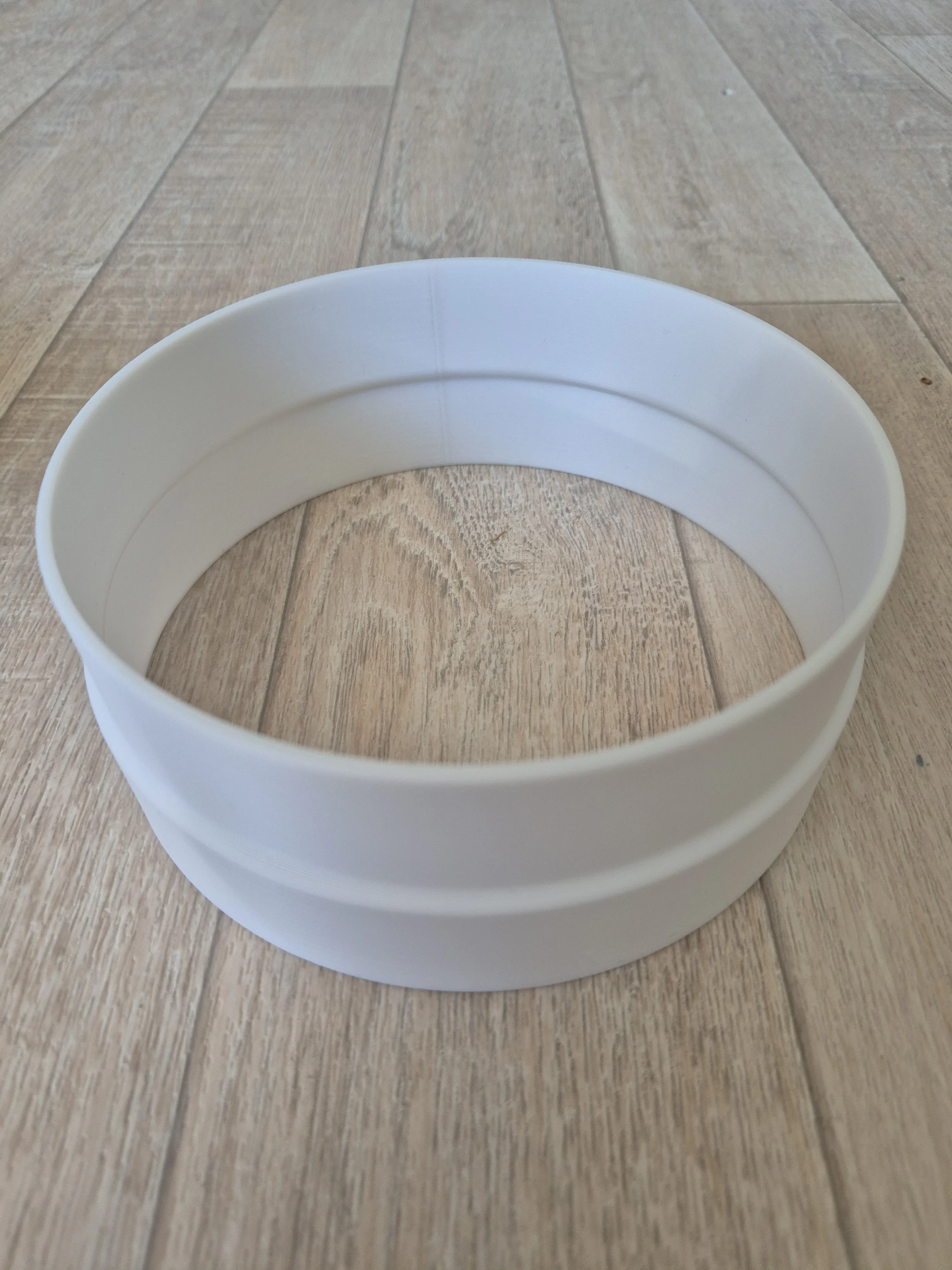

Quick coupling for 150mm hoses

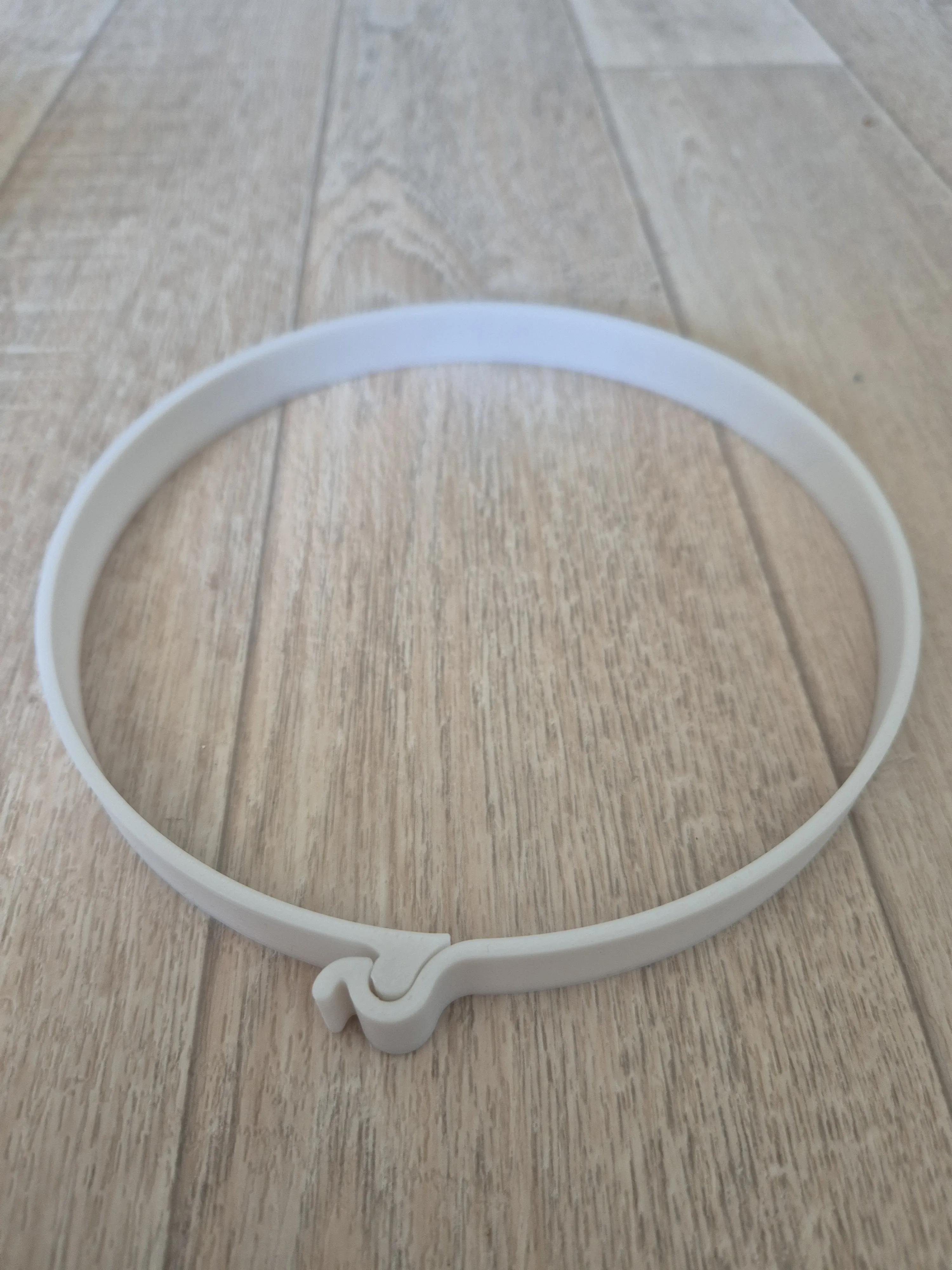

Hose clamp: For easy attachment of a thin PVC hose
Print Settings
- Nozzle: 0.6 mm
- Layer height: 0.3mm
- Material: PETG (HF)
- Wall lines: 4
- Infill: 15% Gyroid

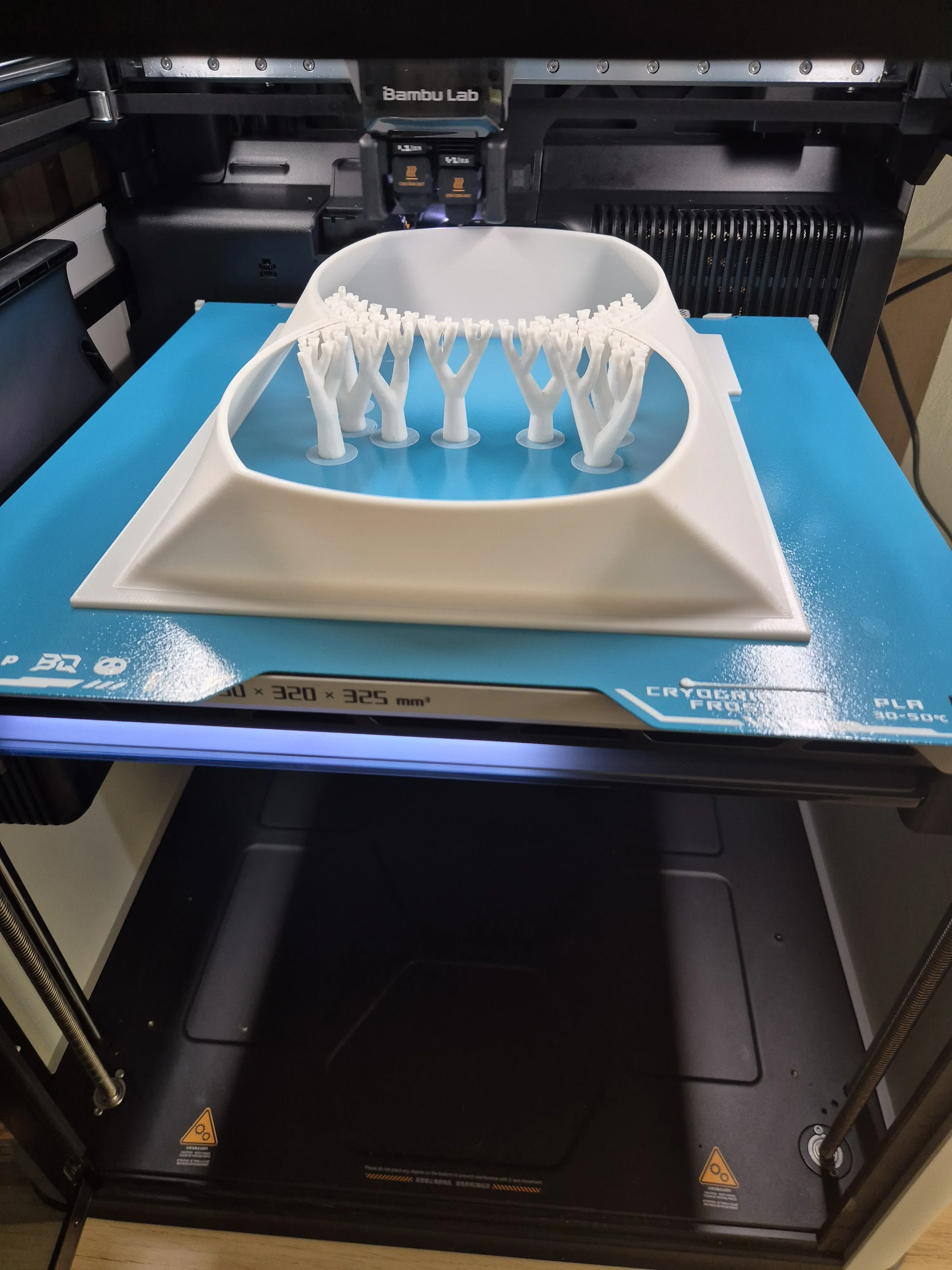

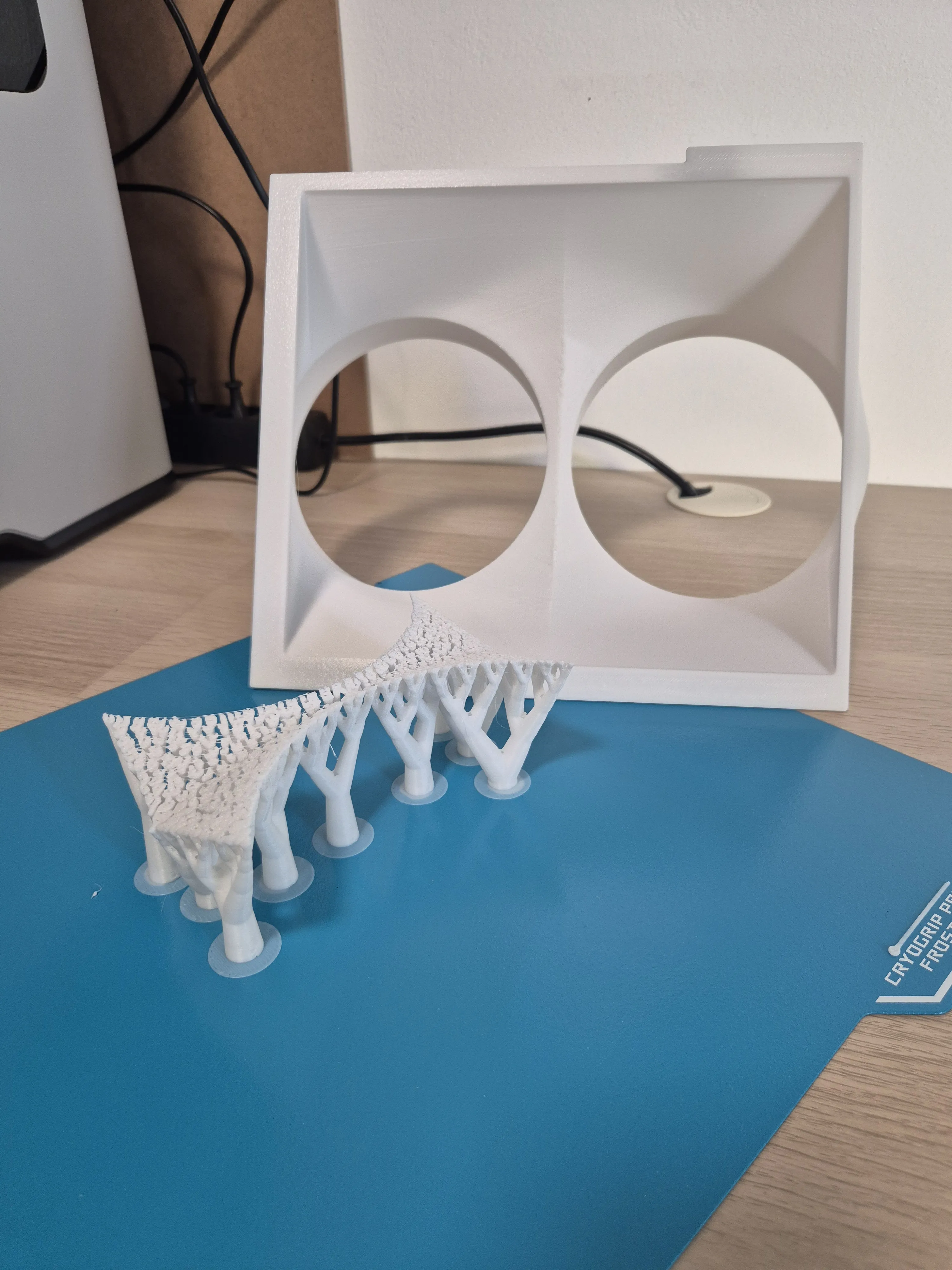

- Support: Tree, Automatic, Standard, First layer expansion 5mm
Updates:
2026/07/12: Print profile with 0.4mm nozzle added

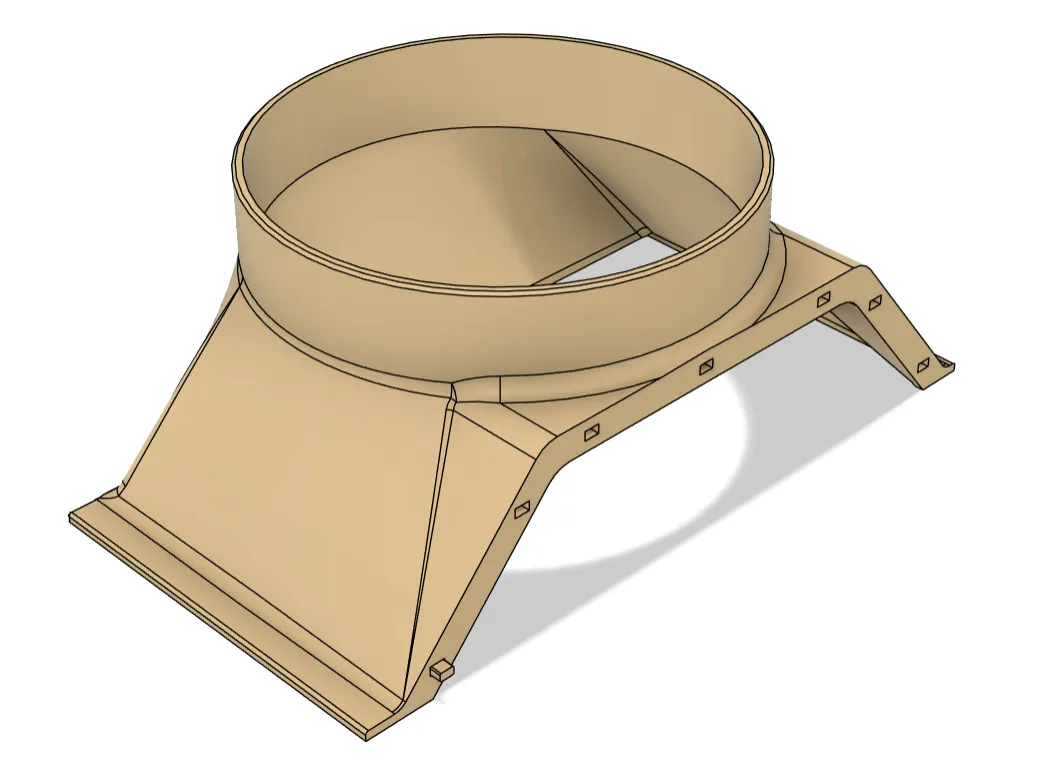

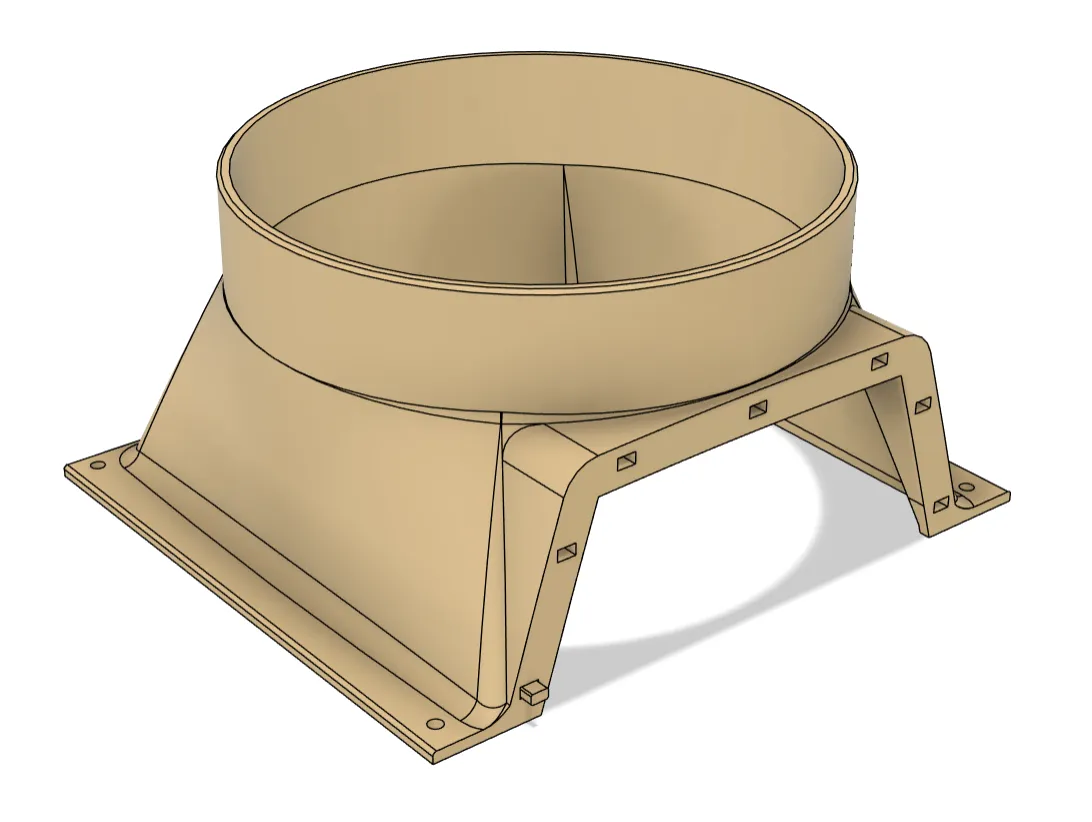

2026/07/12: Connections for air conditioner and window pass-through are now available as a two-part version including connectors. The connectors make gluing and positioning the individual parts easier. Thus, the entire set can also be printed on printers with 256*256mm.
Matching print profiles for 0.4mm and 0.6mm nozzles are also available!
If you like the model, I would appreciate a like, a download, a boost, and of course photos of your prints!
Have fun printing!
