LED Switch Assembly with NEGATIVE
Print Profile(1)
Description

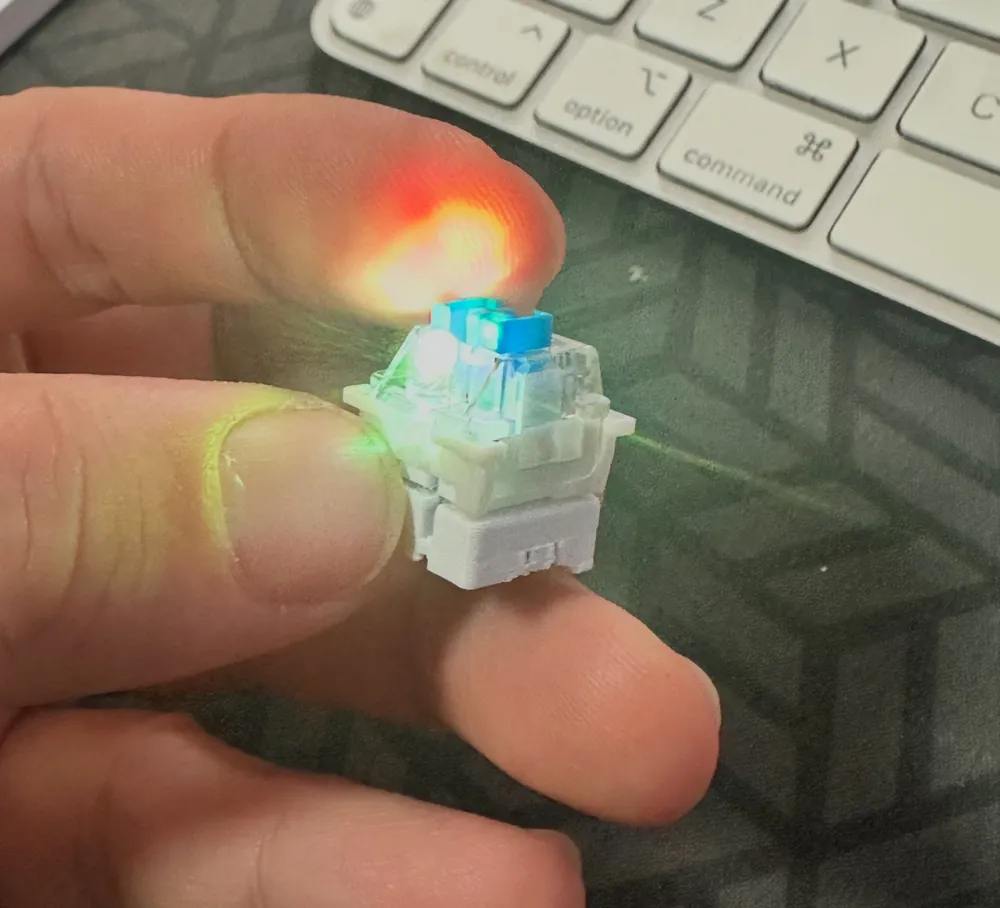

A lot of people have been sending me messages on sharing our LED light assembly.
We heard you and we are sharing the whole assembly with the negative bodies so you can easily make your own led light-up clickers and fidgets!
You need to have a little knowledge on 3d design, either fusion360, tinkercad or other software to use the negative parts for your assembly. I will post a tutorial video on how to do it using bambu studio soon!

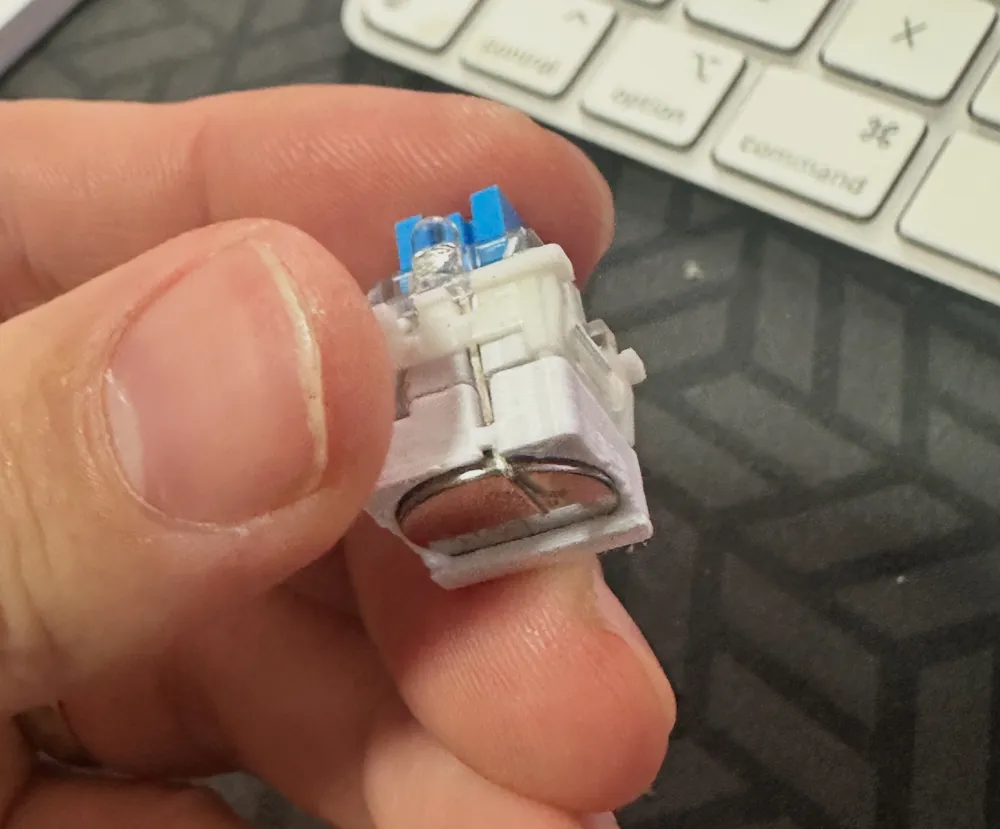

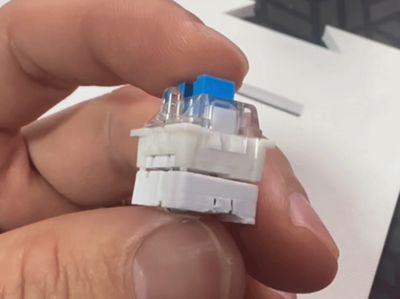

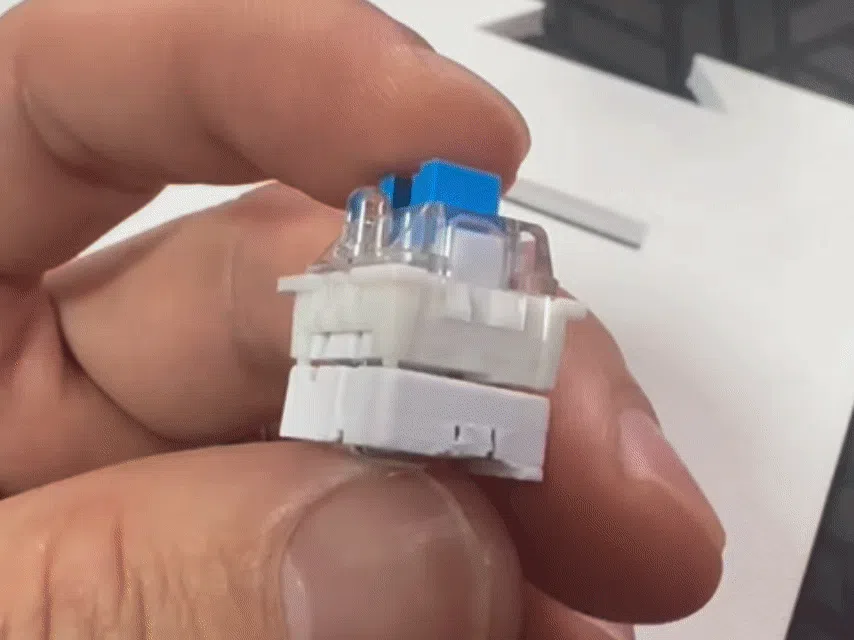

Assembly instructions can be seen below:
The led assembly is built with tight tolerances — no need to resize anything. In fact, resizing is discouraged, as it may cause the assembly to not fit properly. And make sure your printer is also calibrated to get dimensional accuracy.
✅ Bed Adhesion Tip:
These models need strong bed adhesion to ensure the best possible results. We recommend washing your build plate with soap and water before printing (or follow your printer manufacturer’s cleaning guide for a deep clean).

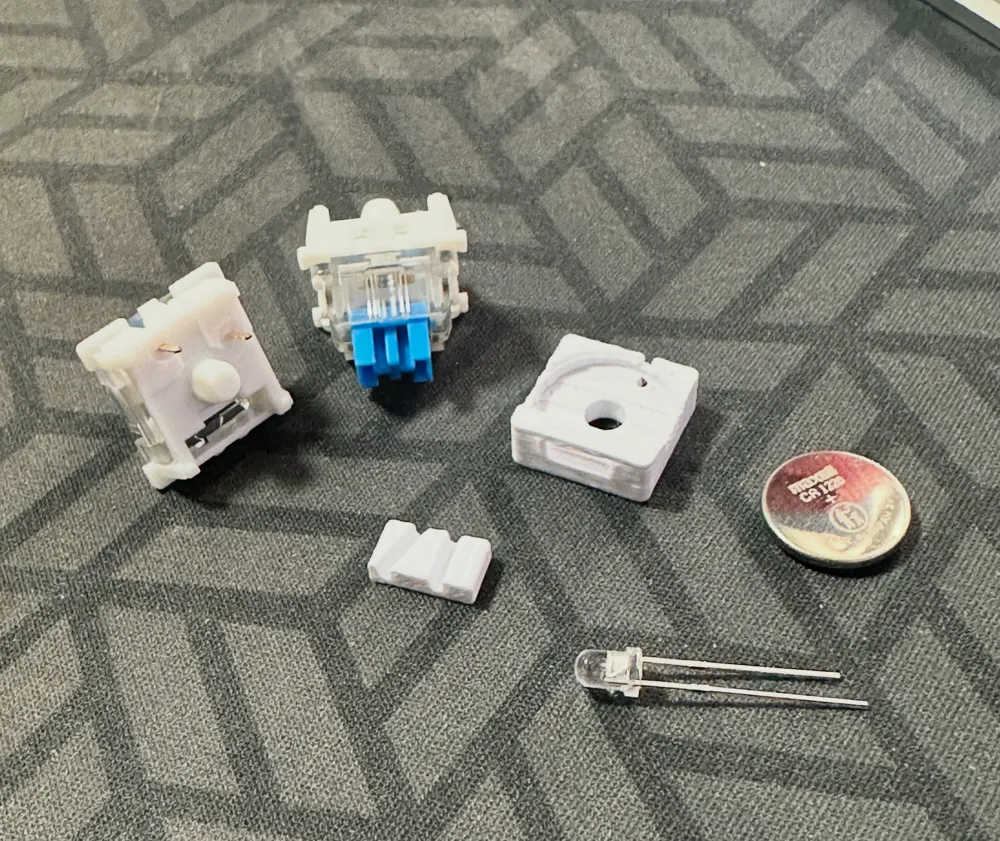

🔧 Materials needed for this project:
Battery: CR1220, other sizes will not fit this design
LED: 3mm or 1.8mm led diode, 5mm will not fit this design
Switch: Outemu or Drinkey switches, other switches may also work but I haven't tried them.
Ways to support my work & Commercial License
- Give this model a like - it helps promote it to people!
- Boost this model - if you enjoyed and printed it. This will help inspire me to continue making more models.
- Sell Physical Prints of my Models - Subscribe to my Patreon Membership so you can sell physical prints of my designs
You may also want to slow down the speed for silk filaments to give that chrome effect.
Check out my other models as well
https://makerworld.com/en/@jeromebayawa
Don't forget to tag me when you post online! I'd love to see what color variations you come up with.
Enjoy!
