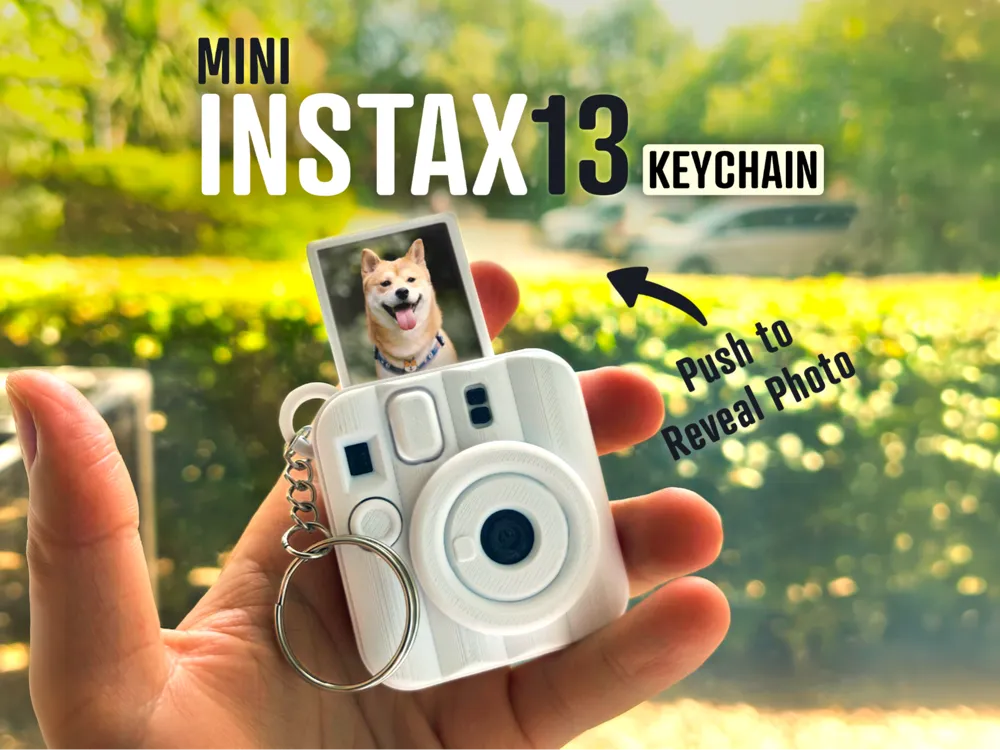

NEW Mini Instax 13 Fidget/Keychain - Push Film

🛑 Commercial Use Notice:
If you wish to sell prints of this model (or any of my other designs), please make sure to purchase the commercial license by clicking on the license option above. Unauthorized commercial use is strictly prohibited, and action may be taken against anyone found selling my work without a proper license.

Support creators—don’t steal designs. 💙
Thank you!

-----------------------------------------------------------------------------------------------

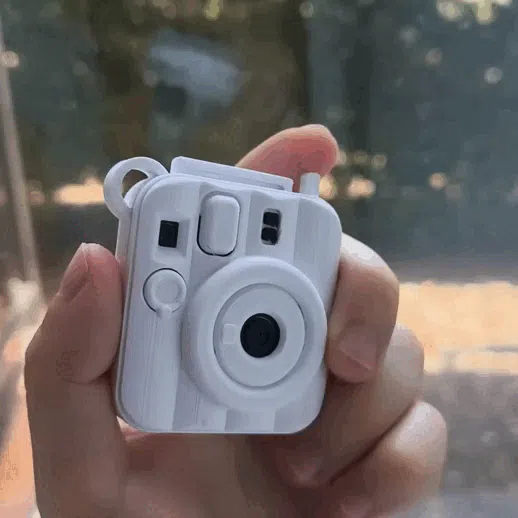

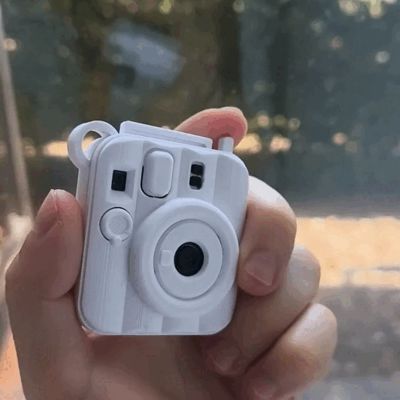

This is the new version of my popular Instax Mini 12 keychain. It features a functional button that pushes out the film, letting you place a small picture inside—perfect for a heartfelt gift or to keep your loved ones close wherever you go. but in this version everything got better.

What's new:

• No Glue Needed - Completely redesigned snap-fit system. Parts lock together without super glue.



• Better Mechanisms - The lever and button were rebuilt from scratch. They're much stiffer and shouldn't break.



• Film Bottom Lock - This was a big complaint with the V12. Now when you push the photo back into the slot, it stays there. Even if you flip the camera upside down. Perfect for keychain use.



• Film Top Lock - Press the button fast and hard enough and the film locks at the top too. Another thing people asked for.



• Improved Film Ejection - Much smoother push mechanism overall.



• More Detailed - Slightly bigger than V12 but way more accurate to the real Instax Mini 13.

Important:

Once you close the camera using the snap-fit, it's permanent. Don't try to reopen it or you'll break it. This isn't a design flaw - it's by design so it stays secure as a keychain.

Picture Dimensions (Dimensions: 24x29mm)

For Commercial Use:

If you have my commercial membership and plan to sell these, I recommend adding super glue to the snap fits for extra durability. Personal use? The snap fits are solid on their own.

How to Assemble:

Step 1

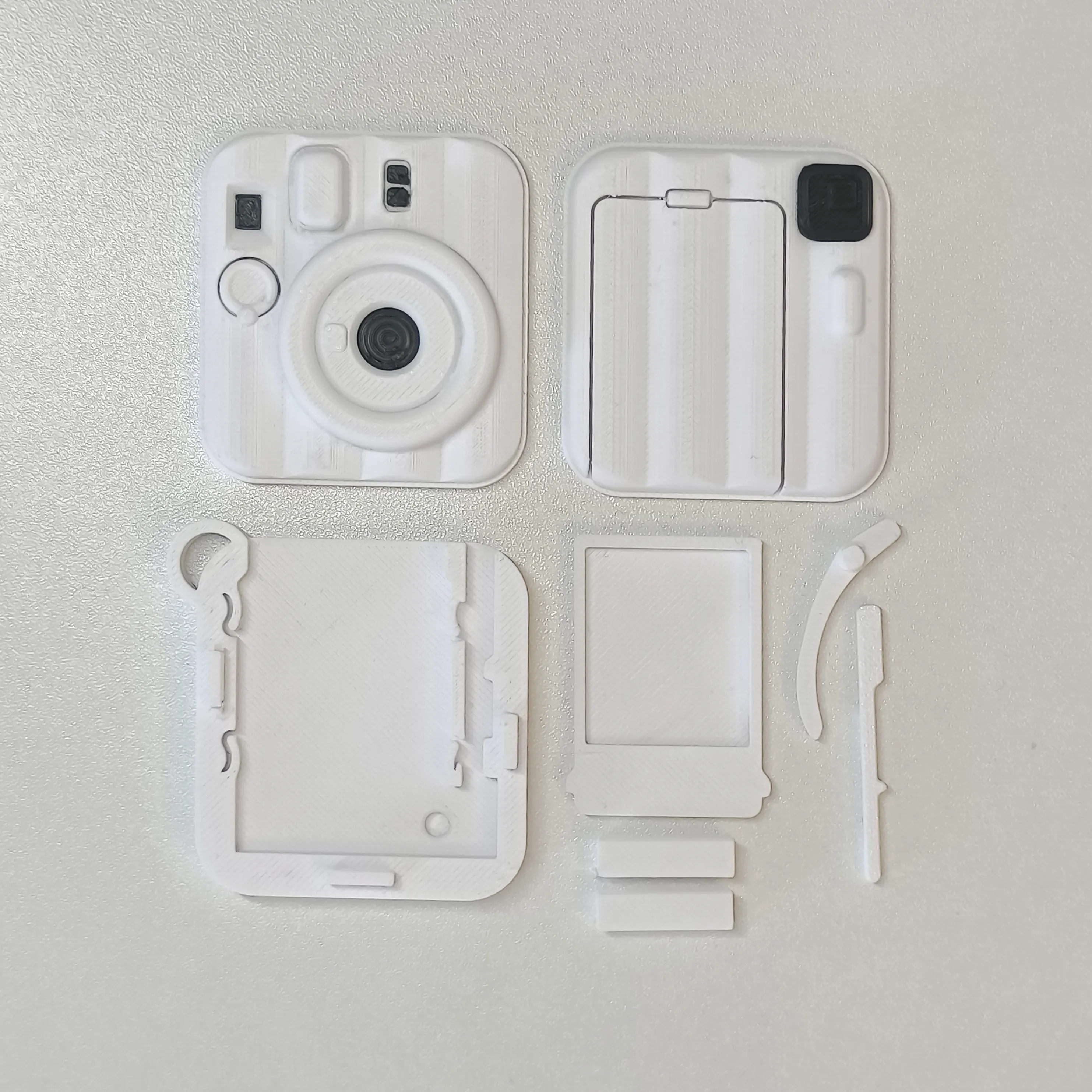

Gather all parts.

Step 2

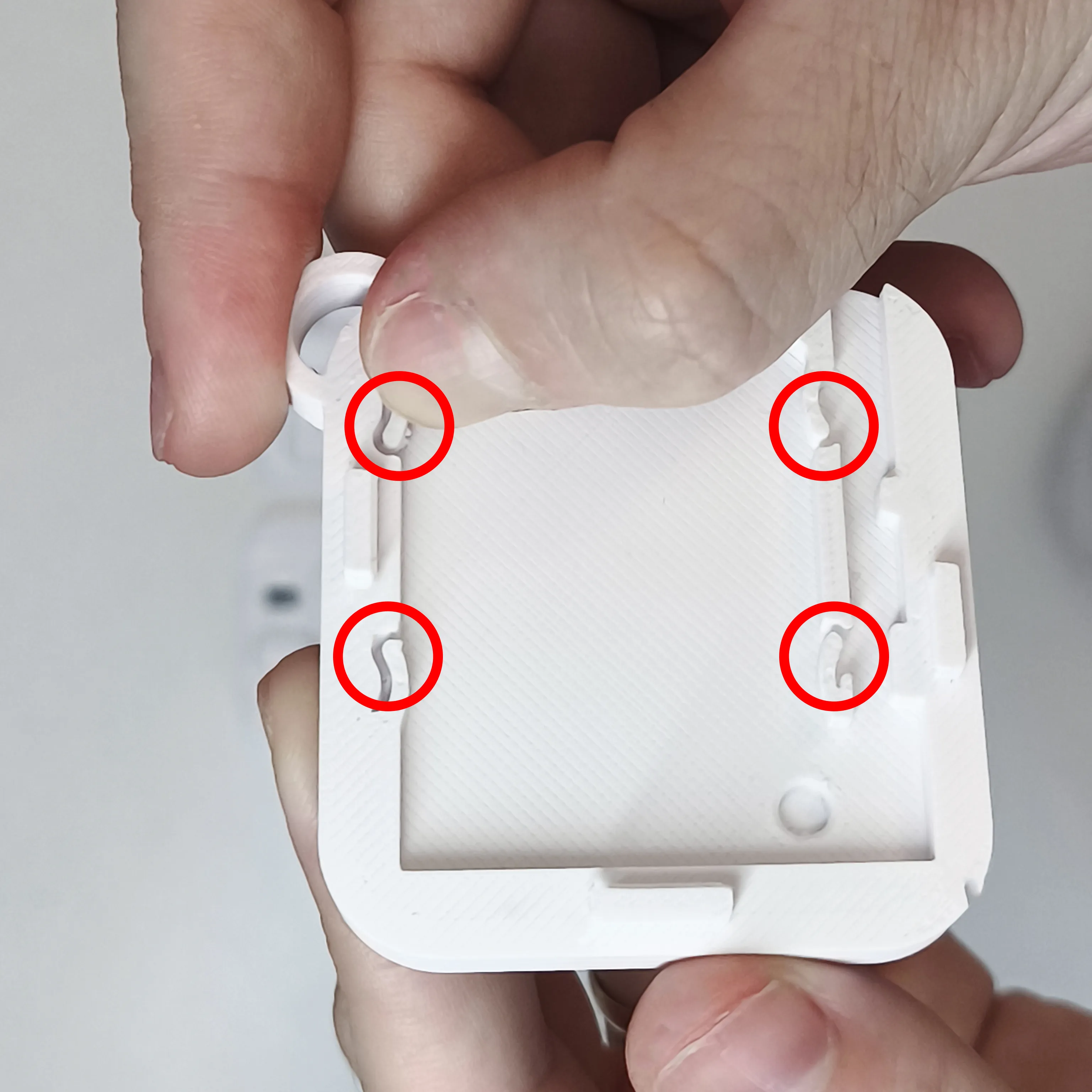

Very gently and lightly press these pieces until you hear a click.

(If you don't want to risk breaking them, skip this step; they will eventually come loose as you press the film.)

Step 3

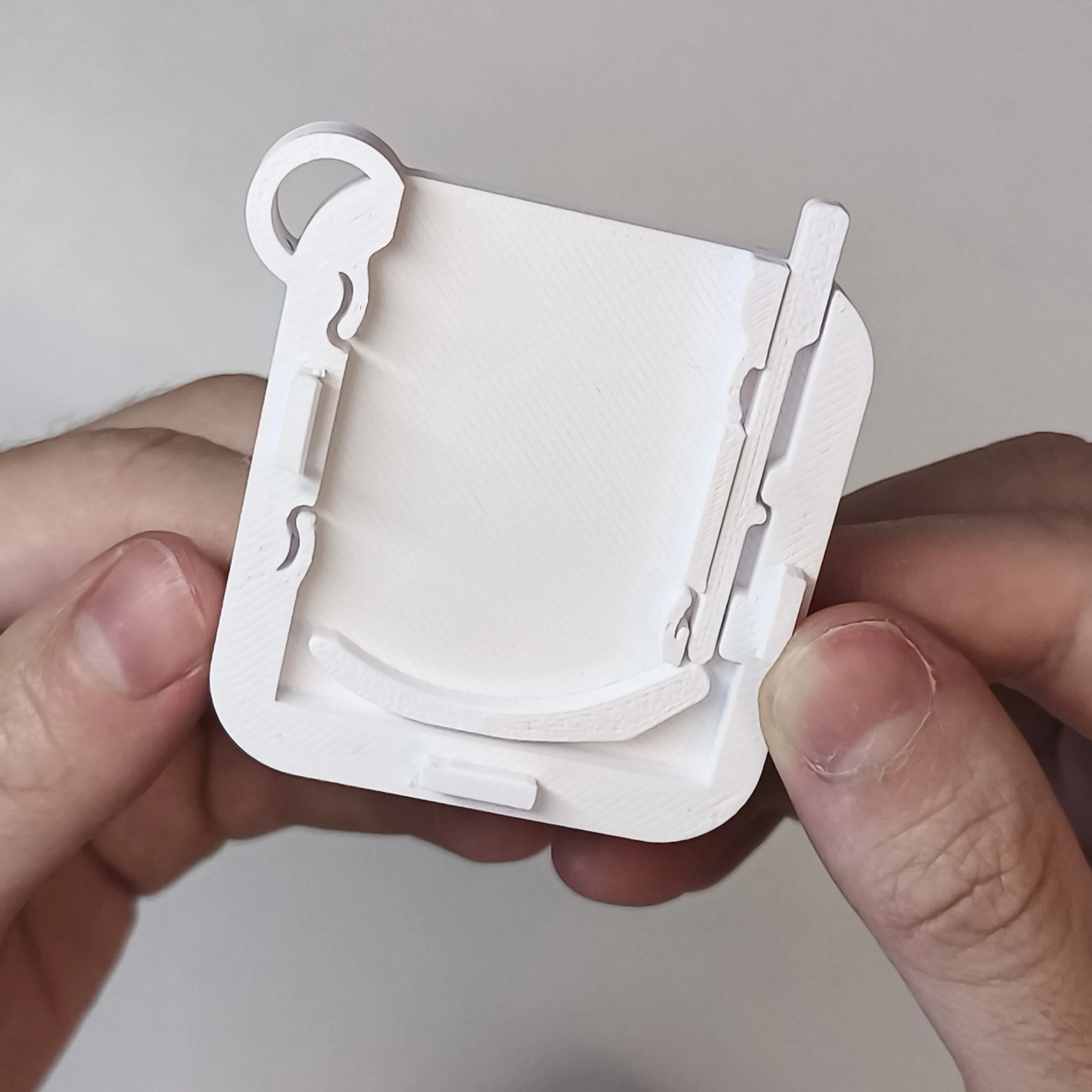

Position the lever and the button/pin as shown in the image (do not try to press the button as the system will not work until the cover is in place).

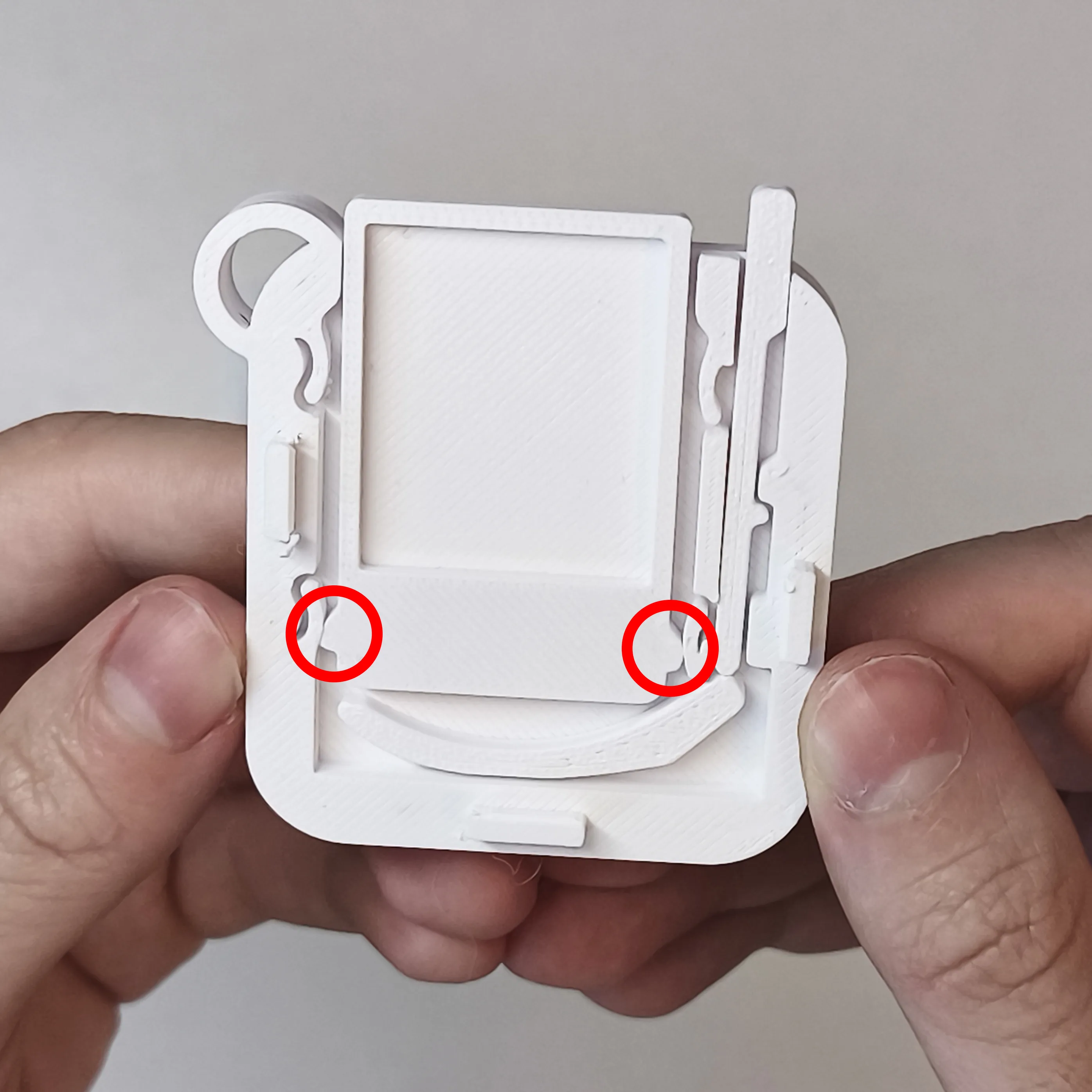

Now insert the film, making sure that these two knobs are facing downwards; this will lock the film inside the Instax.

Step 4

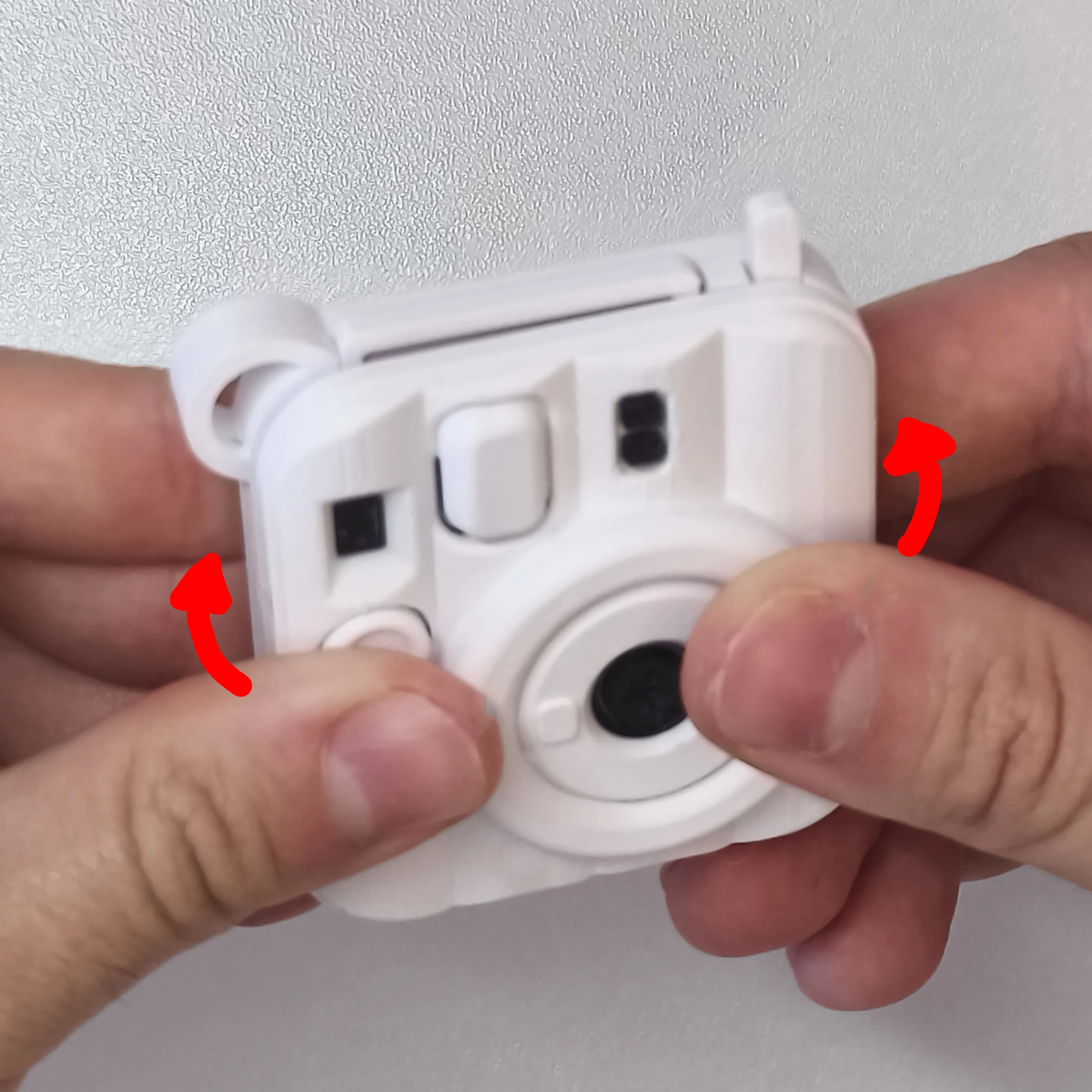

(If you want, you can use super glue on this step where the pins are, so the Instax is more secure, but this is no longer necessary because of the snap lock pins.) Place the front cover by fitting the 3 middle pins into the holes on the back of the front cover and press one side at a time so that the front cover locks in place.

Step 5

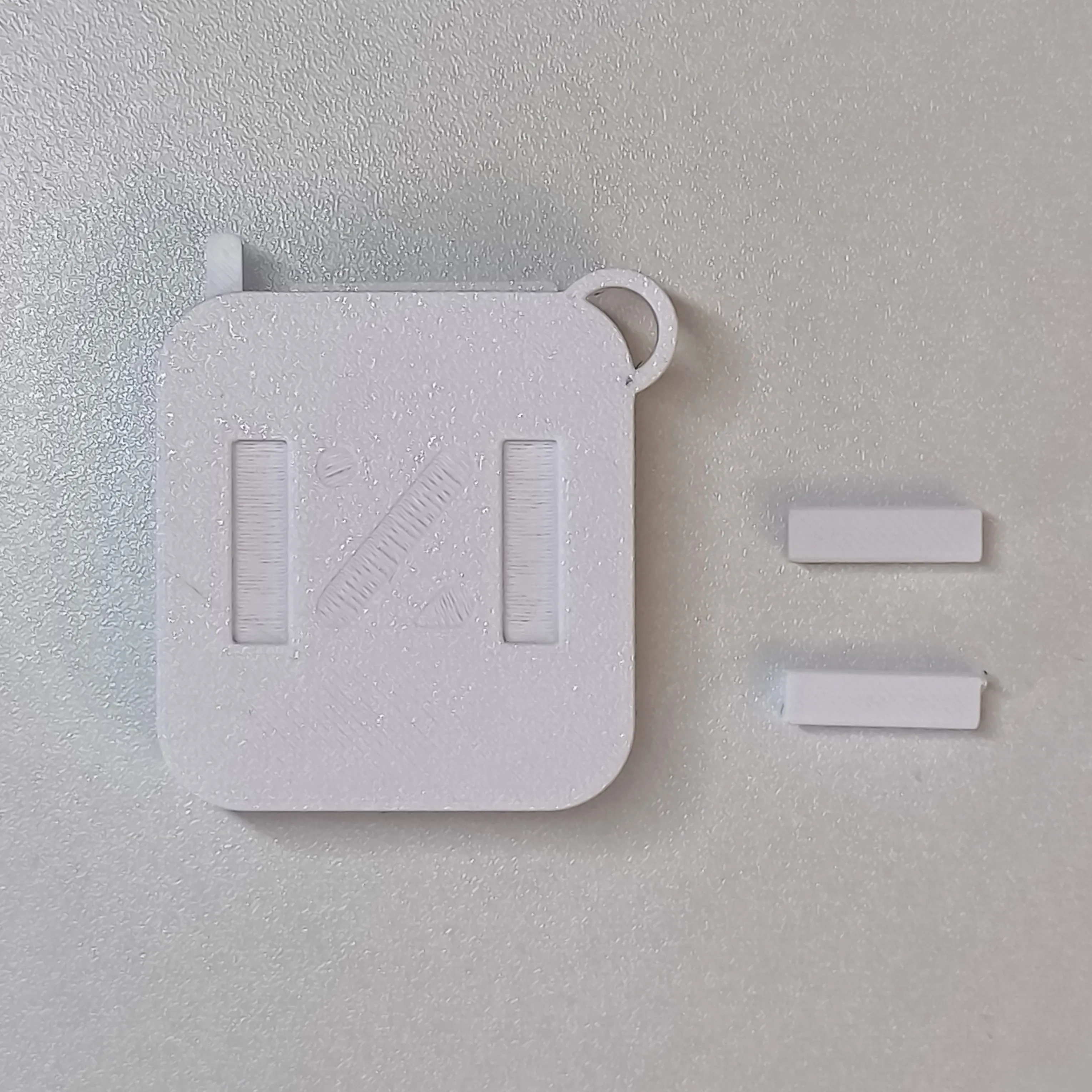

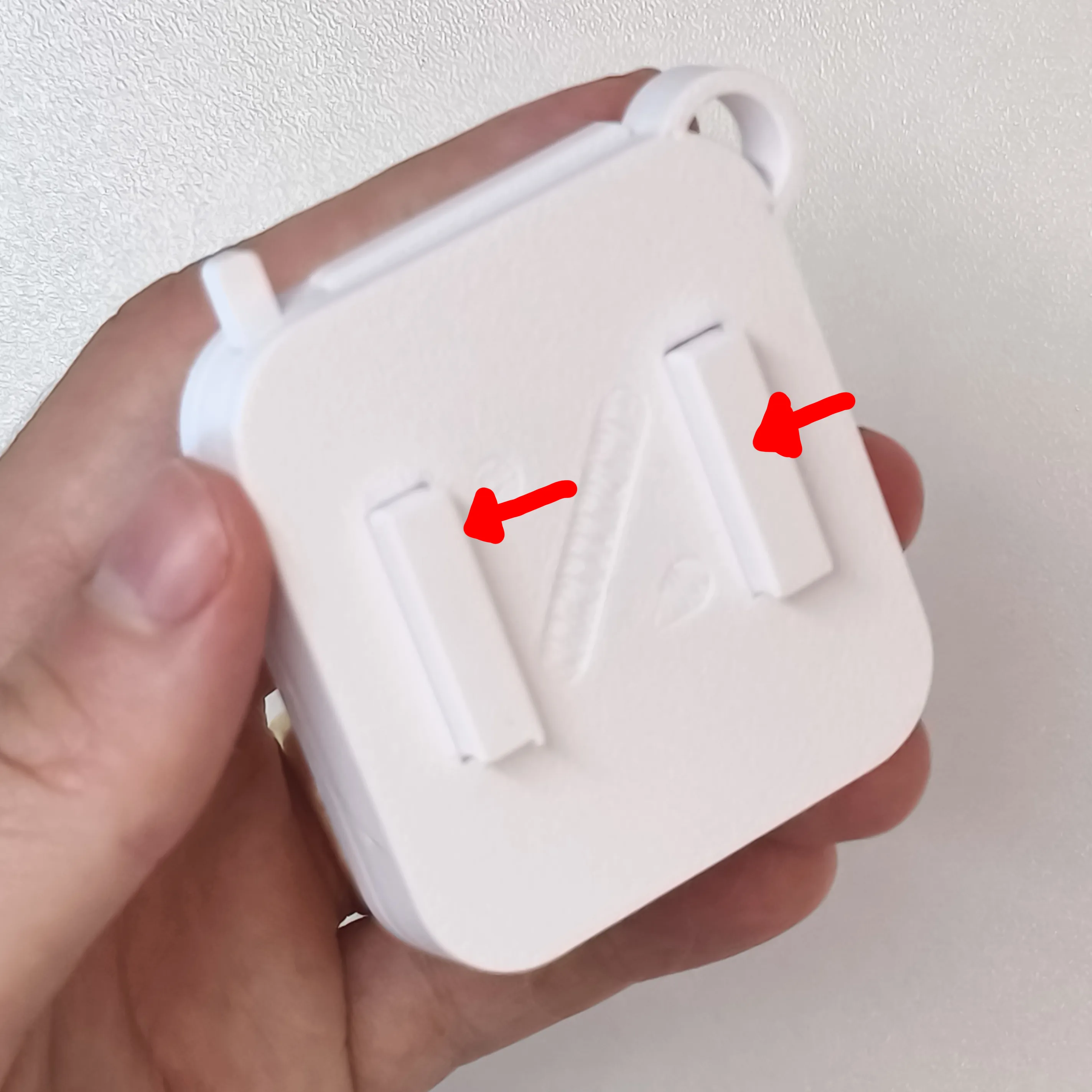

Take and attach the two snap lock pins either to the middle back of the Instax or to the back cover, the order doesn't matter.

Step 6

(This is another step where you can use super glue)

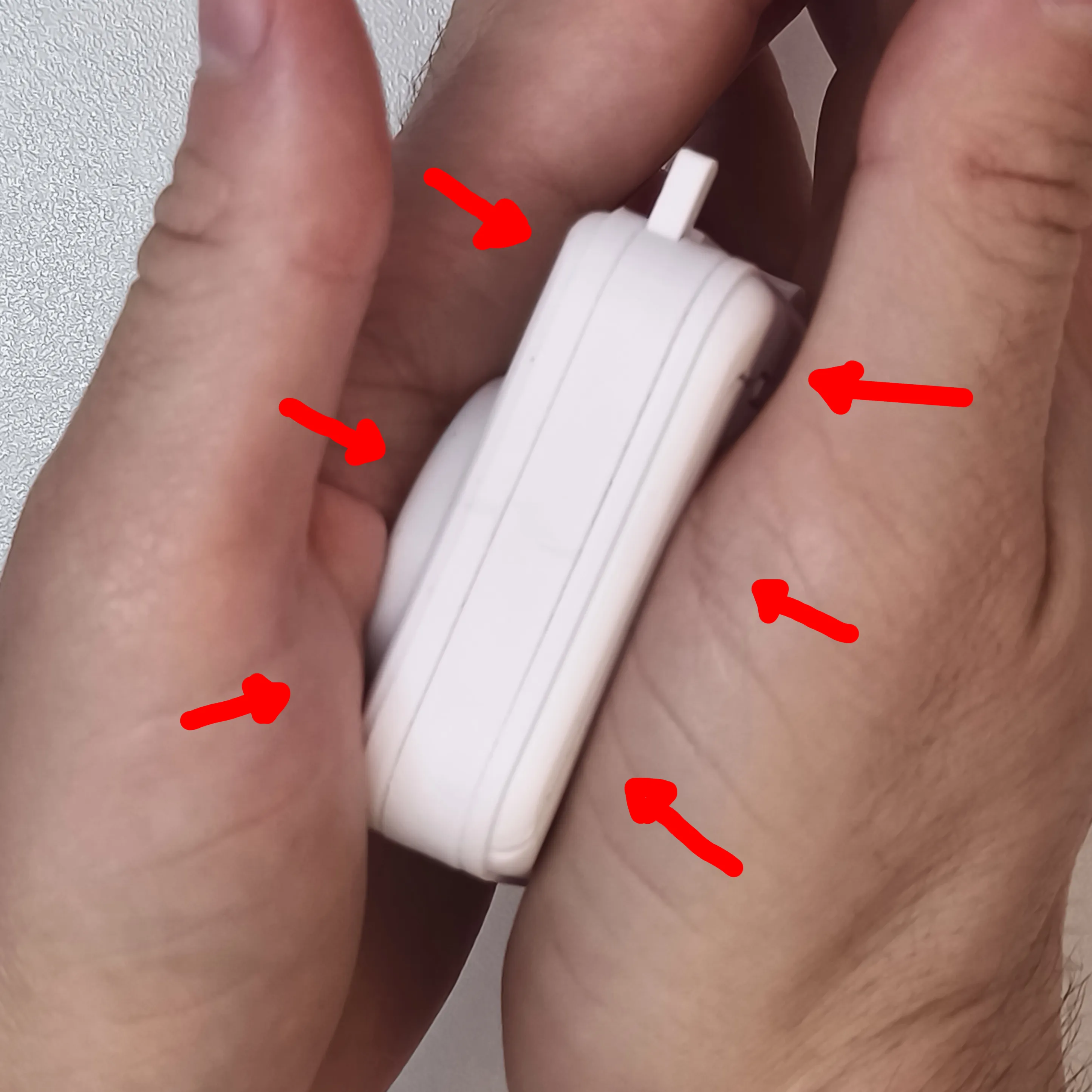

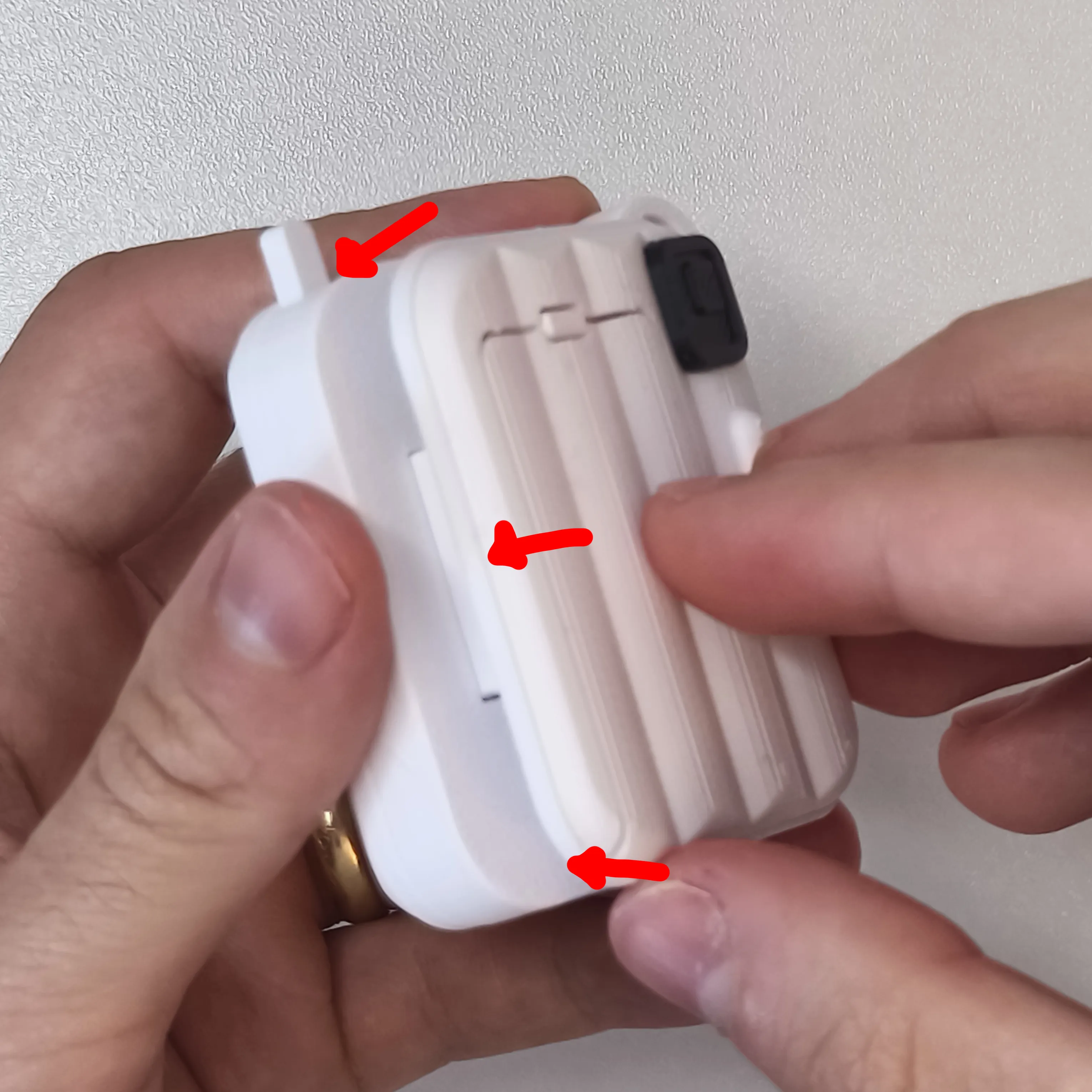

Now attach the back part and press (you might need to apply some force here, don't worry, nothing will break (I hope)).

Step 7

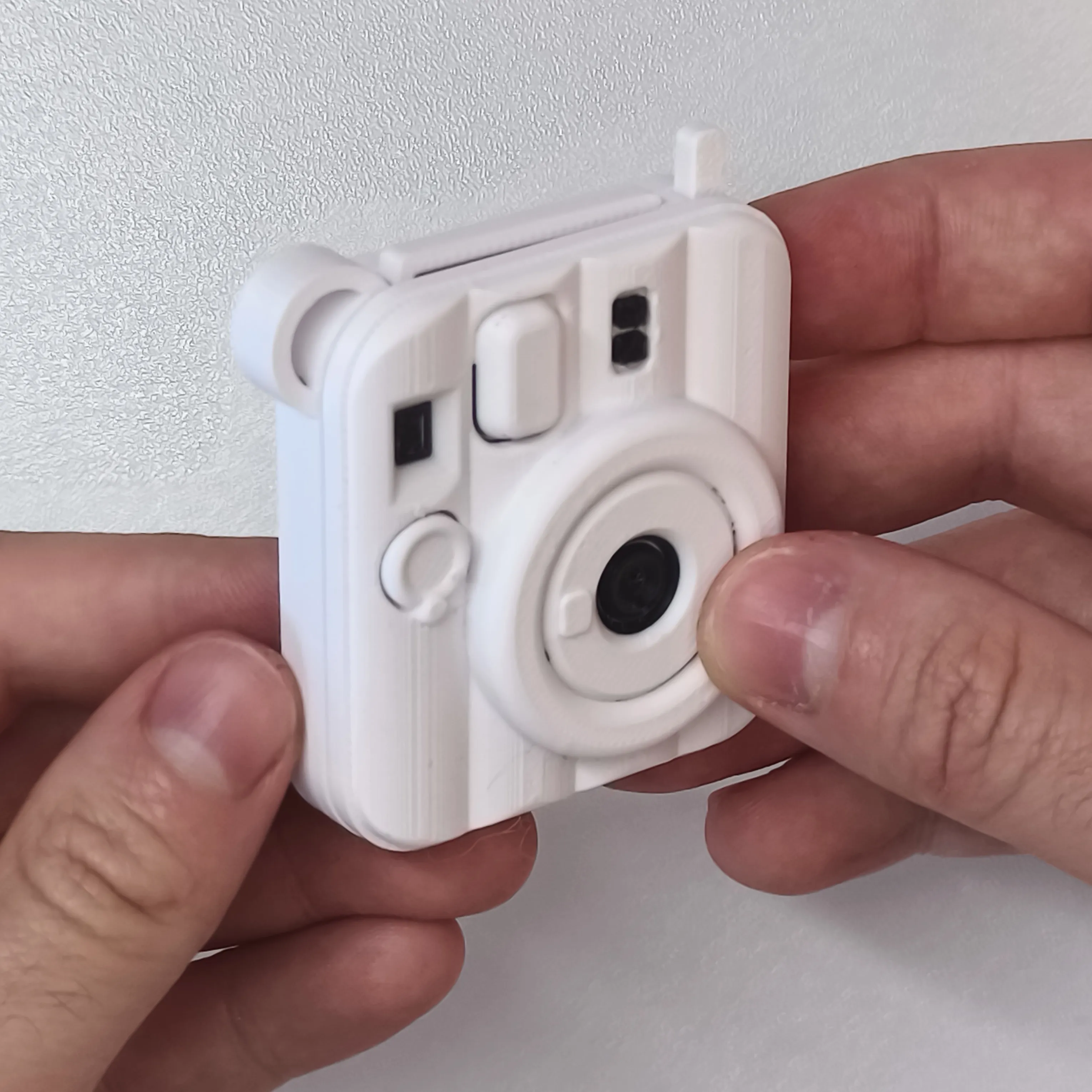

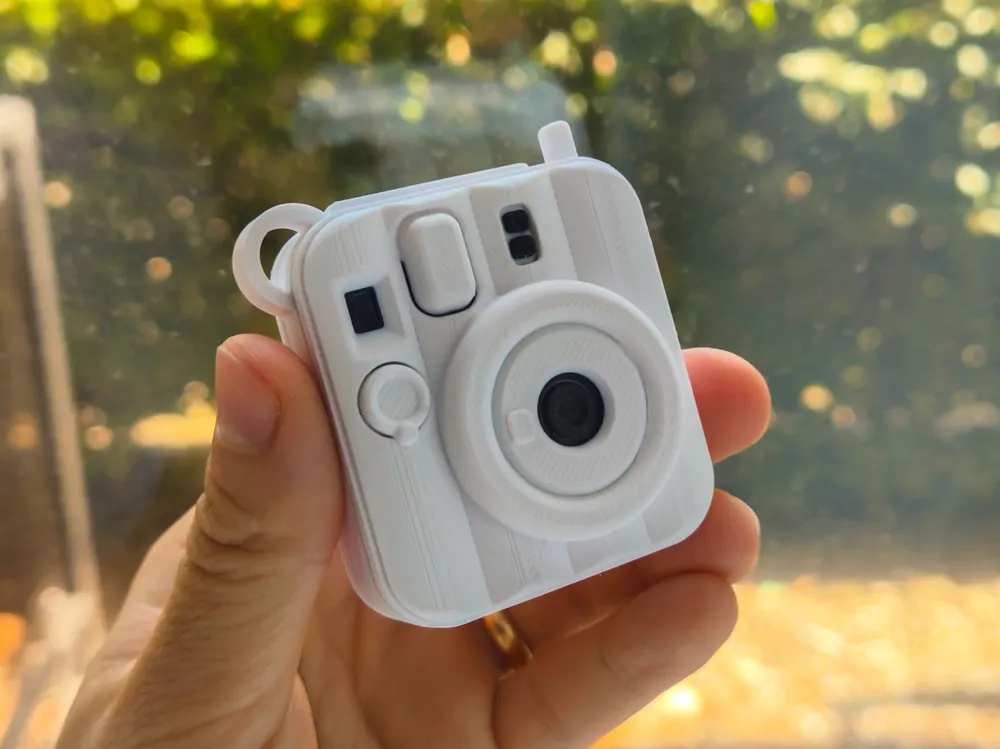

If you did everything right, you now have a cute and cool new Instax Mini 13 Keychain, enjoy :)

Don't forget to share your builds!
