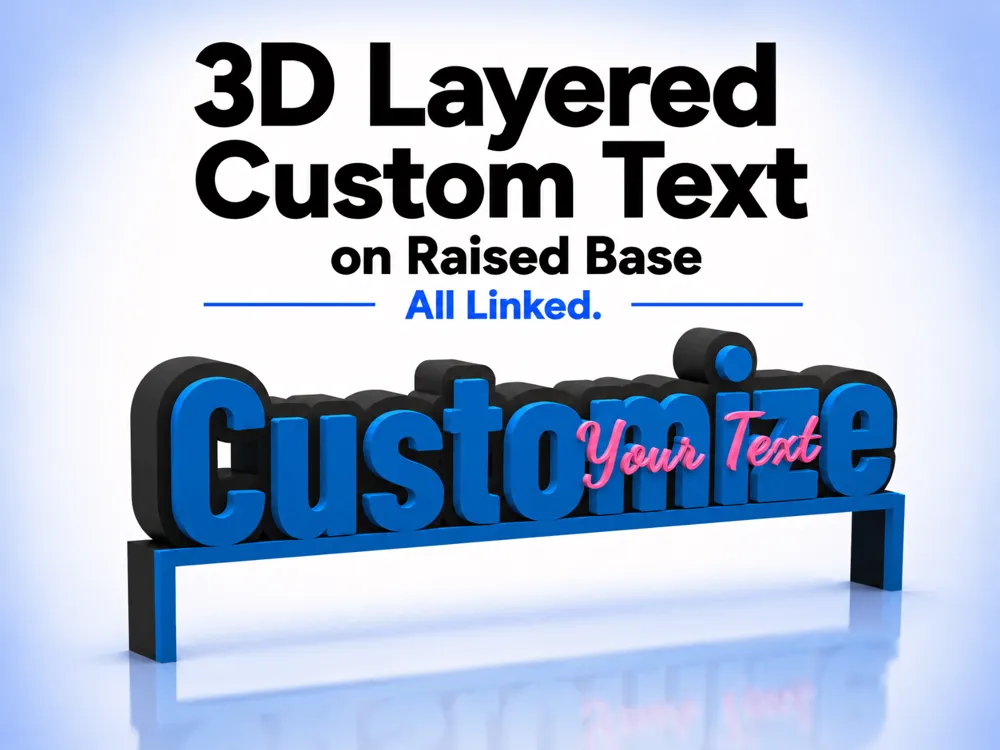

3D Layered Custom Text on Raised Base – All Linked

🔧 3D Layered Custom Text on Raised Base — Fully Linked, Multi‑Color, Parametric

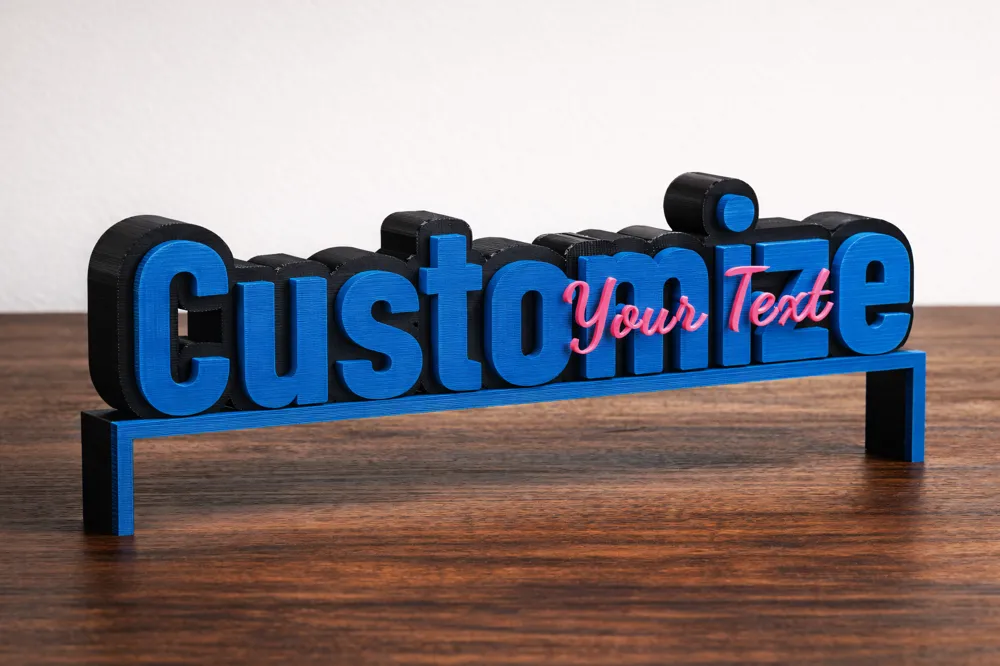

This model is a fully parametric layered‑text generator featuring a bold main title, a cursive secondary line, optional underline brackets, and a refined multi‑layer color structure. Every component — base layer, primary text, secondary text, underline, and vertical end‑caps — is automatically connected and synchronized through the underlying parametric architecture. Adjust any parameter and the entire model updates instantly with clean geometry and reliable printability.

The geometry is engineered for strong vertical bonding, clean multi‑color layering, and a premium decorative feel. Perfect for desk signs, gifts, labels, brand displays, or decorative typography.

🛠️ What You Can Customize

✏️ Custom Text & Fonts

Two independent text lines:

• Text 1: Bold main title
• Text 2: Cursive secondary line

Supports 8000+ system fonts, including bold, script, serif, sans‑serif, and decorative styles. Spacing, size, and positioning are fully adjustable.

🧱 Layered Text Structure

The model uses a clean multi‑layer system:

• Layer 1: Base plate
• Layer 2: Text border (auto‑offset)
• Layer 3: Main text
• Layer 4: Extra top layer for the second text line

You can control thickness, height, border size, and color for each layer.

🎨 Color Controls

Choose colors for:

• Main text
• Secondary text top layer
• Underline
• Base layer

Perfect for AMS multi‑color printing or manual filament swaps.

📏 Positioning & Spacing

• Independent spacing for each text line
• X/Y offsets for the second text line
• Adjustable underline gap
• Vertical line offsets for perfect alignment

Everything stays perfectly linked thanks to the parametric structure.

➖ Underline & Vertical End‑Caps

Enable a smooth underline with optional vertical brackets:

• Underline width
• Extra length
• Gap
• Letter‑factor scaling
• Left/right vertical lines
• Vertical line length and offsets

These elements auto‑size based on the main text length.

⚙️ Automated Parametric Structure

The generator uses a fully modular architecture:

• Text layers extruded in synchronized heights
• Borders created using offset logic for clean outlines
• Underline and vertical lines generated from dynamic text length
• Secondary text positioned with precise offsets
• Base layer tied to filament‑swap height
• All positioning handled through unified translation modules

This ensures perfect alignment, no floating geometry, and no manual tweaking.

💡 Printing Tips

• No Supports
• Infill: 10–15%
• Walls: 2–3 perimeters
• Top Surface: Ironing recommended for the top text layer
• Manual Filament Swap: Pause at base‑layer height
• AMS: Assign colors to each layer for premium results

🖨️ Print Settings (Easy to Read)

🧵 Material - PLA, PETG, Matte PLA (matte colors give a premium clean look)

🧱 Infill - 10%–15% Gyroid or Cubic

🧱 Walls - 2–3 walls for optimal strength

✨ Top Surface Finish - Enable ironing on the top text layer for a smooth, professional finish.

🎨 Color Swap (Manual Multicolor)

If you don’t have an AMS, no problem — this model prints perfectly with simple manual filament swaps. Add pauses at every layer where a color layer ends. Each time the printer pauses, change filament and resume printing. This ensures clean, sharp color transitions across all linked text layers.
