BlueSCSI Reverse Mounter / Bracket

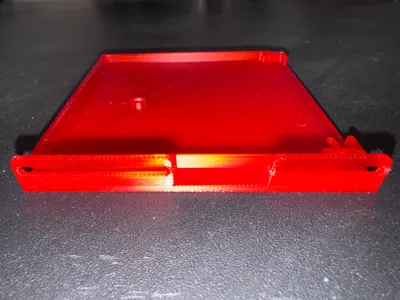

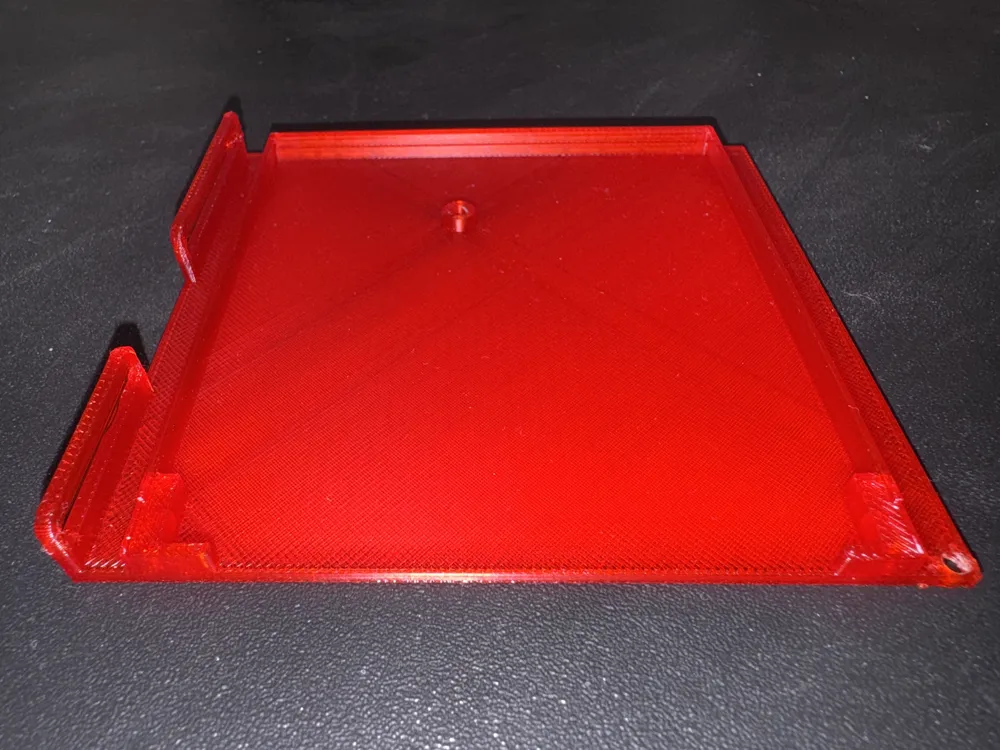

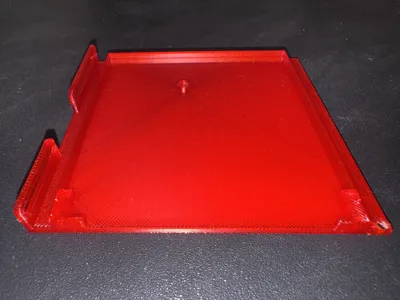

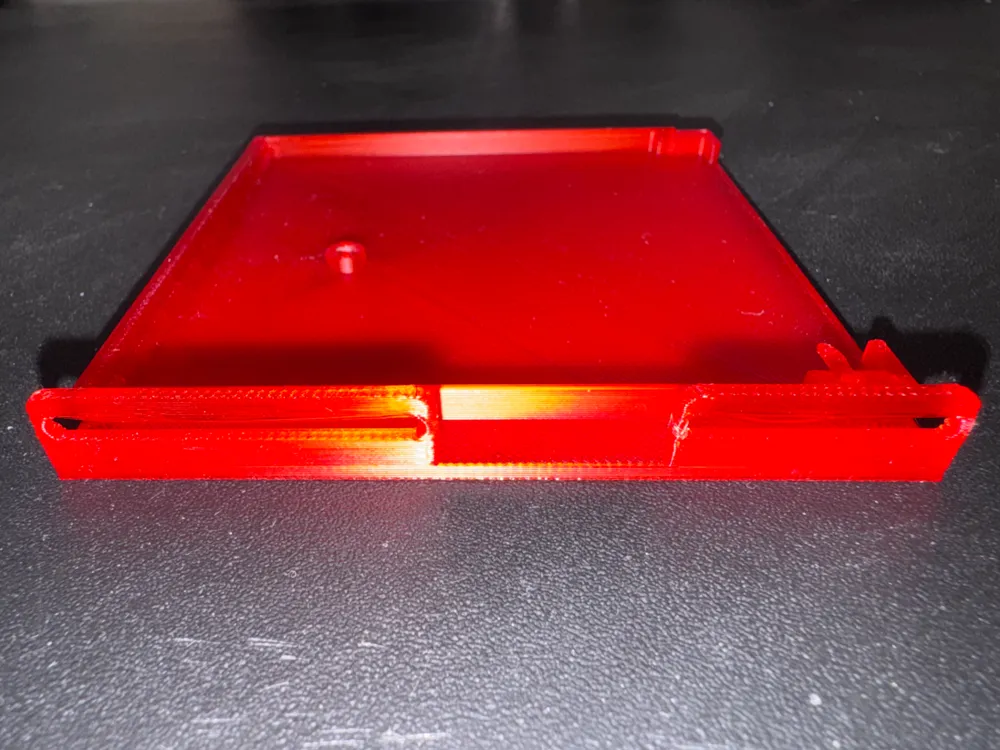

Internal BlueSCSI UpSideDown / Reverse Bracker - Mounter

Design based on: https://www.printables.com/model/661675-desktop-bluescsi-v2-mount-for-board-revision-20231 Literally, on printed stock model that comes with BluSCSI package, caliper measurement was made to draw the similar model from scratch in FreeCAD 1.0.

It is designed to fit in Macintosh Color Classic (1993) but I think it can be inserted in many similar models. Normal installation of the stock bracket stays deeper, this model could help to access the SD Card when just the back-cover was removed and USB cable (a small holder is also modelled on one side) from Pico 2 when accessing the extension port cover.

You may also use one of the proper screw spacers / standoffs using hole on one corner of the model or print a small cylinder to connect, your preference :)

Here are the some examples for spacers / standoffs:

https://www.aliexpress.us/item/3256804367654763.html

https://www.robotistan.com/raspberry-pi-m25-aralayici-siyah-2-adet-standoff
