Parametric board

Parametric Board : Portable whiteboard, blackboard and writing pad

Need a custom-sized rigid board for writing, drawing, or crafting? This is a fully parametric, customizable board designed to fit your exact needs.

Whether you need a heavy-duty clipboard, a custom coaster, or a dual-sided portable easel for your kids, you can adjust the dimensions perfectly in seconds using the MakerWorld MakerLab/OpenSCAD customizer!

🌟 The Backstory & Inspiration

This project started because I wanted to upcycle my daughter's used notebook pages. By compiling the clean, recycled sheets of paper and printing a flat 170mm x 215mm x 2mm board, I created the perfect, sturdy backing pad for her to write on comfortably anywhere.

🛠️ Fully Customizable Features

You can tweak the following parameters to generate your perfect STL:

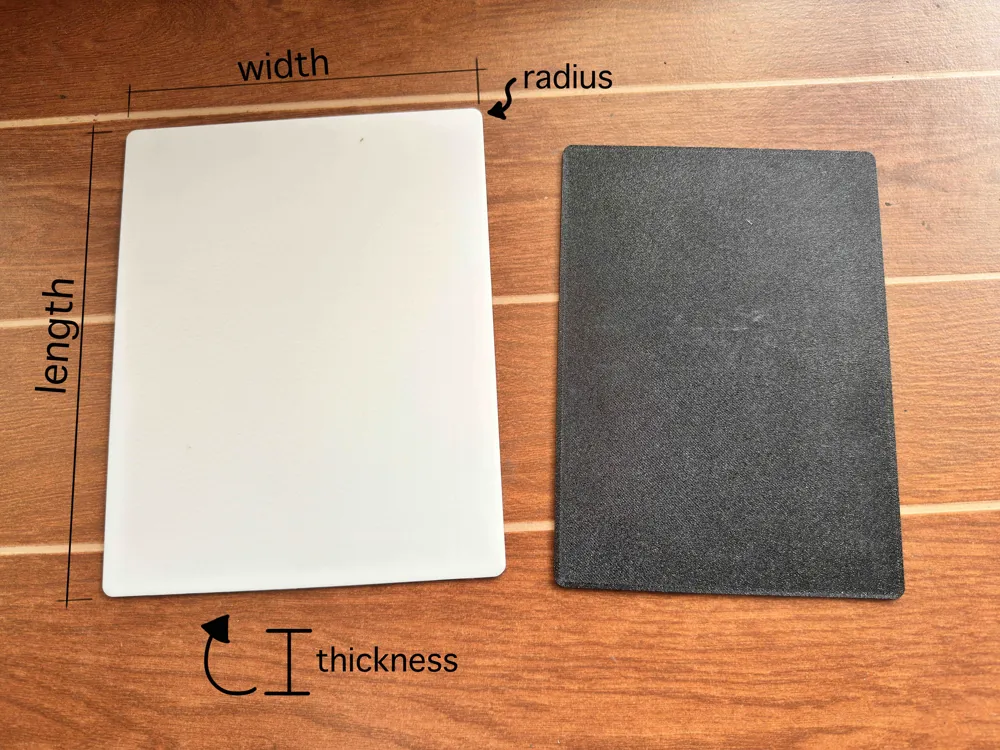

• Width & Length: Scale it up to your printer's maximum bed size or down to a pocket-sized card.
• Thickness: Keep it thin (2mm) for a flexible, lightweight sheet, or thicken it up for a rigid, heavy-duty board.
• Corner Radius: Round off the four corners to your liking to ensure there are no sharp edges, making it safe for kids' backpacks. or set it to “0” if you want a sharp corners.

💡 Awesome Project Idea: The 2-in-1 Portable Slate

Want to take this print to the next level? Here is a quick DIY project you can do right after printing:

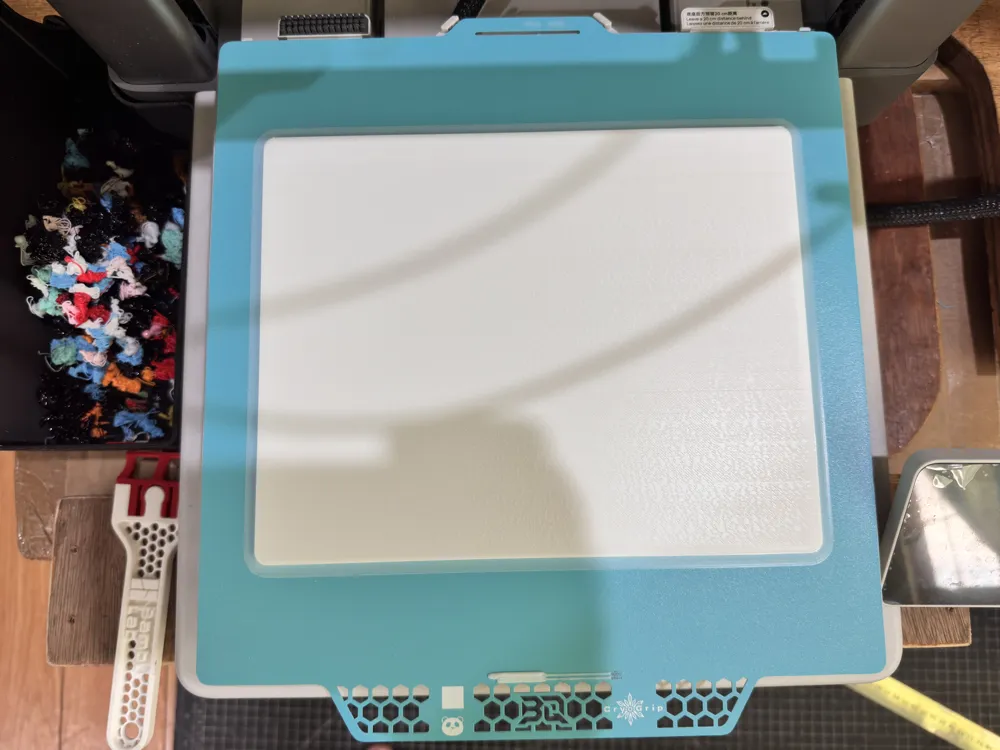

1. Print the flat board at your desired size (e.g., 170mm x 215mm x 2mm).

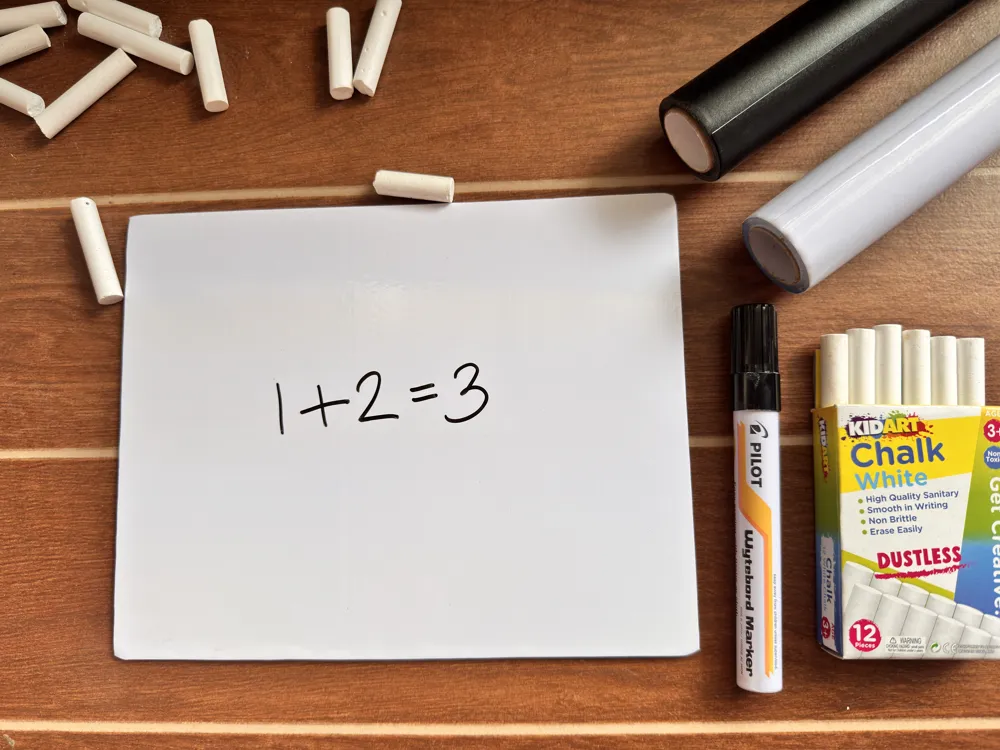

2. Side A: Peel and stick a self-adhesive Whiteboard Sheet onto one side. Perfect for dry-erase whiteboard pens!

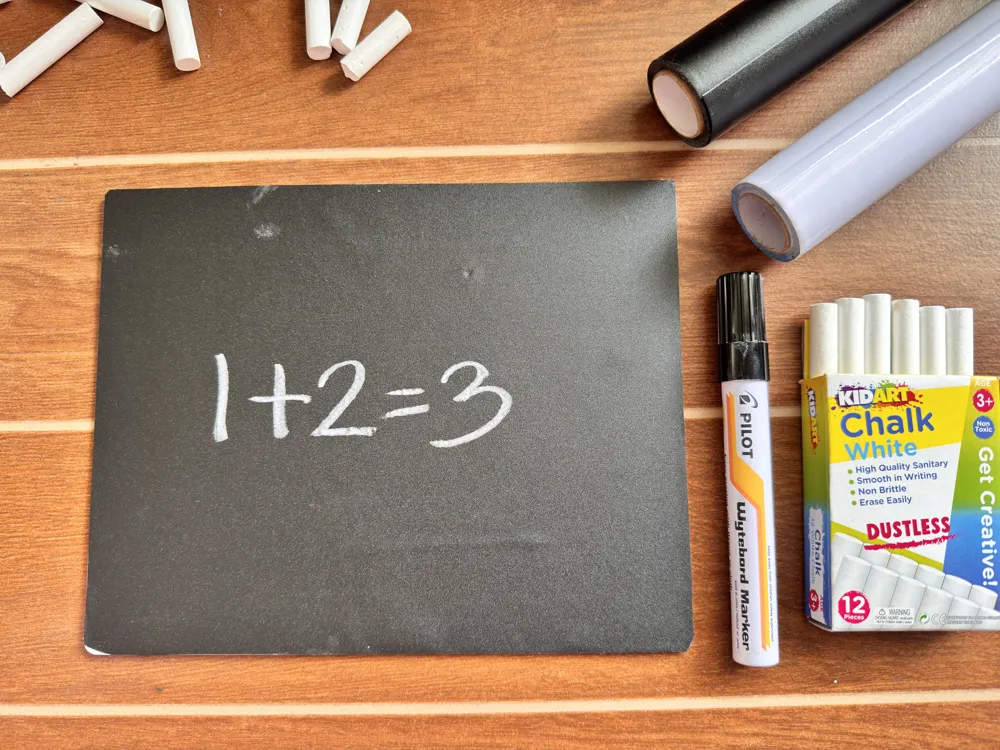

3. Side B: Peel and stick a self-adhesive Blackboard/Chalkboard Sheet onto the reverse side. Perfect for traditional chalk!

This gives you a lightweight, indestructible, dual-sided portable drawing board that kids (and adults) will love.

🖨️ Recommended Print Settings

• Material: PLA (Standard or Tough) works great. PETG is excellent if you want more flexibility and heat resistance.
• Infill: 100% (Since it's thin, solid infill ensures maximum rigidity and flatness for writing). but print profile used 15% infill
• Bed Adhesion: A clean build plate is key to preventing the corners from lifting. Use a brim if your bed adhesion isn't perfect.
• Top/Bottom Pattern: Monotonic or Concentric for a super smooth finish before applying adhesive sheets. Print profile used is different.
• Brim ears or Outer Brim: so the print won't lift off the bed plate
• Infill: 3d honeycomb for strength

If you like this model, please leave a ⭐⭐⭐⭐⭐ review and upload your makes! I'd love to see how you utilize the parametric sizing.
