Door Hinge Template

Print Profile(1)

All
X1 Carbon
X1
P2S
H2D Pro
A2L
H2C
P1S
X1E
H2D
H2S
X2D
A1 mini
A1
P1P

0.2mm layer, 3 walls, 15% infill
0.2mm layer, 3 walls, 15% infill
Designer
22 min
1 plate

Open in Bambu Studio
Boost
0
1
0
0
0
0
Released

Description

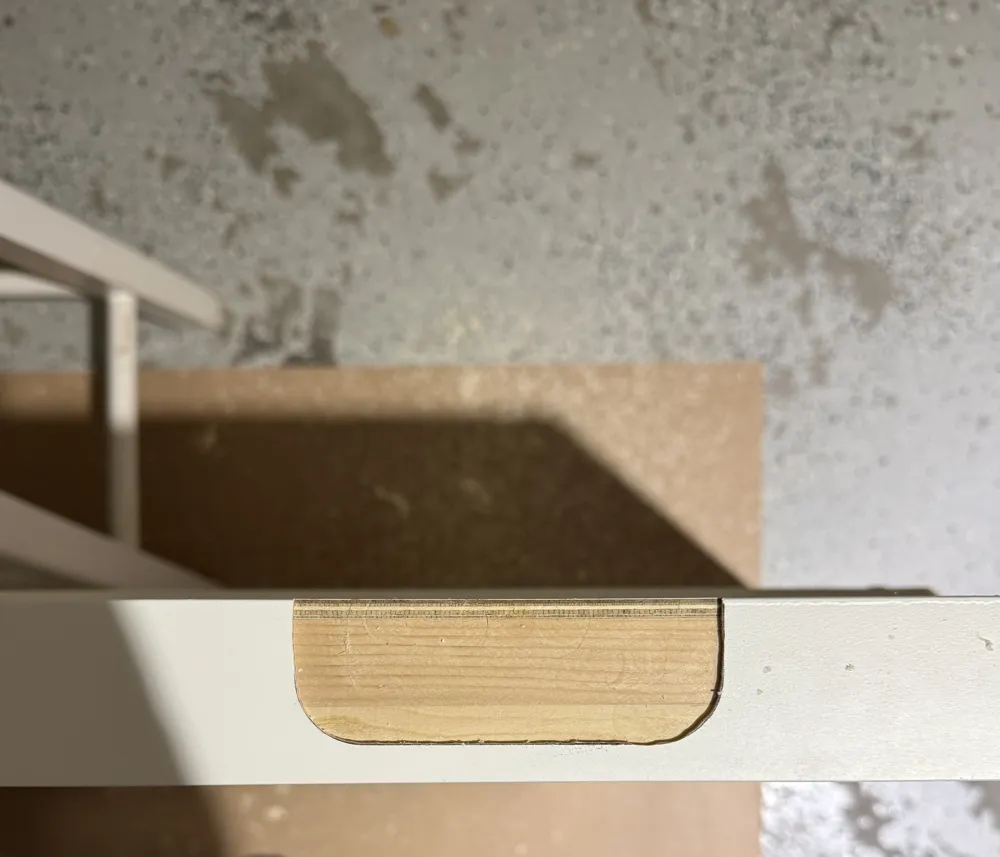

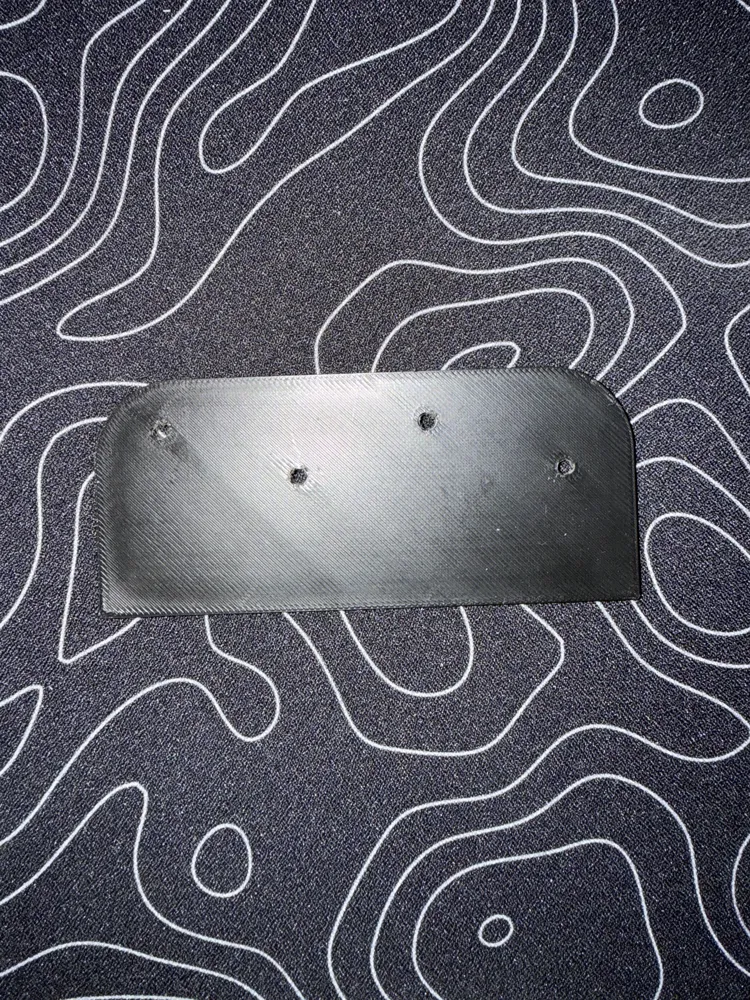

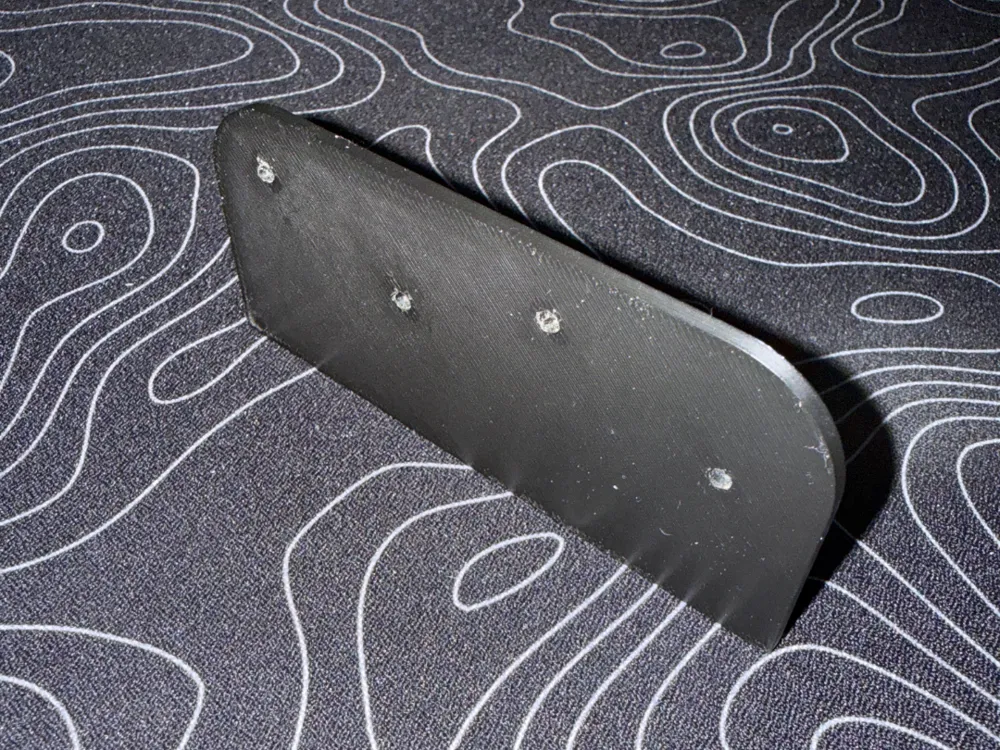

This is a template for a 4in x 4in door hinge with a 5/8in corner radius. I also included through-holes to allow a 7/64 bit to be used to drill pilot holes. The intended use is to trace around the template and then use a router to remove the space for the door hinge.
