Description

Content has been automatically translated.
Show original

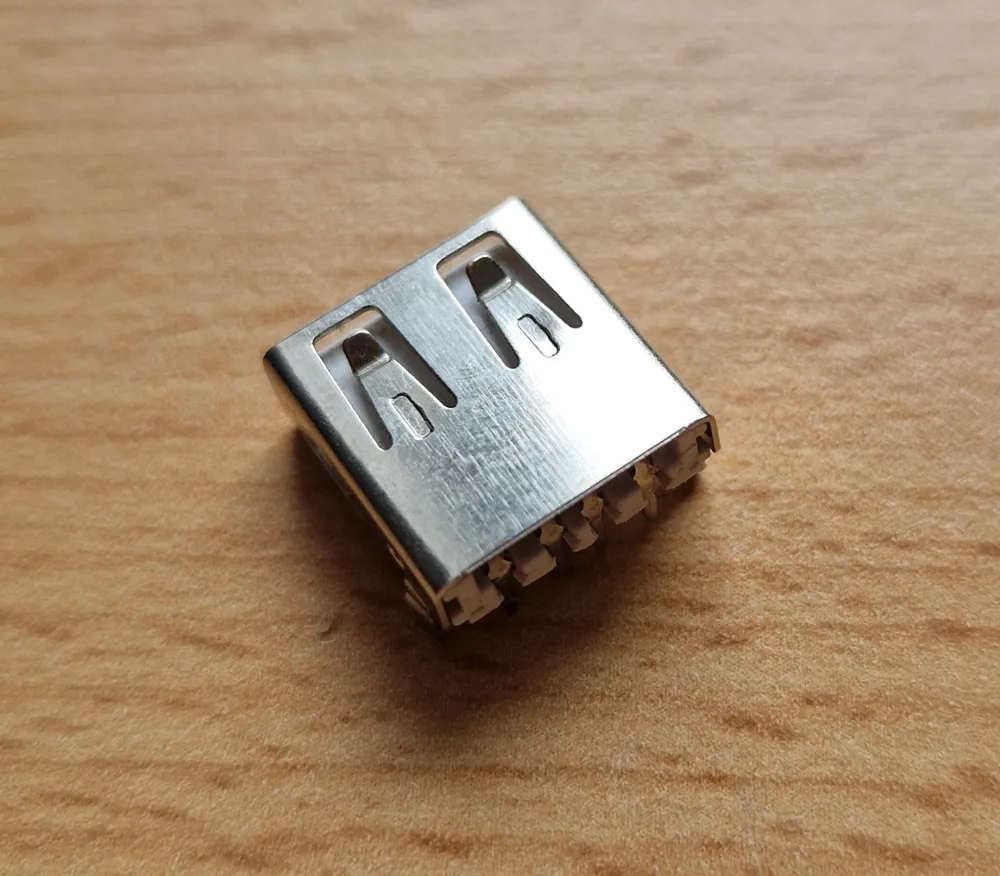

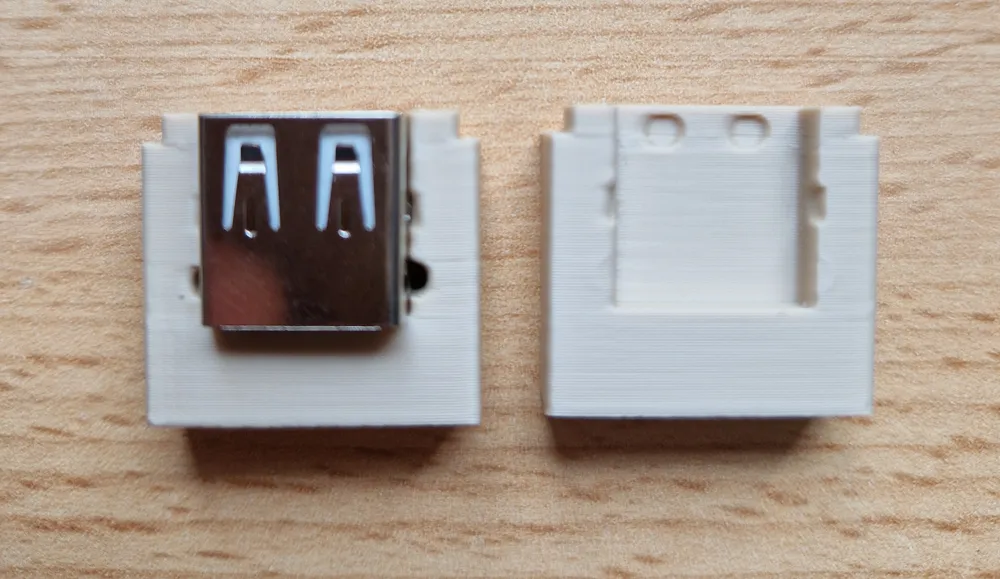

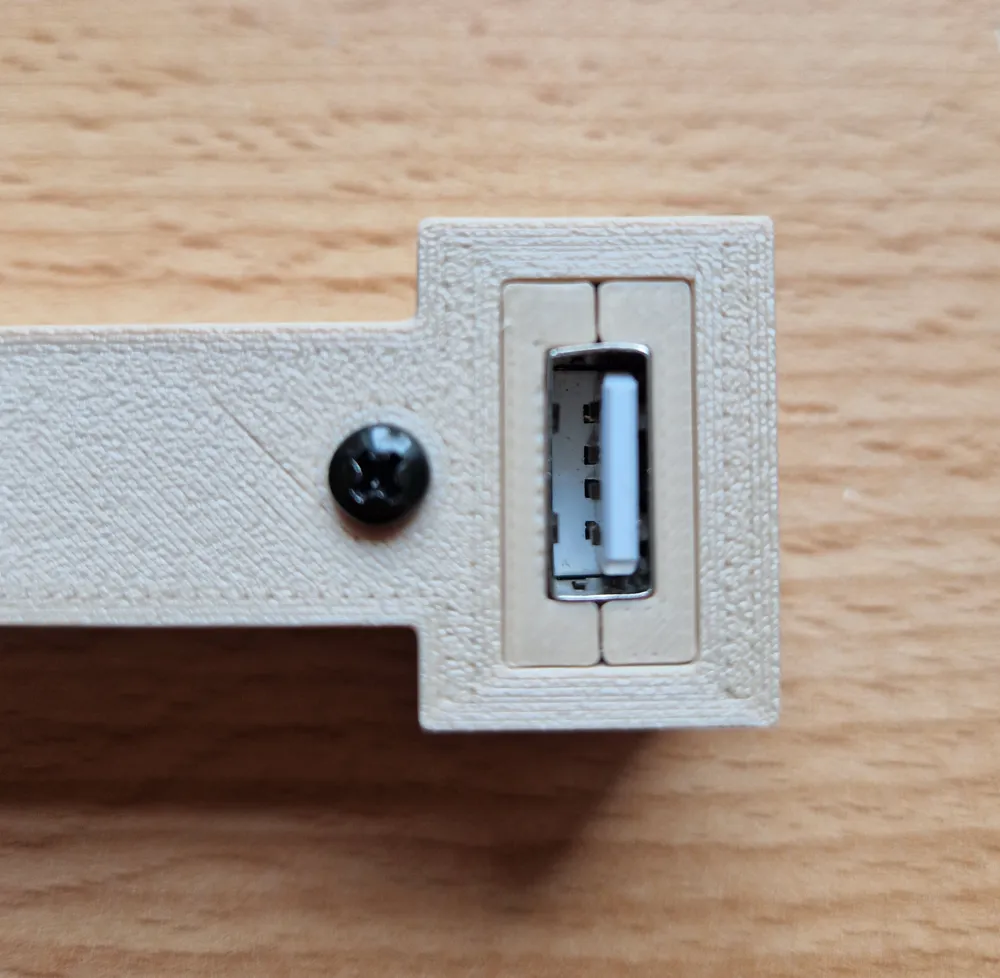

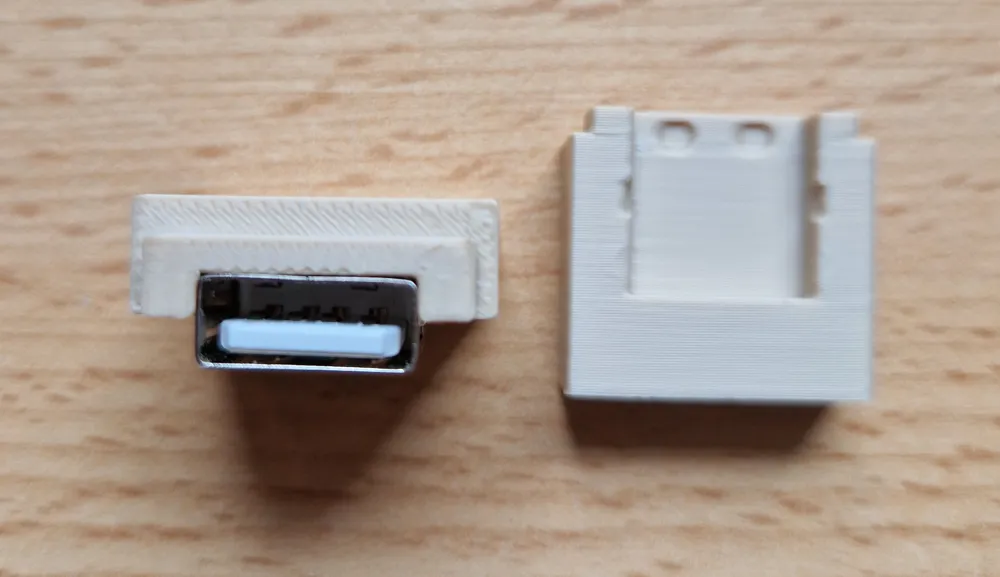

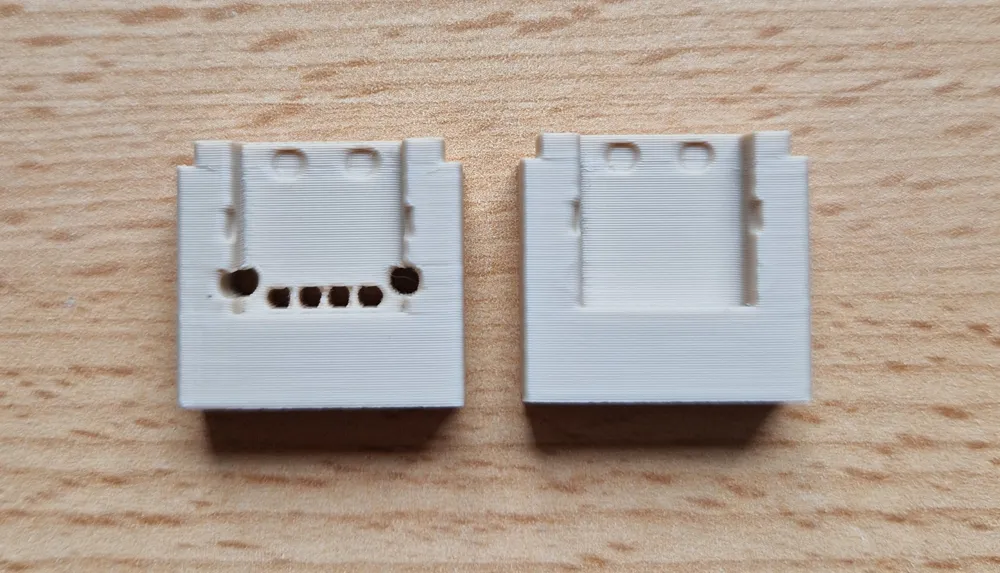

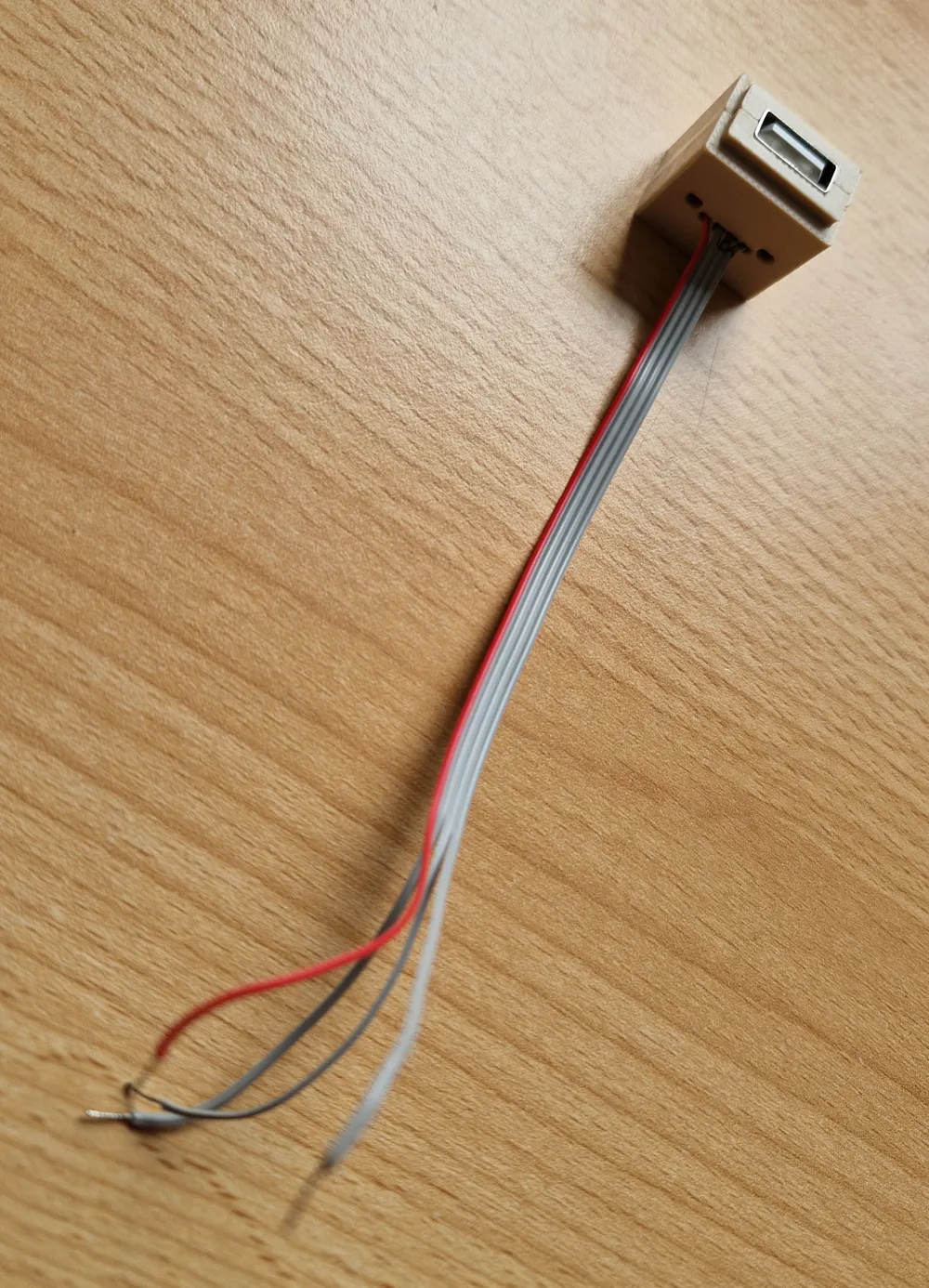

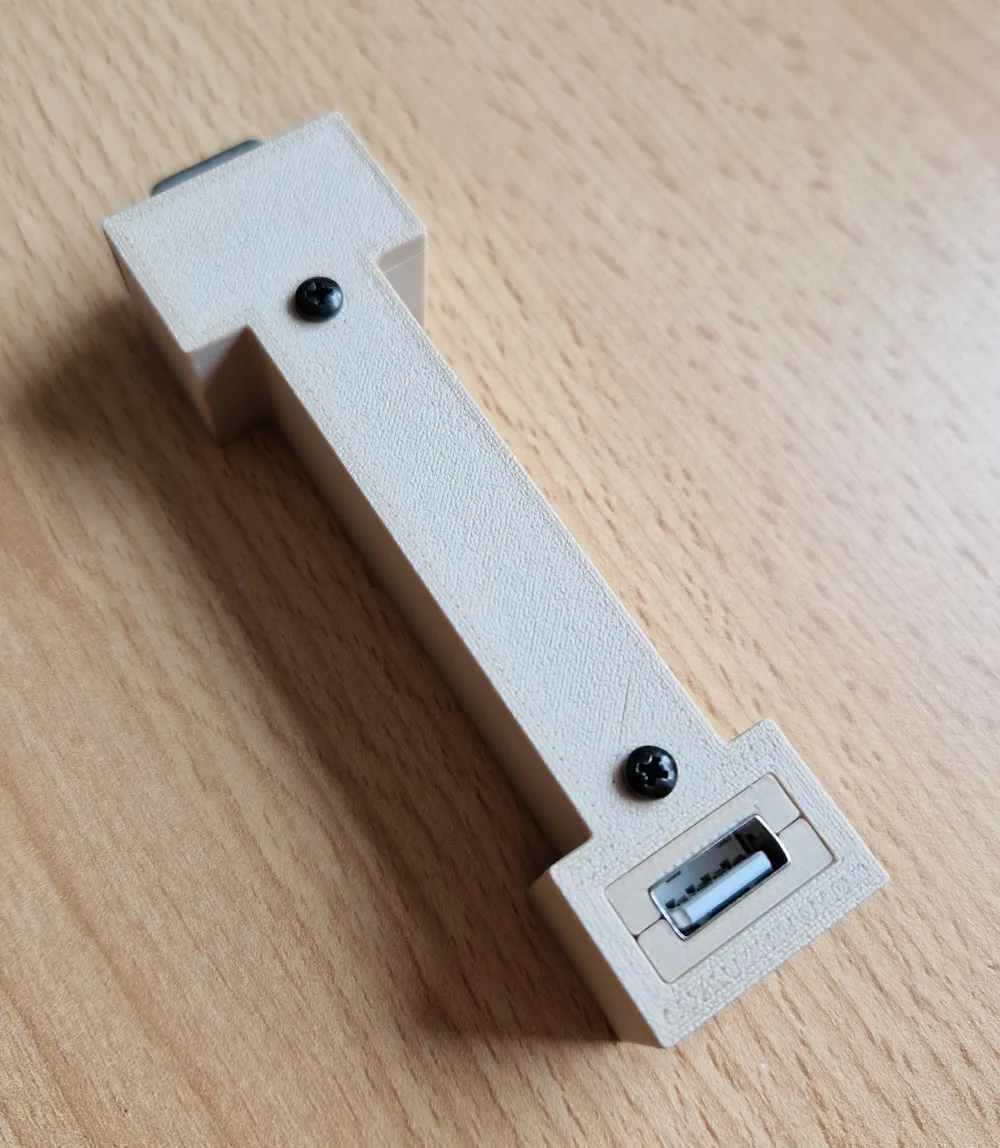

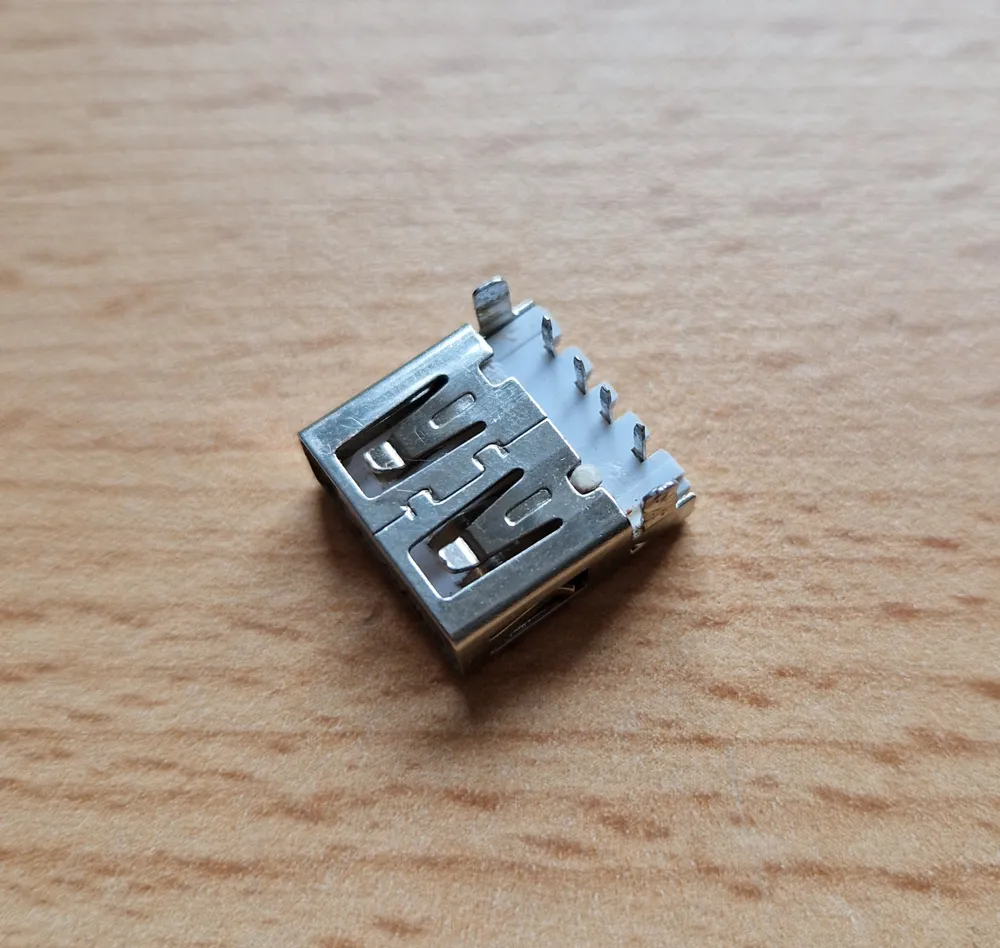

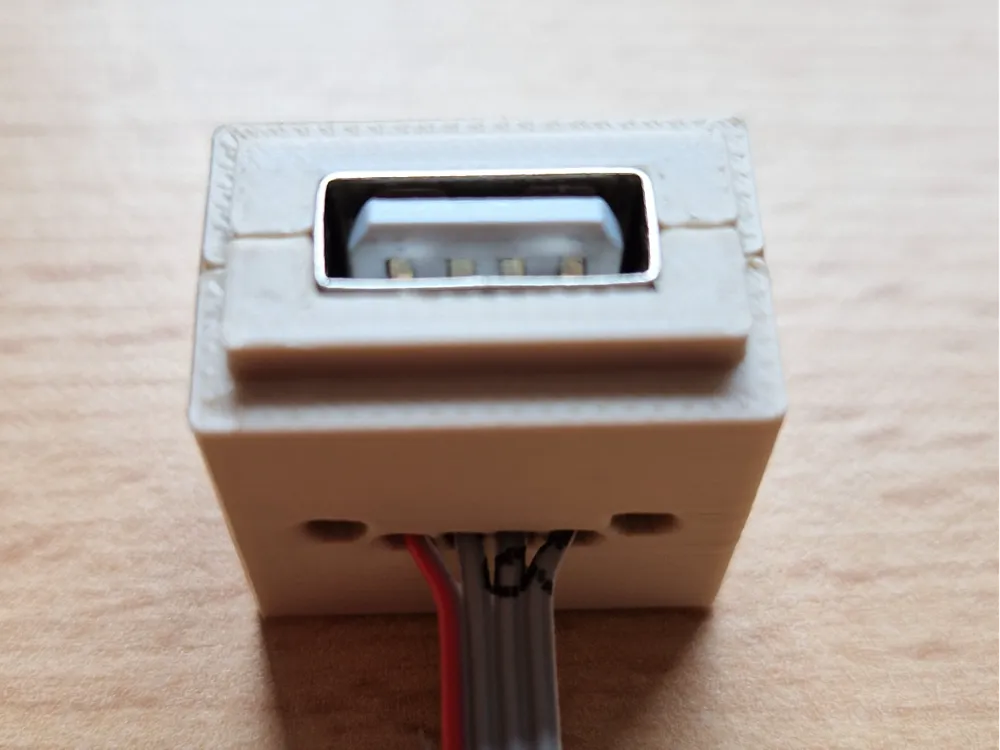

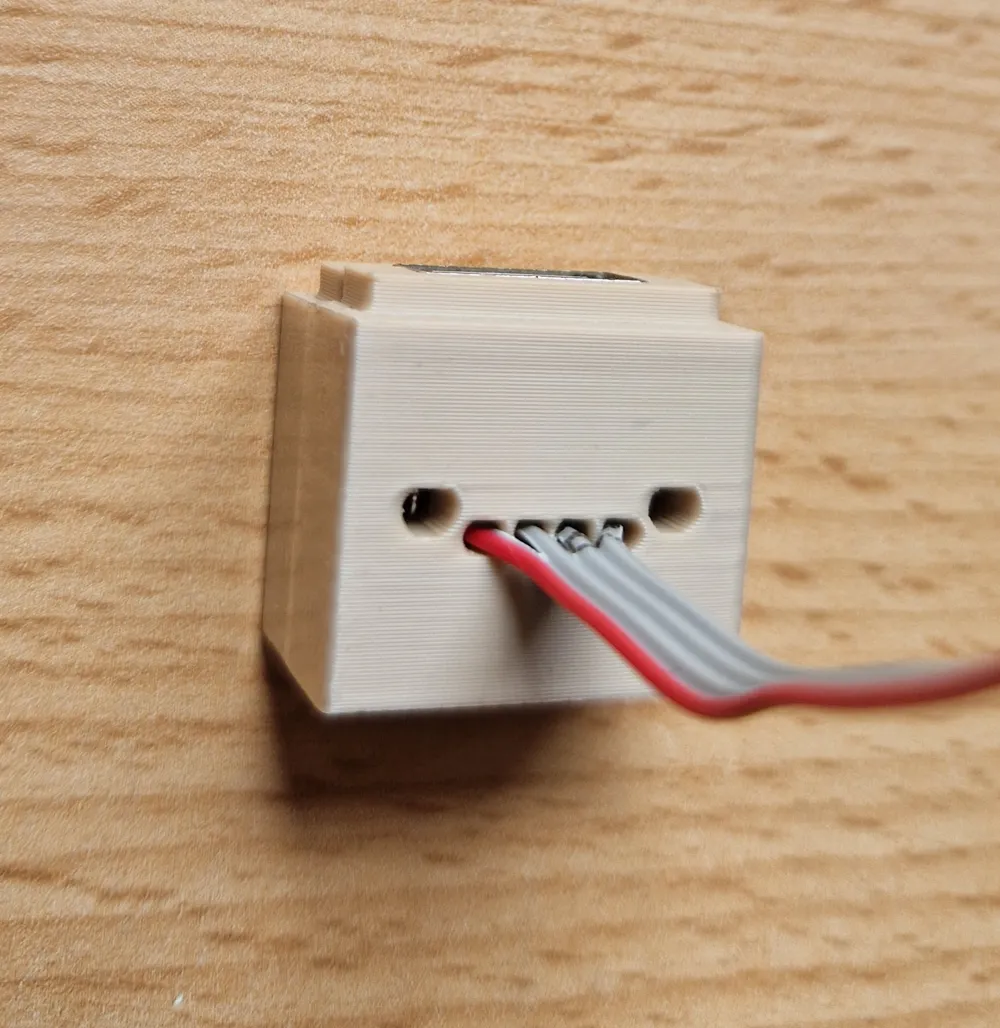

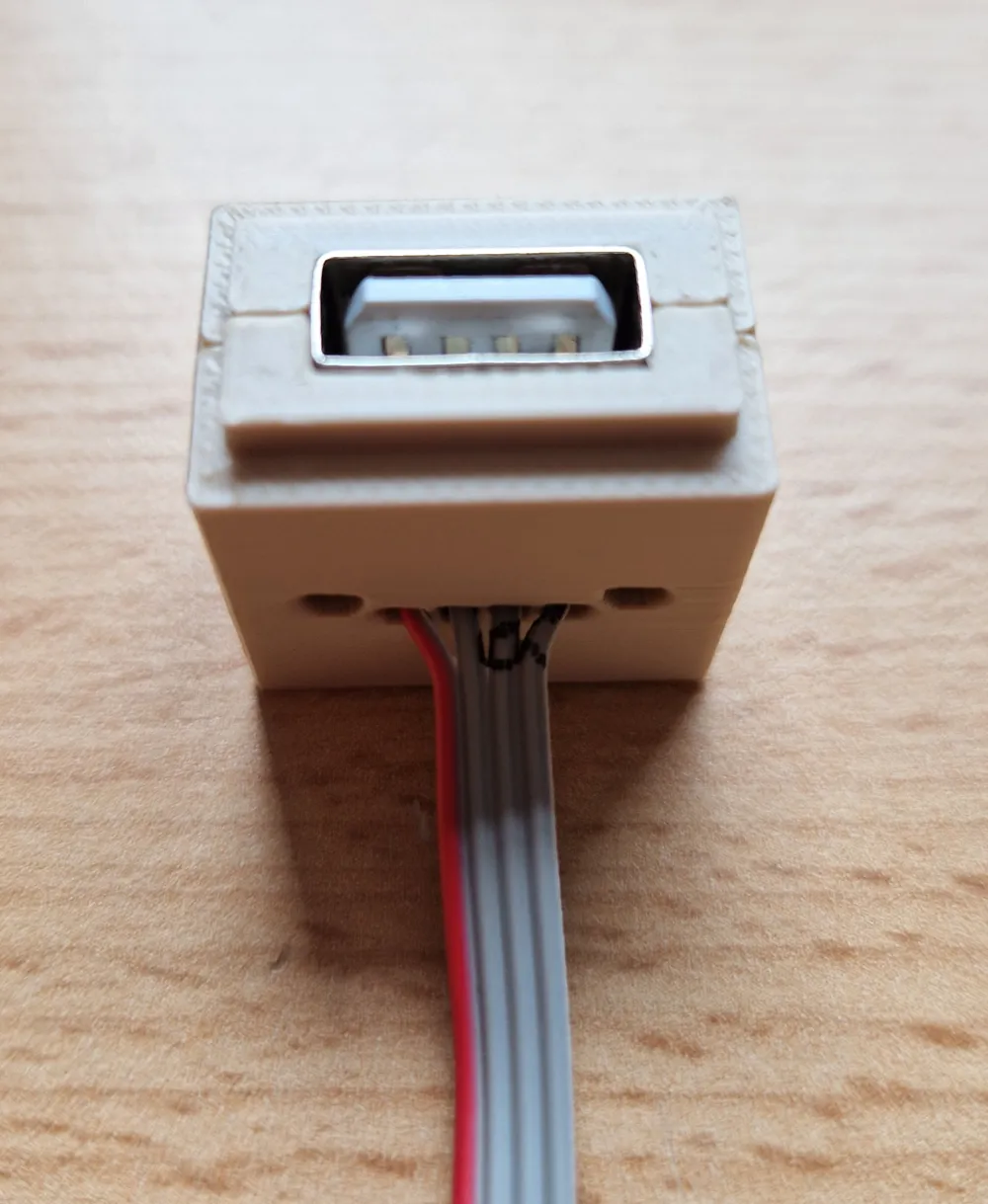

I created this USB socket for the model listed below, as there was no suitable USB port available at the time. This socket can also be used for other enclosures with a suitable opening. In my case, no gluing or other connectors were needed, but this can be adjusted if necessary. Of course, the cables must first be soldered and routed through the holes. Afterwards, both parts can be fixed with superglue or connectors.




Many thanks to AGE AGE

https://www.printables.com/model/840413-amiga-arduino-nano-usb-ps2-mouse-adapter
