Parametric Side-Release Buckle V2 — Custom strap buckle 10–60 mm, 7 attachment styles, OpenSCAD Customizer

Description

A fully parametric side-release buckle designed for 3D printing

Customize it directly in the MakerWorld / OpenSCAD customizer to fit straps, webbing, cords, paracord, loops or flat mounting tabs — no CAD software required

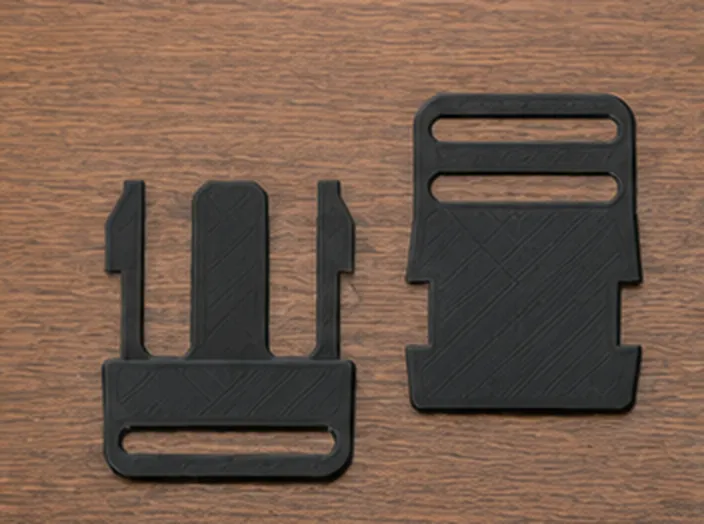

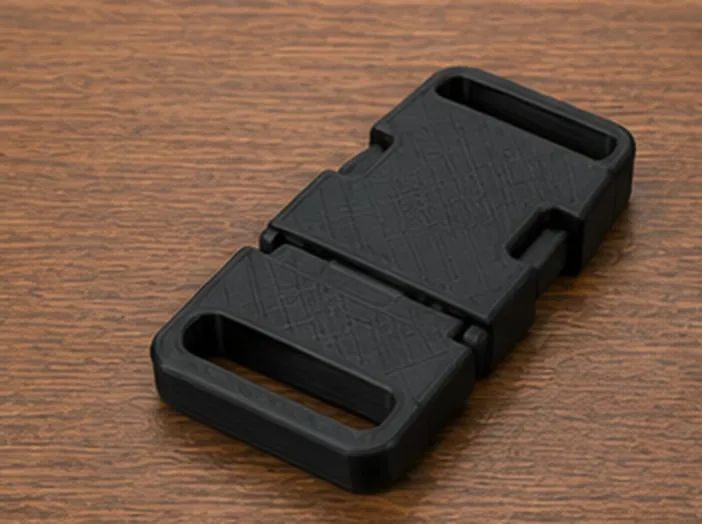

This model generates a real two-part buckle:

• male part with flexible snap arms and rigid center guide
• female part with side-release windows

Main features

7 attachment styles, independently selectable for each side

Choose a different tail style for the male and female parts:

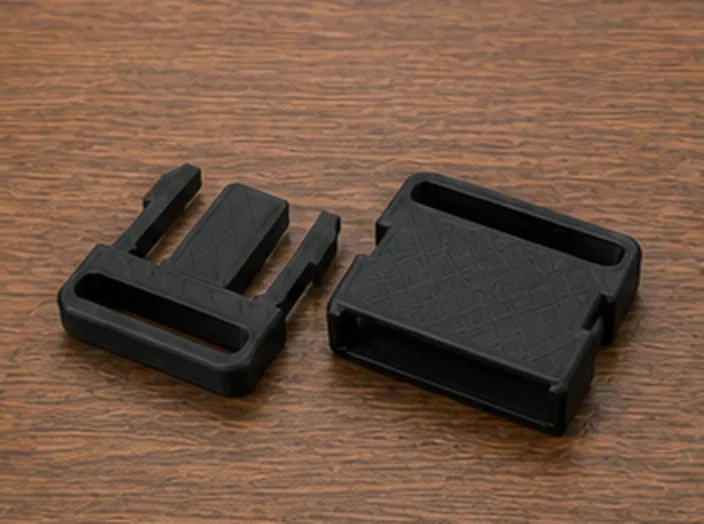

• sewn slot
• belt pass-through

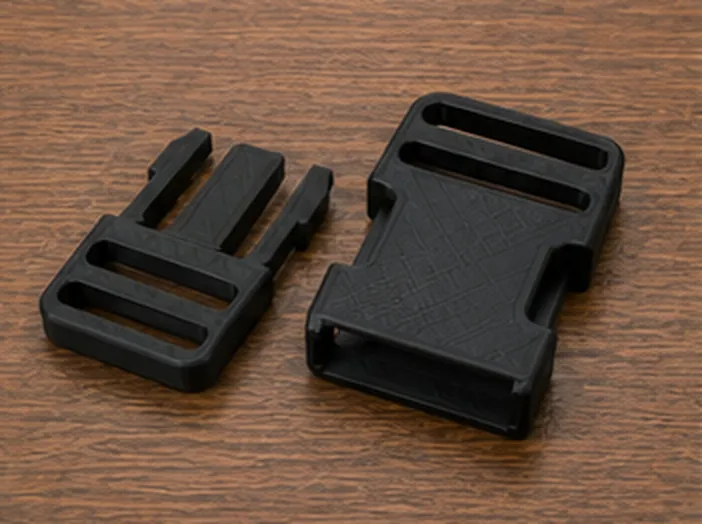

• adjustable tri-glide
• paracord holes, 2 or 4 holes

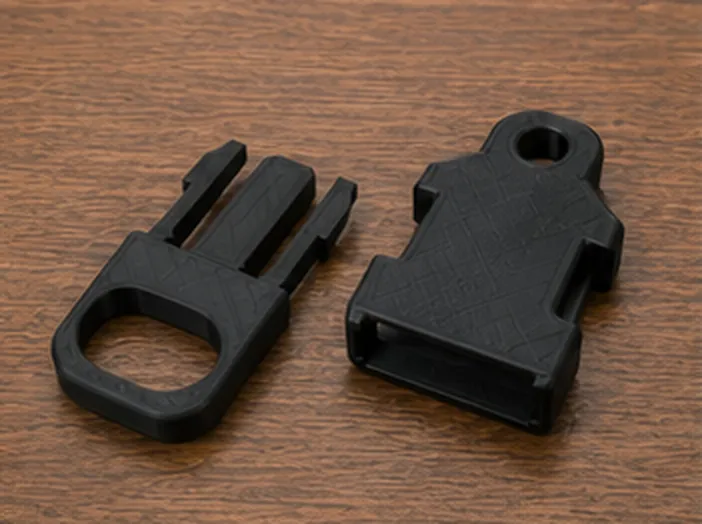

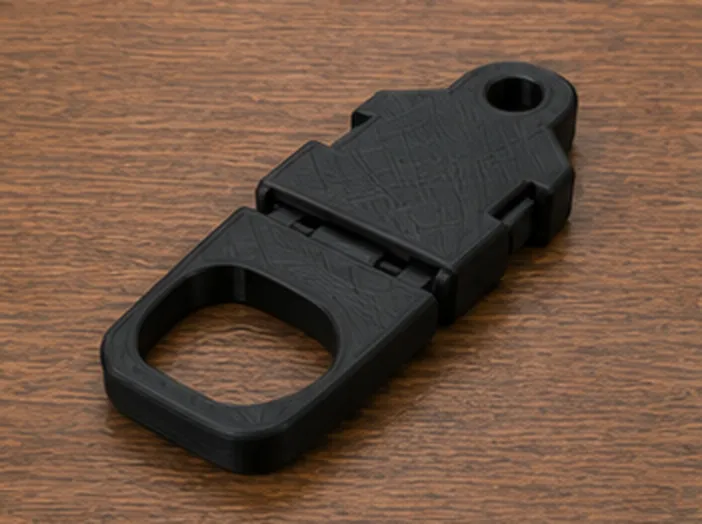

• closed loop / D-ring style
• single cord hole

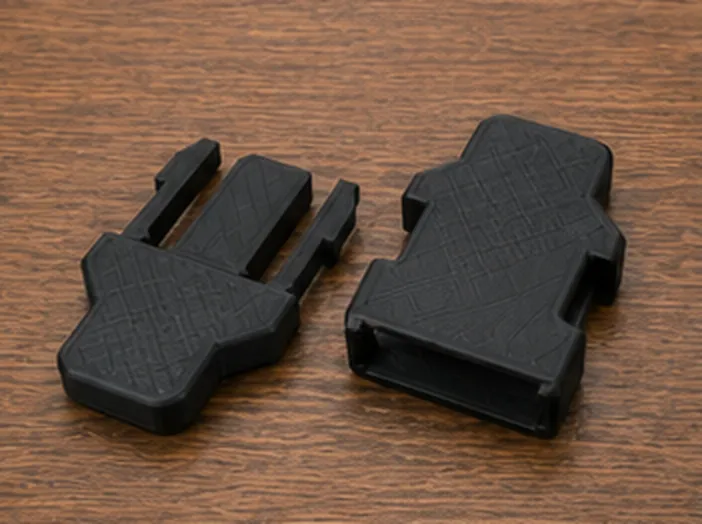

• solid flat tab

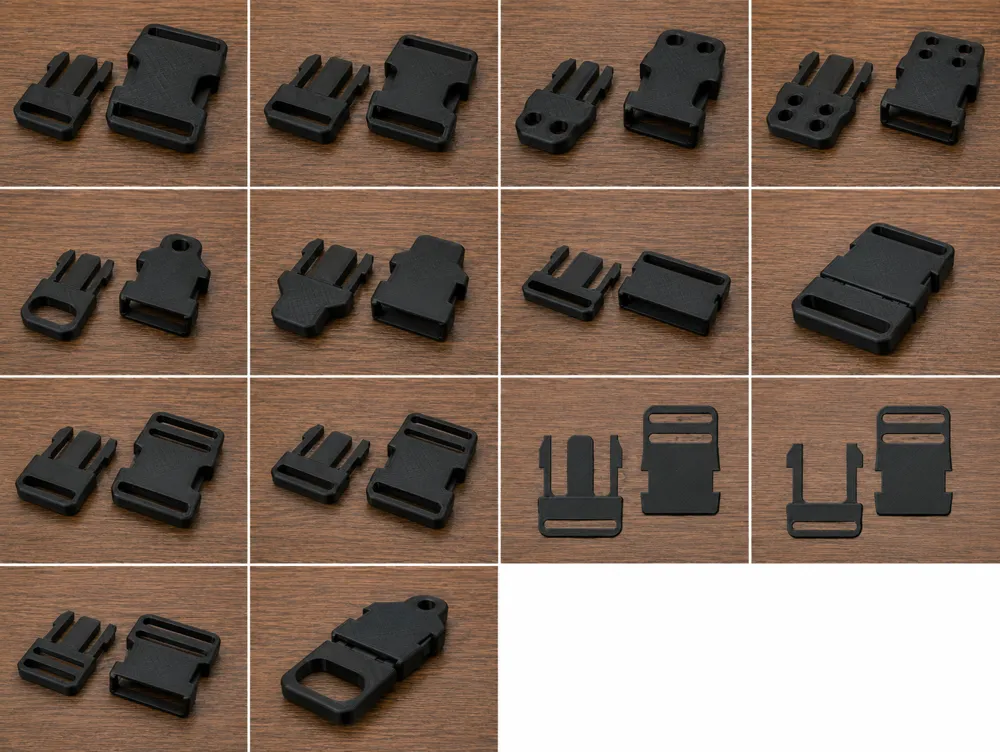

The tail shape automatically adapts to the selected attachment type: narrow rounded shape for cord use, full-width body for webbing, shaped tails for loops, paracord and flat mounting

Wide size range

Designed for webbing widths from 10 mm to 60 mm, with adjustable overall thickness from 5 mm to 14 mm

Rigid center guide tongue — V2

The male part includes a rigid central guide tongue that helps insertion, reduces lateral wobble and protects the flexible arms from over-bending

On very narrow buckles, the guide is automatically disabled if there is not enough physical space

Improved snap-fit durability

V2 includes several geometry improvements:

• rounded arm roots to reduce stress concentration
• chamfered and rounded entry mouth for smoother insertion
• side windows sized so the arms can relax when locked
• adjustable latch geometry and arm stiffness

One-parameter fit tuning

The most important parameter is clearance

Recommended starting point:

• default: 0.35
• tighter fit: 0.25 – 0.30
• looser fit: 0.40 – 0.45

Print, test, then fine-tune only this value first

Safe parametric sliders

Critical parameters are internally limited to keep the geometry printable

If a limit is reached, OpenSCAD shows a NOTE in the console

Multilingual customizer labels

The customizer labels are shown in 5 languages:

Italian / English / French / German / Chinese
IT / EN / FR / DE / 中文

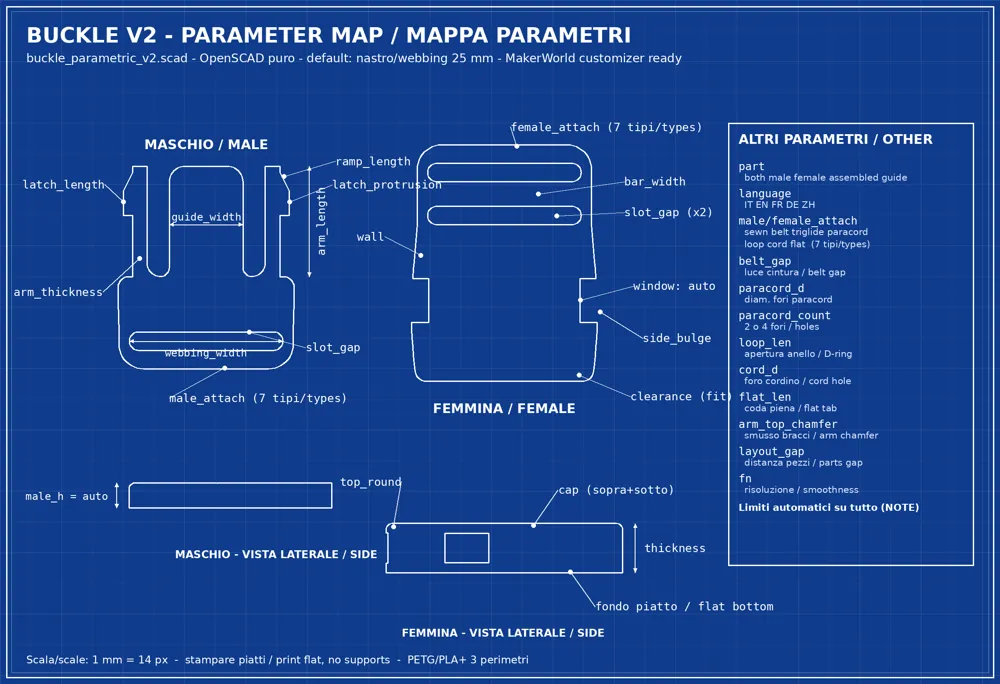

Set part = "guide" to display a translated parameter legend directly in the 3D preview

Modern printable design

V2 has a smoother commercial look with:

• rounded top edges
• slightly barreled female body sides
• shaped attachment tails
• flat bottom for reliable bed adhesion

Printing instructions

Print the parts flat on the bed, exactly as generated in the both layout

This is important because the snap arms flex in the XY plane, so the stress stays within the printed layers

Do not print the buckle upright, otherwise the arms may break along the layer lines

Recommended settings:

• no supports required
• PETG or PLA+ recommended
• ABS / ASA for outdoor or hotter environments
• 0.2 mm layer height
• 3 perimeters
• 25–40% infill

For this model, perimeters matter more than infill

Included files

• Full parametric OpenSCAD source file
• ready-to-print STL pair for 25 mm webbing:
  • male part with sewn slot
  • female part with tri-glide attachment

V2 changelog

Compared to the previous version, V2 adds:

• rigid center guide tongue
• improved side-release fit
• rounded arm roots
• smoother chamfered mouth
• shaped tails for different attachment styles
• rounded commercial appearance
• improved side window geometry so the arms can relax when locked
• safer automatic parameter limits
