PuckIt V2 — DIY Driver Alert Button Case

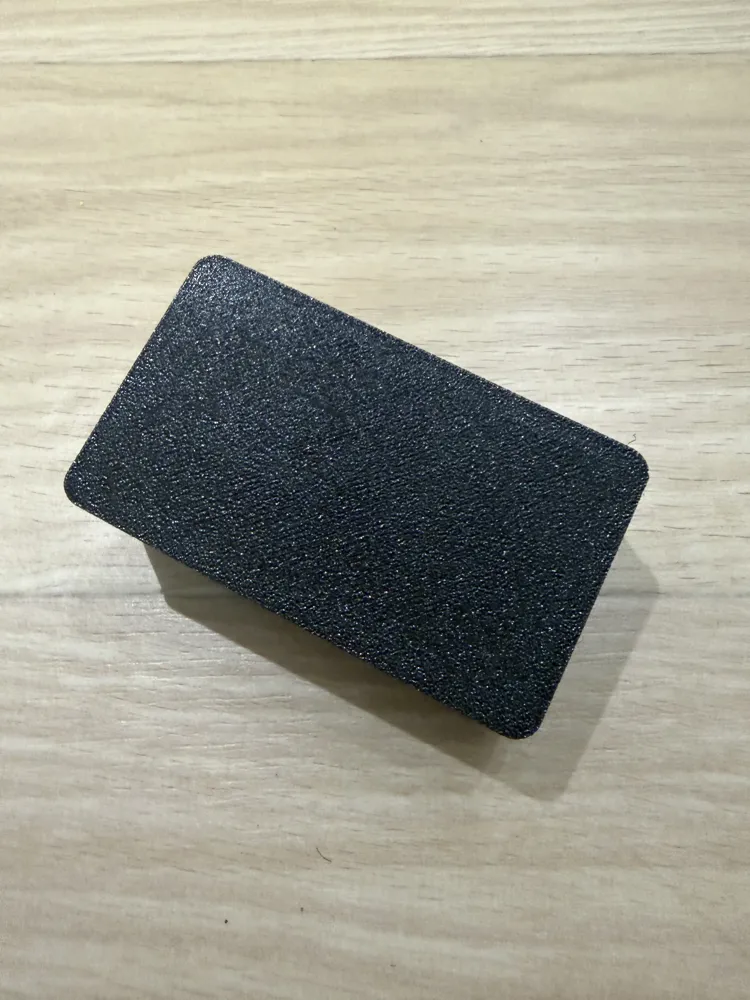

PuckIt V2 is a compact 3D-printable enclosure for a DIY driver-to-driver alert button.

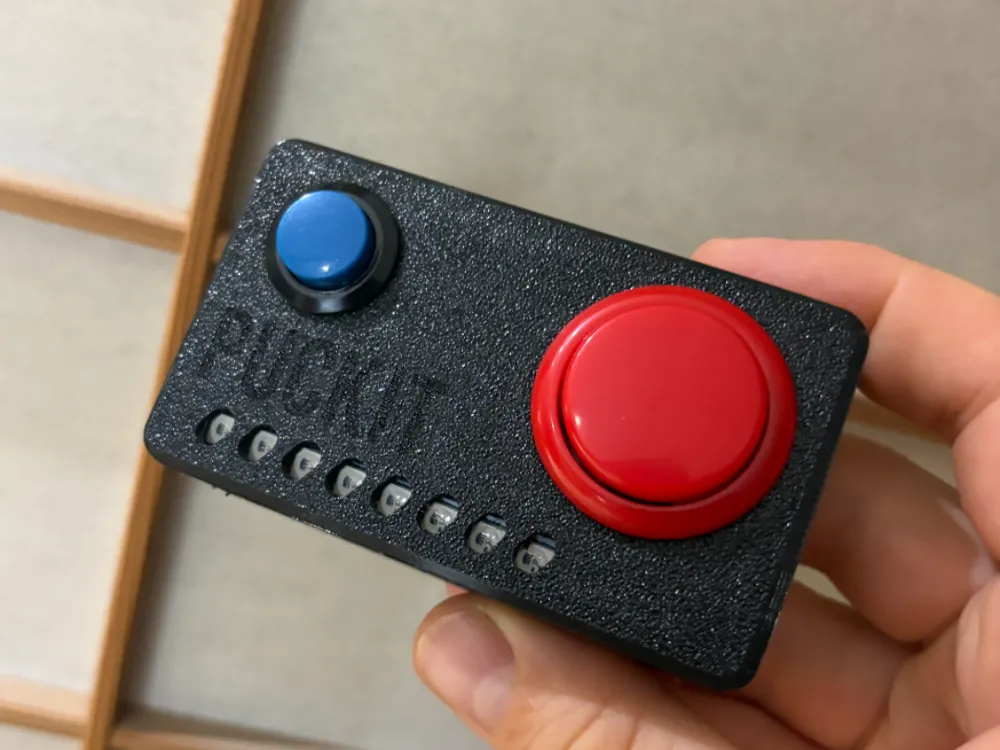

It holds a Seeed XIAO ESP32S3 with Wio-SX1262 LoRa radio, a 30 mm hazard button, a 16 mm Puck Yeah button, and an 8 LED WS2812B light bar.

Designed for grassroots motorsport, drift, track days, private roads, and community builds.

No phone app. No mobile coverage. No subscription.
Press the button. Nearby units can receive the alert and show the LED warning.

This is a prototype/community hardware case. It is a supplemental awareness aid only and is not a safety device.

build details www.wheelhave.com/puckit

Recommended print profile for the PuckIt V2 enclosure.

This print is designed as a functional prototype case for the PuckIt V2 DIY alert button build.

Recommended material

PETG is recommended for car/interior use because it handles heat better than PLA.

Suggested settings

Layer height: 0.20 mm
Wall loops: 3–4
Top/bottom layers: 4–5
Infill: 20–30%
Supports: Only where needed
Brim: Optional, recommended for PETG

Print notes

Print slowly enough to keep the face clean.
Use support settings that are easy to remove around the button holes and USB-C opening.
Check button fit before final assembly.

Hardware used

30 mm arcade-style hazard button
16 mm momentary Puck Yeah button
Seeed XIAO ESP32S3
Seeed Wio-SX1262 LoRa radio
8 LED WS2812B LED stick
USB-C power

Accessories Section

Add these as accessories if MakerMart lets you list parts:

30 mm Arcade Button
Large red hazard button.

16 mm Momentary Button
Small blue Puck Yeah button.

Seeed XIAO ESP32S3
Main controller board.

Seeed Wio-SX1262 LoRa Radio
Stacks onto the XIAO board.

8× WS2812B LED Stick
Front alert light bar.

USB-C Cable / 12V USB Car Charger
Power input only. Do not connect vehicle 12V directly to the board.

Important Disclaimer

Add this somewhere if there is a disclaimer field:

PuckIt is a supplemental driver awareness project only. It is not a certified safety device. Alerts may fail, be delayed, or not be received. Use at your own risk and follow all local event, road, and radio regulations.
