Pole Camera Holder

Camera Holder

(Accessory for Modular Pole Organizer)

This camera holder is designed as a dedicated accessory for the Modular Pole Organizer system and uses the same modular connection system as the other components in the collection.

It can be mounted on umbrellas, poles, rods, and compatible supports, offering a practical solution for installing small cameras, action cameras, lightweight surveillance cameras, or compatible devices on the beach, in the garden, on the balcony, camping, on a boat, or in other temporary pole installations.

This publication includes 4 models:

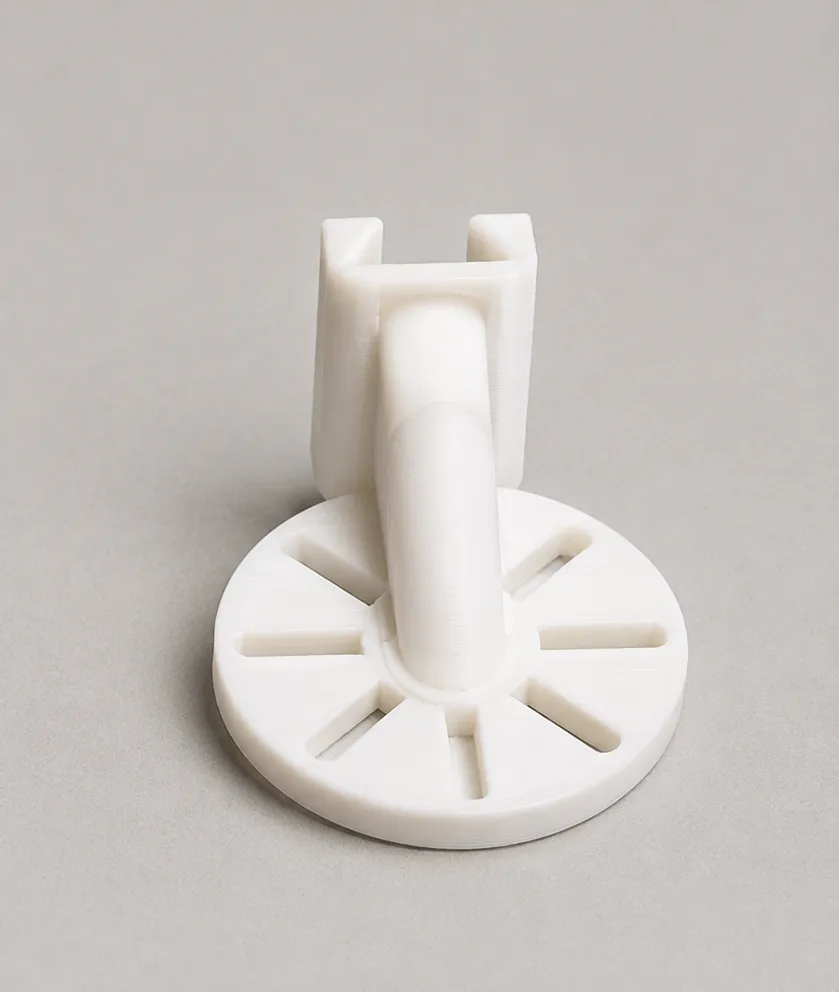

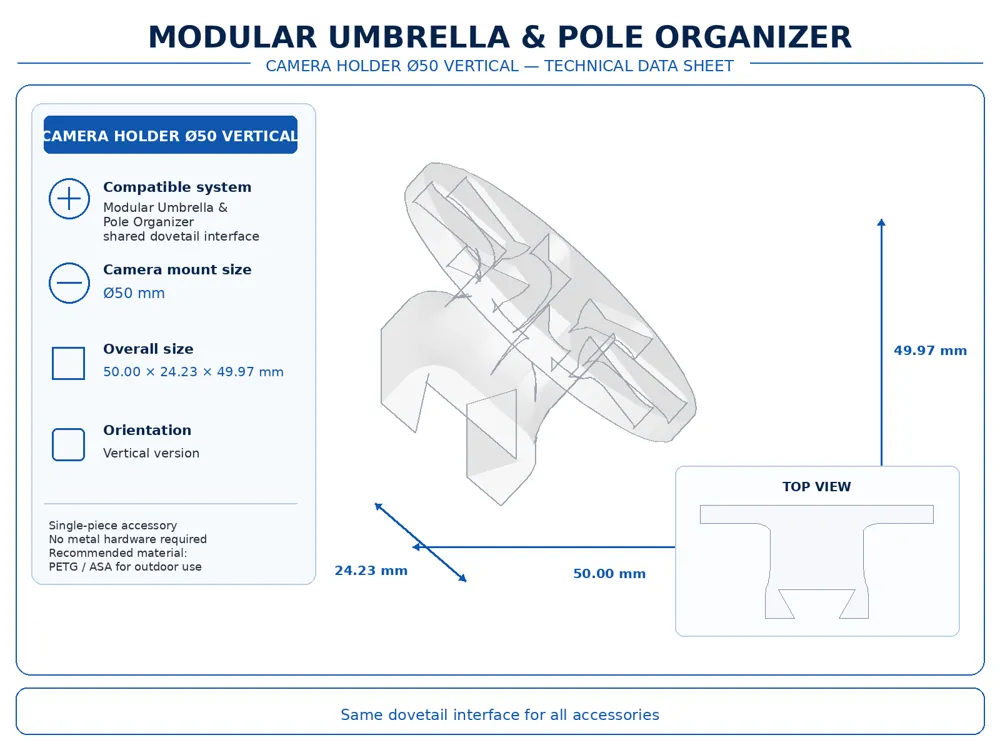

• Ø50 mm vertical version

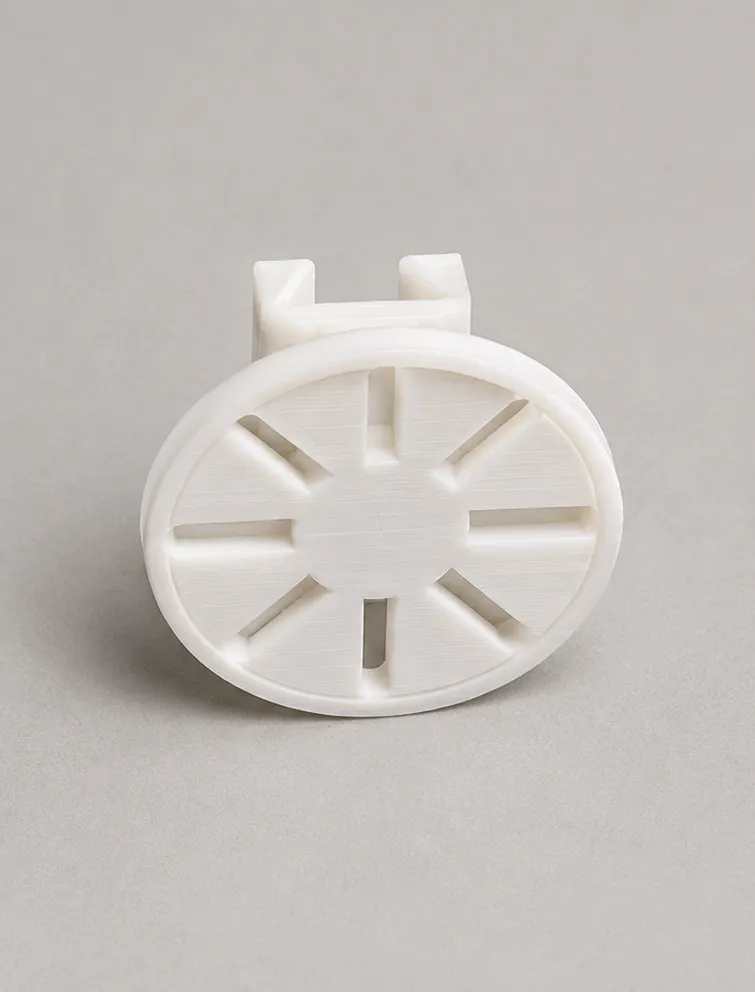

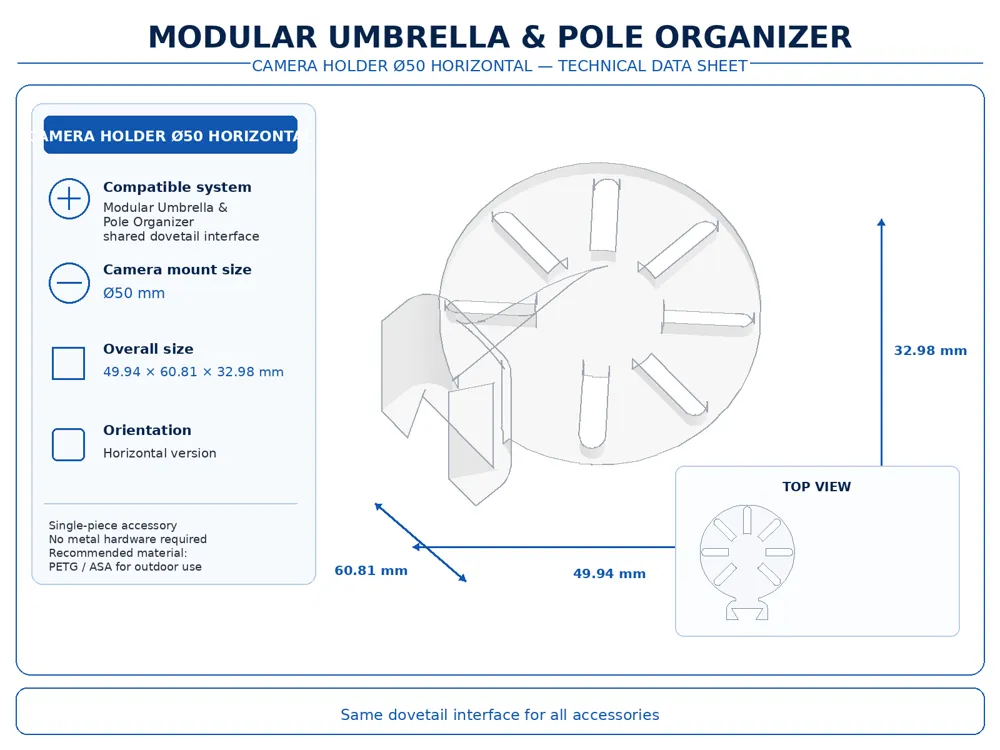

• Ø50 mm horizontal version

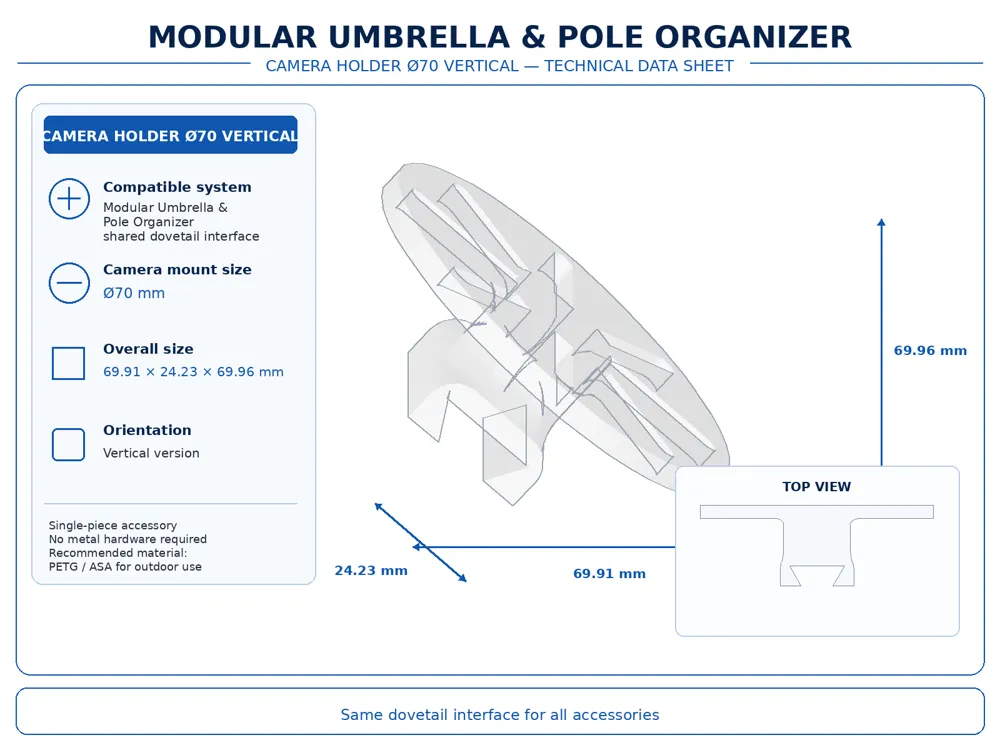

• Ø70 mm vertical version

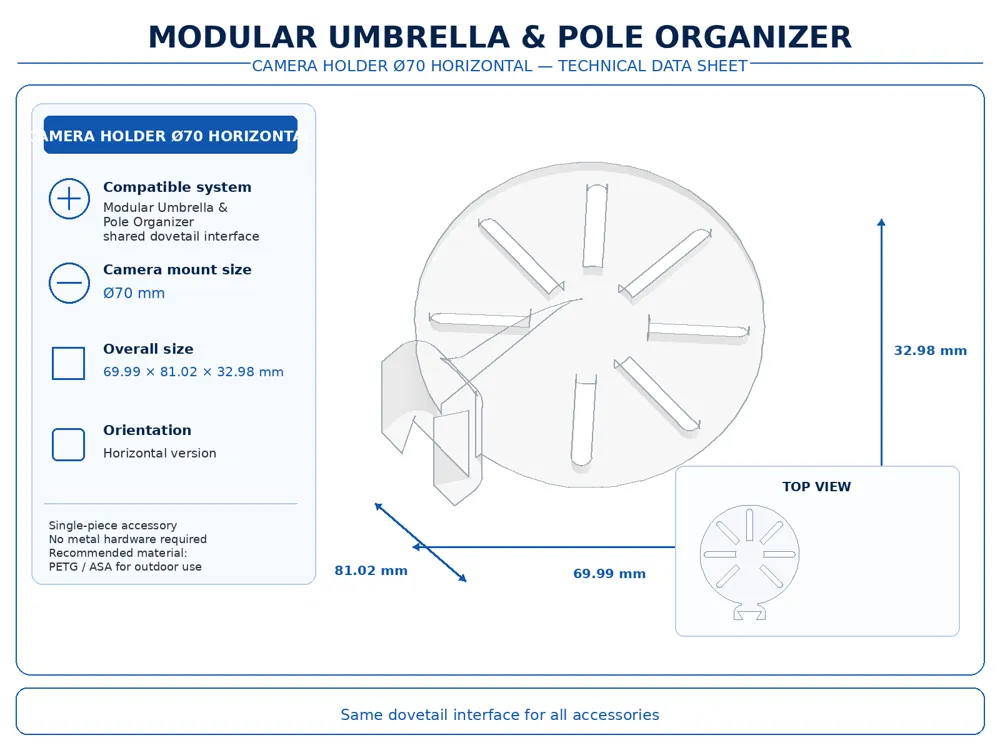

• Ø70 mm horizontal version

The 50 mm and 70 mm versions are designed to accommodate different base diameters or camera mounting brackets, while the vertical and horizontal variants allow you to choose the most suitable orientation based on the camera type and desired position.

Refer to the technical specifications shown in the publication images to verify the exact dimensions of each version before printing.

Required Main System

This model is exclusively an accessory.

To use it, you need to print one of the bases available in the main publication:

Modular Pole Organizer

The modular base for attachment to an umbrella or pole is not included in this publication.

Main Features

Accessory compatible with the Modular Pole Organizer system
Available in two diameters: Ø50 mm and Ø70 mm
Each diameter is available in vertical and horizontal versions
Total of 4 models included
Attachment via modular dovetail interface
Suitable for lightweight cameras and compatible devices
Allows mounting on umbrellas, poles, rods, and compatible supports
No metal components needed to connect the accessory to the modular base
Compact and easily interchangeable design
Designed for outdoor use and modular setups
Compatible with other accessories in the collection

Assembly

Insert the camera holder's dovetail attachment into the corresponding guide on the base of the Modular Pole Organizer.

Slide the accessory gradually until fully inserted, ensuring it is correctly aligned with the guide.

Choose the most suitable version based on the camera type:

• vertical version, when the camera needs to be mounted with the support positioned vertically
• horizontal version, when a flat base or a lower, more compact orientation is preferred

Do not force the part sideways during assembly.

If the insertion feels slightly tight at first, check for residual threads, impurities, or small surface irregularities produced during 3D printing.

After a few insertions, the contact surfaces may settle, making assembly and removal of the accessory easier.

Camera Compatibility

The included versions are designed to offer two different mounting surfaces:

• Ø50 mm, for cameras or supports with a smaller base
• Ø70 mm, for cameras or supports with a wider base

Before printing, always verify the base diameter of your camera or its mounting support.

The model is designed for lightweight cameras. Any screws, adapters, or original camera components are not included and must be selected based on the device used.

Warnings

Before use, always ensure that the clamp of the Modular Pole Organizer is properly tightened and cannot rotate on the pole.

Do not use with heavy cameras, unbalanced devices, or installations subject to strong impacts.

In the presence of strong wind, vibrations, navigation, or prolonged outdoor use, periodically check the tightness of the base and the camera's attachment.

The actual stability depends on the material used, print settings, pole diameter, camera weight, and the correct assembly of the entire system.

For outdoor use, materials more resistant to heat and weathering, such as PETG or ASA, are recommended.
