Keyhole Marker
Print Profile(1)
Description

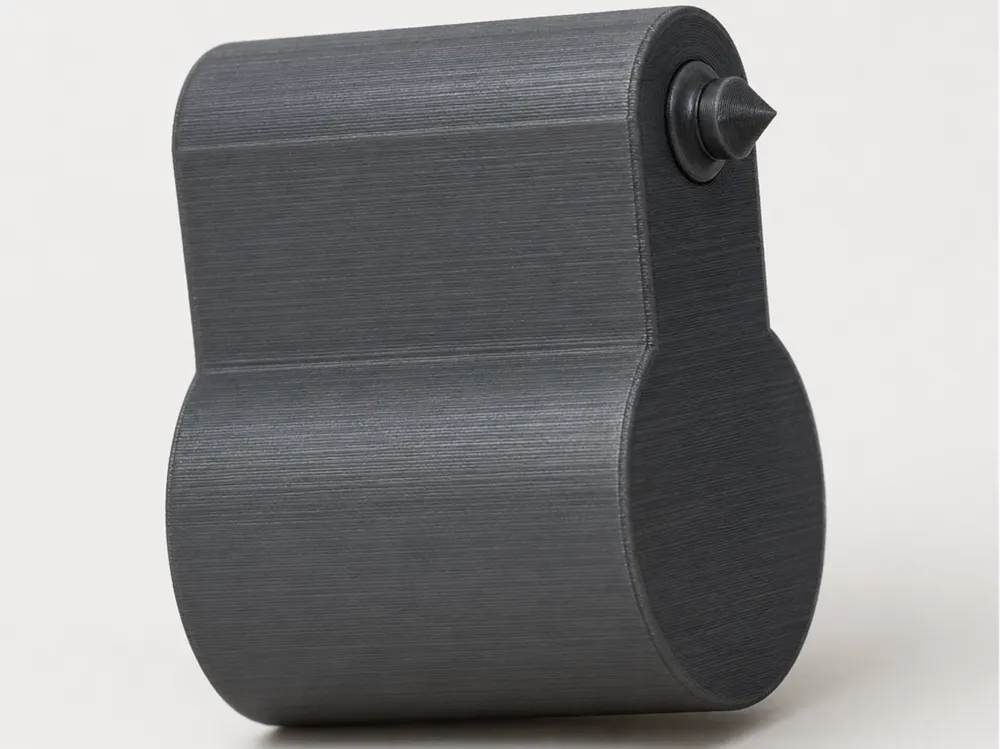

Keyhole Marker – Instantly Mark Your Screw Positions
Stop measuring and guessing where your screws need to go!
The Keyhole Marker makes it quick and easy to transfer the exact screw position from any keyhole mounting slot directly onto your wall.
Simply insert the marker into the keyhole slot of your object, level it using a spirit level if necessary, and gently press it against the wall. The integrated 3D-printed tip creates a small indentation, accurately marking the drilling location.
No rulers, no templates, no repeated measuring.
Features
- ✅ Fast and accurate screw position marking
- ✅ No measuring required
- ✅ No additional hardware needed
- ✅ Fully 3D printable
- ✅ Perfect for keyhole wall mounts
- ✅ Reusable
- ✅ Compact and easy to print
- ✅ Saves time during installation
How to Use

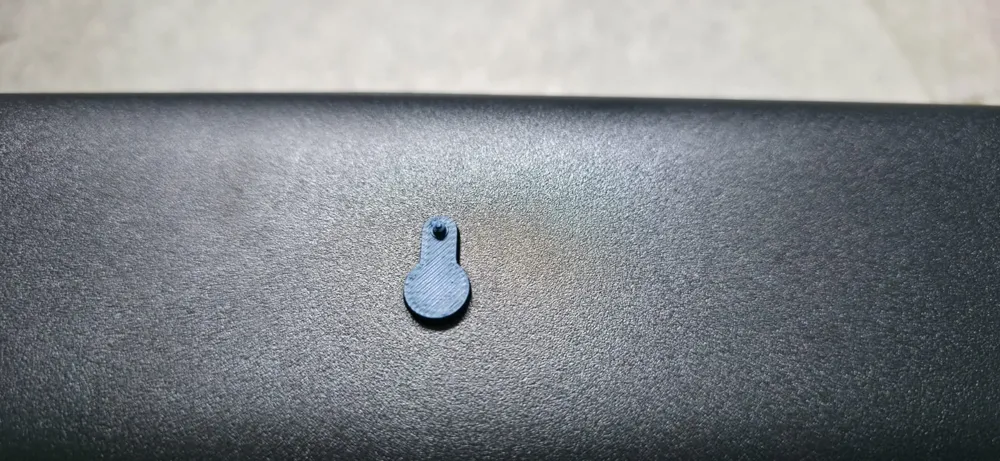

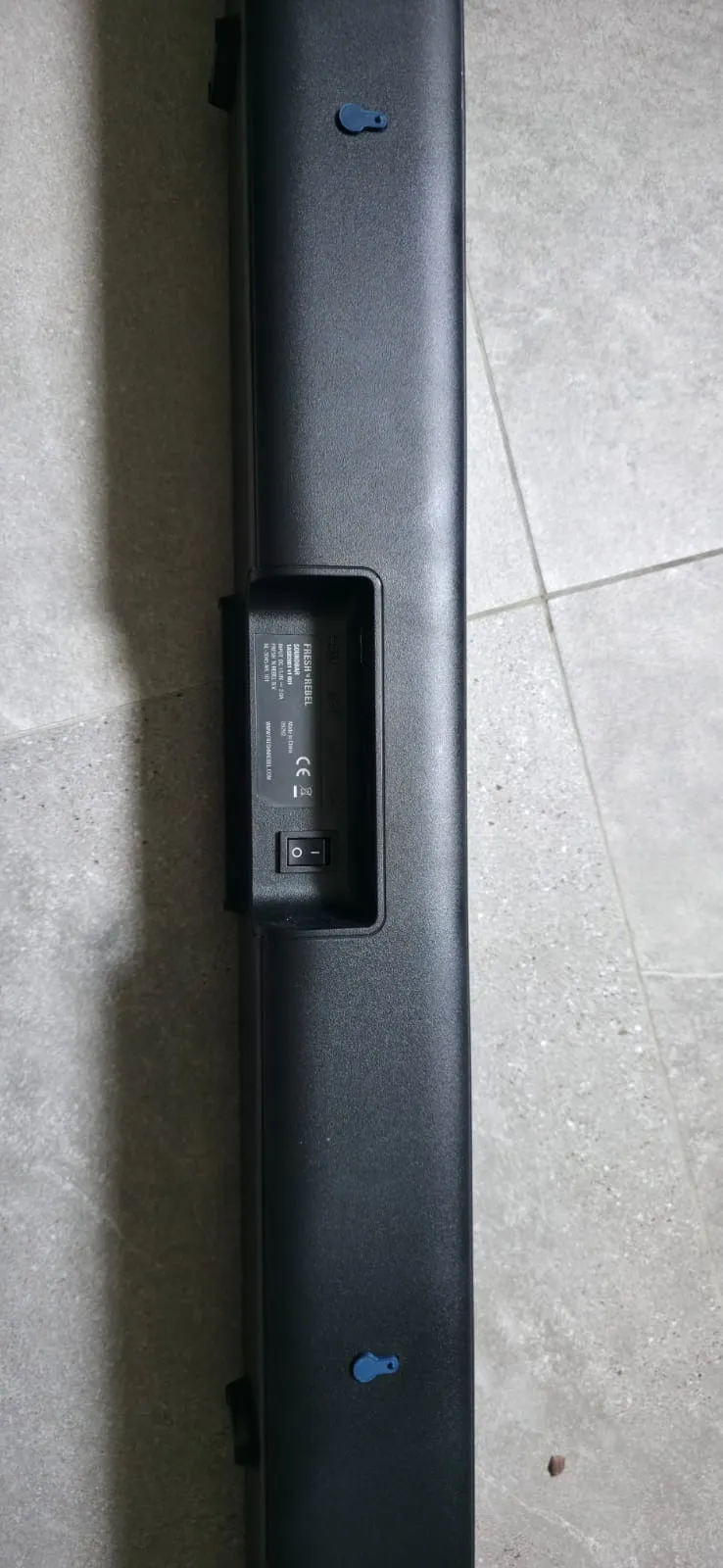

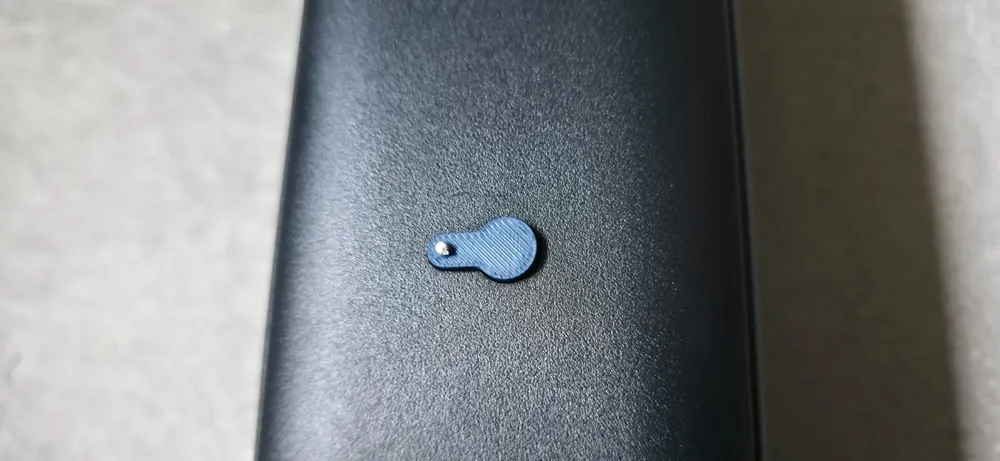

- Insert the Keyhole Marker into the keyhole mounting slot.
- Position your object on the wall.
- Align it using a spirit level if needed.
- Press the object gently against the wall.

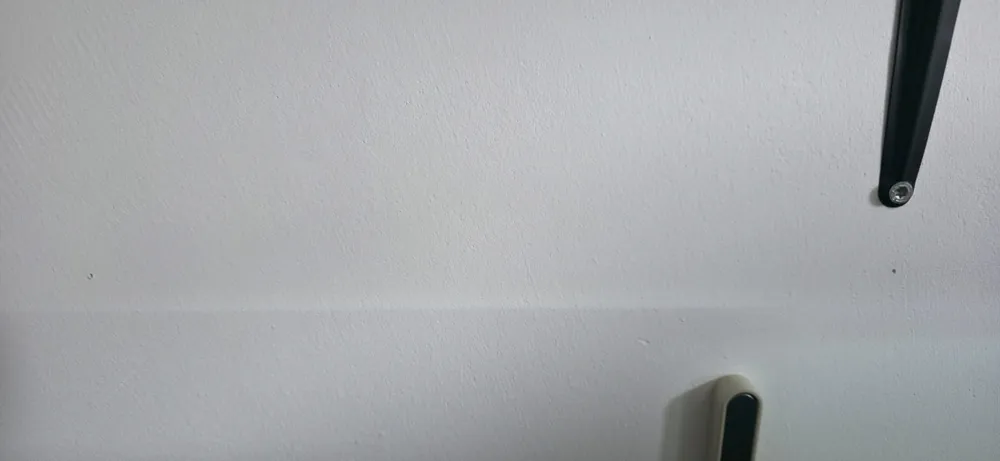

- The printed tip leaves a small mark in the wall.
- Remove the object.

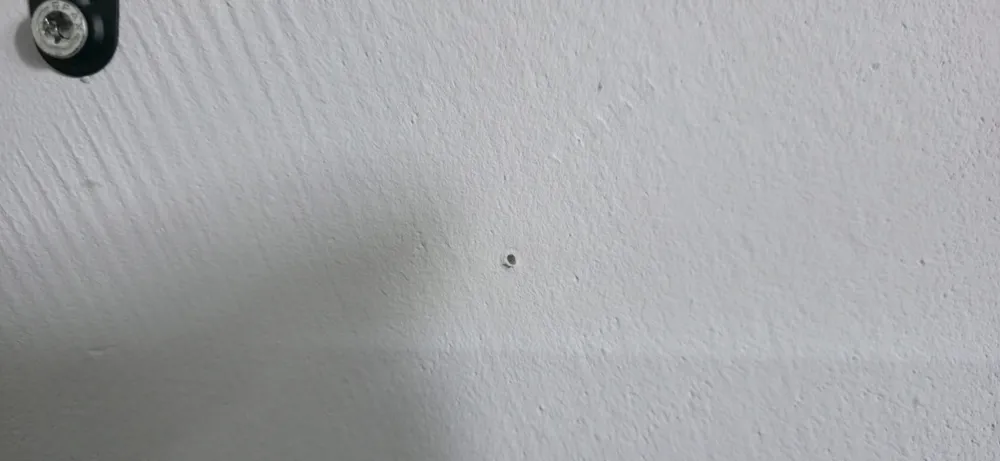

- Drill at the marked location.
- Insert the wall plug and screw.
- Hang your object.
That's it!
Print Settings
This model prints well with virtually any common filament, including:
- PLA
- PLA+
- PETG
- ABS
- ASA
- PETG-CF
- Other comparable materials
Recommended settings:
- Layer Height: 0.20 mm, Tip: 0.08mm
- Infill: 50%
- Supports: Not required

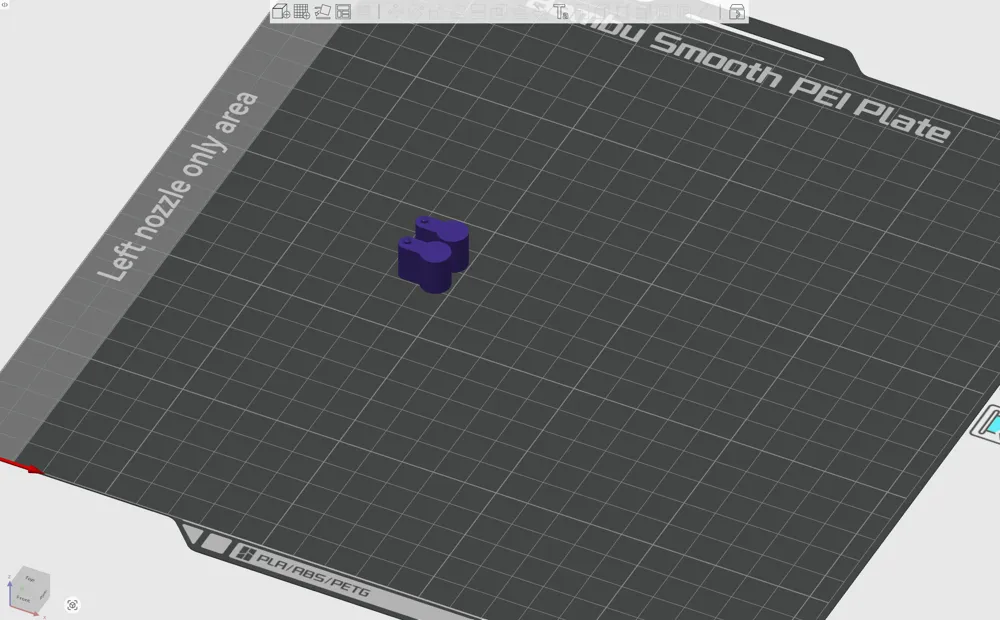

- Print Orientation: As shown in the preview images
Need a Different Size?
If the current dimensions don't fit your keyhole mount, feel free to leave a comment. I'm happy to create additional sizes and upload them so everyone can benefit from them.
Feedback
If you find this model useful, I'd really appreciate a Like, Rating, or a photo of your print. Your feedback helps improve future designs and supports the creation of more practical tools.
Happy Printing! 🚀
