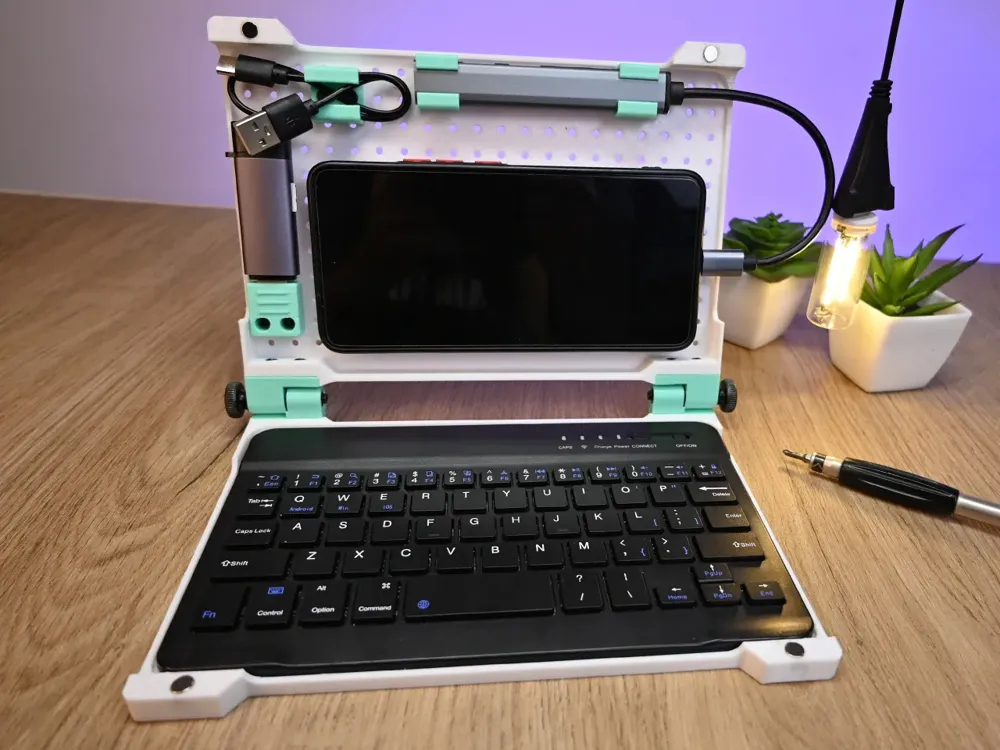

Pegdeck - Pegboard Cyberdeck

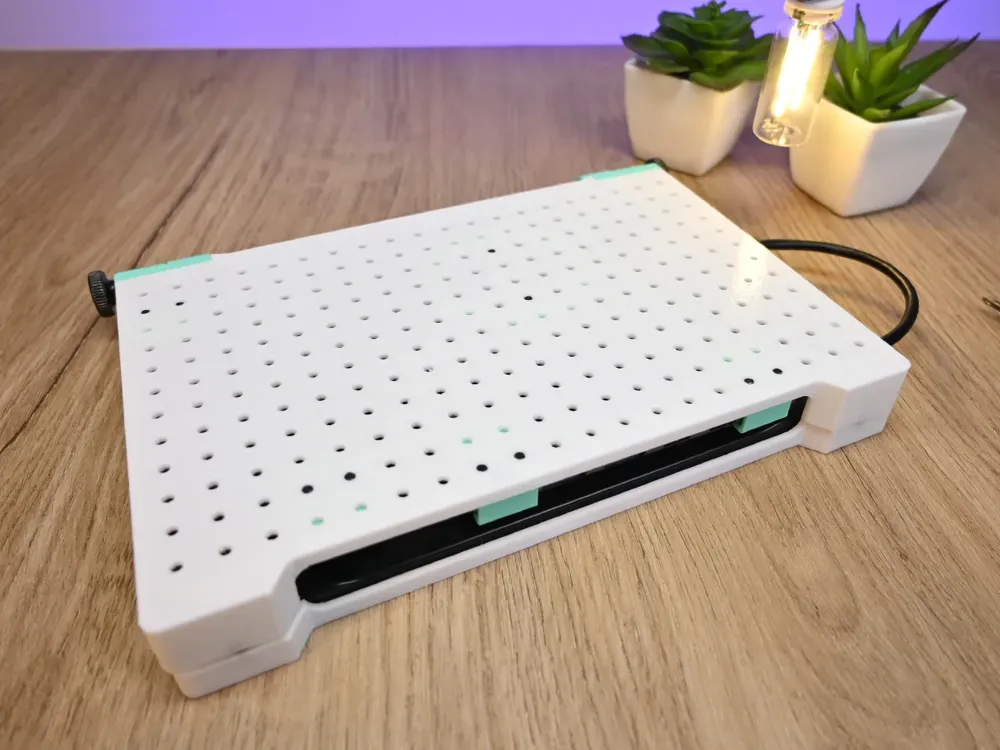

Pegdeck is a cyberdeck inspired by the pegboard - Fully modular, customize as you wish.

• Feel free to remix on Tinkercad, make your own accessories.
• Also check out the top plates | Tinkercad.

HOW TO BUILD - VIDEO

Skip to 4:35 for the build. I am unable to parse the “start video from” parameter in the link…

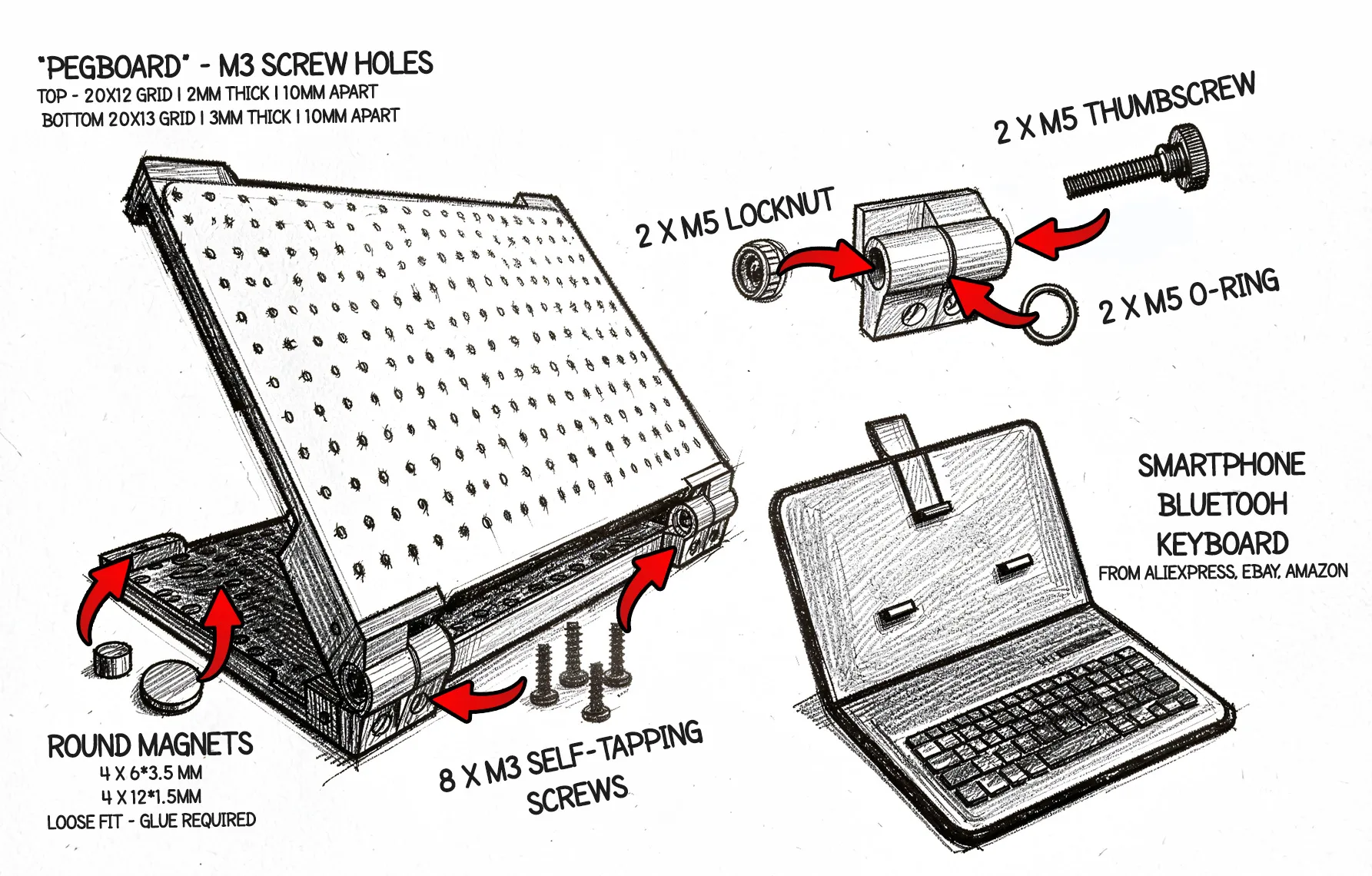

HOW TO BUILD - DIAGRAM

• Print A1, A2, A3, A4.
• For hinges (A3 A4) - Complete using M5*30 screw, M5 o-ring, M5 locknut.
• Attach hinges to frame (A1 A2) using M3*8 screws.
• GLUE the magnets to the frame - They are not tight fit.
• Accessories (B) can be attached to pegboard using M3*4 screws. Only the USB Type A (B3 B4) uses M3*8.

PARTS LIST

These are my AliExpress affiliate links. They don't cost more, but I do make a small commission - That will help offset the costs of my future projects. 👍

• Bluetooth Smartphone Keyboard - This One | Search
• 2 X M5*30 Thumbscrew
• M3 Self-Tapping Screws (M3*4 + M3*8)
• 2 X M5 Lock Nut
• 2 X M5 O-ring (ID5-OD10)
• 4 X 6*3mm Round Magnet
• 4 X 12*1.5mm Round Magnet
• Magsafe Adhesive Ring
• No iPhone, no problem - Just stick a Magsafe Metal Ring onto your phone/case/device.
• Type C USB OTG Hub - This One  | Search
• USB Card Reader

PRINT SETTINGS

• 0.2~0.25mm layer height.
• At least 3 walls & 3 shell layers.
• 20% gyroid infill.
• A1 & A2 can be printed without supports.
• The rest - Snug support, brim recommended for small pieces.

HORIZONTAL ANDROID LAUNCHER

Quick extra for those using Android. Search for "launcher" in the Play Store, there are many that support a landscape home screen - MS Launcher, Niagara Launcher, Smart Launcher, etc…
