CampWash - Portable Hand Washing Station

🏕️CampWash: Portable Hand Washing Station

CampWash is a functional, space-saving outdoor companion that transforms a standard plastic bottle into a fully hands-free or easy-access hand washing station.

Perfect for camping tables, outdoor workbenches, or tailgating, this rugged design clamps securely to the edge of your surface and keeps your washing essentials exactly where you need them. Maximal table thickness: 48mm.

Features

• Integrated Table Clamp: Features a sturdy, heavy-duty printed screw clamp that securely grips various table thicknesses without slipping.
• Built-in Soap Dish: A dedicated, raised platform on top keeps your bar of soap dry, clean, and off the ground or dirty table.
• Upcycled Bottle Dispenser: Designed to fit standard PET plastic bottles, turning everyday recycling into practical gear.
• No additional hardware is needed: Just print files, fill the bottle, assemble and use it!
• Any PCO 1881 28mm standart beverage plastic bottle (most modern bottle) should fit!

Printing

• Real-World Tested:☀️The Washing station was printed in White PLA and successfully held up for several hours in +35°C direct sunlight without any deformation, sagging or spilling.
• Recommendation: While PLA performs surprisingly well in the sun if printed in a light color, it is recommended to use PETG, ASA, or ABS if you plan to leave the device permanently mounted.
• If you are slicing the files yourself instead of using the provided print profile, make sure to nest the Wash Tap part inside the Bottle Adapter part on your build plate. This saves space, optimizes the print layout, and ensures efficient printing.

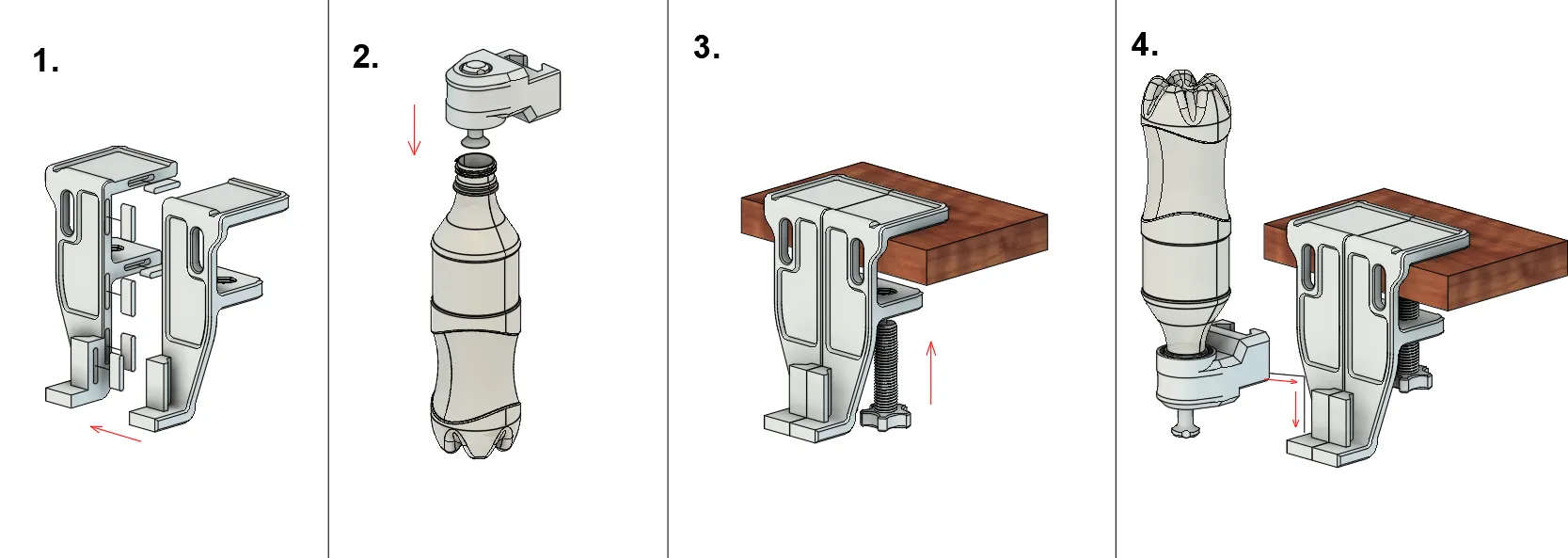

Assembly & Setup Instructions

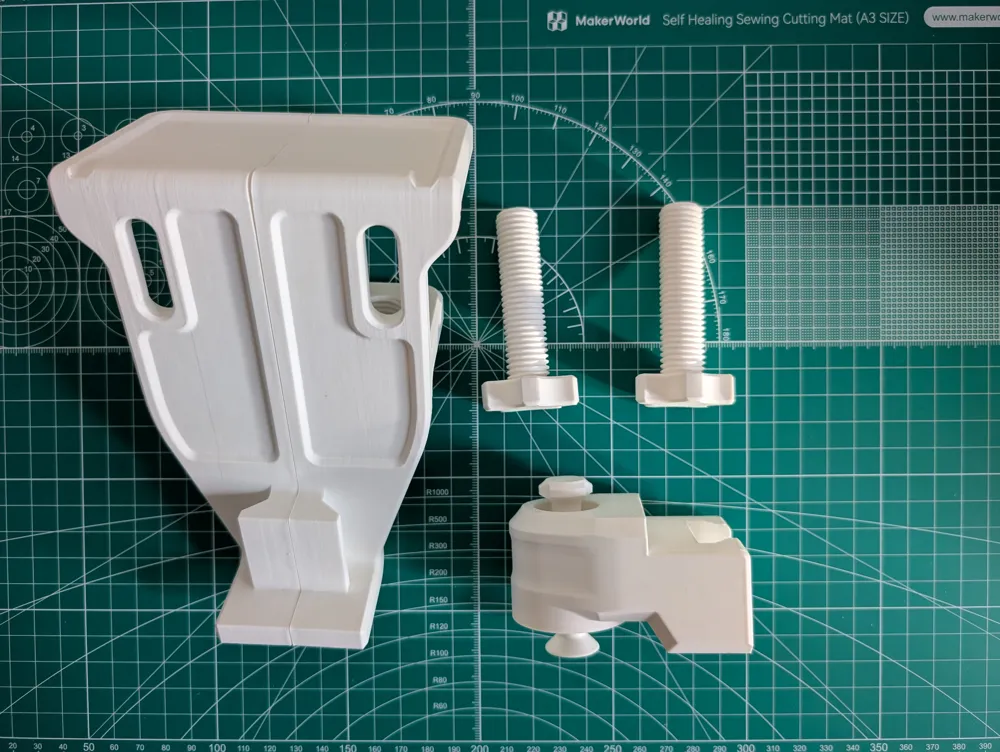

1. Assemble the Table Mount: Connect the Left Part and Right Part using the 6 printed pins. The alignment features a snug, press-fit design. While it should hold firmly on its own, applying a few drops of CA glue (superglue) is highly recommended to permanently and securely join the halves.
2. Prepare the Bottle: Screw the Bottle Adapter firmly onto your water bottle. Ensure it is tightened securely to create a proper seal and prevent any water leakage.
3. Mount to the Table: Position the assembled Table Mount onto the edge of your table. Secure it firmly in place by tightening the two printed screws underneath.
4. Final Setup: Invert the bottle and drop the Bottle Adapter directly into the receiver ring on the table mount. Your Camp washing station is now ready for use!
