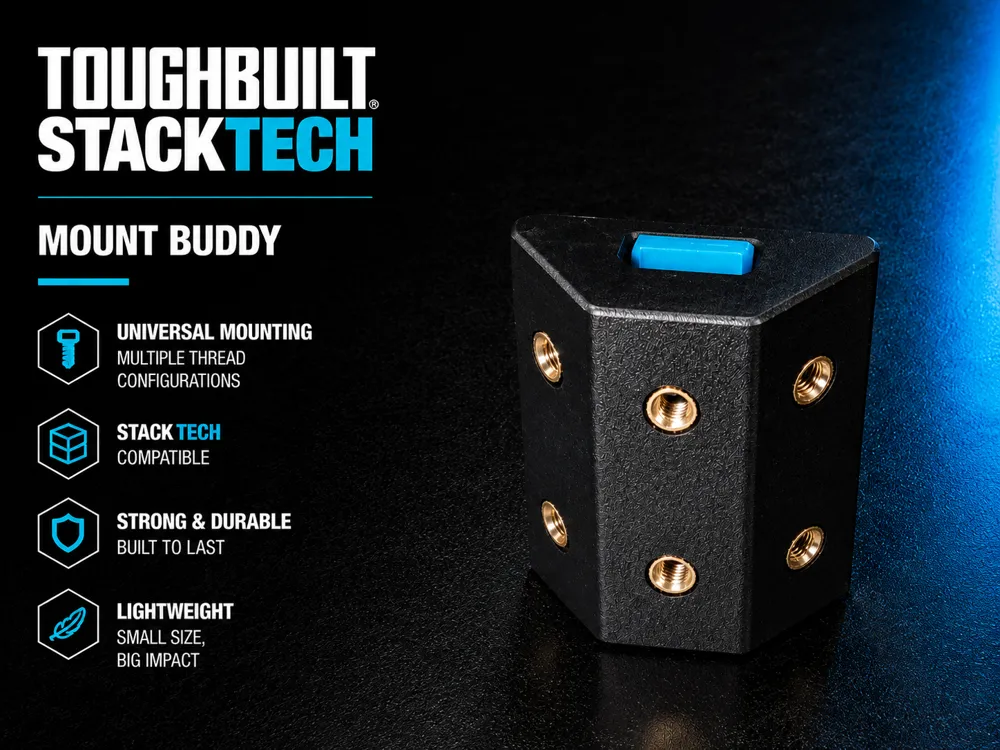

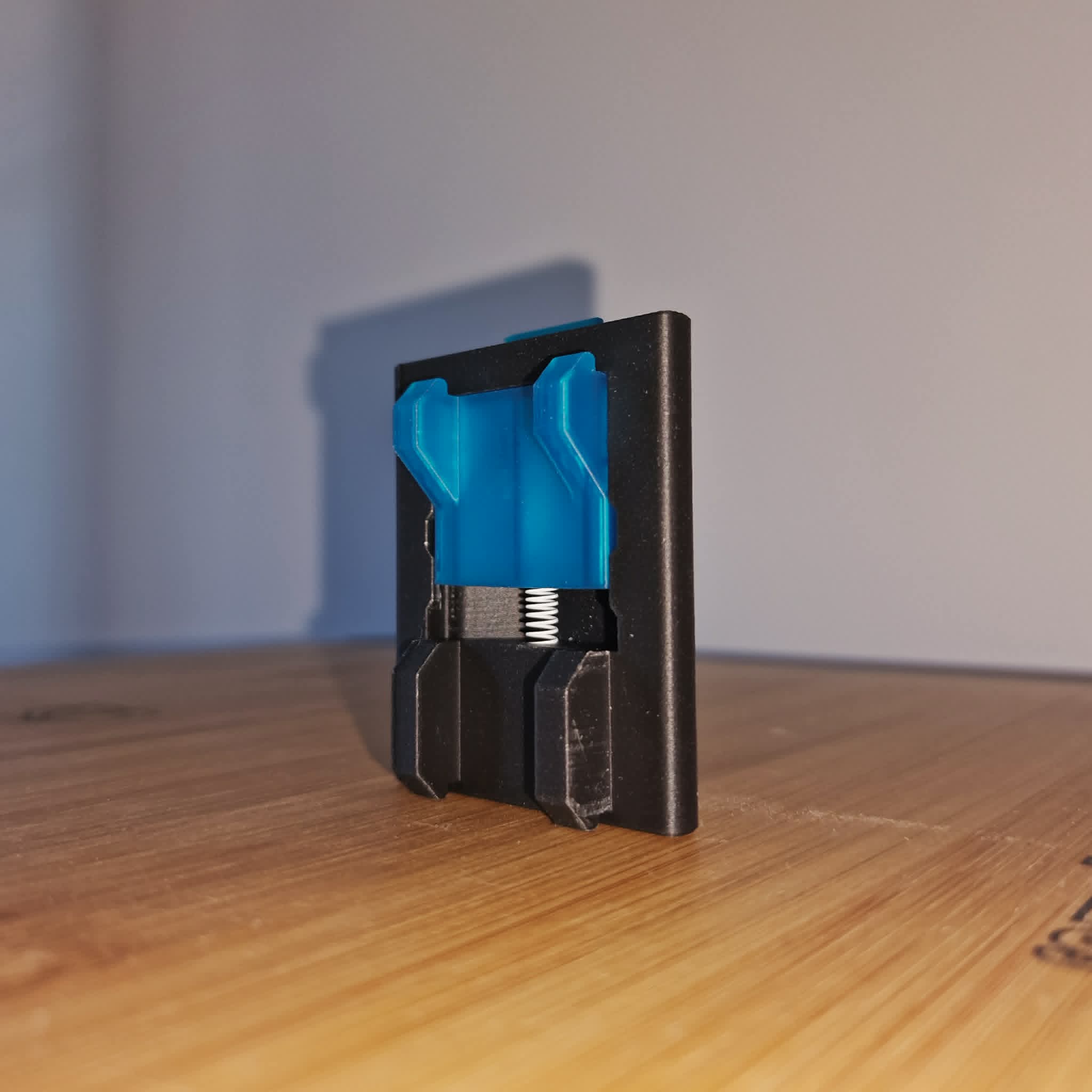

đ Detachable mounting buddy!

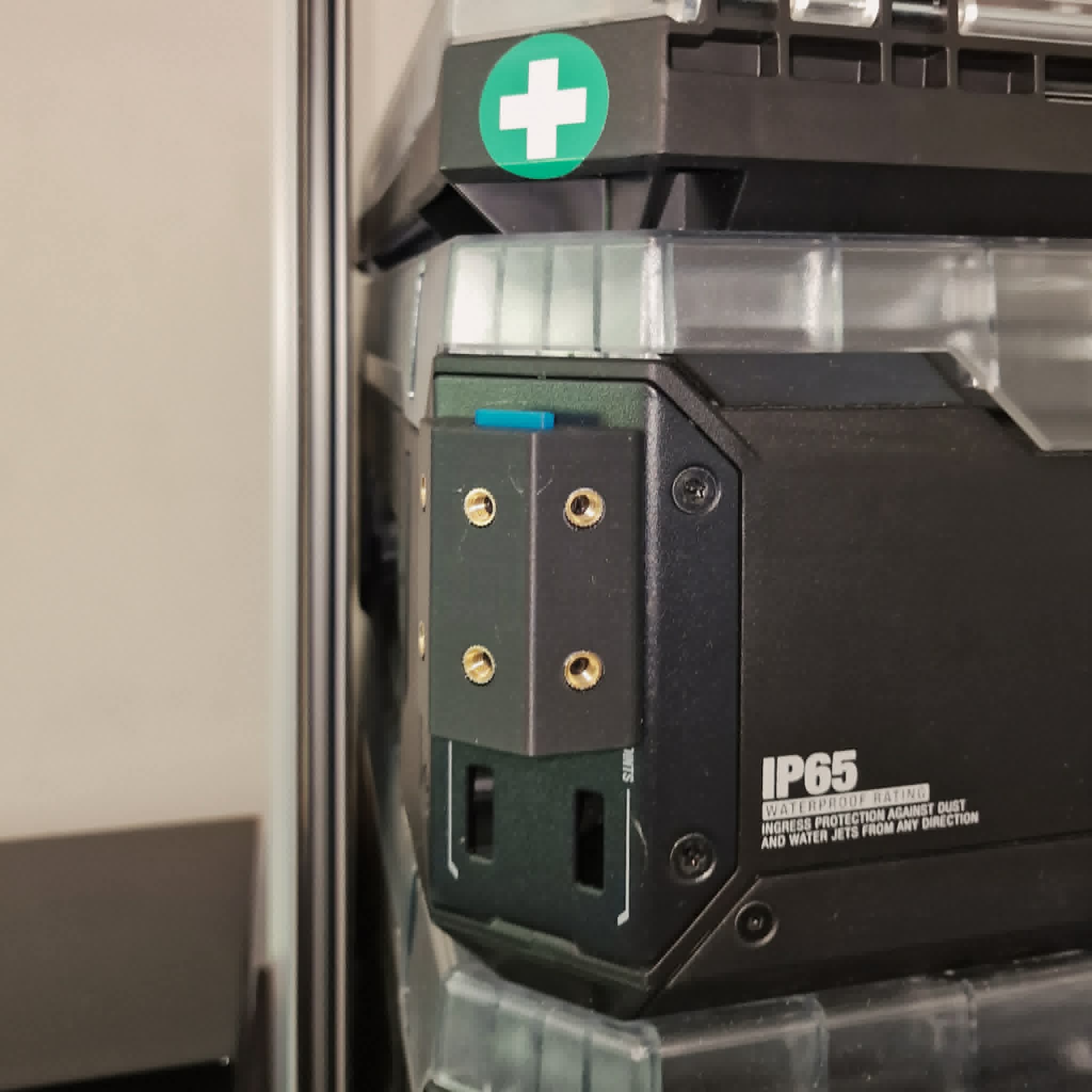

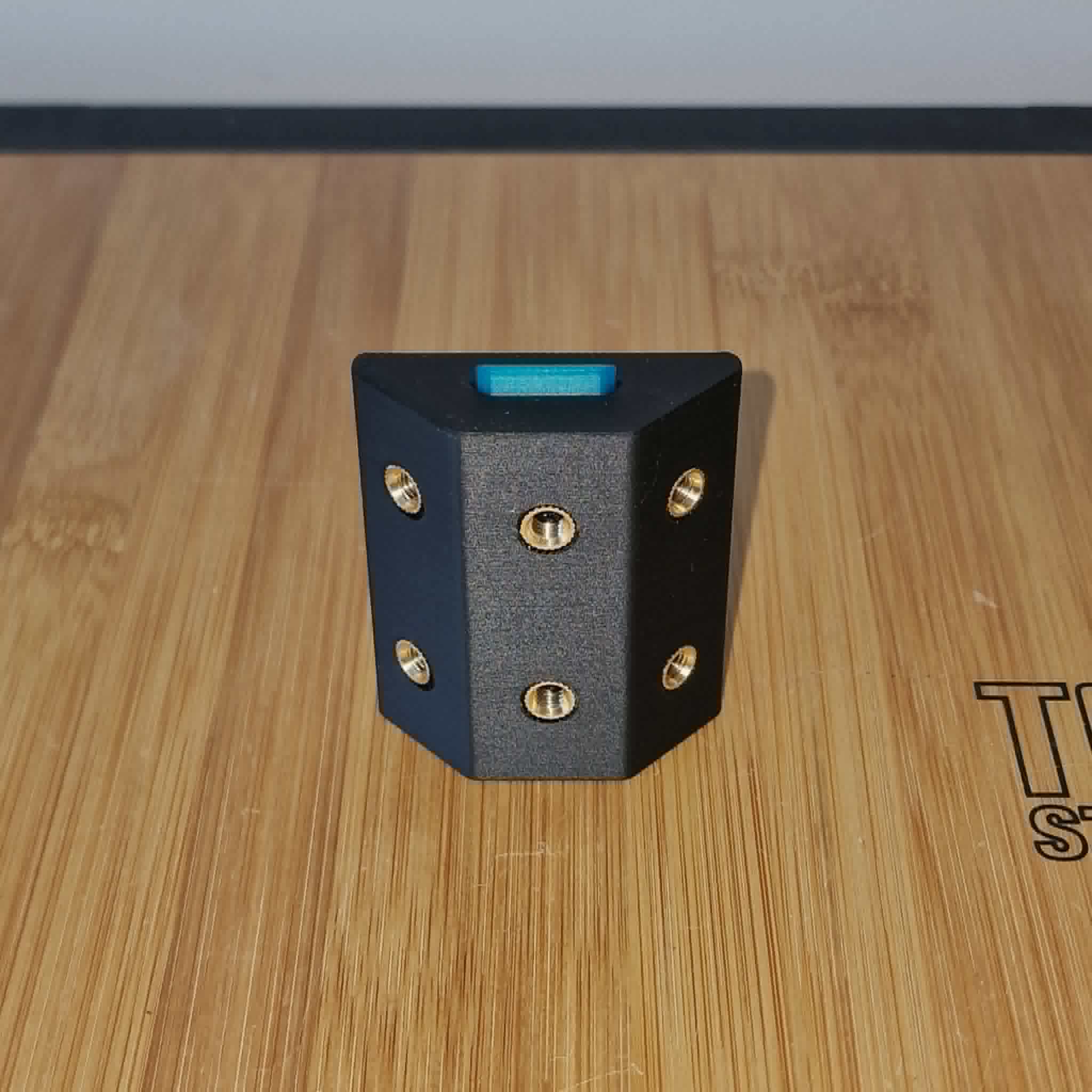

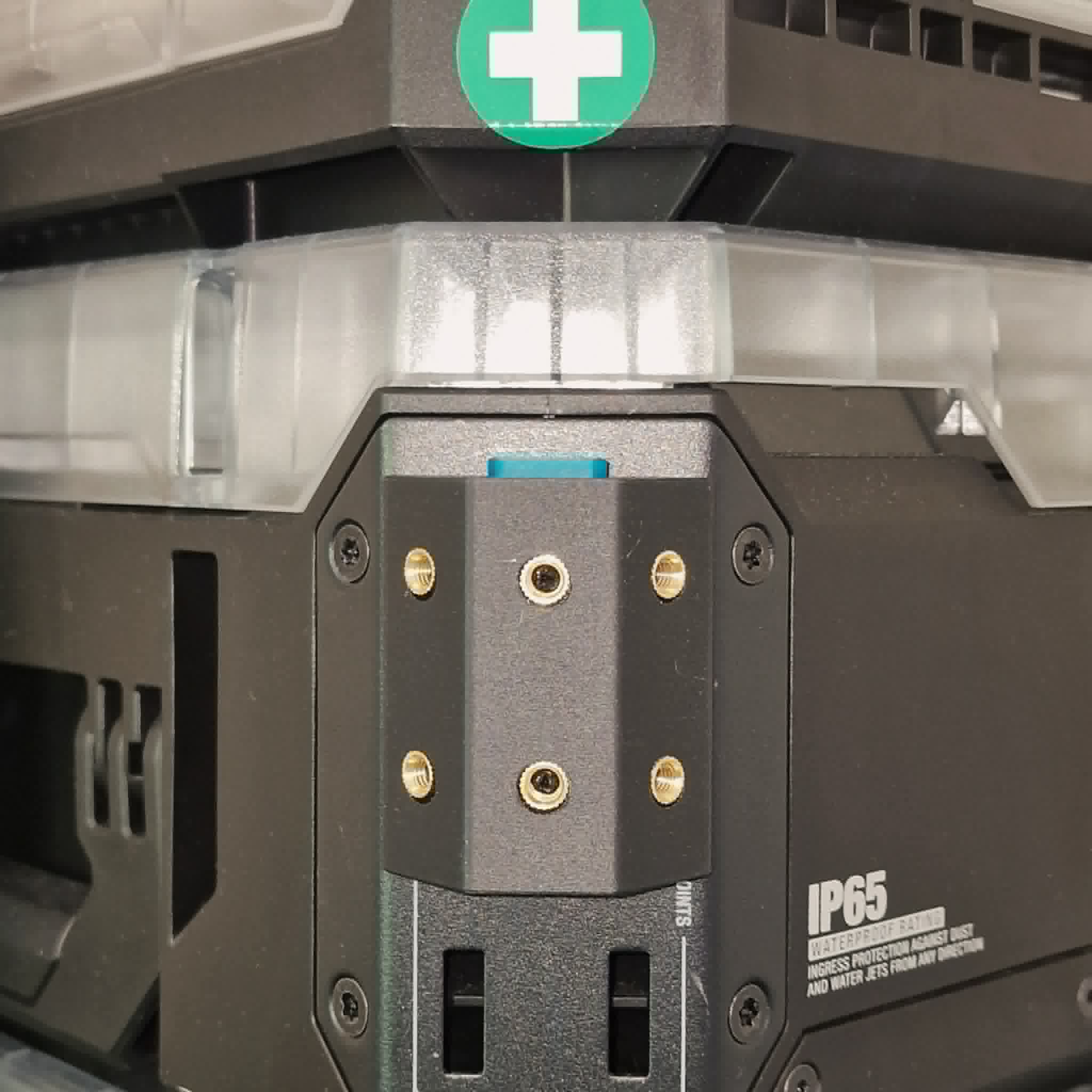

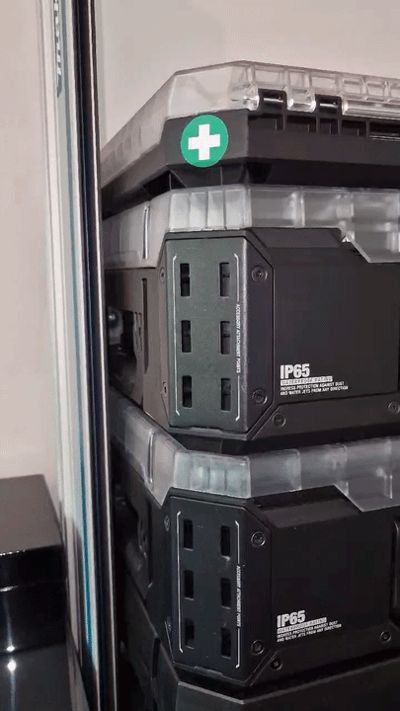

A sturdy and easily removable solution to adding accessoiries to your Toughbuilt rails! I've included print profiles for both M4 & M5 threaded inserts.
đŠ Required hardware for one piece
For the M4 version:
- 6x M4x5mm threaded inserts
- 1x 0.3x4x20 Compression spring
For the M5 version:
- 6x M5x5mm threaded inserts
- 1x 0.3x4x20 Compression spring
âď¸ Assembly
The provided print profiles will be enough for two mounting buddies. Remove or add to your needs.

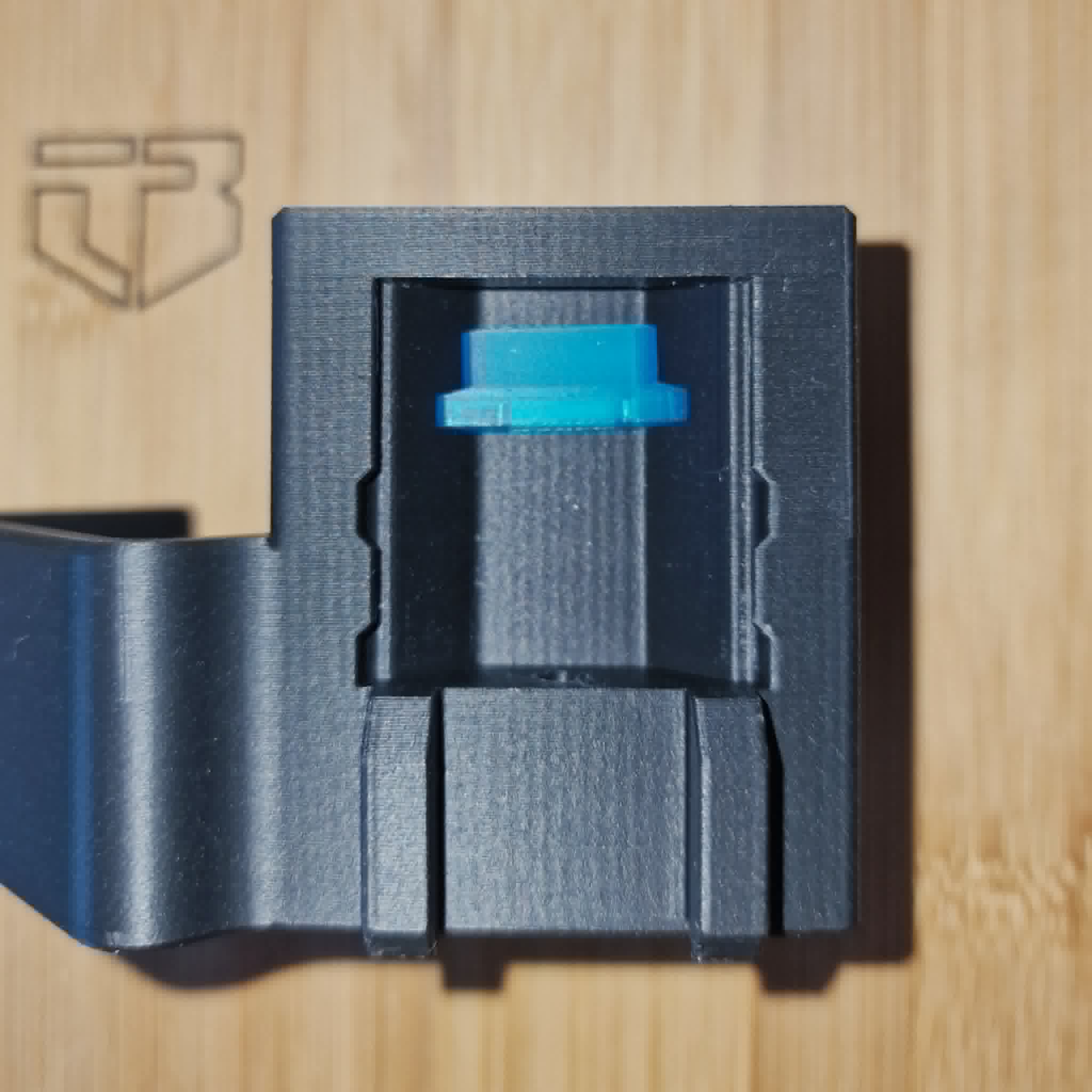

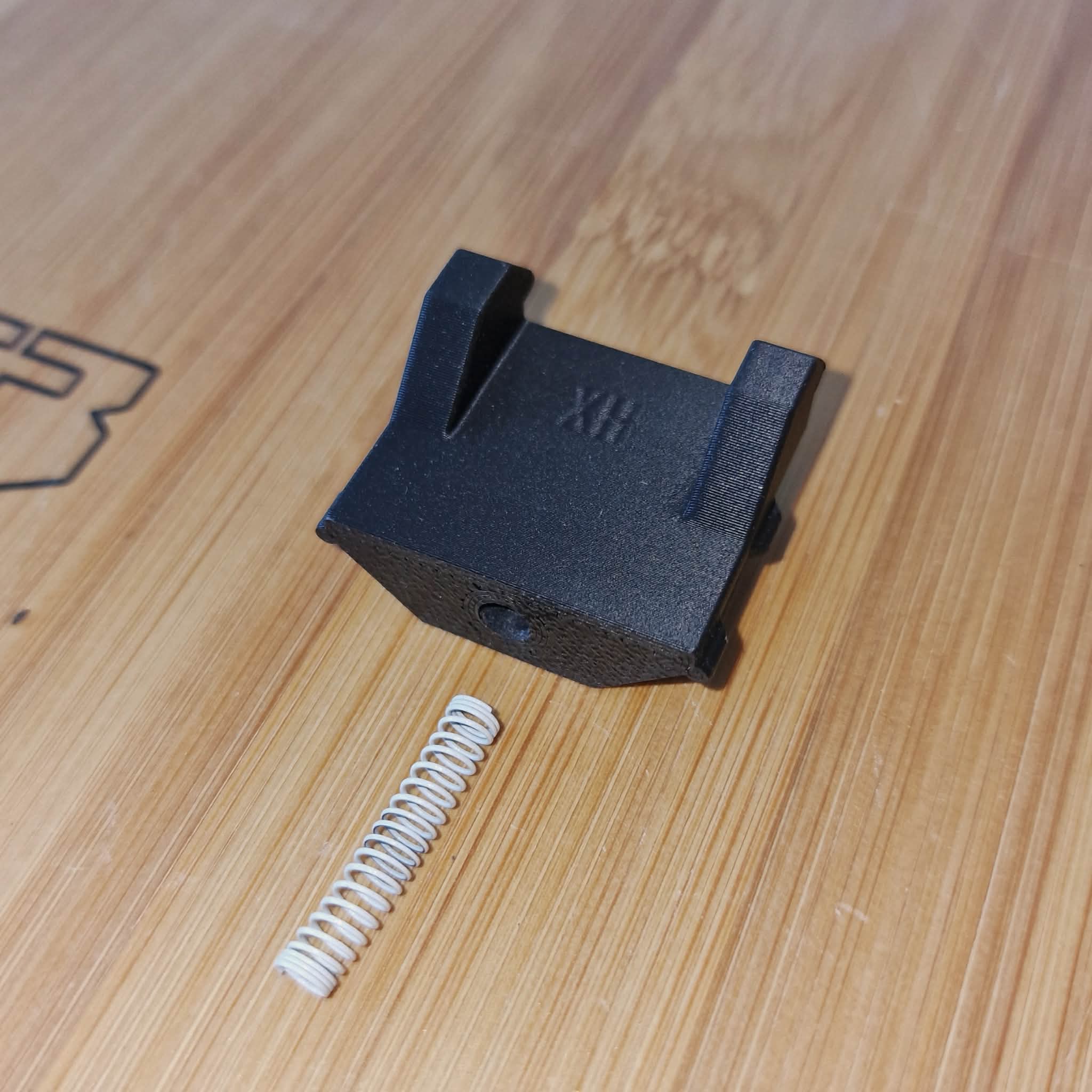

Put the spring into the reserved hole on the bottom of the slider.

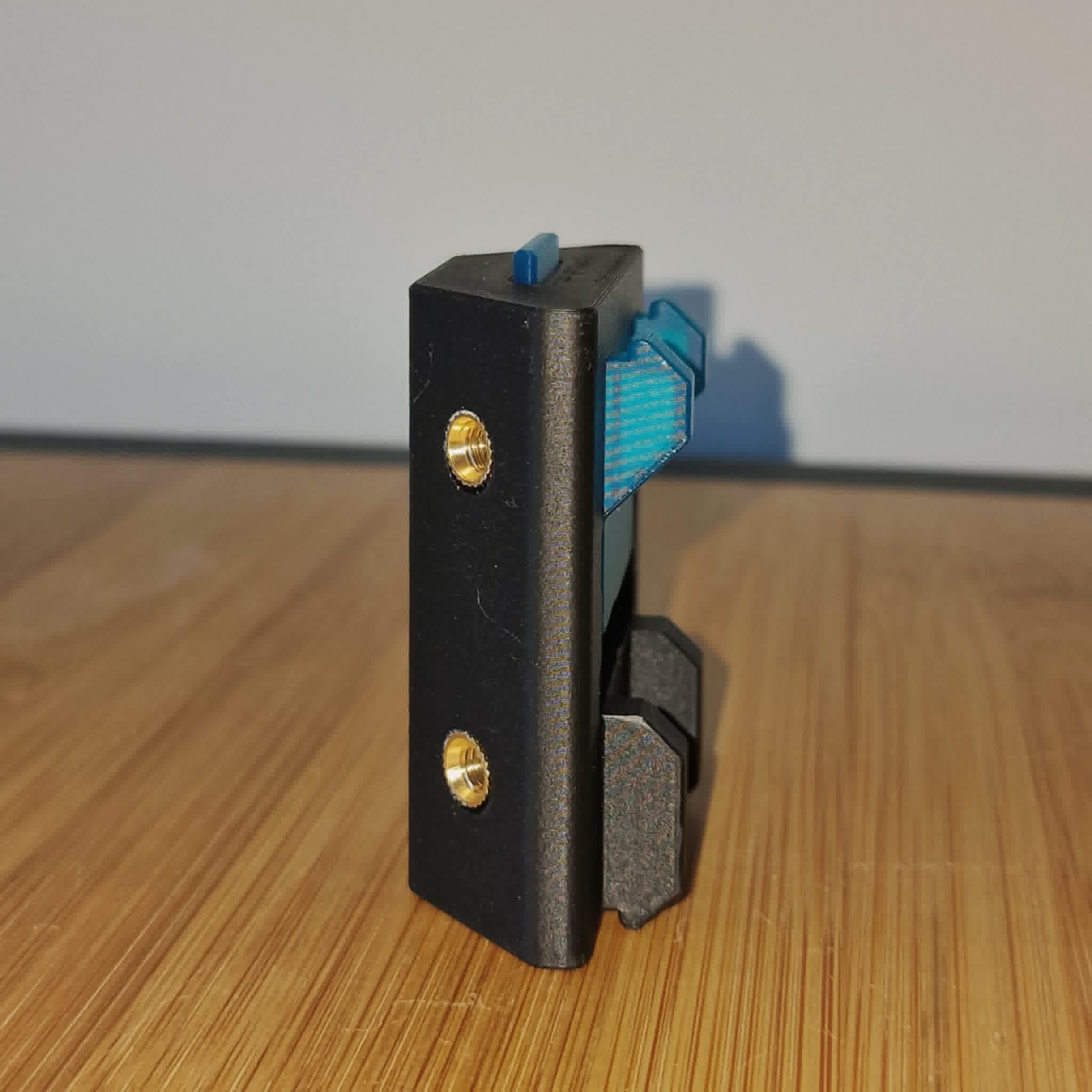

Lay the pushing pin in the main body with the small part to the top and push it through.

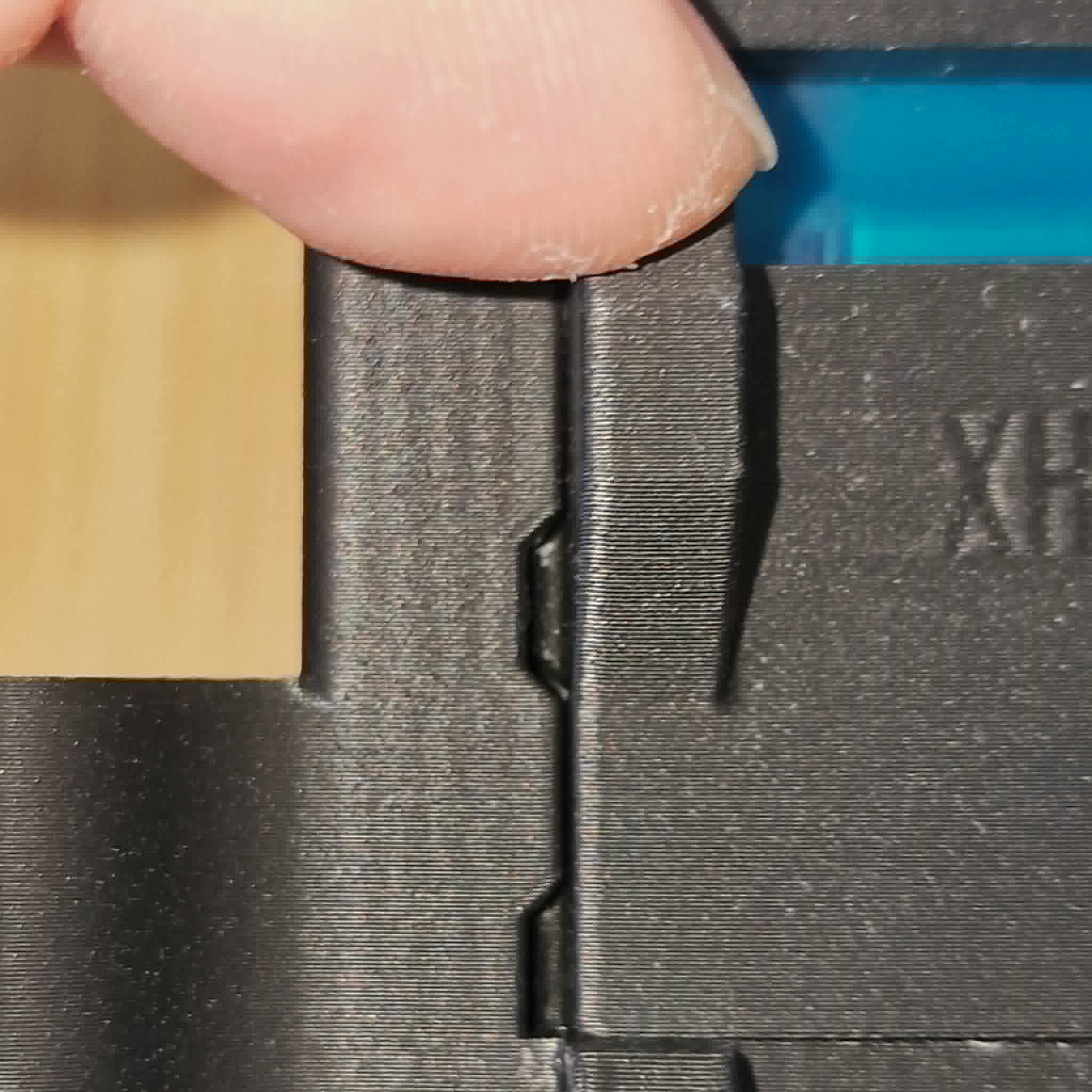

Press in the spring to its minimum length and put the slider into the main body where the cutouts meet the sliders.Â
Release the slider and enjoy!

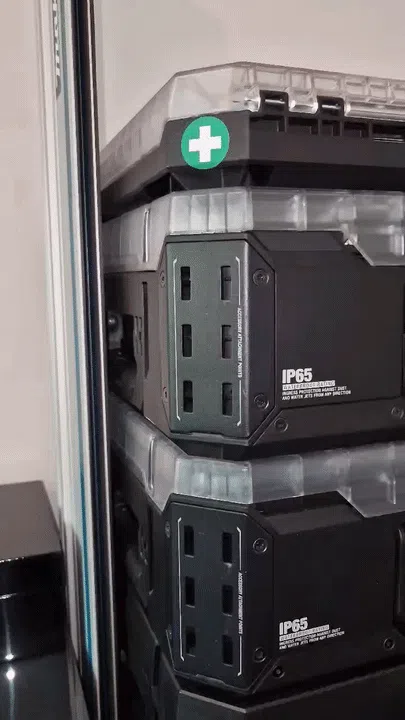

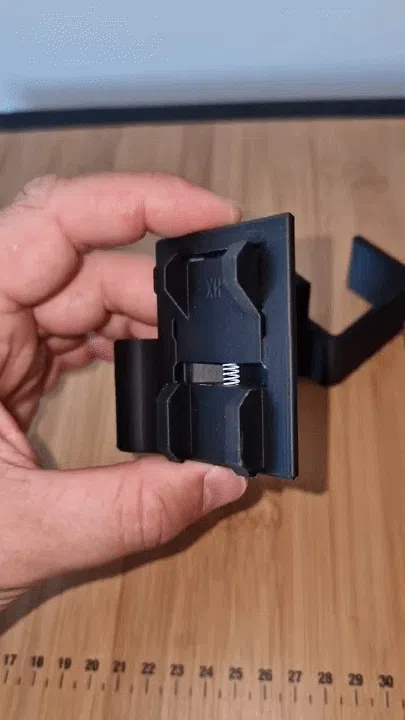

![5.mp4 [video-to-gif output image]](https://makerworld.bblmw.com/makerworld/model/DSM00000003010749/design/6e282721-5eb1-4d30-8c9d-94d705e57f46.gif?x-oss-process=image/format,webp)
