Anchor roller
IP Report
Print Profile(1)
0.2mm layer, 6 walls, 50% infill
Designer
5.6 h
1 plate
Open in Bambu Studio
Boost
0
1
0
0
1
1
Released
Description

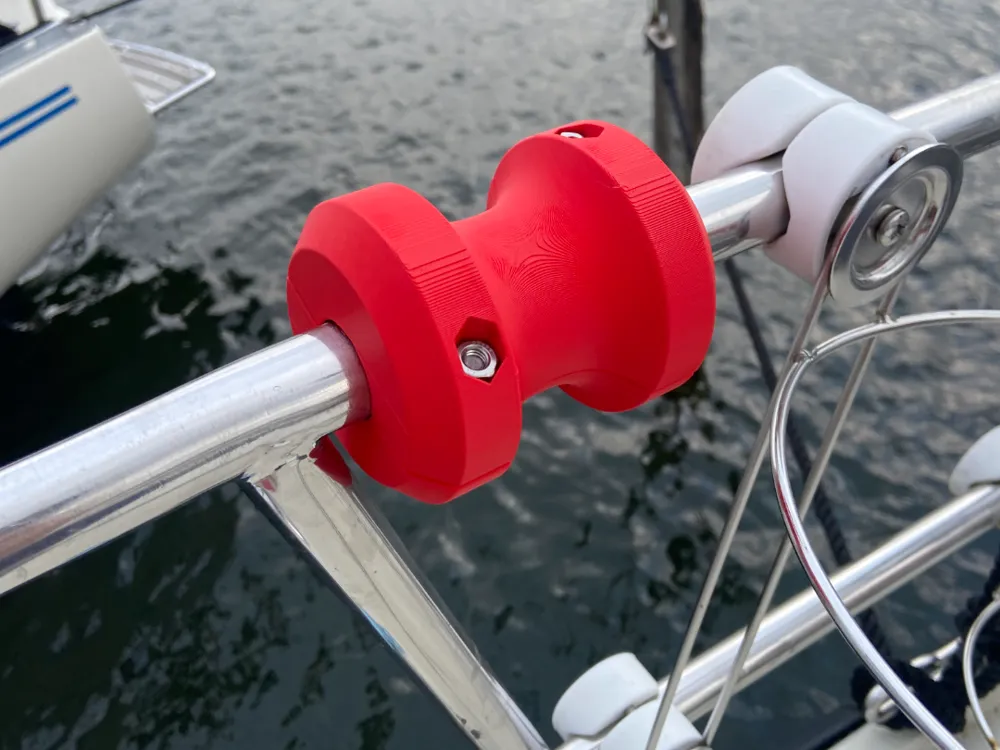

Anchor line roller. Side supports are included, but not really necessary. If you pull the rope straight, the roll will stay straight. Designed for 25 mm pipe, comment if you need other sizes. CAD is included so you can fit it anywhere.
Screws for anchor roller is M6 x 50 ISO 7047, but you can modify the files for a hex screw. Screws should be AISI 316L (M4) for boats.
Screws for side support is M6 x 30 ISO 7047. You need to modify the files for a hex screw.
I printed it with 50 % infill, which should suit most anchors.
