Universal joint
Print Profile(1)
Bill of Materials
Description
Universal joint

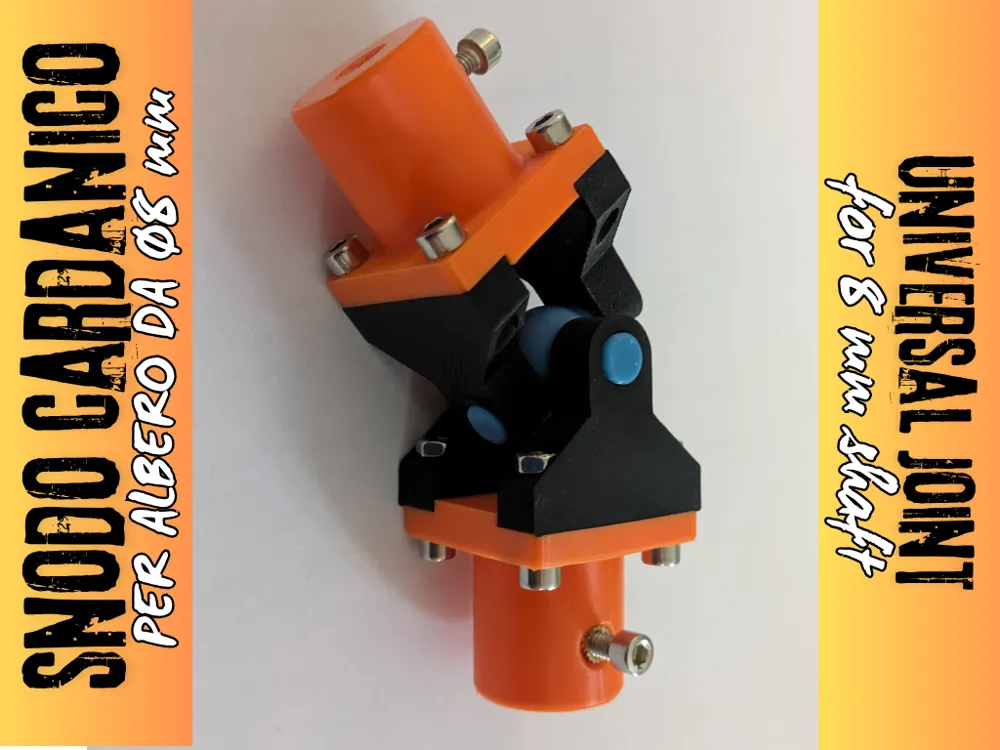

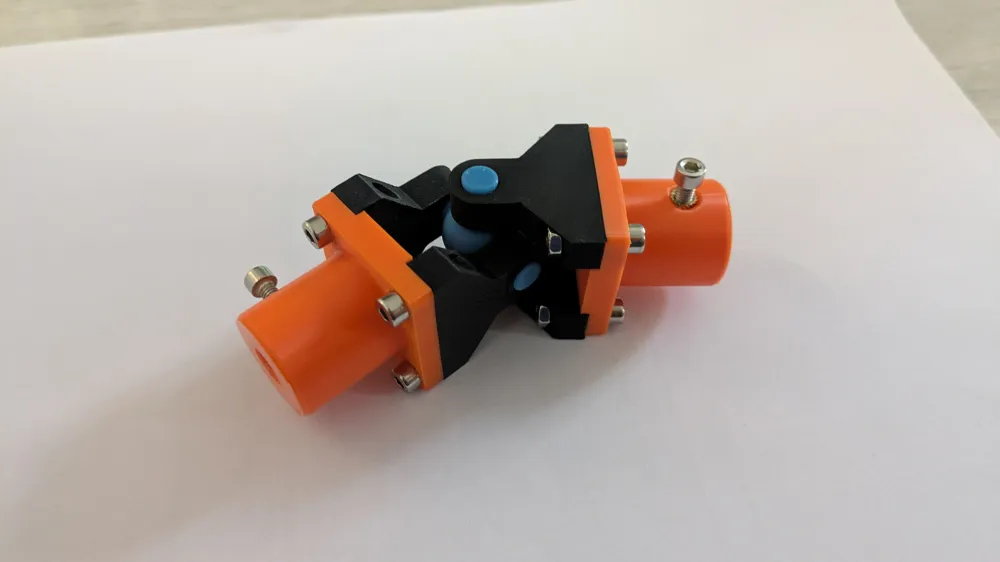

A completely 3D printable universal cardan joint, designed to ensure smooth motion transmission even with significant angular misalignments. Compact, robust, and optimized for FDM printers, this model is ideal for robotics, kinematic mechanisms, DIY automation, and custom transmission systems.
The geometry is designed to offer:
- Ideal for low-torque applications
- Instructive model, to learn how the mechanism itself works
- Quick assembly, there are two versions, one with inserts and one with M4 nuts
- Modular compatibility with an 8 mm shaft or an 8 mm threaded rod
- Reliable printing, the only supports are on the central cross
Perfect for makers who want to integrate a universal joint into their projects
