Description

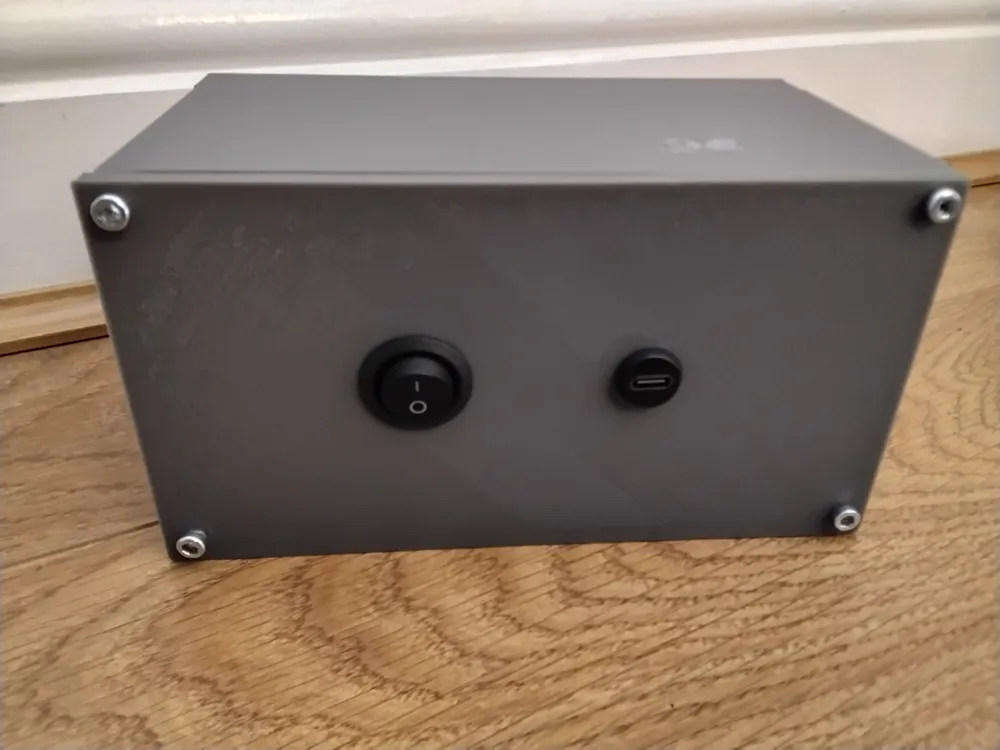

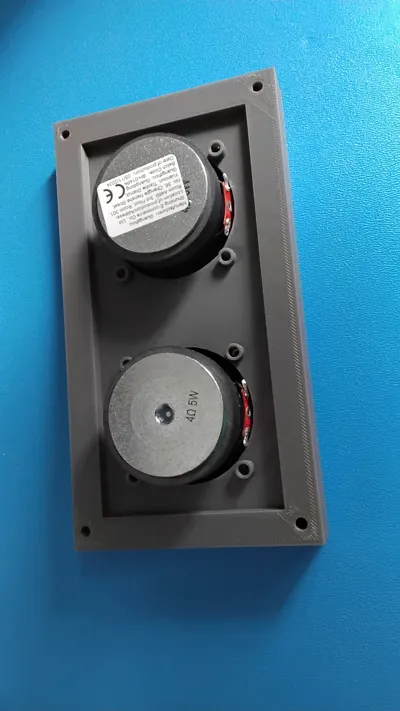

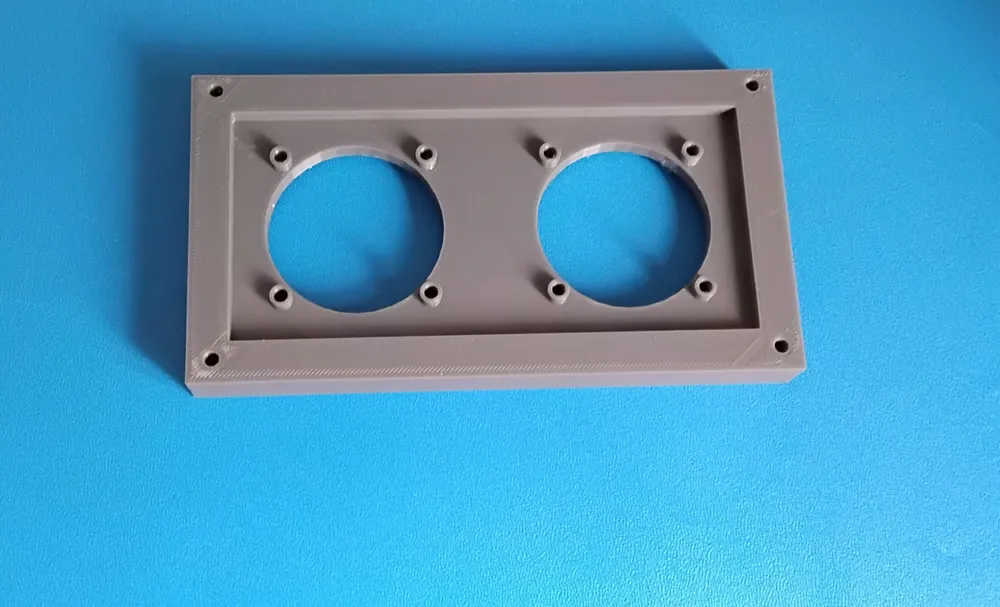

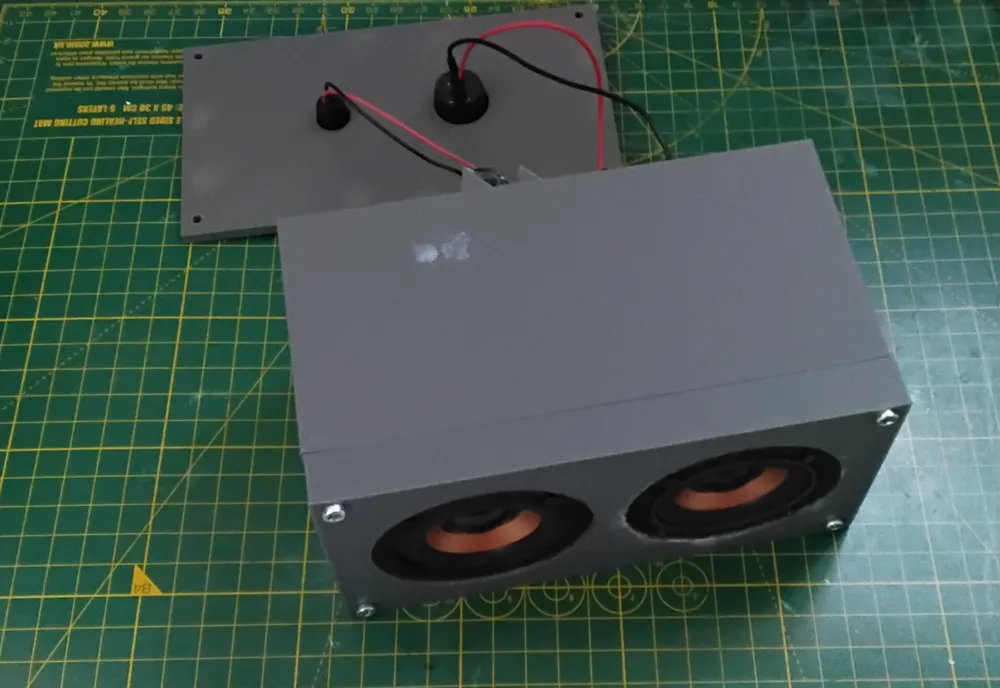

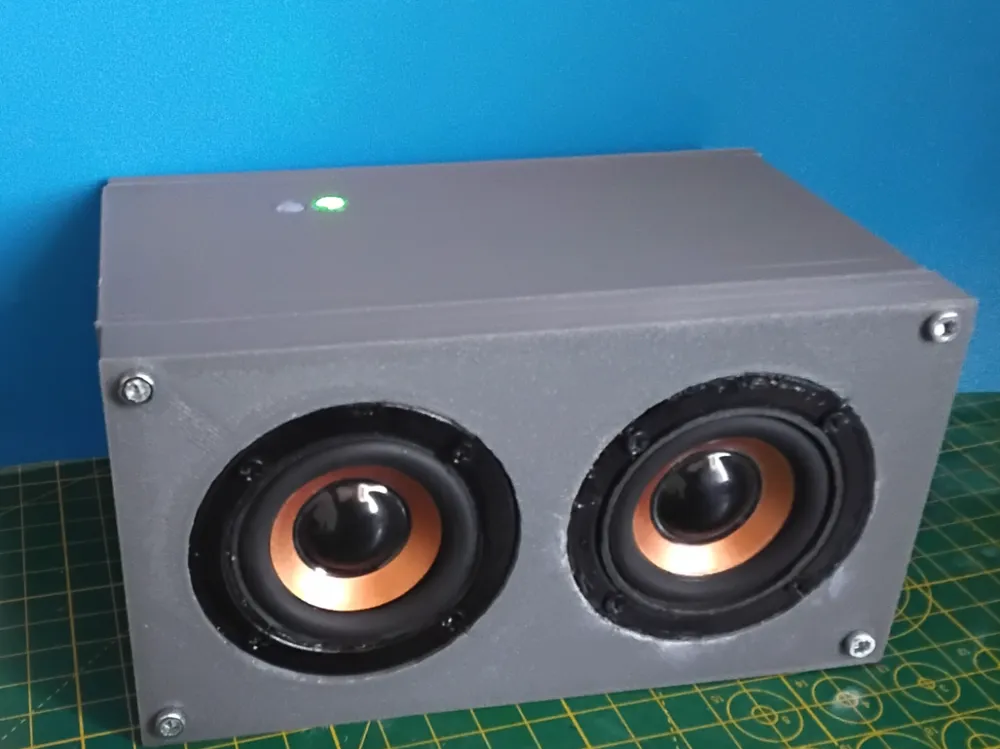

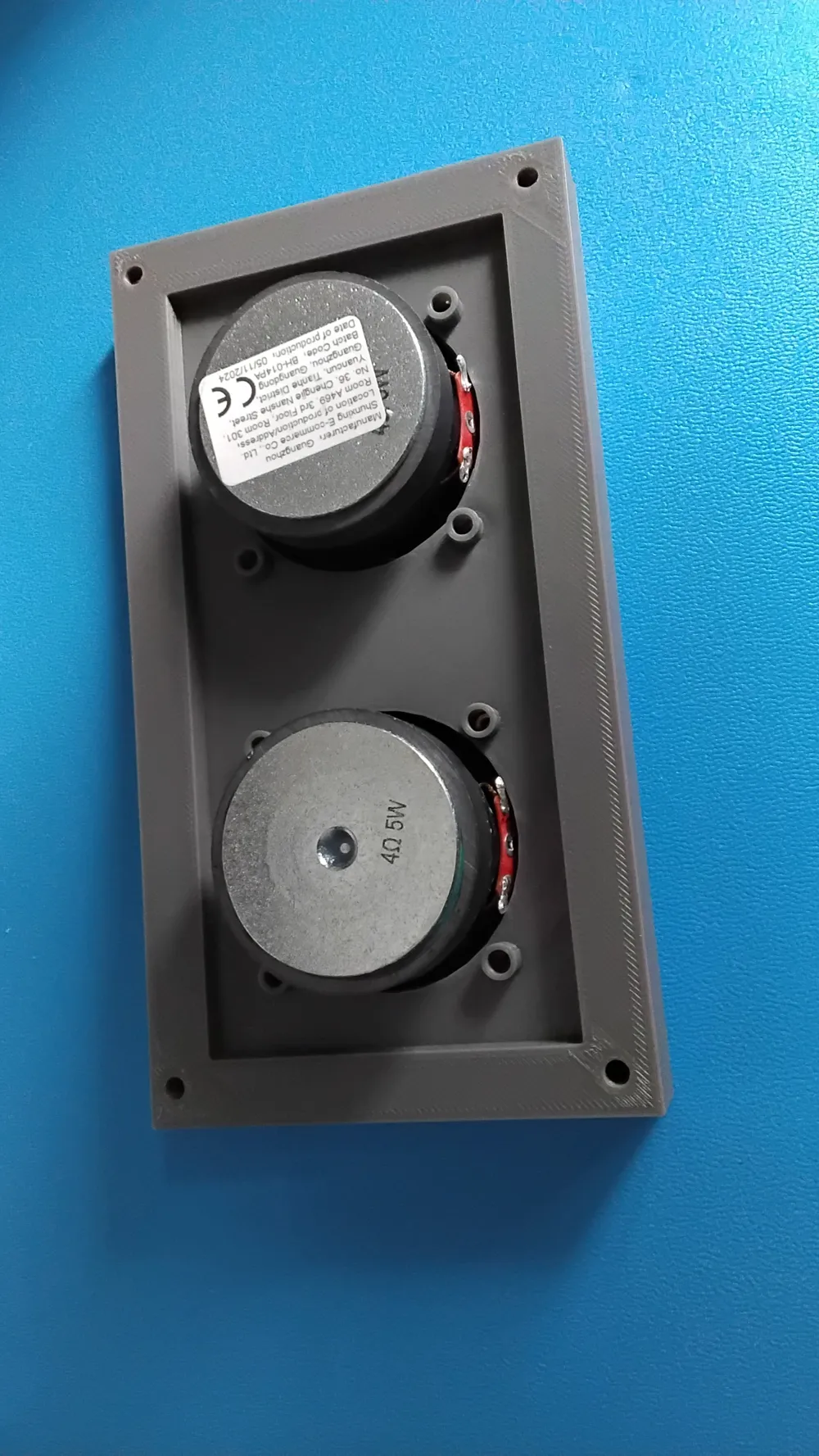

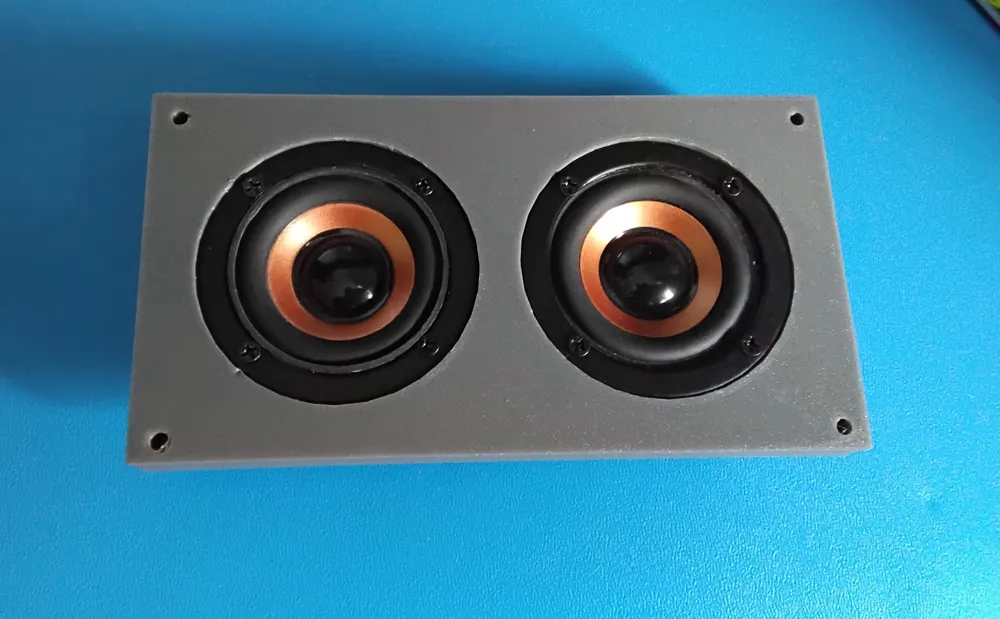

The speakers are 2.48 inch in diameter. The front plate is held on by screws that hold the speakers and the back plate is also held on by screws that have the Round Snap Rocker Switch(2cm diameter) and USB-C Female Socket Connector(14mm diameter). I am using a TPA3110 XH-A232 30W+30W 2.0 Channel Digital Stereo Audio Power Amplifier Board DC 8-26V 3A with MP3 Bluetooth 5.0 Receiver Board 3.3-5V from amazon. I used my own 12V power supply from 3 4V batteries in series.
