Description

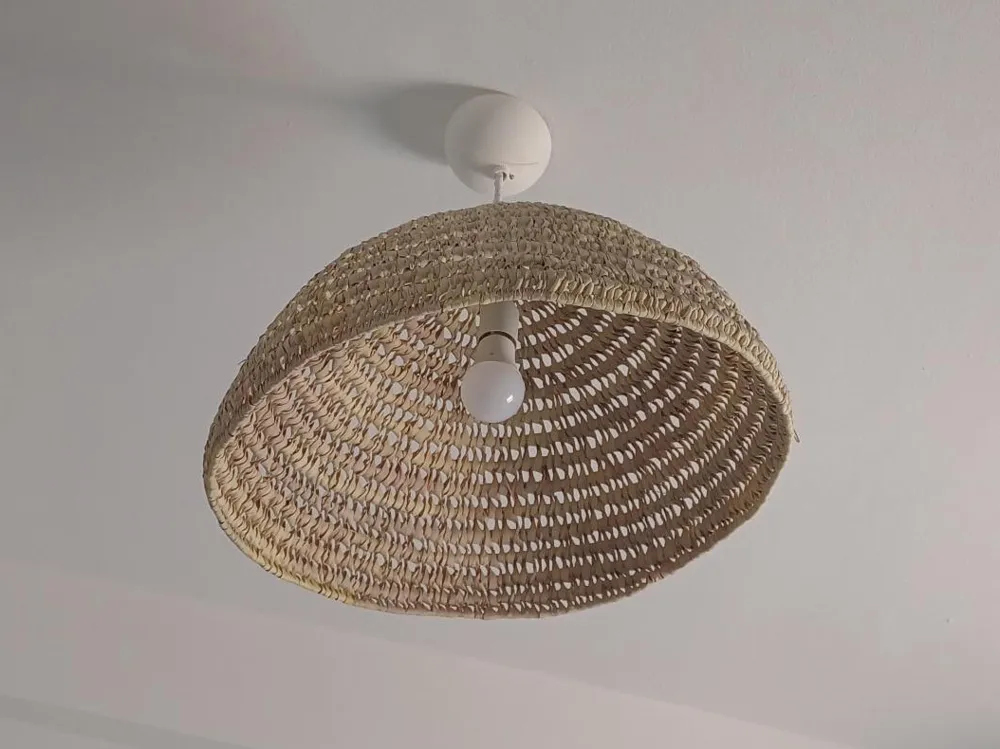

This is a variable angle ceiling mount to support any lamp. It allows you to install it on an existing lamp without having to disconnect it and will hide the ceiling wires. It can be installed in ceilings angled from 0 to 40 degrees to the horizontal plane.

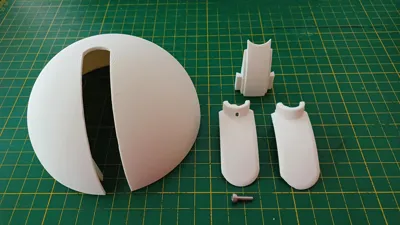

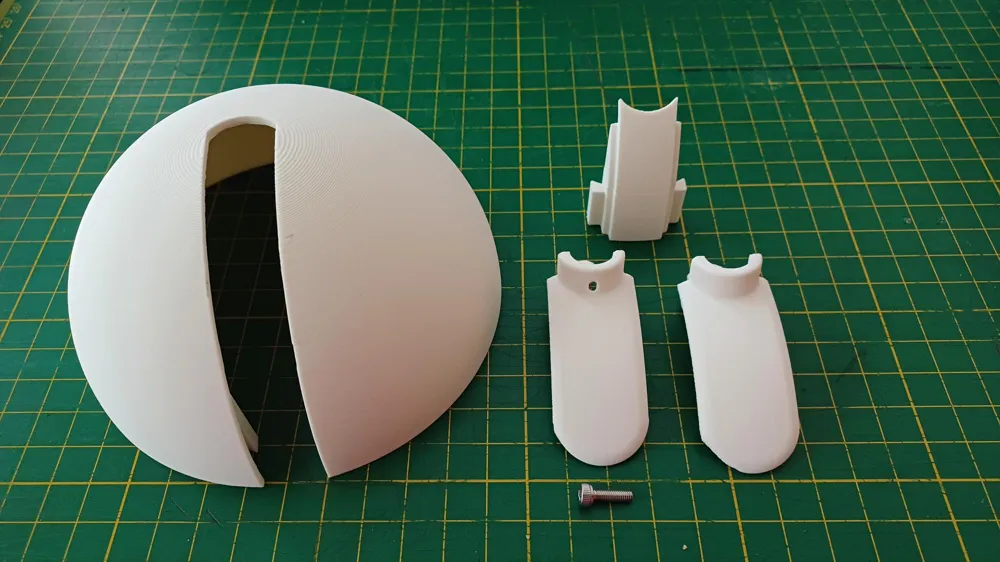

Check the photo sequence to help on the installation and practice before installing it on the ceiling.

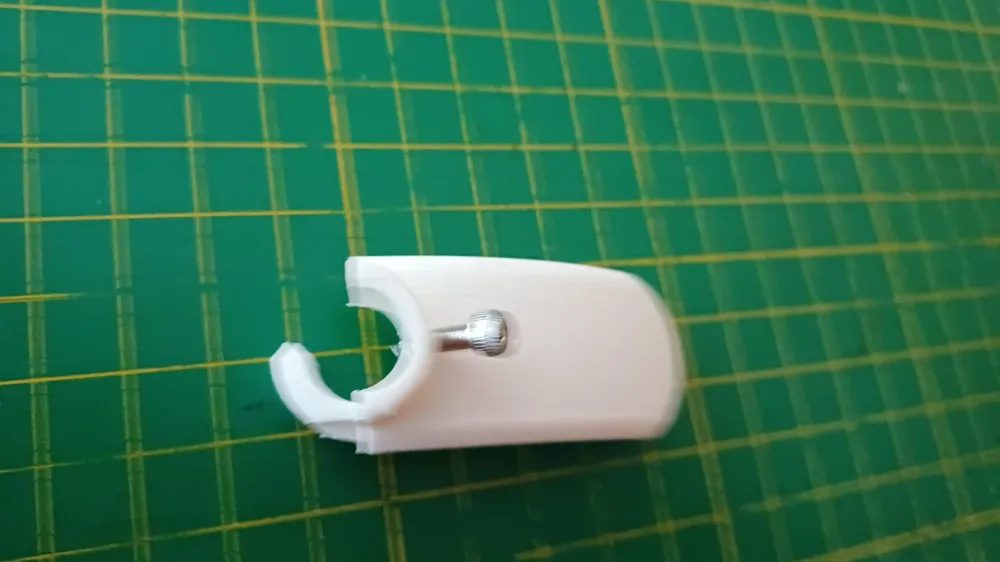

First use a M3 screw or bolt and install it in the top piece.

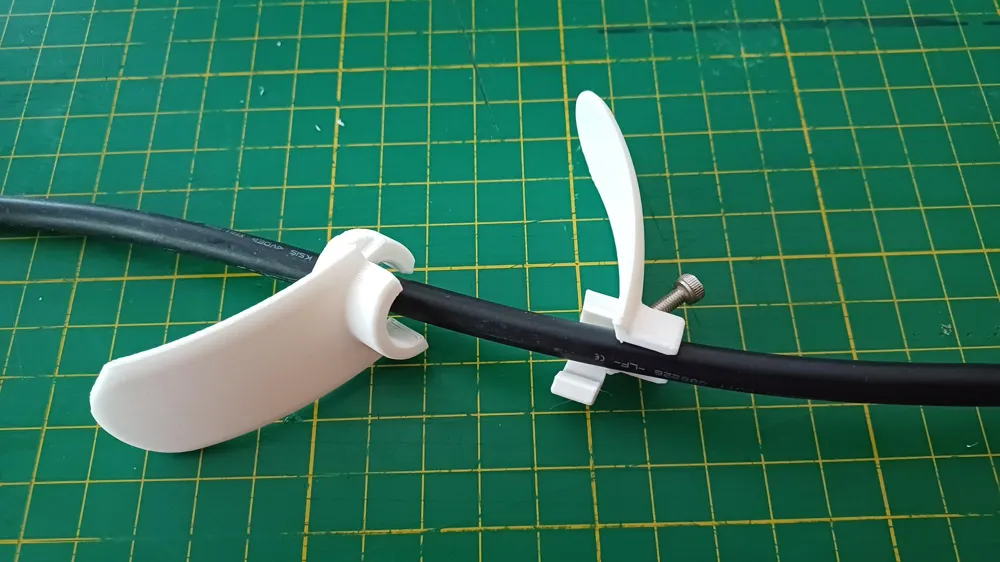

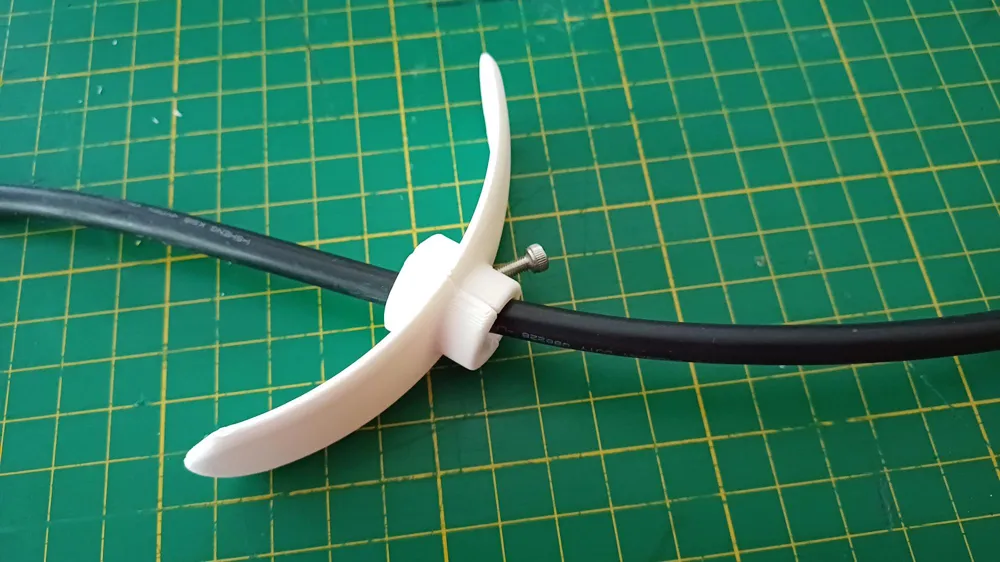

To install the mount it you need to take the top and bottom pieces and install then around the lamp wire. You will need to keep pressing the two pieces together.

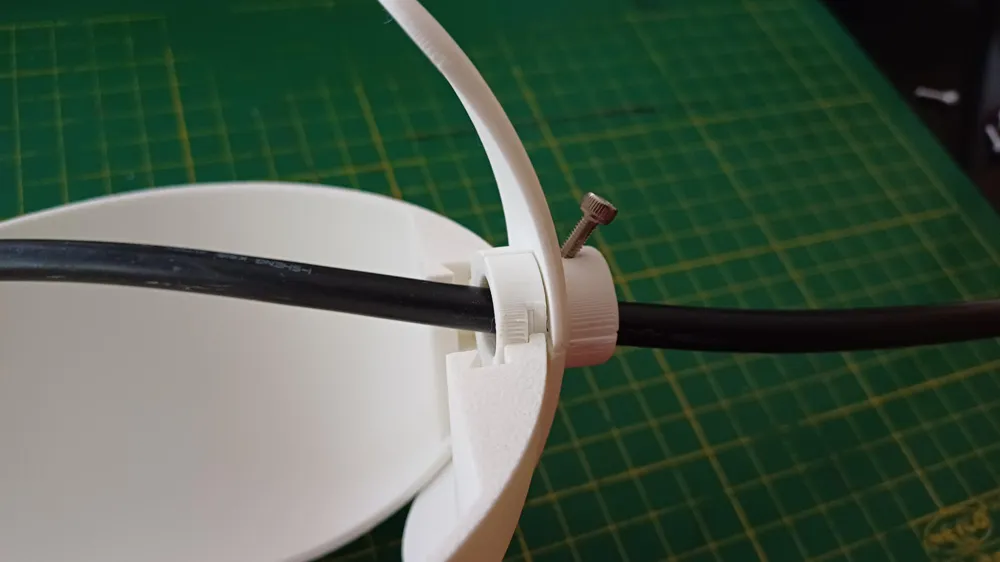

Then take the main piece and slide it through the slot into the top and bottom pieces around the wire. The pieces that form the wire aperture should be able to slide on top of the dome (the main piece).

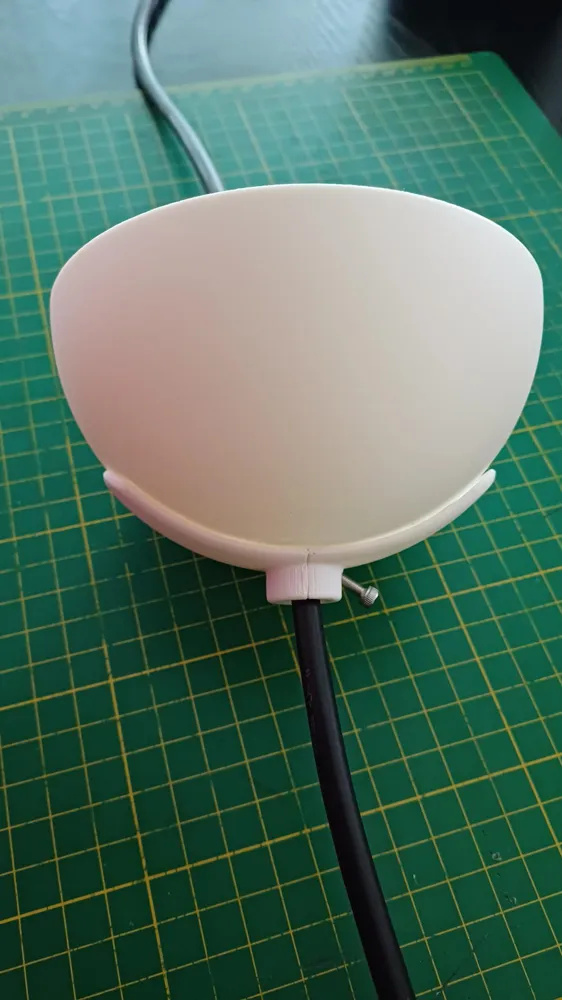

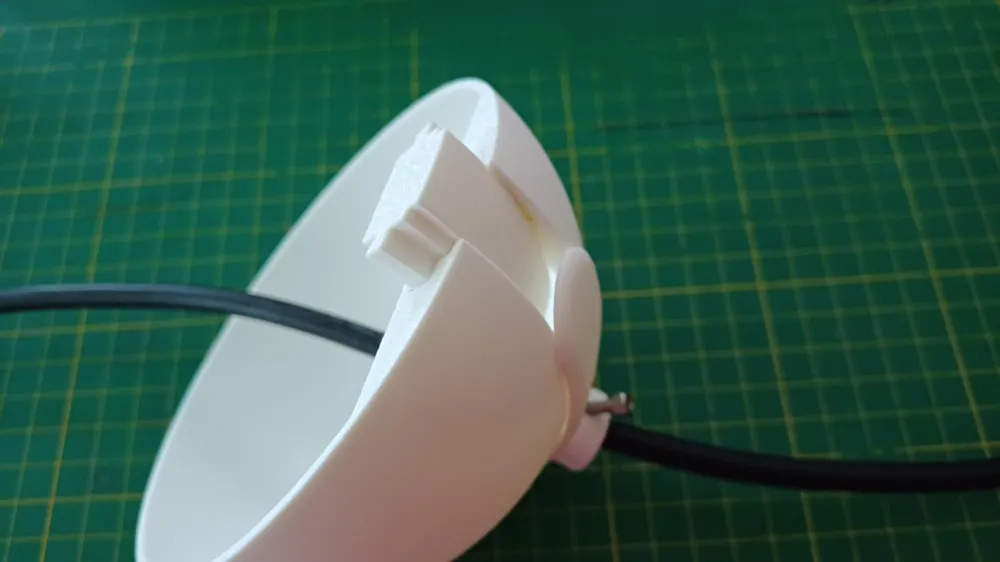

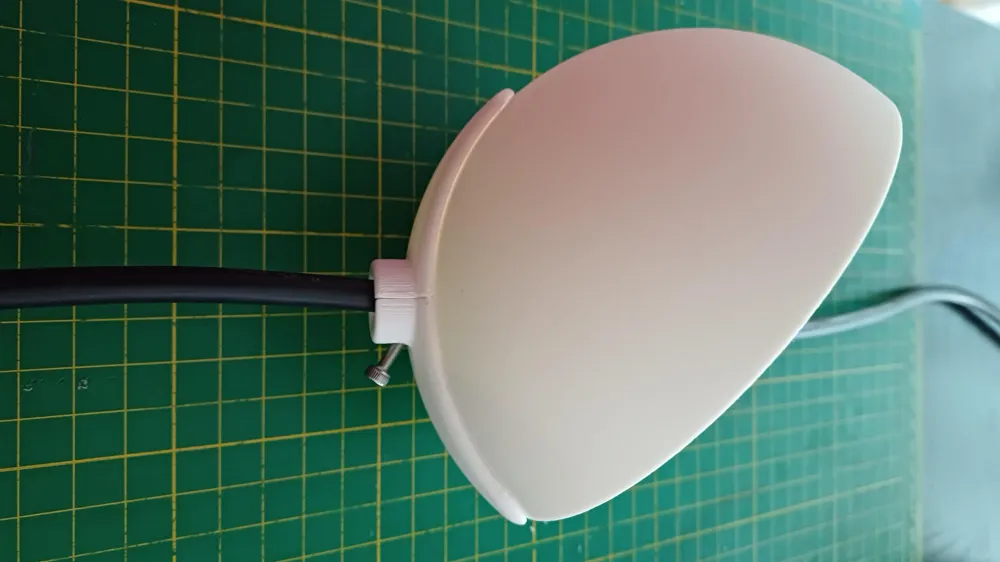

Now close the dome with the slot cover piece. The wire aperture should be able to keep sliding.
Adjust the dome to the ceiling, the slotted aligned with the ceiling angle. Use the bolt or screw to tight the wire and the dome to ceiling.
