Windshield Organizer

🚐 Ducato Mirror Pocket - Windshield Organizer

Have you removed the rearview mirror from your van or motorhome (since it's useless if you have a closed rear or a backup camera) and now have an empty, unused space on your windshield?

Turn that area into highly useful extra space with this Mirror Pocket! Specially designed to be mounted in place of the original rearview mirror, it keeps everything within arm's reach while driving.

✨ KEY FEATURES

• 🕶️ Glasses Compartment: Shaped space perfect for keeping your sunglasses safe and ready to use.
• 💳 Card/Coin Slots: Calibrated slots to insert toll cards, parking tickets, or coins for shopping carts.
• 📡 Hide Toll Pass (Telepass): Discrete rear space to neatly place your electronic toll device out of sight.
• 🔩 Ultra-Solid Mounting: Designed to be secured with screws and adhesive sealant, ensuring a bump-proof hold on rough roads.
• 🔇 Anti-Vibration: Robust structure specifically engineered not to squeak or rattle while driving.

🛠️ VEHICLE COMPATIBILITY Designed for the rearview mirror area of the most popular vans and motorhomes (X250/X290 chassis from 2006 onwards):

• Fiat Ducato
• Peugeot Boxer
• Citroën Jumper / Relay
• Opel Movano (recent models based on Ducato)

⚙️ RECOMMENDED PRINT SETTINGS Since this is a dashboard accessory exposed to direct sunlight through the windshield, filament choice is critical.

• 🛑 DO NOT USE PLA: It will inevitably warp or soften on the first hot summer day!
• 🚀 What I used: I printed it in PET-CF (Carbon Fiber reinforced PET). The result is extremely rigid, heat-resistant, and has a fabulous matte aesthetic finish.
• ✅ Recommended Materials: I highly recommend using ASA or ABS (even better if carbon/glass fiber reinforced, e.g., ASA-CF or ABS-CF) to ensure maximum thermal stability, UV resistance behind the glass, and structural rigidity.

🔧 REQUIRED INSTALLATION HARDWARE

• 3x Wood screws: 3 mm x 12 mm (3x12mm)
• Mounting sealant (e.g., polyurethane adhesive like Sika or similar) to ensure stability and avoid any vibration.

🔧 INSTALLATION

1. Remove the original mirror and thoroughly clean the mounting surface to remove dust or residue.

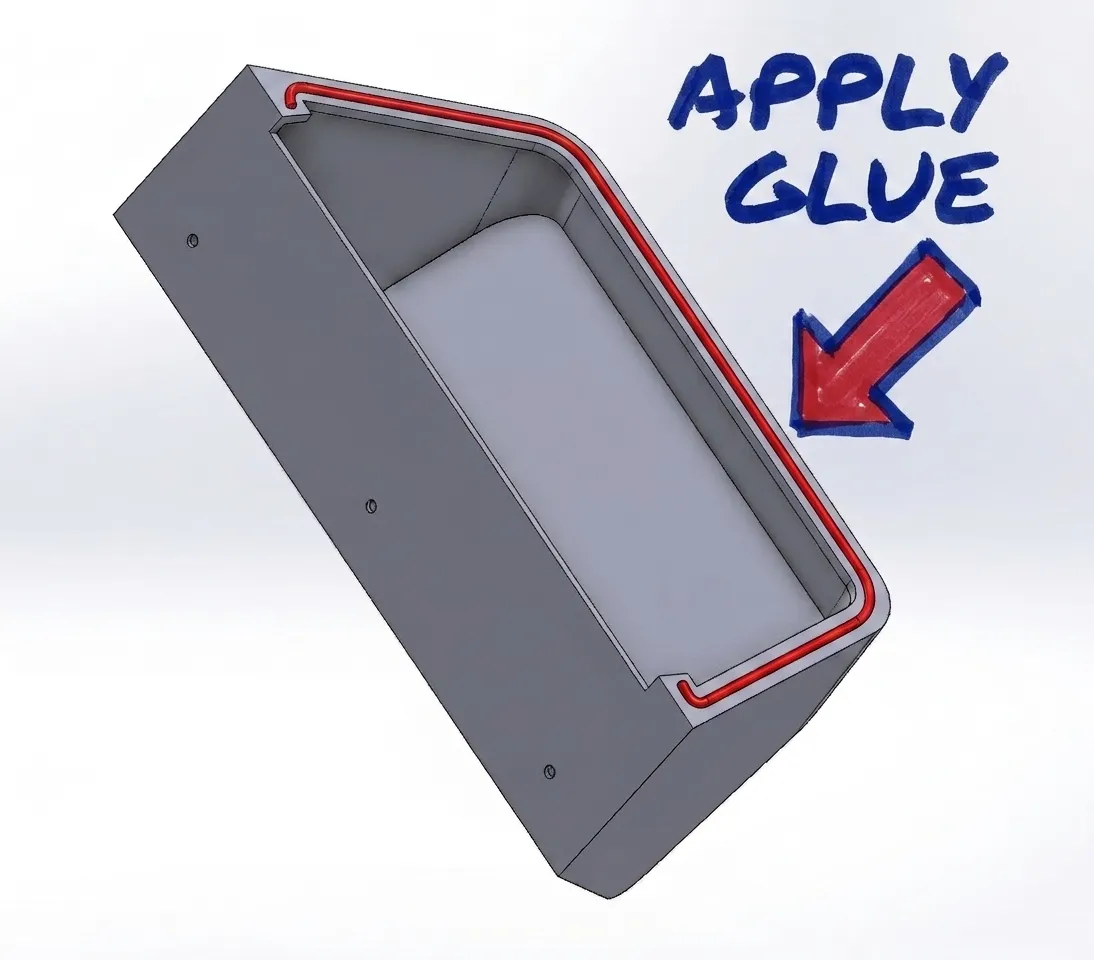

2. Apply a small amount of mounting sealant to the rear contact surface of the printed part to isolate it from the windshield/mount and prevent annoying vibrations or noise while traveling.



3. Secure the organizer firmly by inserting and tightening the 3x 3x12 mm wood screws into the pre-made holes.
4. Let the sealant dry for the time recommended by the manufacturer before putting any weight in the organizer. Done!

💬 Feedback & Remixes If you print and install it on your camper or van, please share a make in the comments! Feedback and remixes are always highly appreciated. Safe travels and happy printing! 🚐✌️
