This is version 2 of my chisel and/or tool holder.

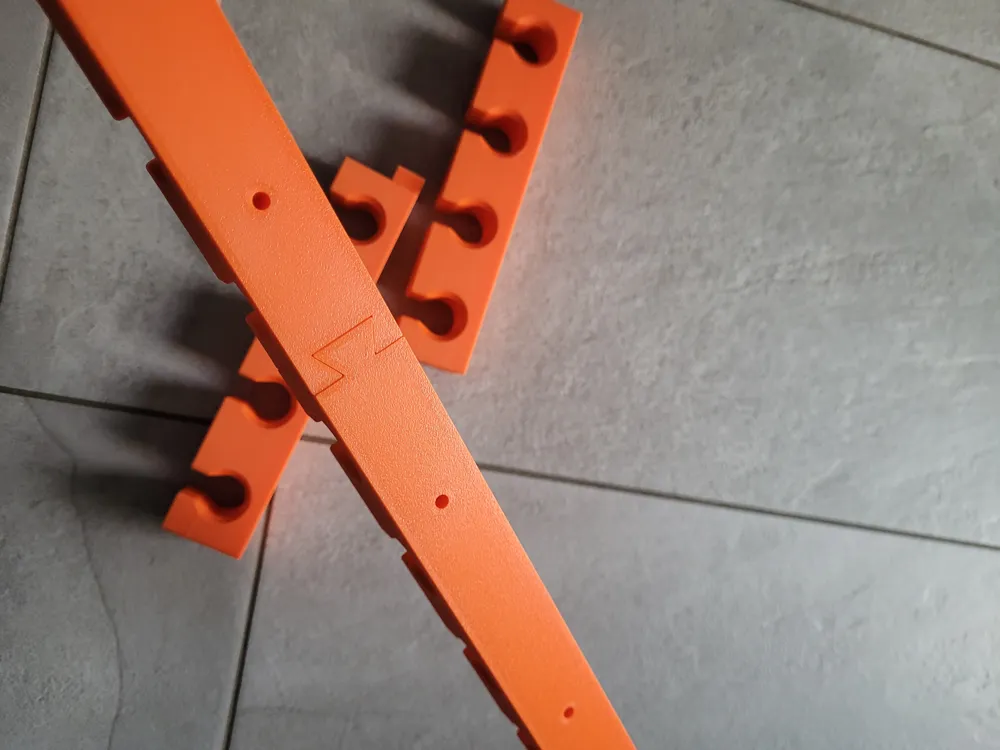

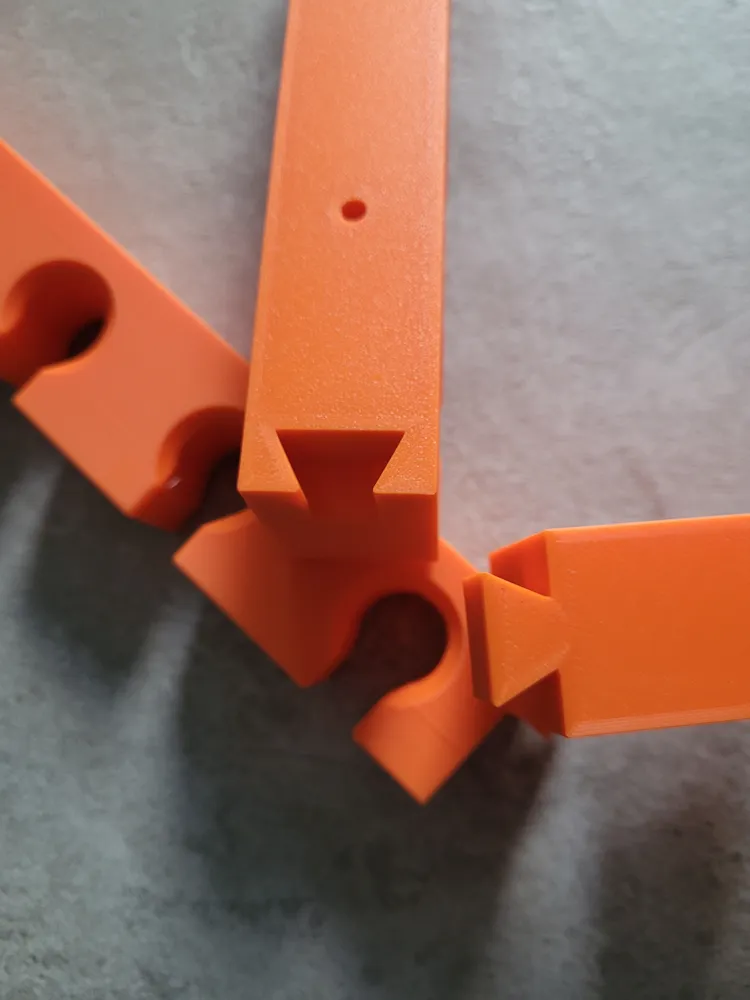

In version 2, the entire thing is even more stable, and the elements are connected with dovetail joints, making the entire system rigid.
Two screws are used for fastening each element - I chose 4 * 60 here, for which the holes are also designed.

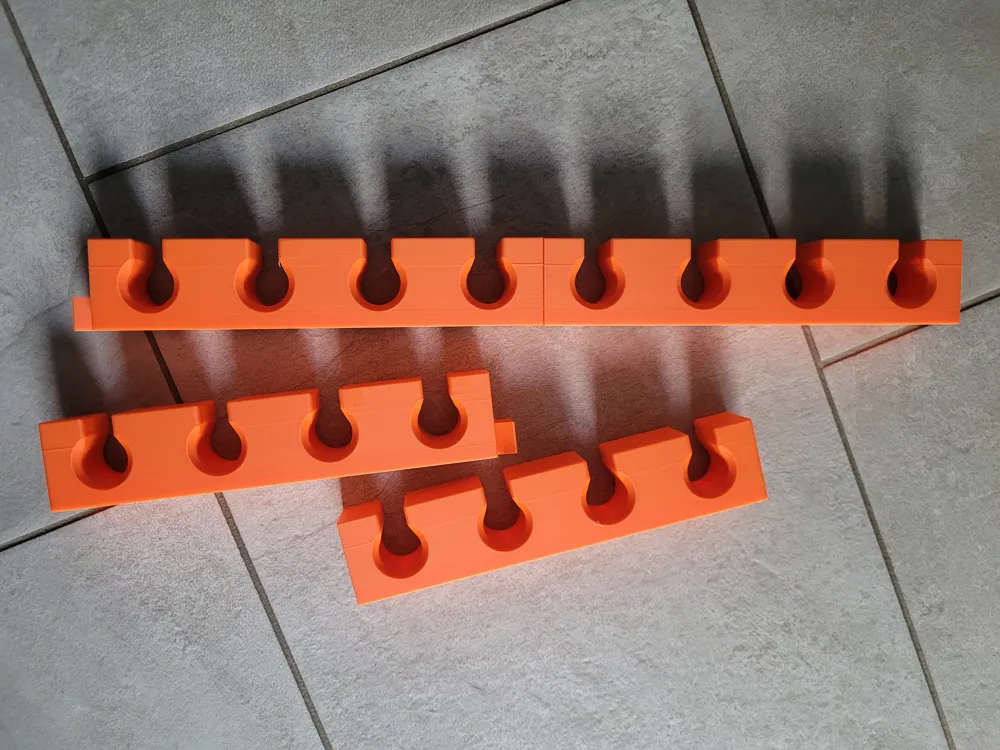

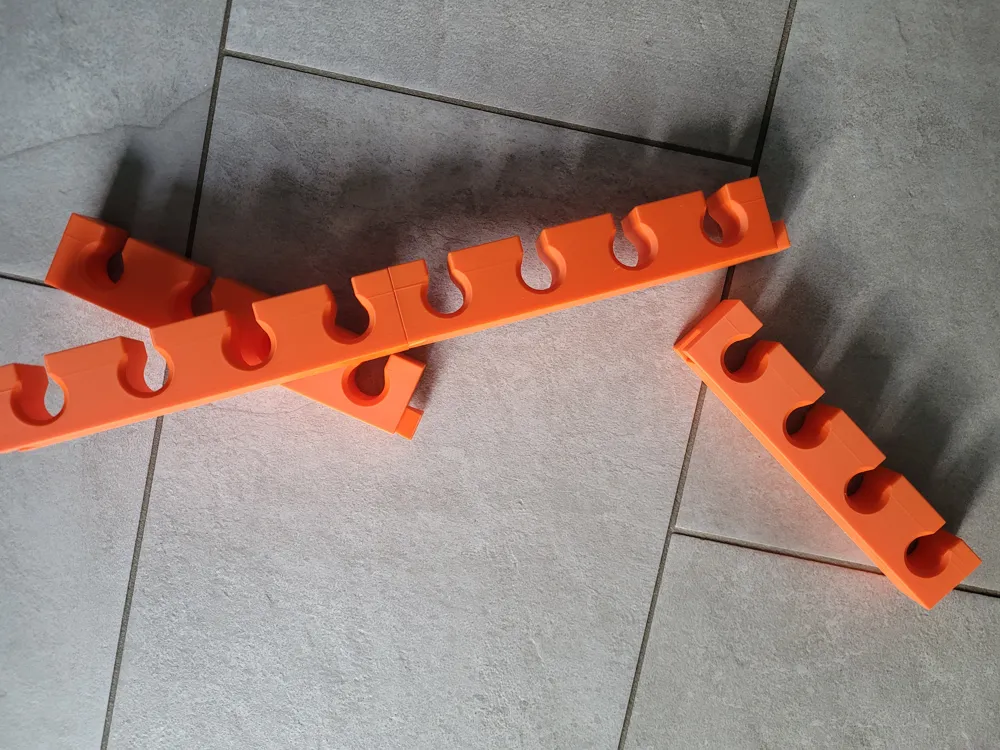

The system is infinitely expandable - simply print as many of the middle elements as you want to expand it.

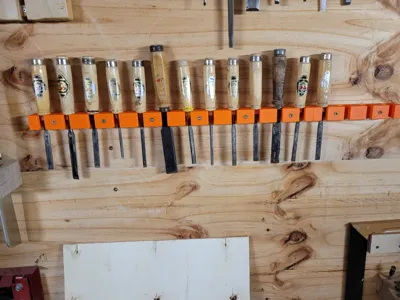

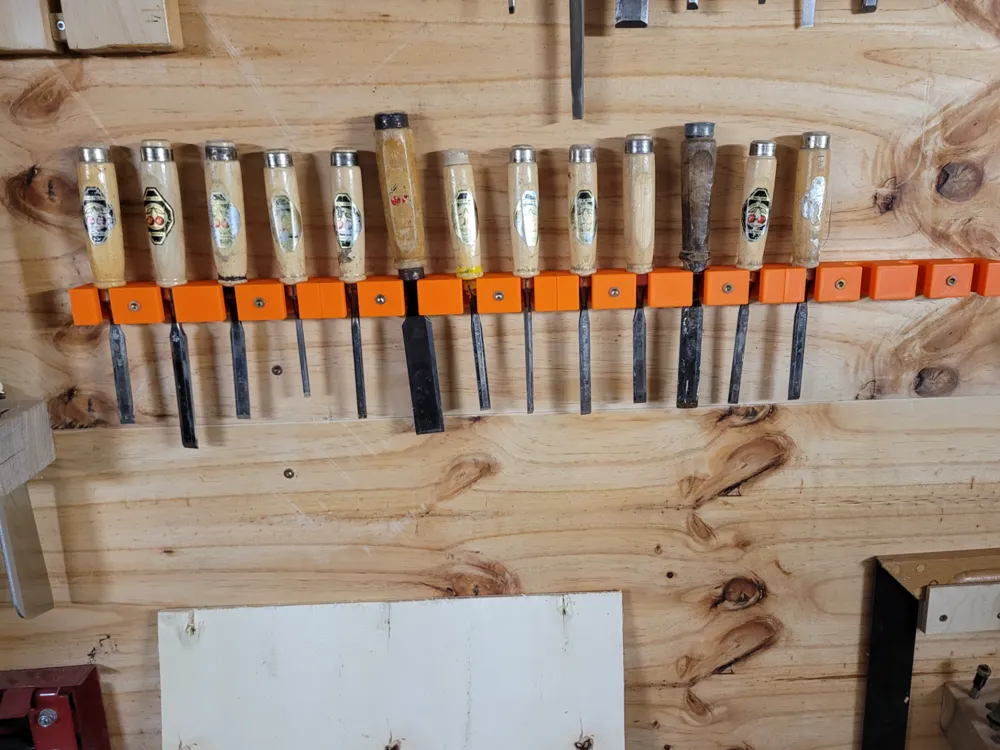

For example, 4 elements are installed in the picture from my workshop.
The holes are made with a diameter of 20 mm, so that Kirschen chisels fit exactly up to the shaft - screwdrivers should also hold without problems.
