Pegboard Level Holder
Print Profile(1)
Description
For https://makerworld.com.cn/zh/models/2632602-abshuang-shi-mian-fang-yi-jia-skadisdong-dong-ban#profileId-3038447 collection

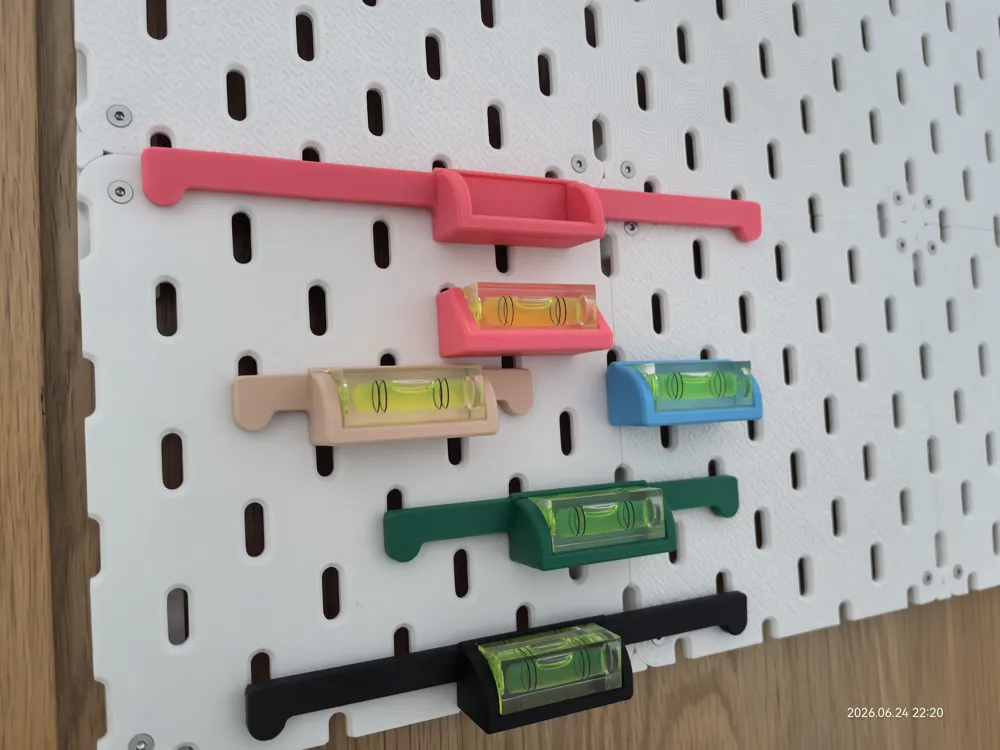

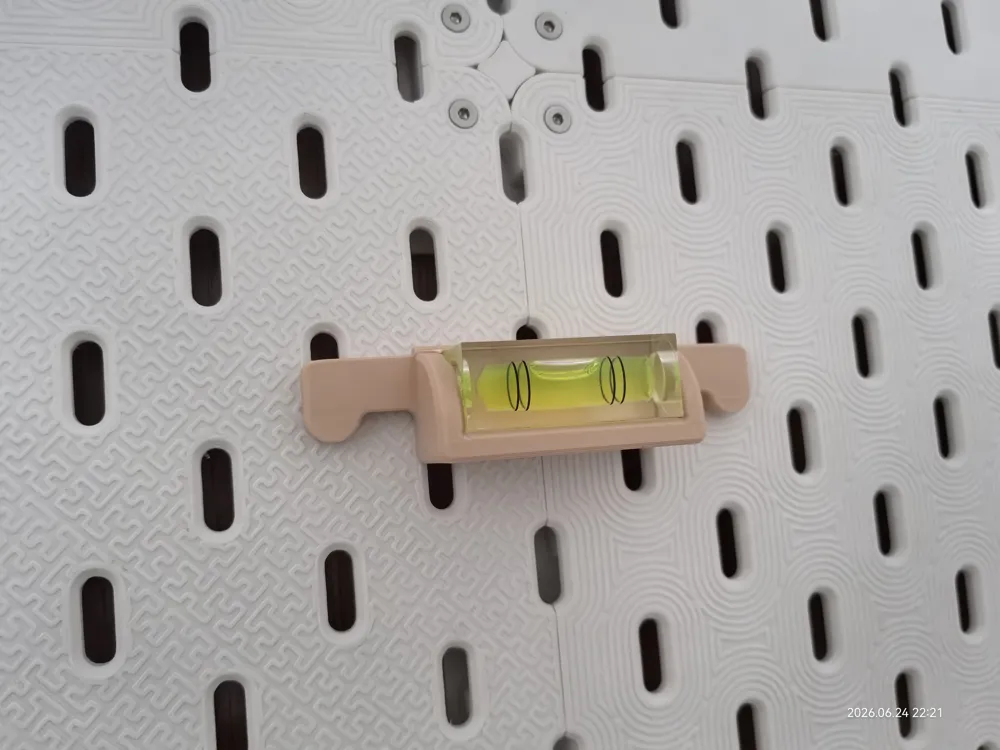

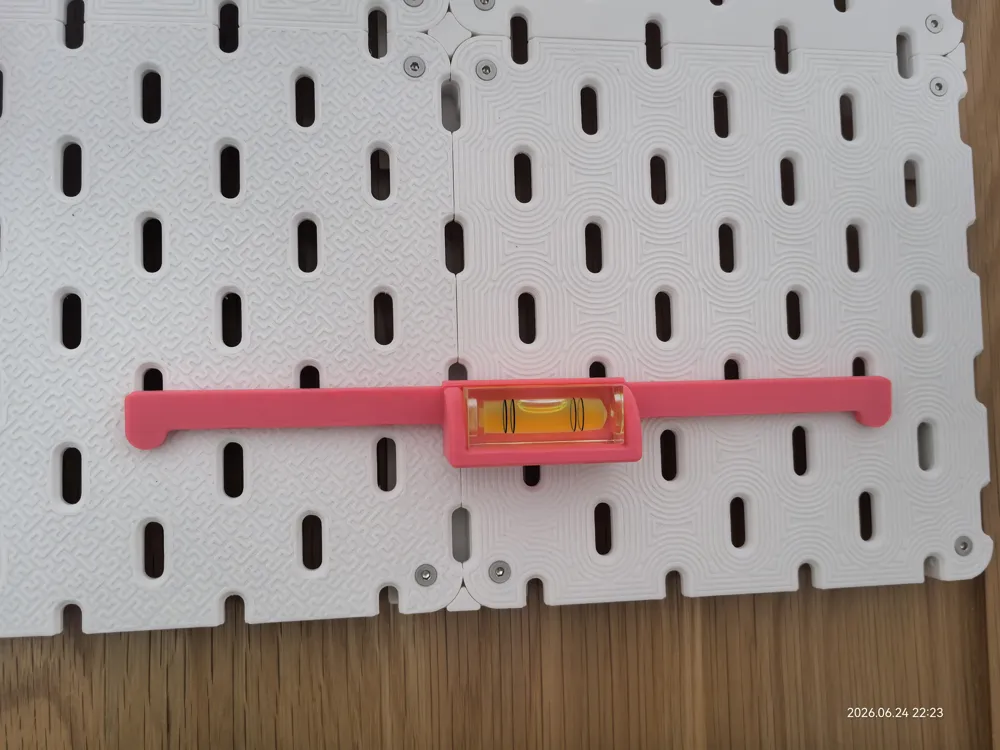

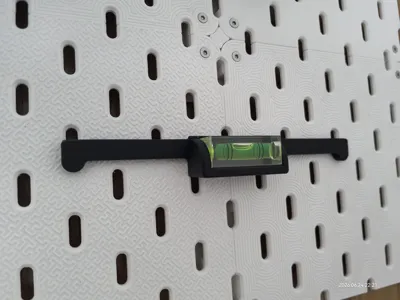

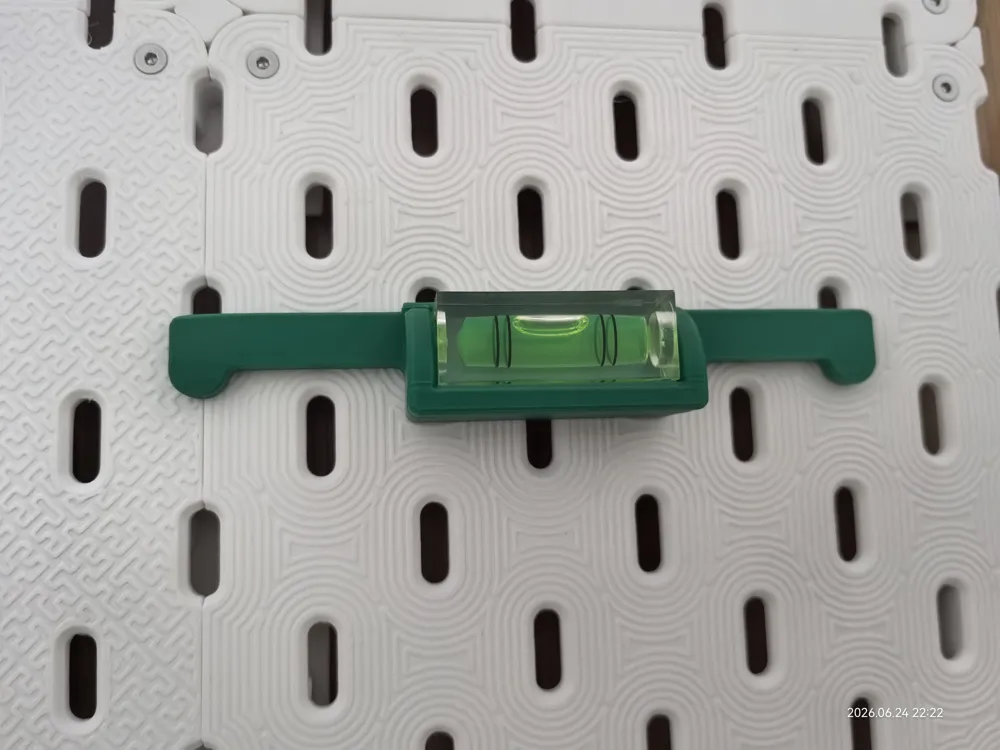

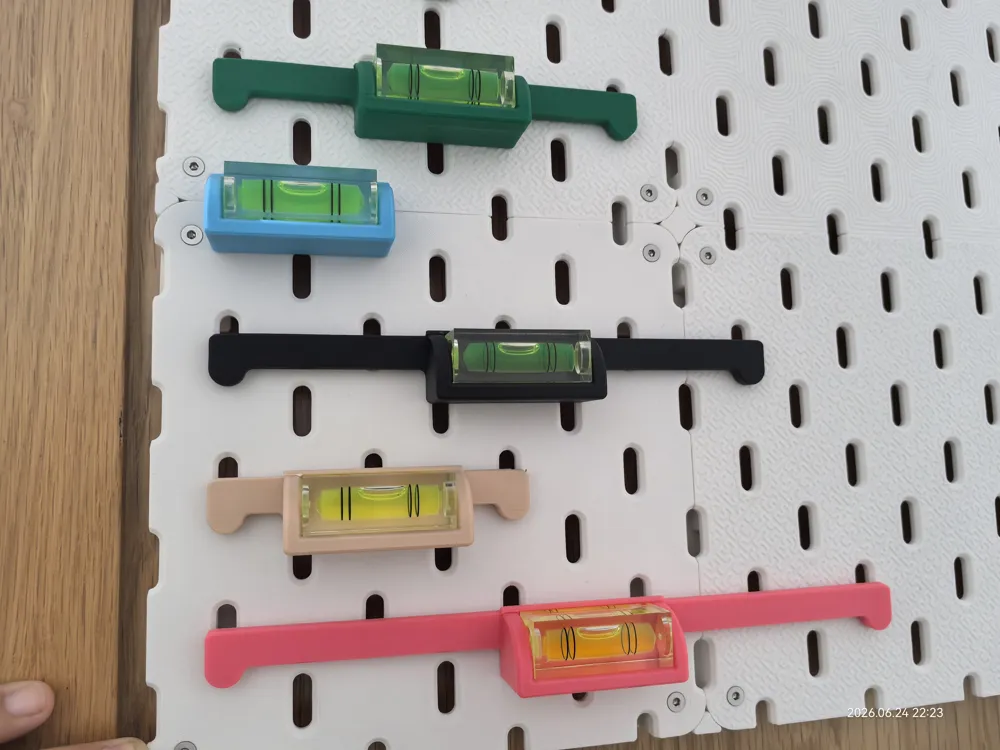

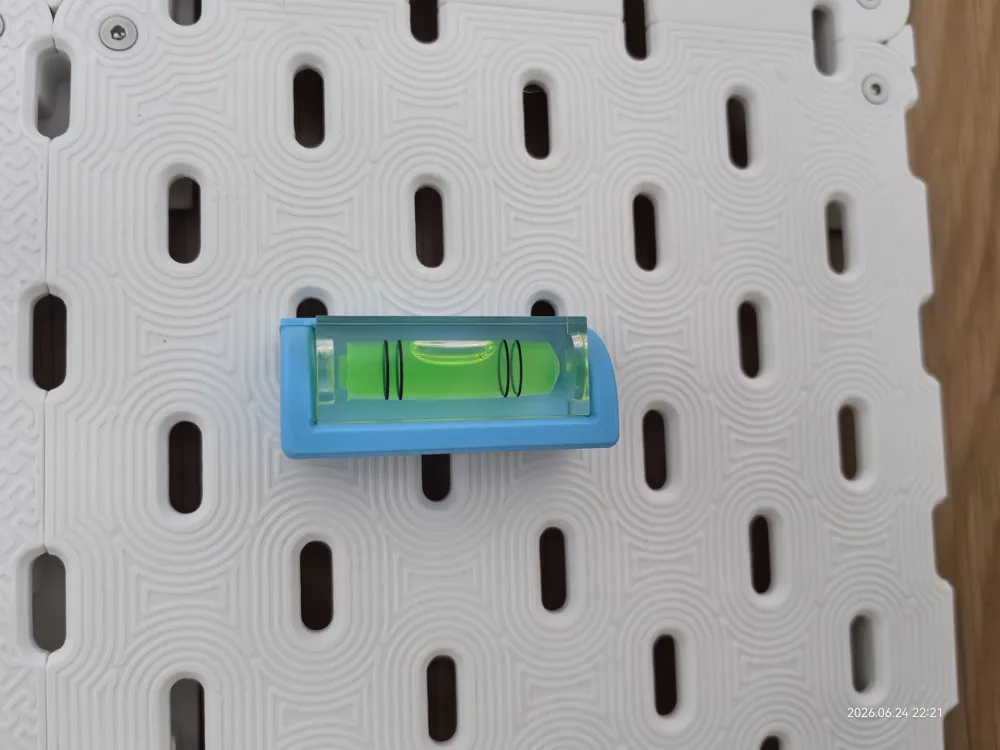

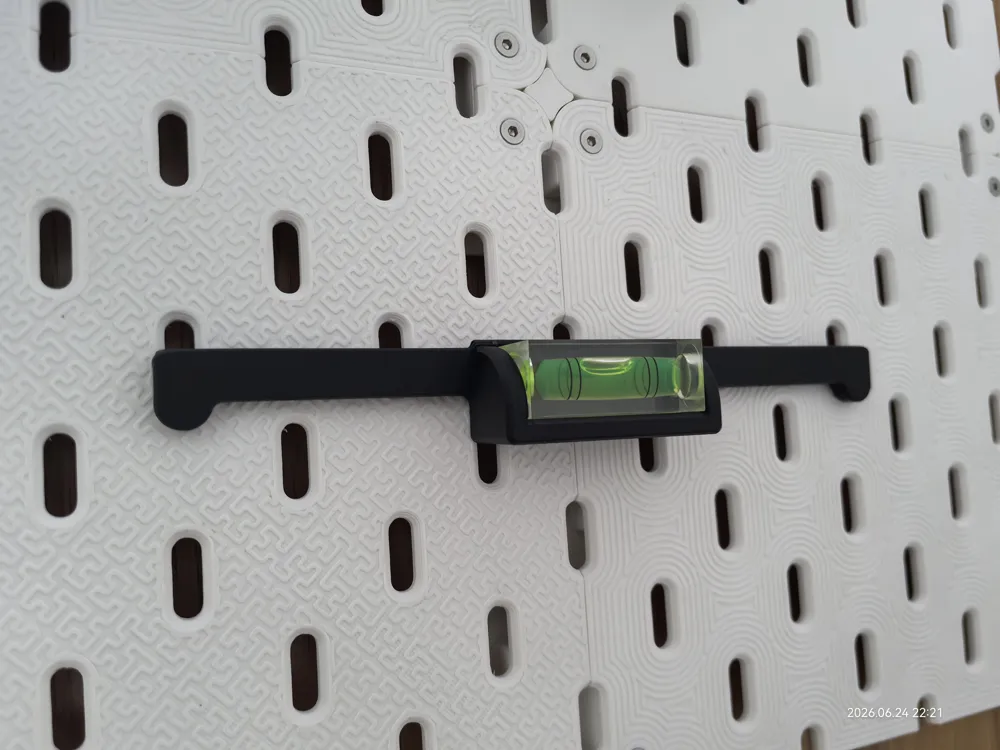

Suitable for pegboards installed with adhesive backing or as a whole, it can be inserted into the holes or hung on top of the pegboard
DIY spirit levels need to be calibrated before use
Shrinkage rate calibration is required before printing to match the pegboard and the level

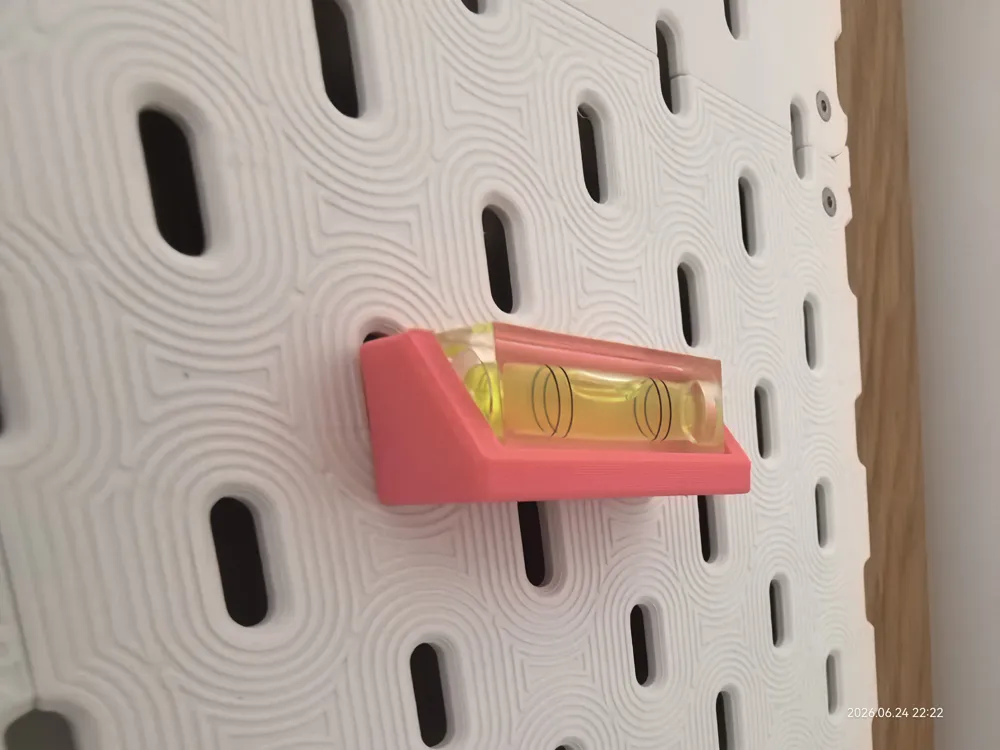

40-1 requires supports, it is recommended to use dissimilar material for supports, layer height can be set to 0.2 to save printing time
For models 40-2, 80, 120, 160, 200, due to overhangs, the layer height can be set to 0.1, and a wall line width of 0.6 allows for smooth printing without adding supports
If the material shrinkage rate cannot be adjusted, you can use a 40.2 x 15.2 x 15.2 cuboid as a negative part to leave assembly clearance for the level Or just print model 40 and it should work fine
Since there is not much stress, PLA can be used for printing, reducing printing difficulty

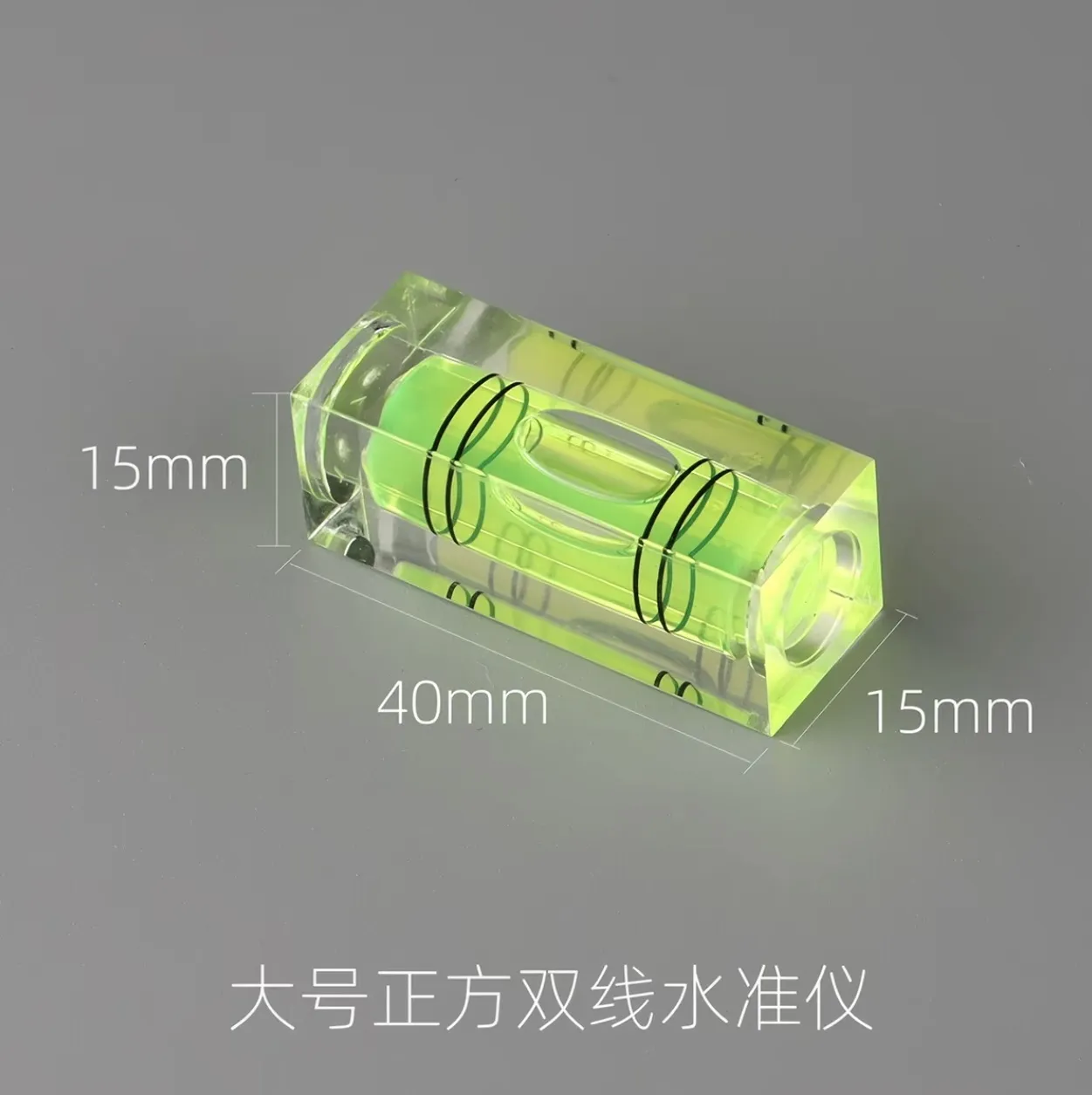

Below are the sizes of spirit levels supported by the spirit level holder
