Electronics Component Storage Tray

Electronics Component Organizer

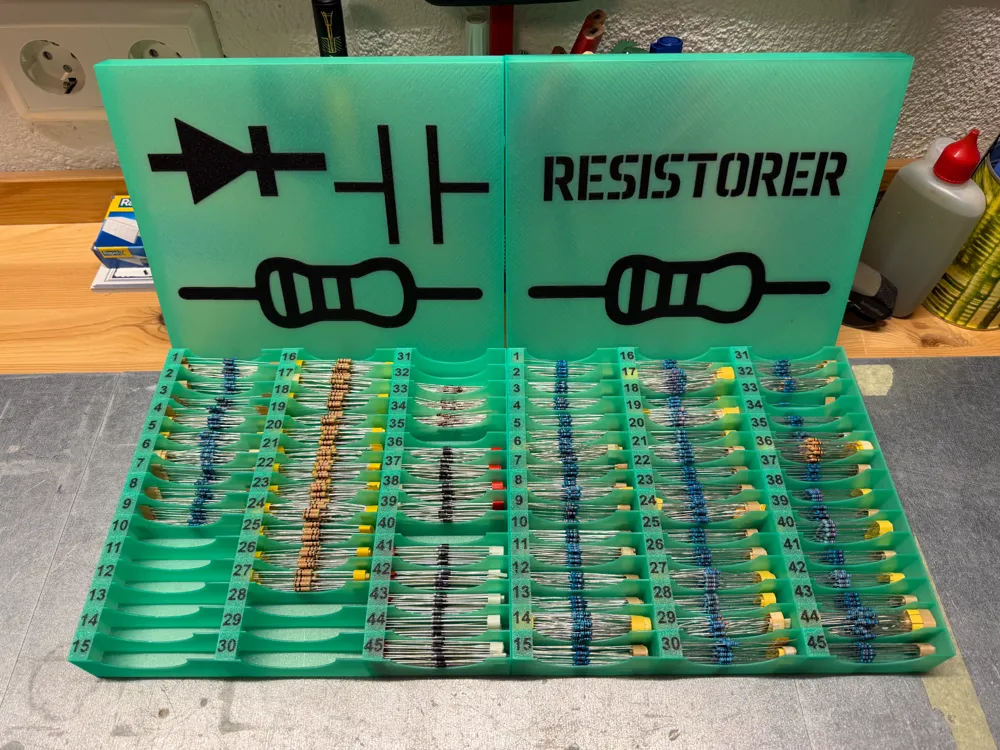

Keep your electronics components organized and easy to access with this storage tray. I designed it to store resistors, diodes, and other small axial components in a compact and practical way while keeping everything clearly visible.

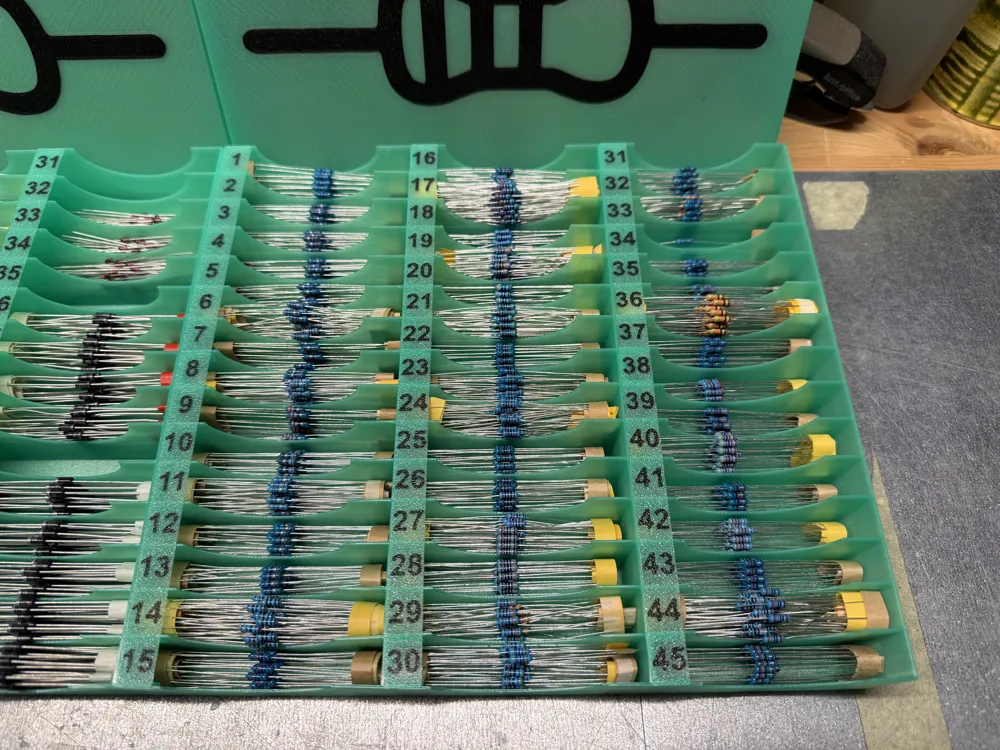

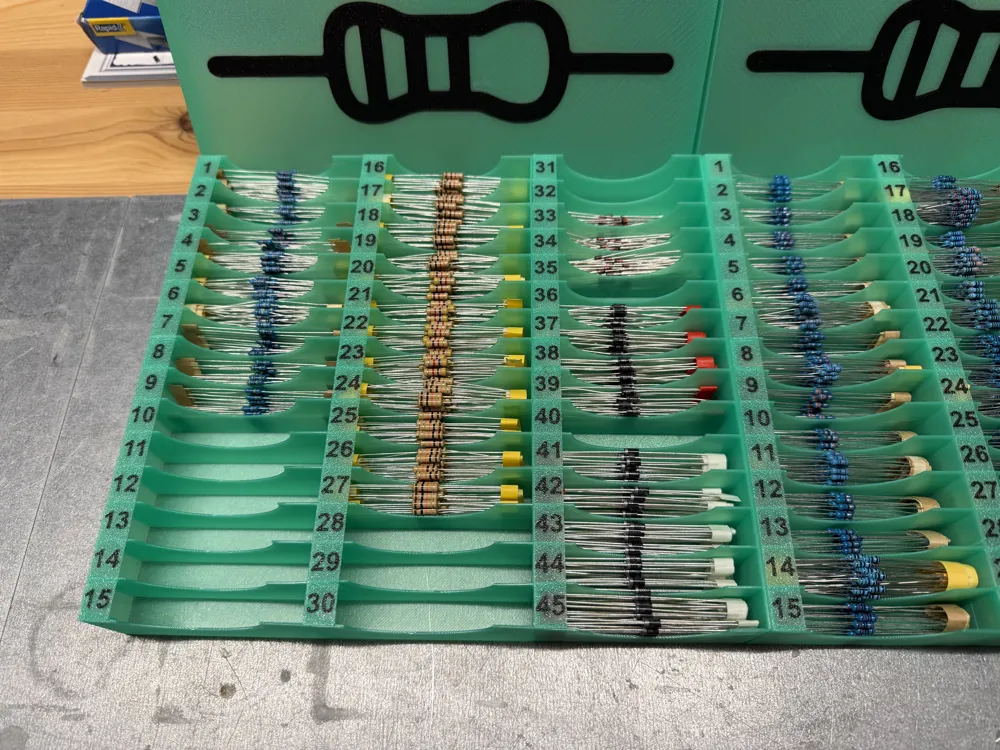

Each tray features 45 numbered compartments, making it easy to organize components by value or type. Multiple trays can be placed side by side to build a complete storage system for your electronics workshop.

Features

• 45 numbered storage compartments
• Ideal for resistors, diodes, and other axial components
• Clean and compact design
• Modular system – expand with multiple trays
• Easy to identify and access your components
• Perfect for electronics workbenches, repair stations, and hobby labs

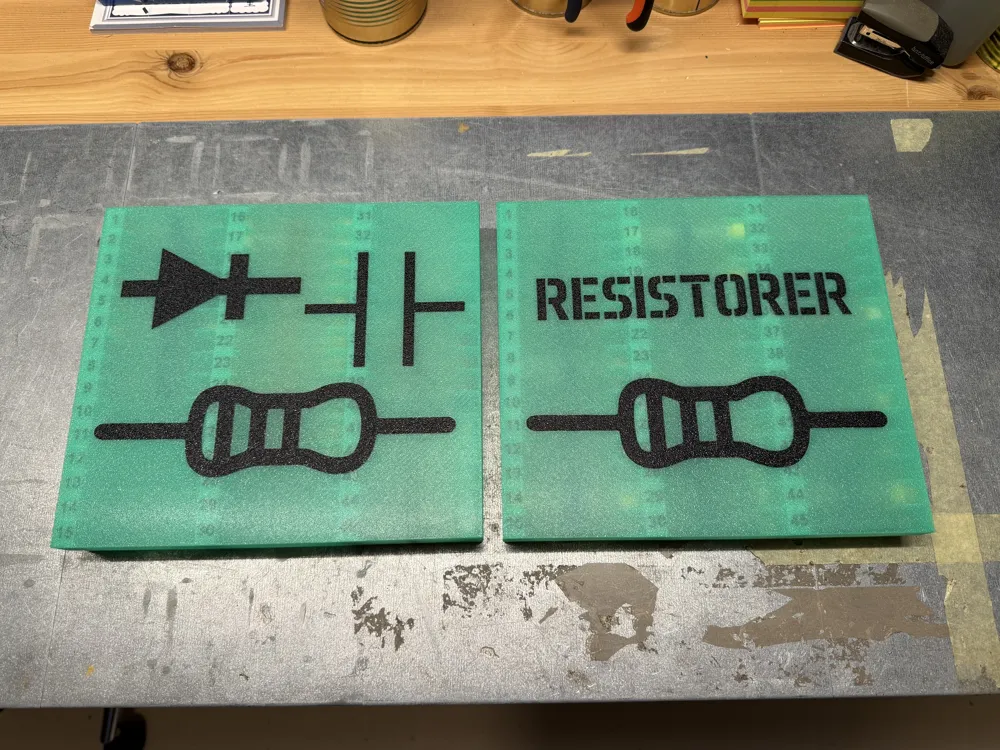

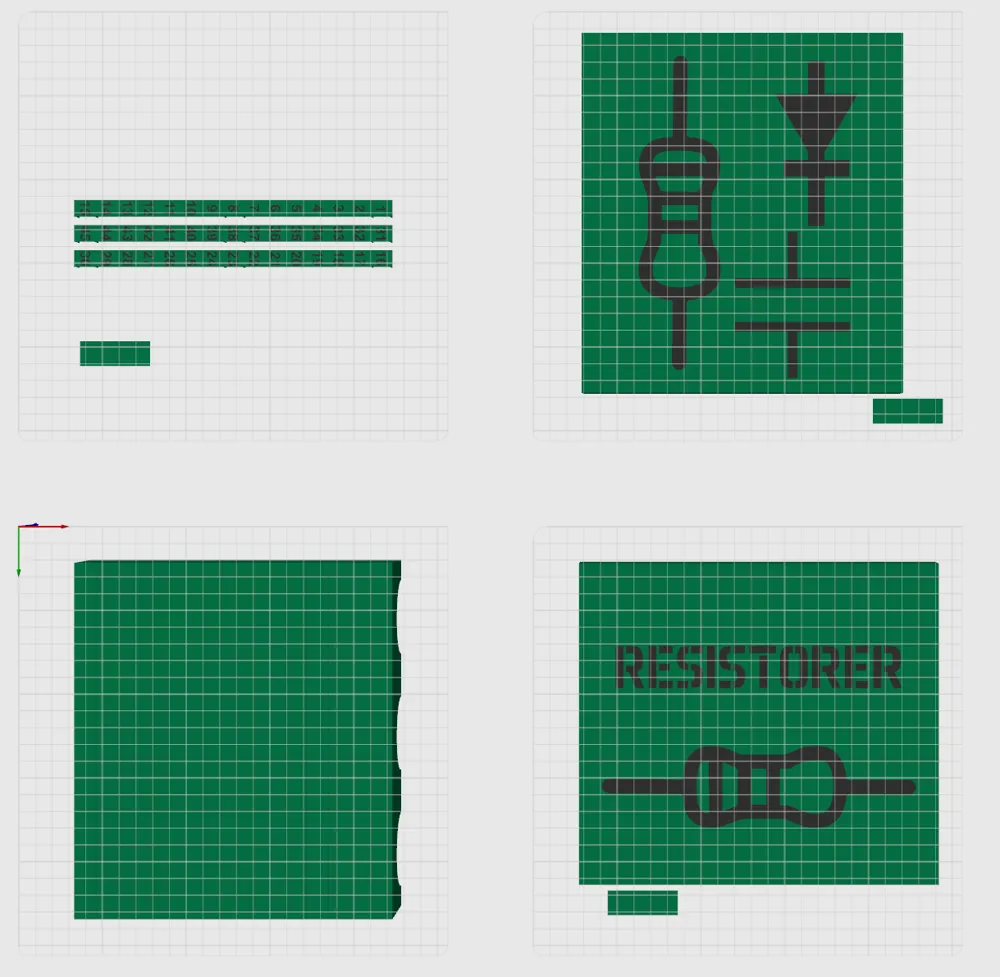

Included Front Panels

This upload includes two front panel designs:

• Resistors
• Symbols, Resistors, Diodes etc

Additional versions for other component types may be added in the future. (Please make a comment and I will make that happen)

Perfect For

• Resistors
• Diodes
• Zener diodes
• Schottky diodes
• Axial capacitors
• Fuses
• Other small electronic components

I designed this organizer because I wanted a better alternative to keeping components in plastic bags or small boxes. It has become a permanent part of my workbench, making it much faster to find the right component while keeping everything neat and organized.

If you find this model useful, I'd really appreciate a Like, Boost, or a photo of your printed version.

Feel free to leave a comment if you have ideas for additional front panels or other improvements!

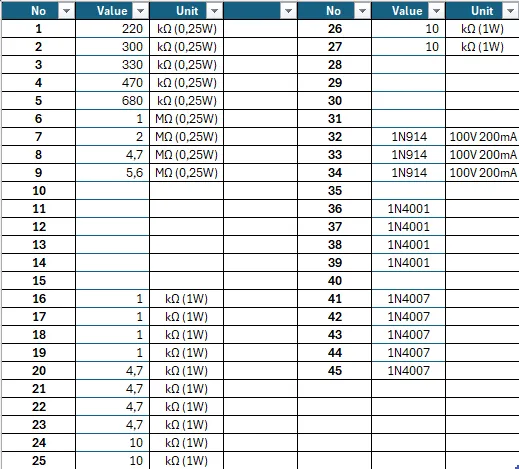

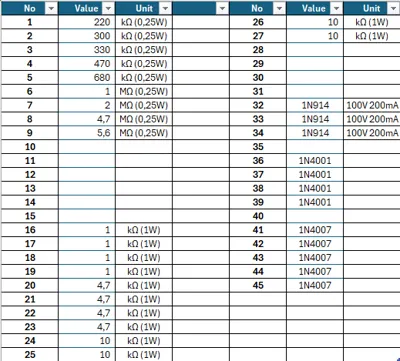

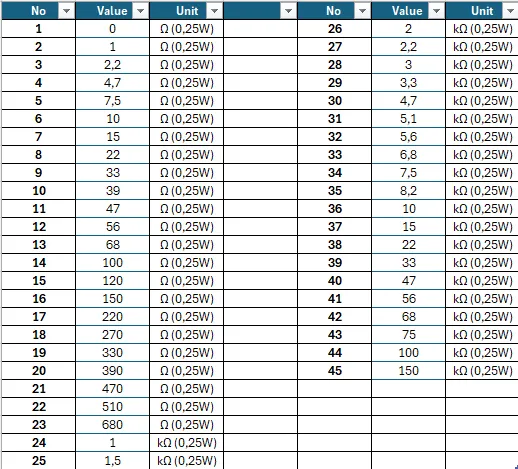

Attached below is a zip-file containing an excel to fill in the parts in each slot.
