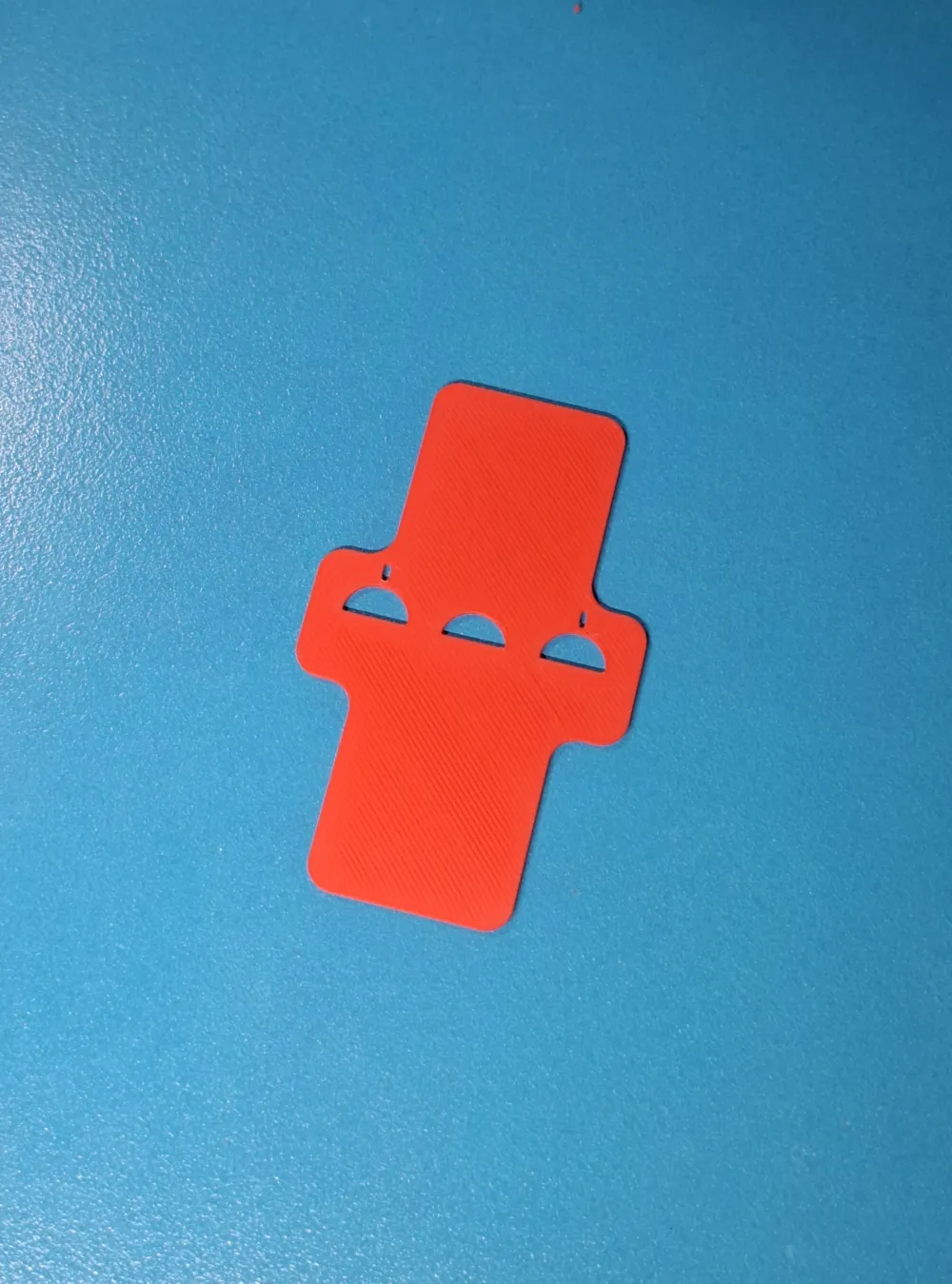

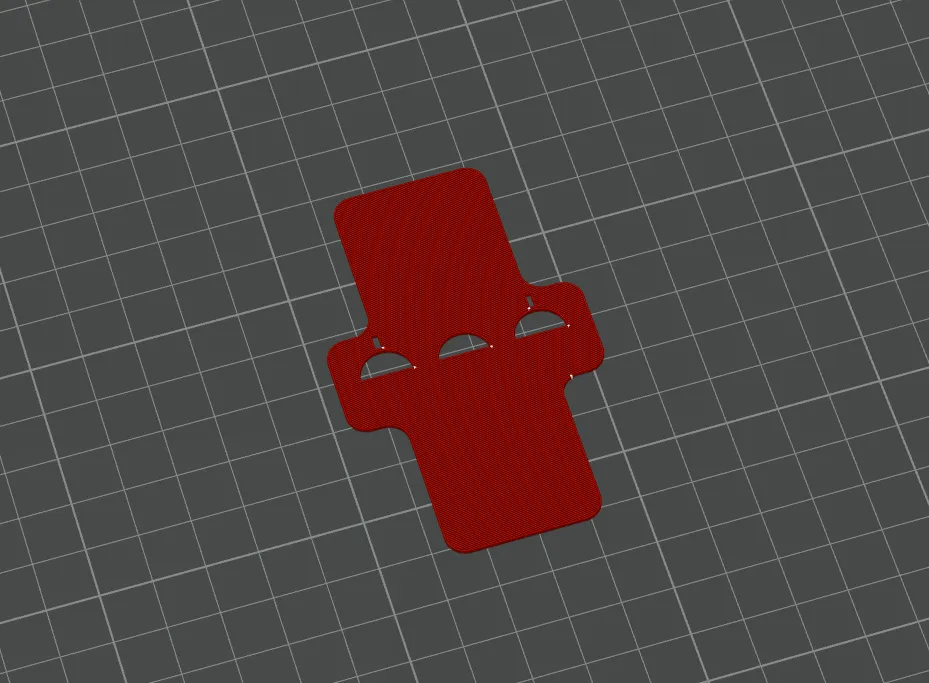

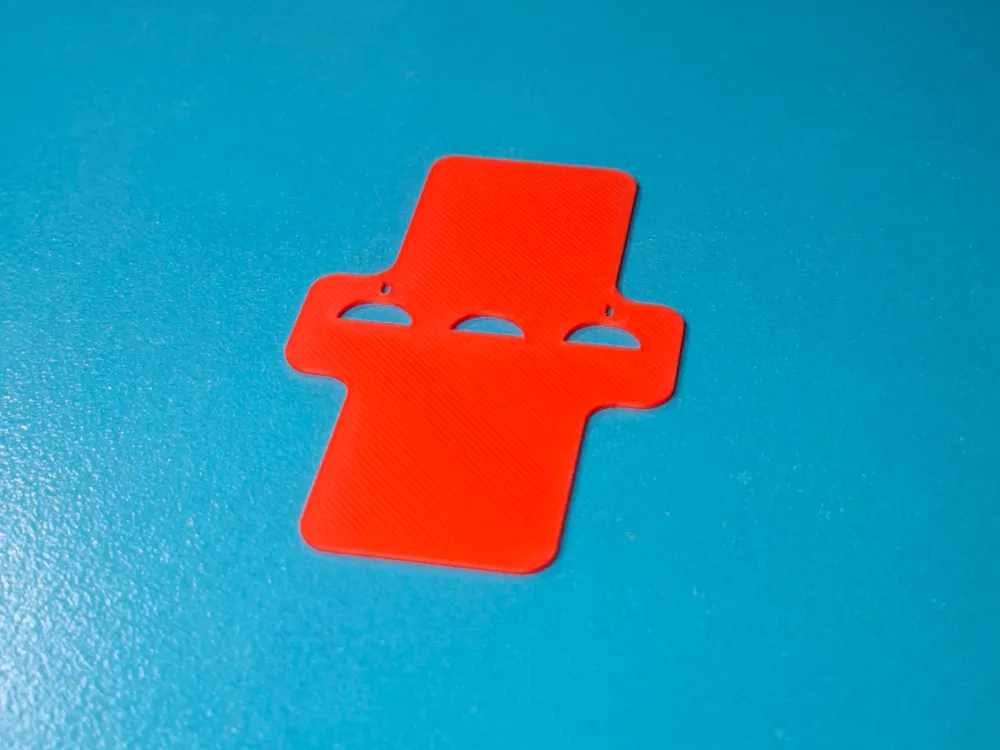

Template for Schuko Socket – IHK Electrical Engineering Exam
This template is used for a clean and standard-compliant representation of a grounded outlet (Schuko socket) in technical drawings and installation plans. It was specially developed to support preparation for IHK exams in the fields of electrical engineering, electrician training, and master craftsman school.
Features
- Precise representation of the Schuko socket symbol
- Suitable for installation plans and project drawings
- Compact and robust design
- Optimized for 3D printing
- Ideal for training, exam preparation, and teaching
Areas of Application
- IHK final examination
- Vocational school
- Master craftsman school
- Technical documentation
- Practice tasks and project planning
