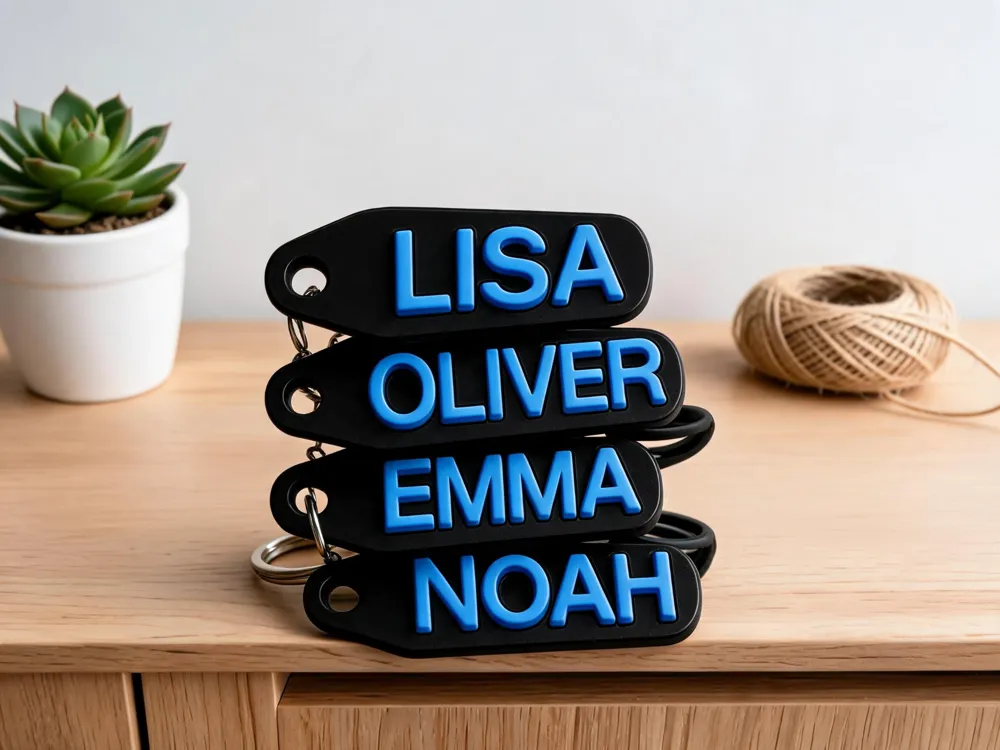

🏷️ Custom Two-Color Name Tag / Keychain
A clean and fun fully parametric two-color name tag. Customize the text, font, size and colors. The base layer expands the text into a smooth rounded outline with a built-in hanging ring, while the raised top text creates a bold dual-color 3D effect with multi-color printing.
Perfect for keychains, bag tags, luggage tags, pet tags, door signs, desk plates or little gift labels.
✨ Highlights
- Fully parametric – custom text, font and size in one click.
- Two-color 3D – base + raised text for a clean dual-color look.
- Rounded outline – smooth auto-expanded frame around the text; strong and good-looking.
- Built-in ring – integrated hanging hole for cords or keyrings.
- Support-free – prints flat, no supports needed.
- Multi-color ready – works with AMS or filament-change (M600) two-color printing.
🎛️ Parameters
| Parameter | Description | Range |
|---|---|---|
| Name Text | Text to display | Custom |
| Font | Text font | Custom |
| Text Size | Text height | 8–32 mm |
| Base Thickness | Base plate thickness | 2–10 mm |
| Top Thickness | Raised text thickness | 1–8 mm |
| Outline Size | Outline expansion | 1–5 mm |
| Ring Outer R | Ring outer radius | 3–10 mm |
| Ring Inner R | Hole radius | 2–7 mm |
| Top Color | Top text color | Custom |
| Base Color | Base color | Custom |
🖨️ Print Settings
- Material: PLA (PETG / PLA+ recommended for keychains)
- Layer height: 0.2 mm (0.12–0.16 mm for fine text)
- Infill: 15–20%
- Supports: Not required
- Orientation: Flat, base on the plate
- Color change: Set a filament change at base_thickness height (or assign colors via AMS).
- Tip: Increase Text Size if your text is long or detail is lost.
💡 Tips
- Want a single color? Set both layers to the same color.
- Increase Outline Size for fuller, stronger short names.
- Reduce the ring inner radius for a tighter keyring fit.
