Flexi Arm parametric

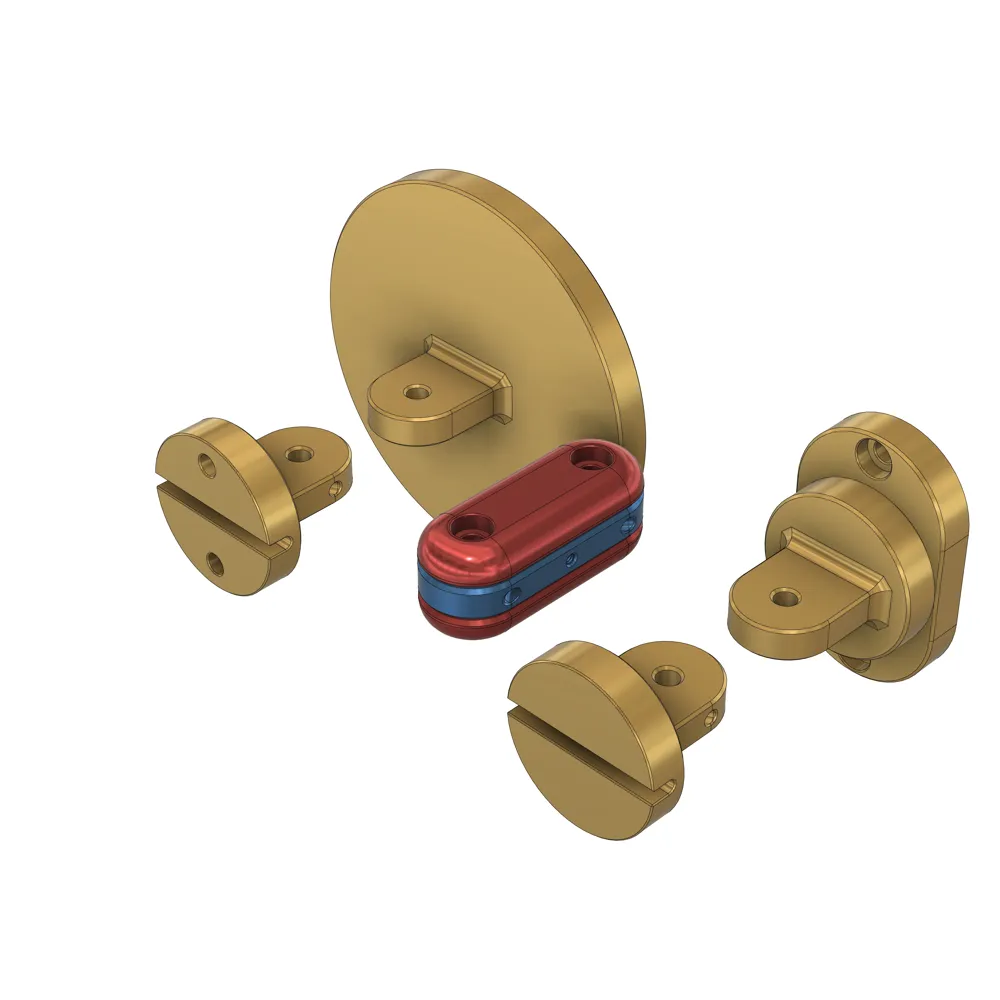

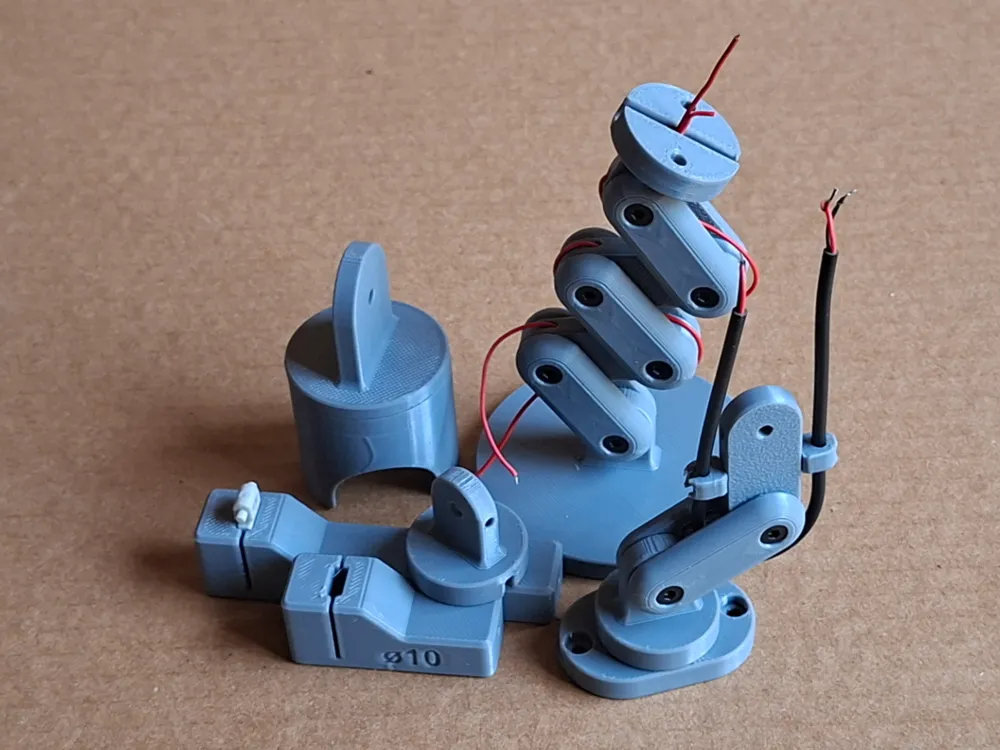

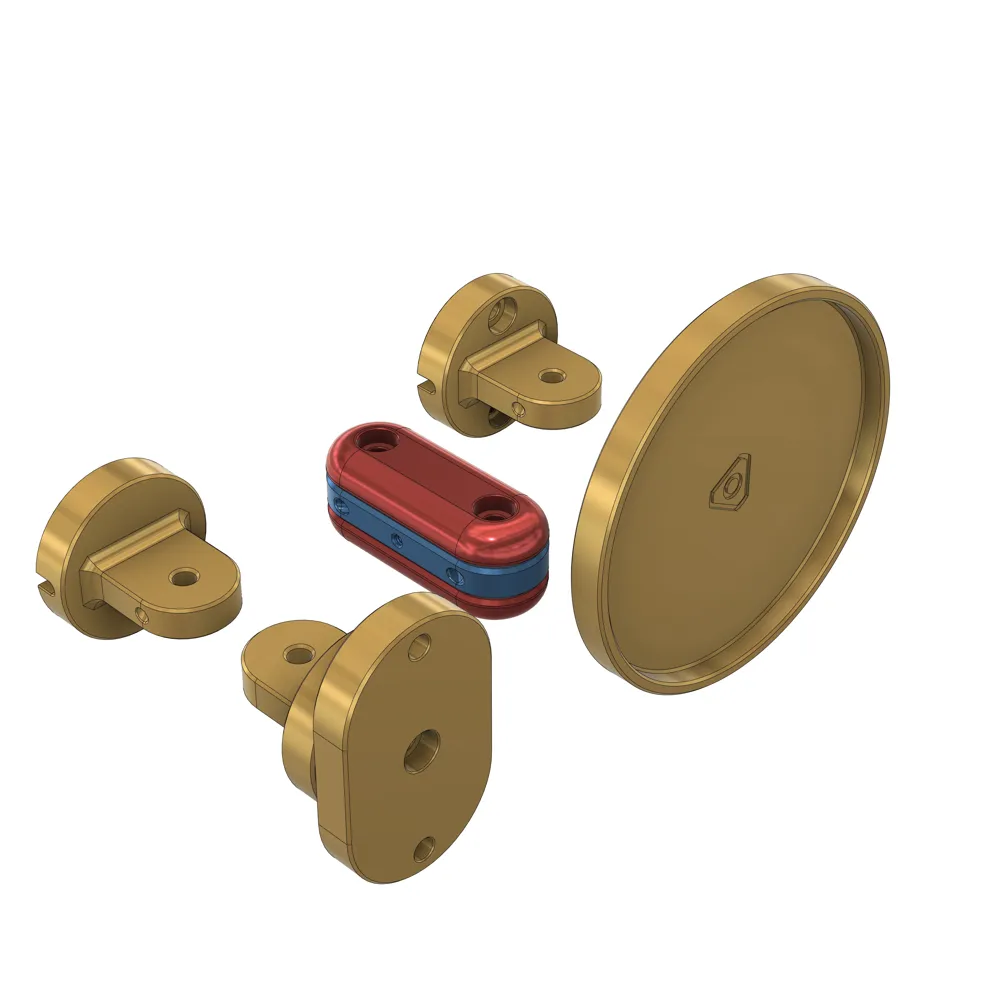

A flexible arm, fully parametric, with 4 different end pieces (bases).
One of the end pieces rotates 360°.

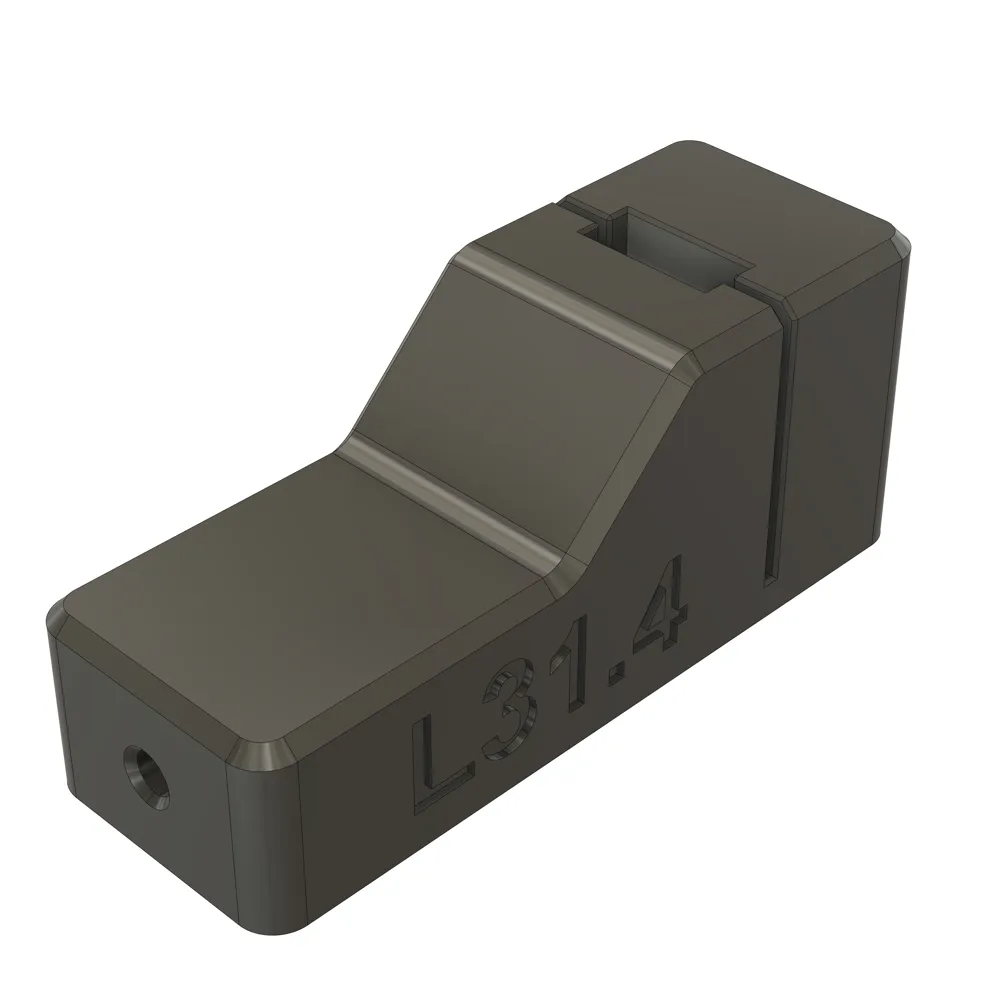

Included are 2 filament cutters to cut TPU at the exact length to be used as O-rings for friction.
Also included is a MagSafe fixture & AMS Lite fixture.

The width and minimal length of the sections depends on the O-rings diameter & thickness.
Width = OringAverageDia + OringThickness + 3 mm (14.75mm)

The total length can be extended by printing extra mid- and side sections.
The total height of 3 sections has to be 3mm more than the length of the used screws.

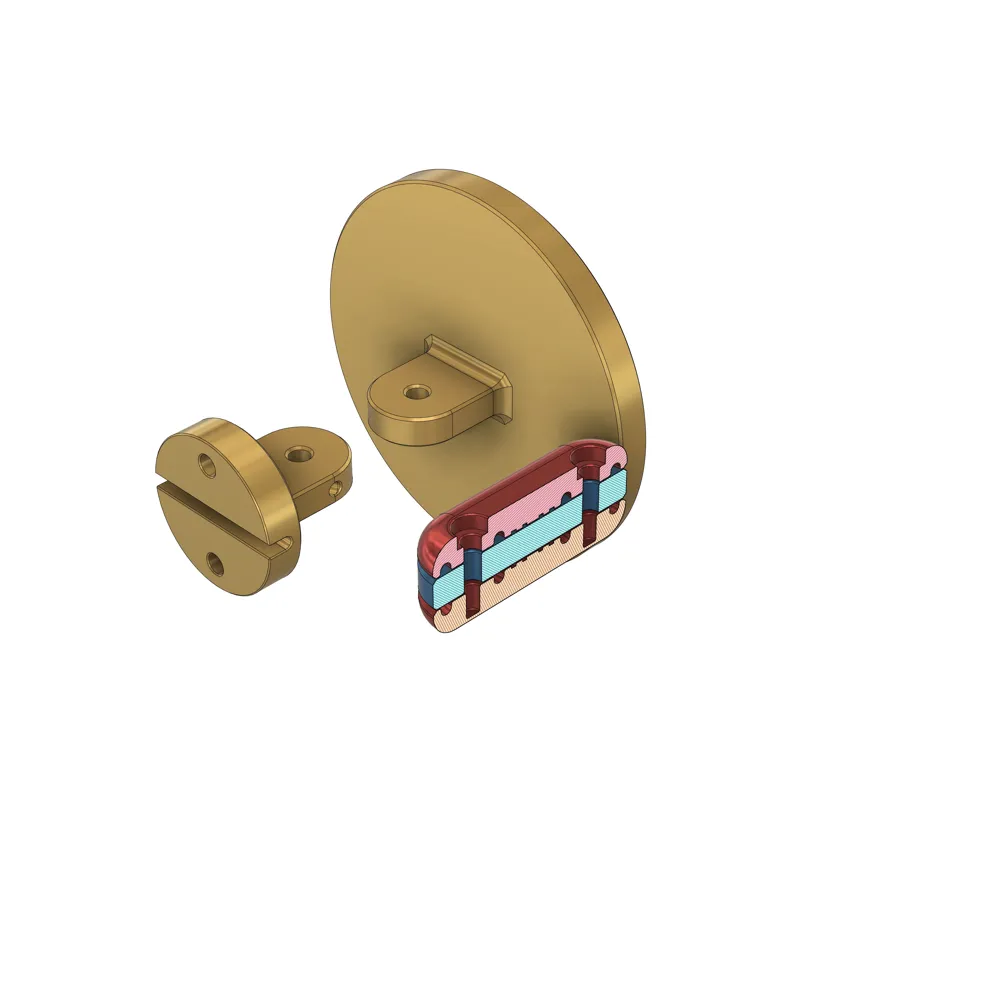

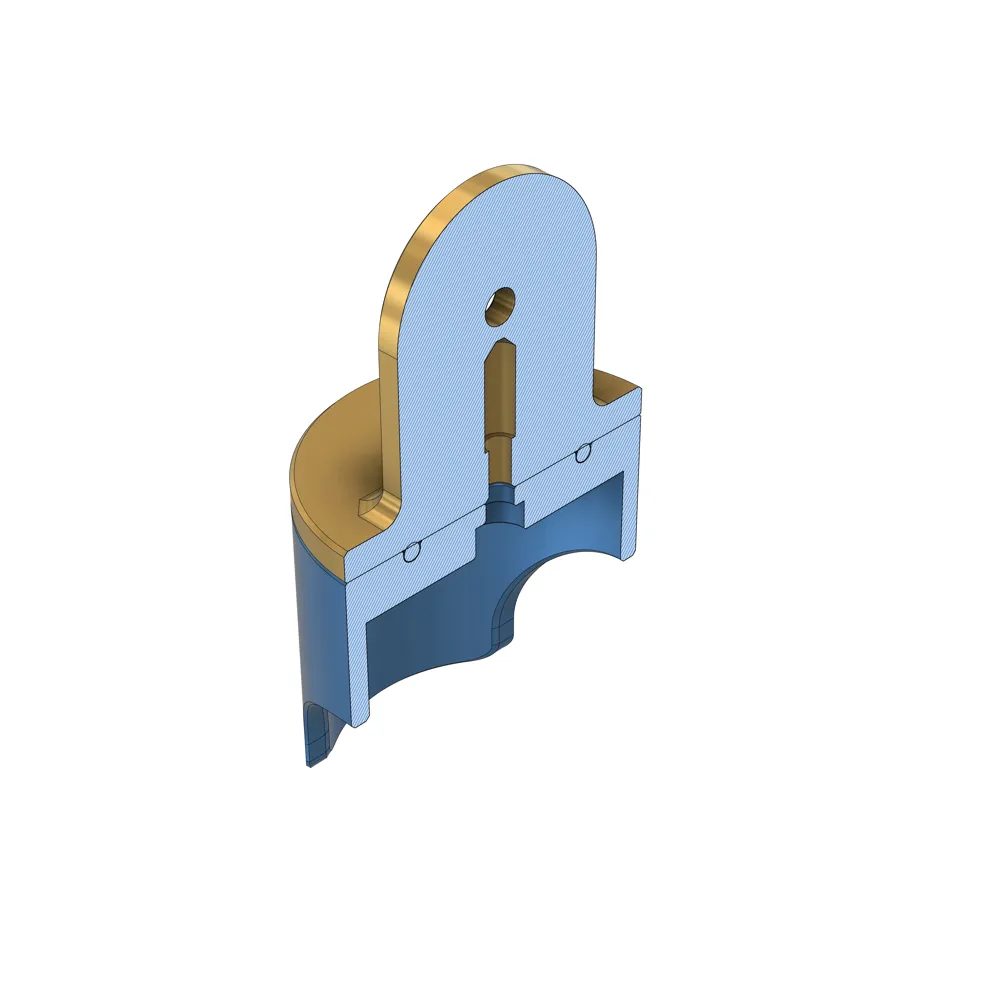

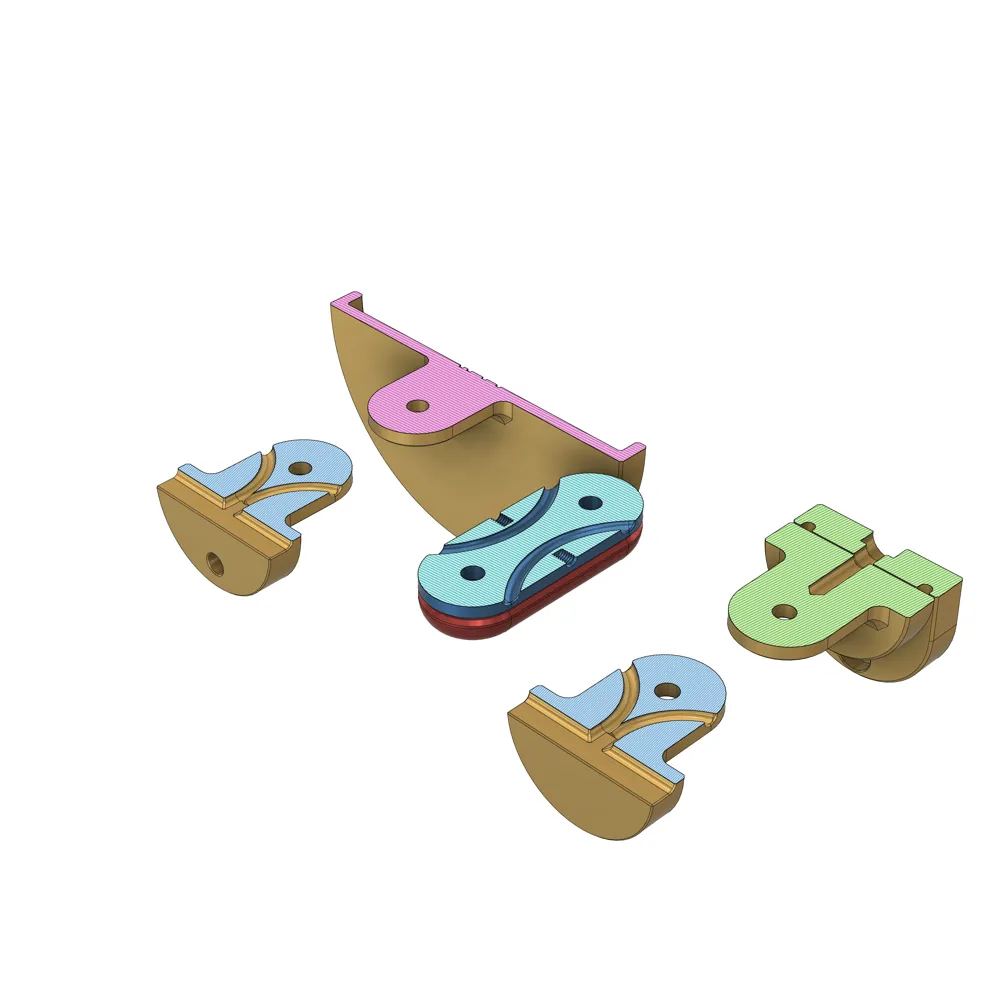

The mid section and 2 end pieces have internal Chanels for thin electrical wire.

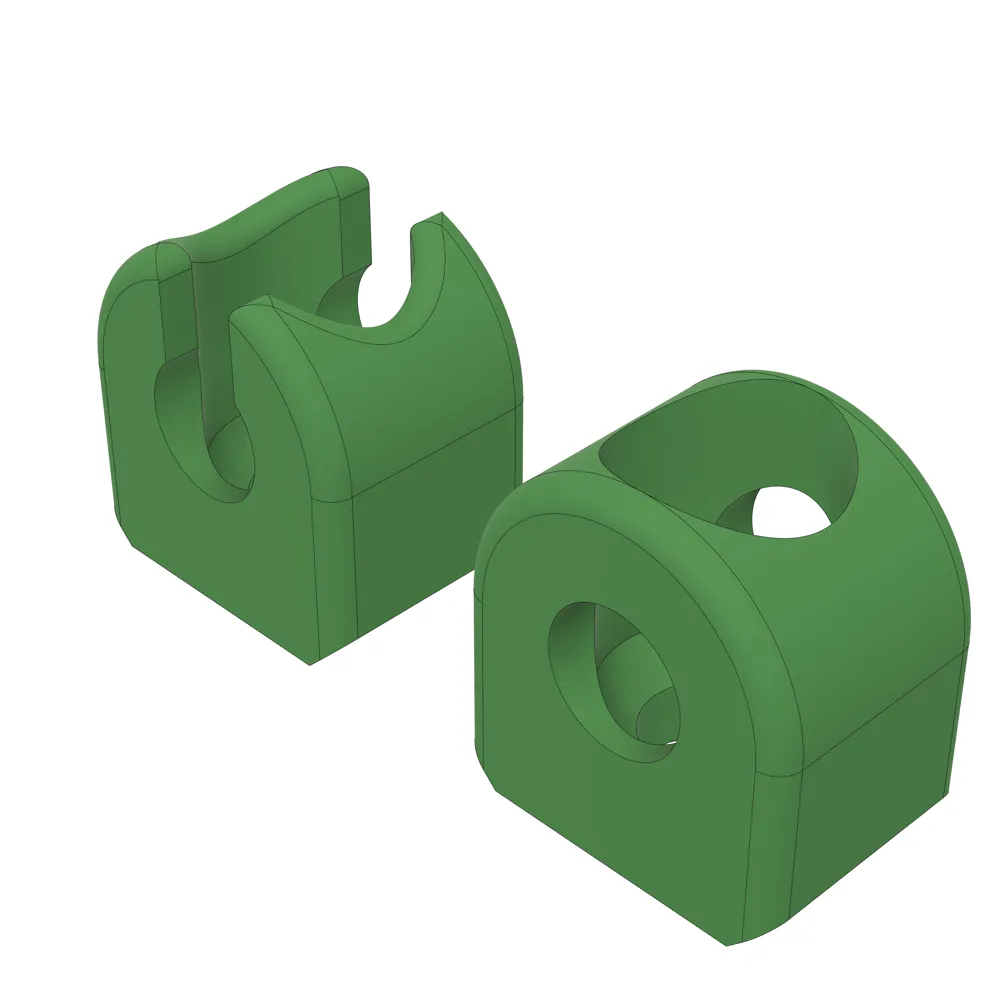

Alternatively cable clips can be screwed with M2x4 screws to both sides of a mid section for thicker cables.

The screws used in the provided print profile are BT3x12
Standard O-rings can be used.
Links Below.

Parameters Flexi Arm:
Name                        Value       Comments
SectionLength         23 mm    Min. OringAverageDia + OringThickness + 11 mm
OringAverageDia    10 mm
OringThickness       1.75 mm
HeightSides             5 mm
HeightMid                5 mm
WireDia                    2 mm
BTSrewLength        12 mm
MagSafeOD             58.5 mm
MagSafeInset          3.6 mm

Parameter Cable Clips:
Name         Value    Comments
CableDia    2.6 mm

Parameter Filament Cutter:
Name                        Value    Comments
OringAverageDia    10 mm

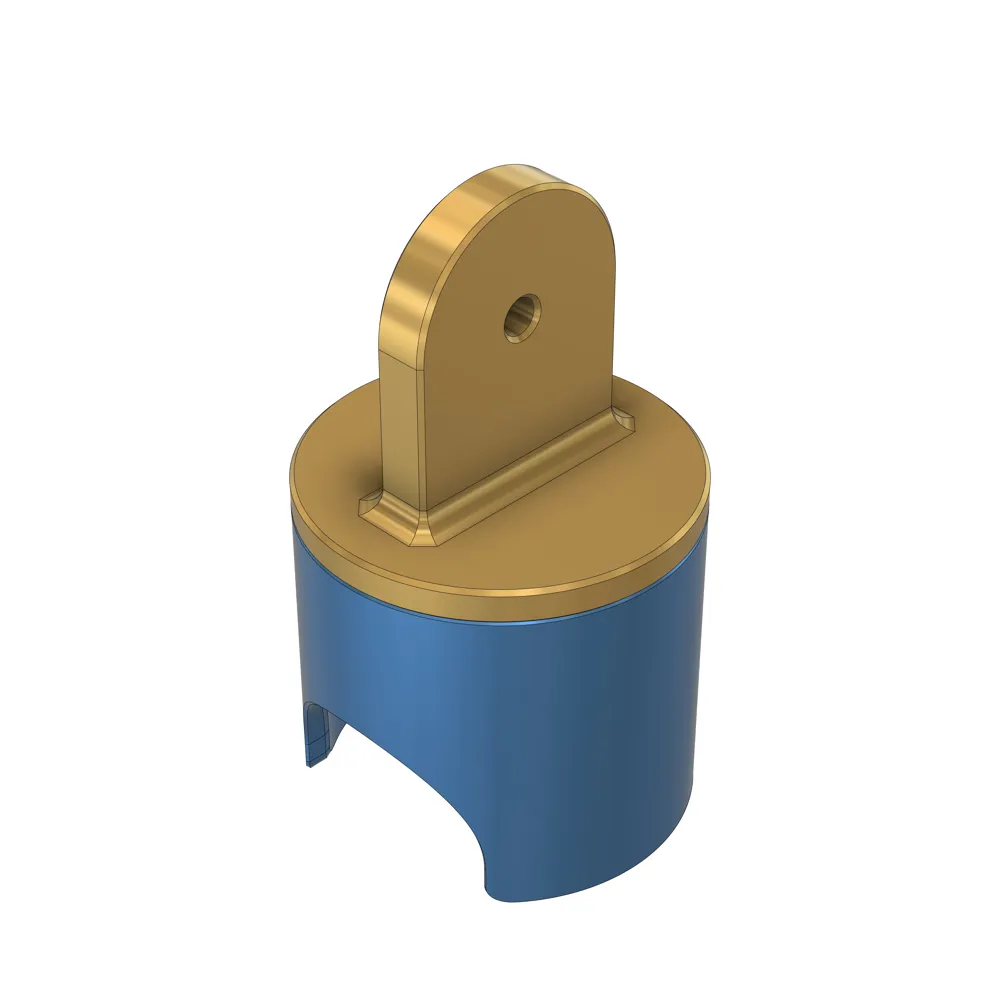

Parameters AMS Lite Bracket:
Name                        Value    Comments
OringAverageDia    20 mm
HeightMid                5 mm
OringThickness       1.75 mm

O Ring NBR Oring CS 1/1.5/2.0/2.4/3.1/4mm Nitrile Rubber Round Sealing Gasket Corrosion Oil Resistant Car Plumbing Faucet O-ring
https://aliexpress.com/item/1005008292519935.html
Size: OD12mm CS2mm
Color: O-ring 50Pcs    €2,52 + €1,99 = €4,51
Color: O-ring 100Pcs    €3,12 + €1,99 = €5,11

Screws:
BT3x12 SHCS Self Tapping Screw (20PCS) - AA109
