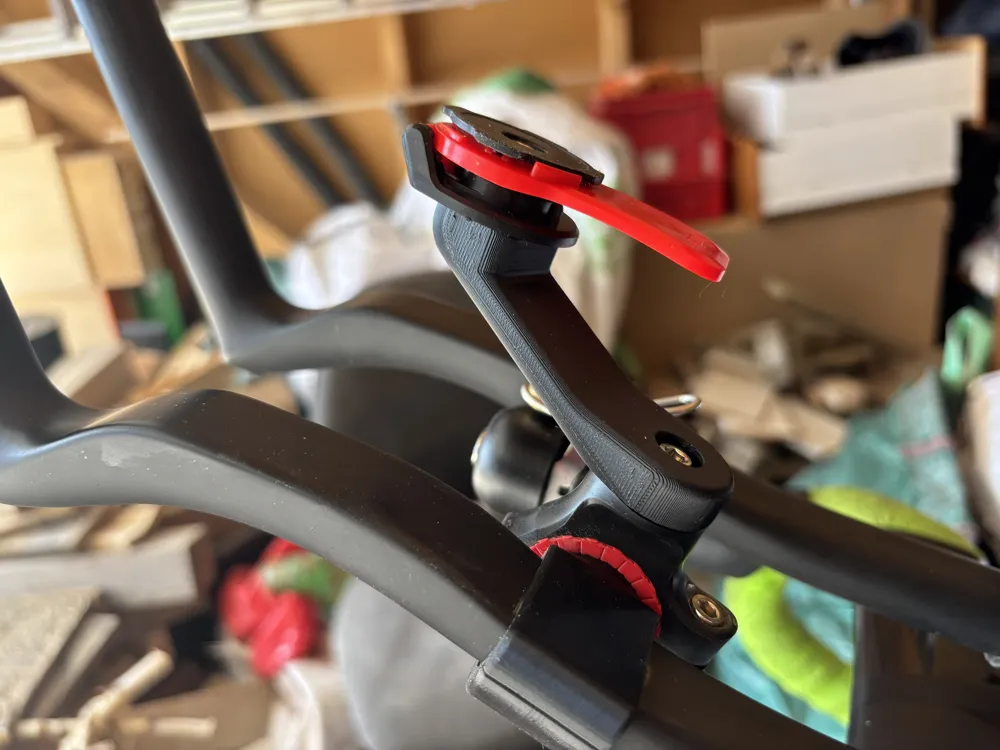

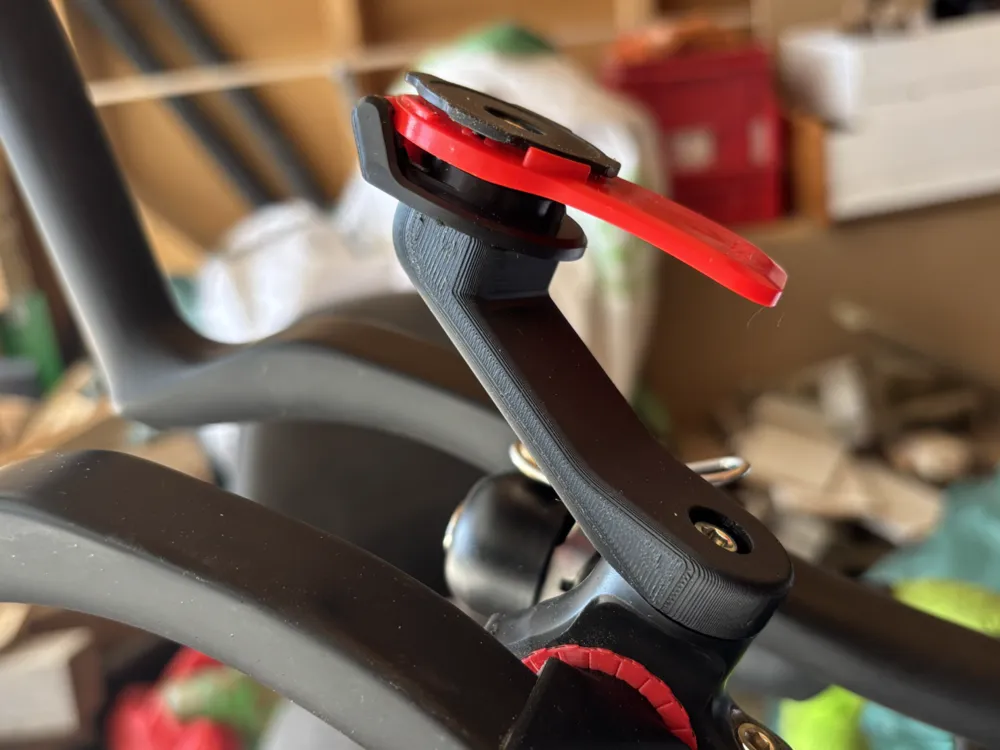

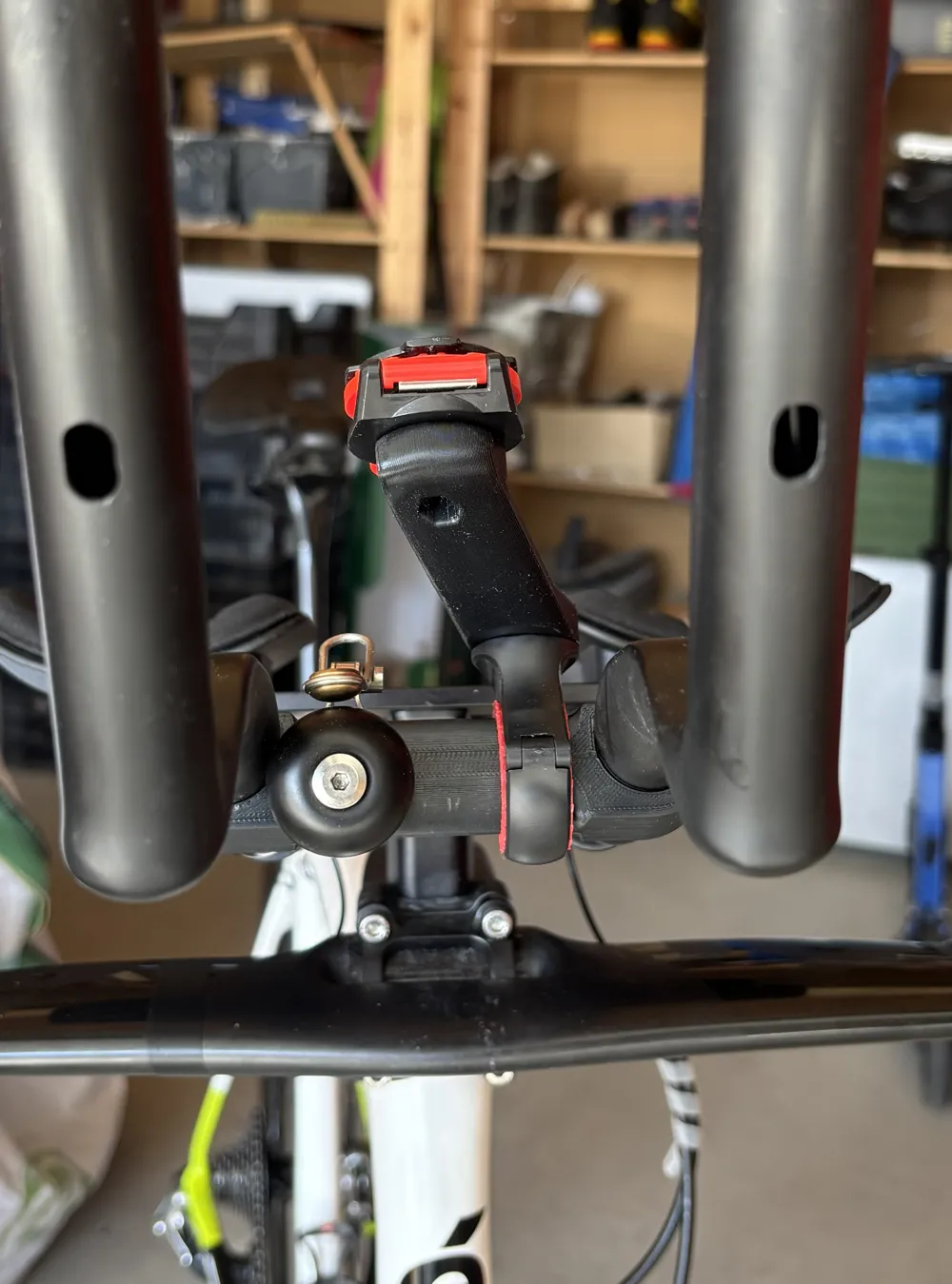

QuadLock extension arm/ riser

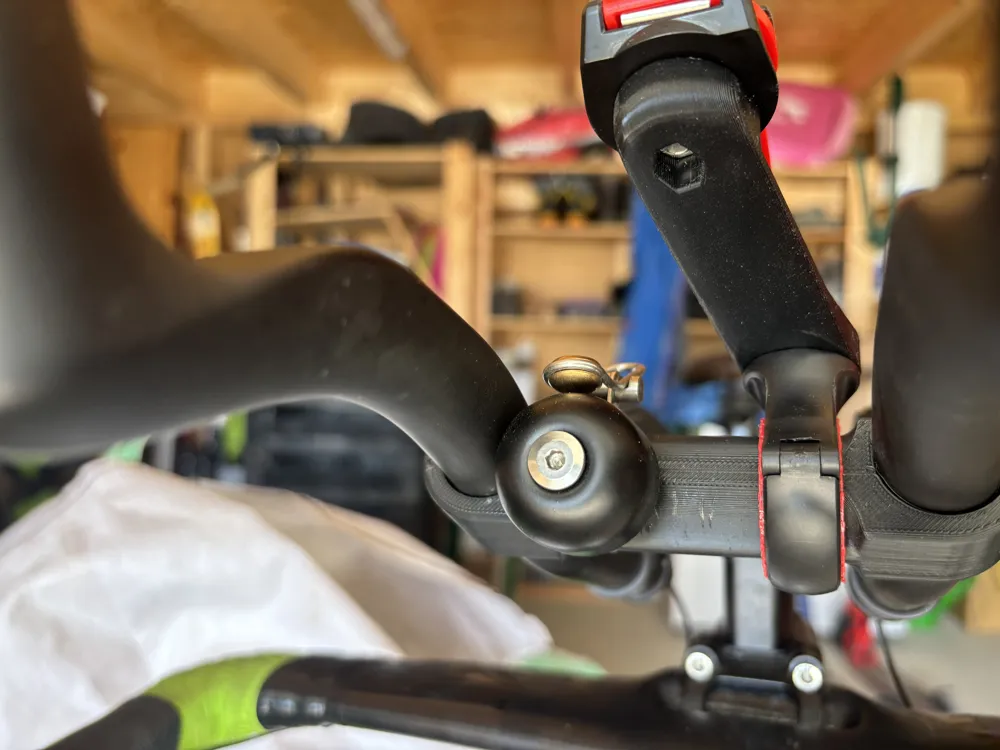

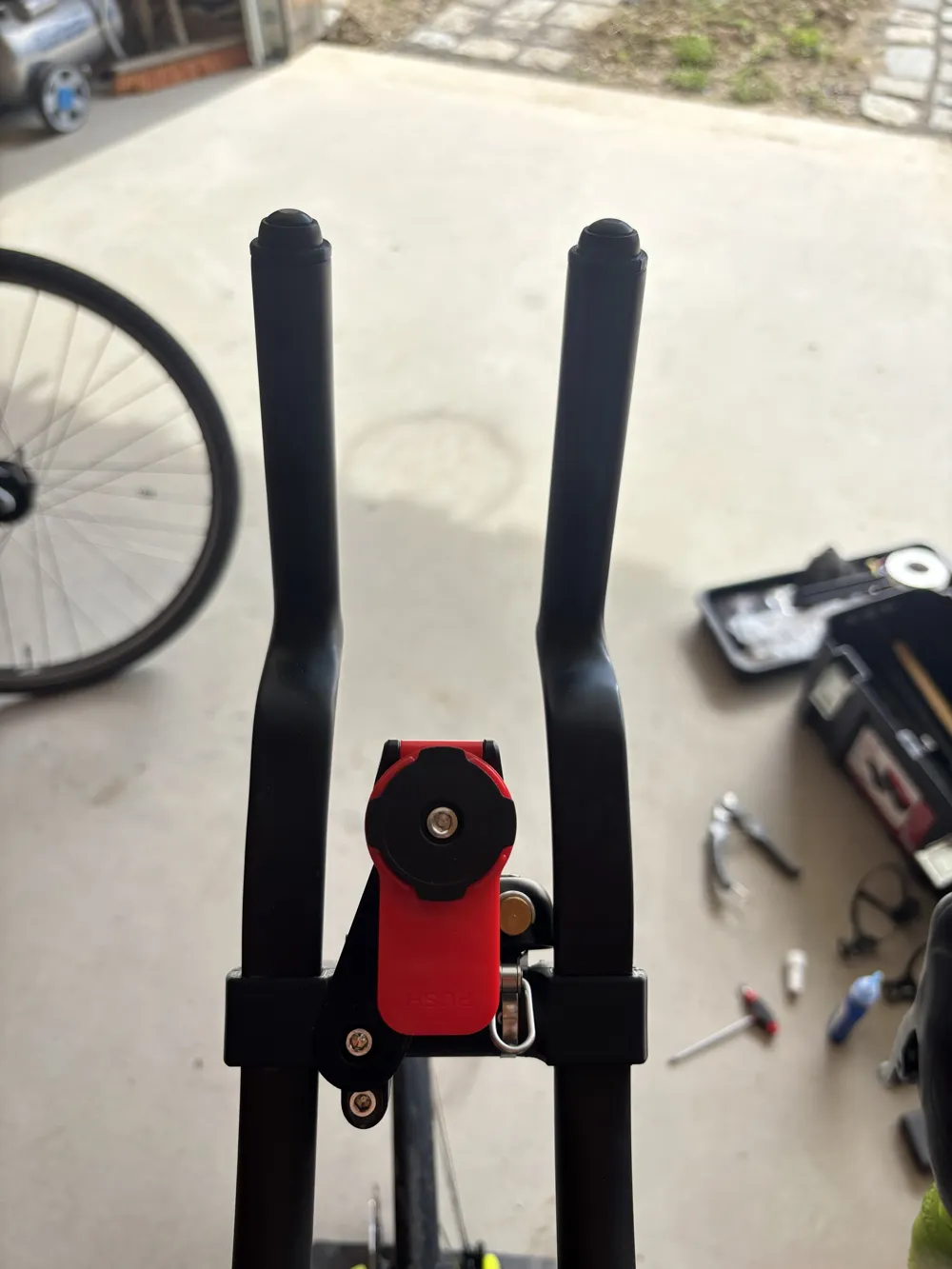

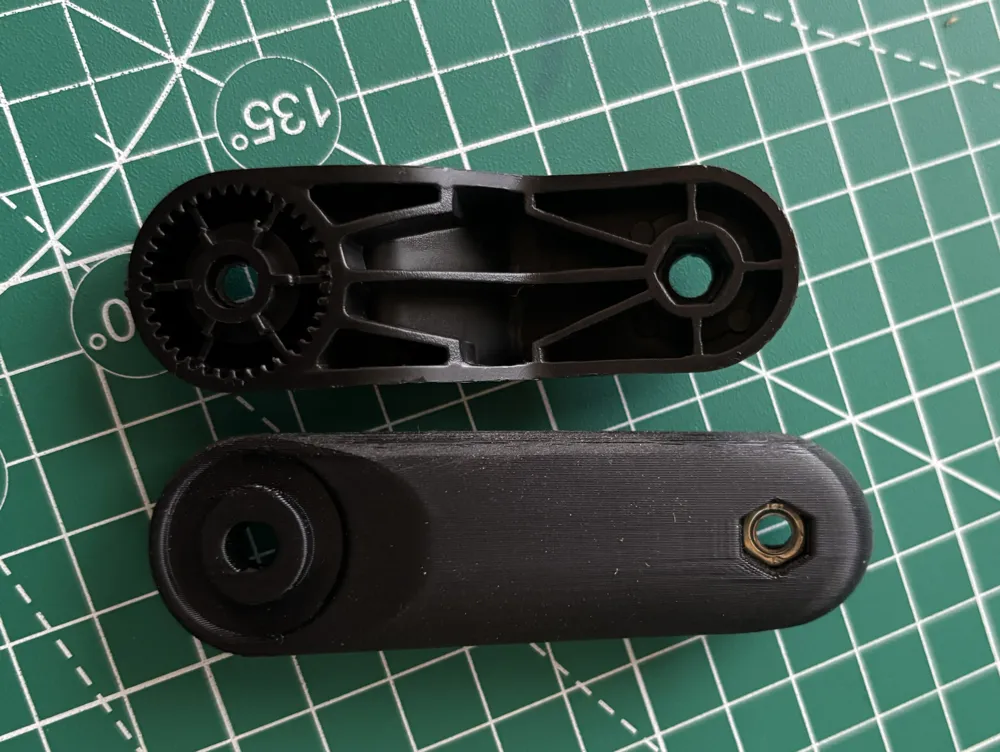

The included extension arm did not have the right dimensions for me. Also, the "coarse" detents bothered me. The phone could not be perfectly centered between the arms when they were on the aerobars.

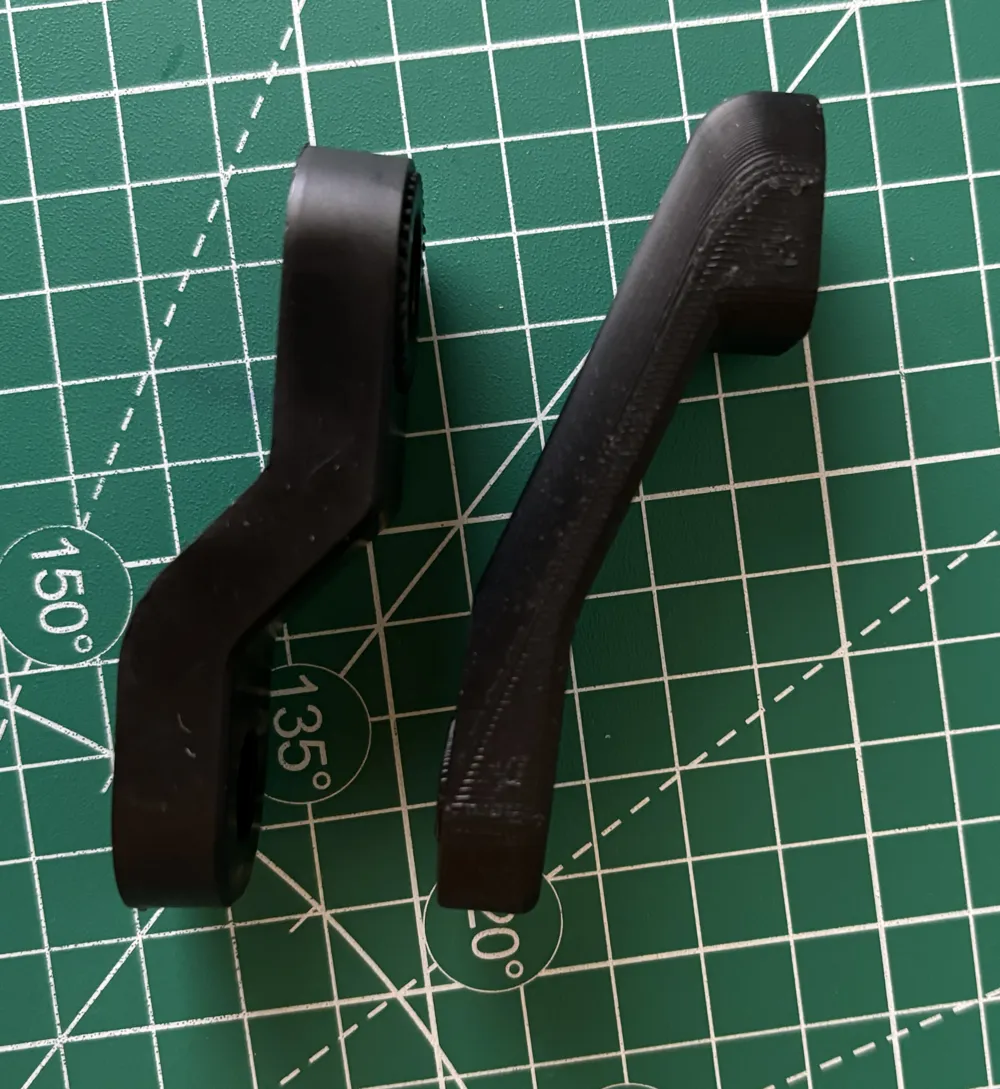

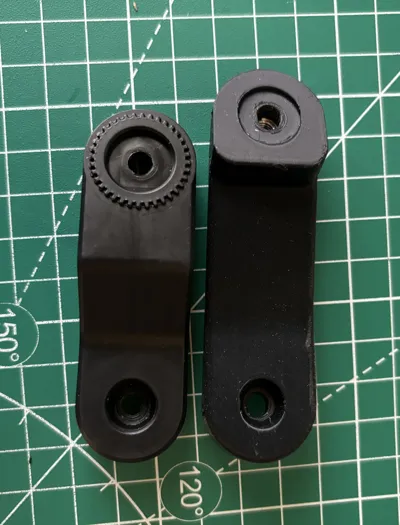

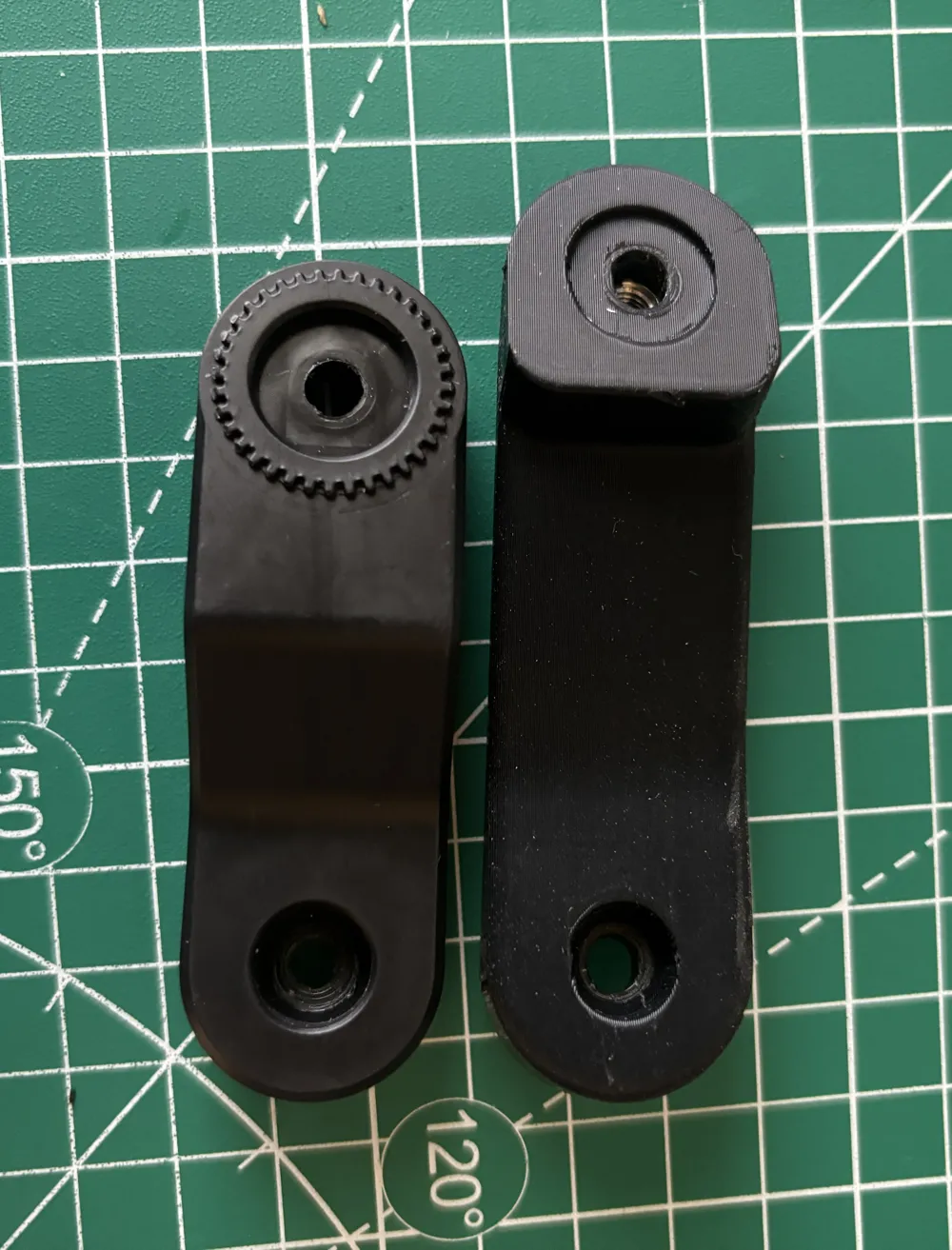

The elevation is 30mm, the extension is 65mm from center of hole to center of hole of the mounting screws.

For mounting, the existing screws and the nut of the original bracket can be used.

Despite the lack of detents, the clamping forces are high enough when screwed down so that the bracket does not twist.

The entire shape is kept round to ensure better aerodynamics → marginal gains

If other dimensions are desired, please let me know. I will try to create and upload them promptly.

Print notes:

The model is oriented on its side to ensure maximum stability.

Profile: 0.20mm Strength

Supports active

Brim helps for better adhesion

Printed in ASA.
