Train Track Bundle

A bundle of straight toy train track pieces for extending, repairing, or adjusting a wooden-style children’s railway layout.

I made this set because I often needed straight track pieces with the same connector on both ends, and I could not easily find models like that. Sometimes a layout almost fits, but the last pieces cannot be connected because the connector direction is wrong.

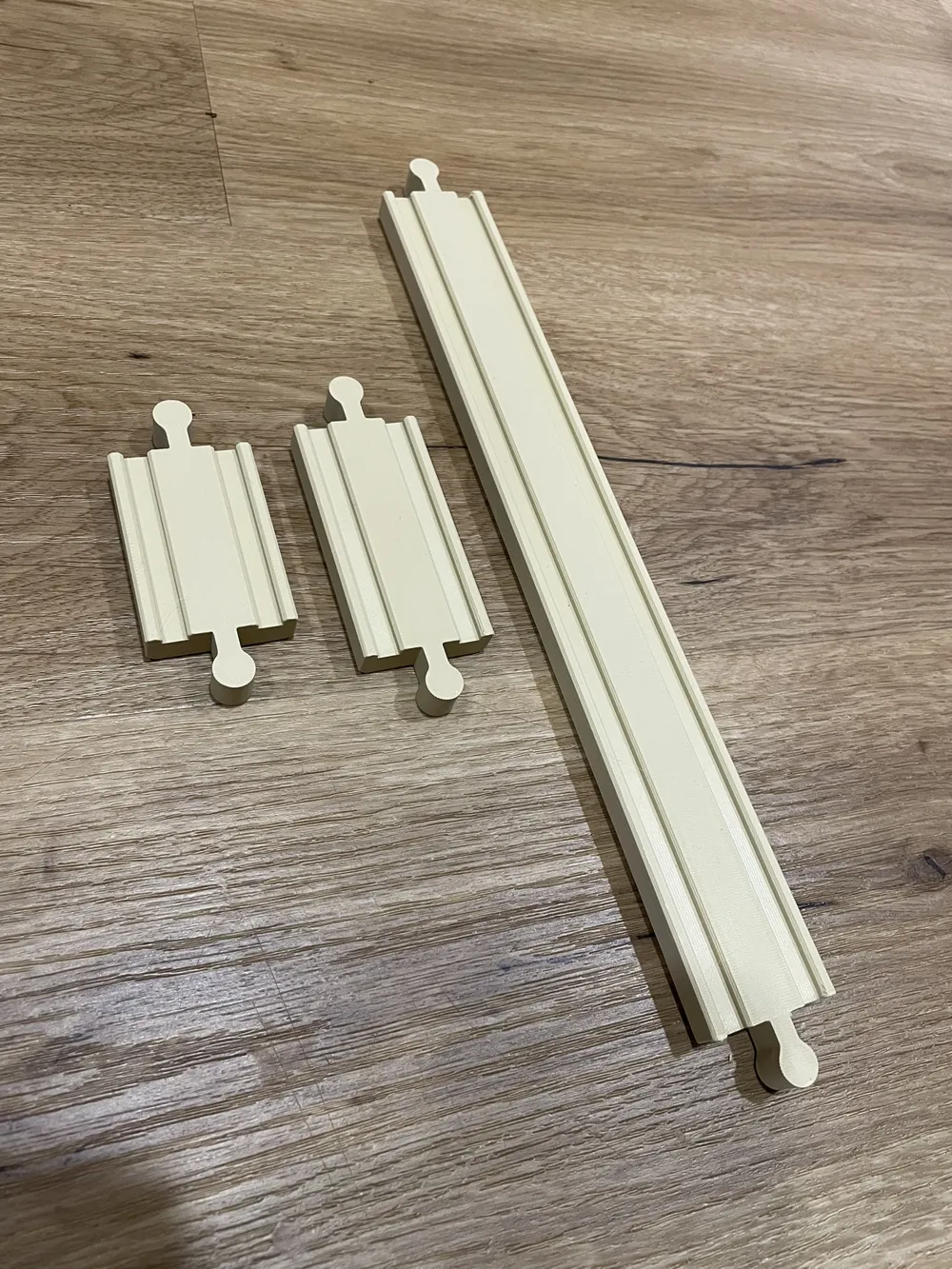

The set includes straight tracks in these ready-made lengths:

• 50 mm
• 75 mm
• 100 mm
• 150 mm
• 200 mm

Connector types
In the file names:

• M means male connector, the rounded peg end
• F means female connector, the socket/recess end

The main connector combinations are included:

• M-M straight tracks: male connector on both ends
• M-F straight tracks: male connector on one end and female connector on the other end
• F-F straight tracks: female connector on both ends

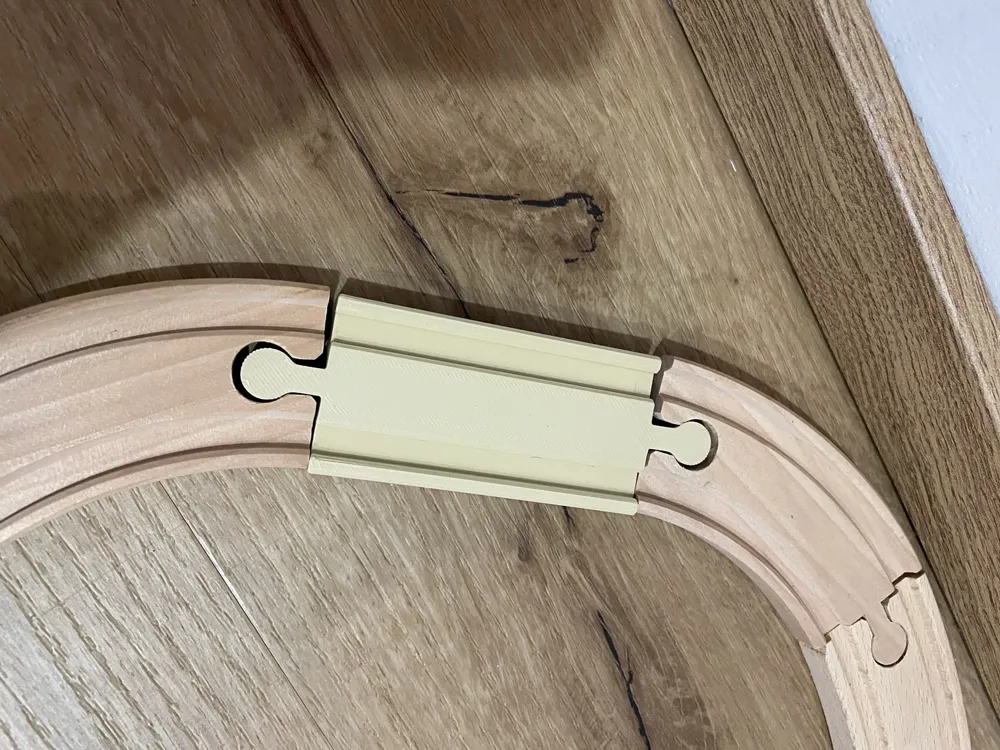

This is useful when a layout needs a specific straight section length or when a connector direction does not match the track pieces you already have.

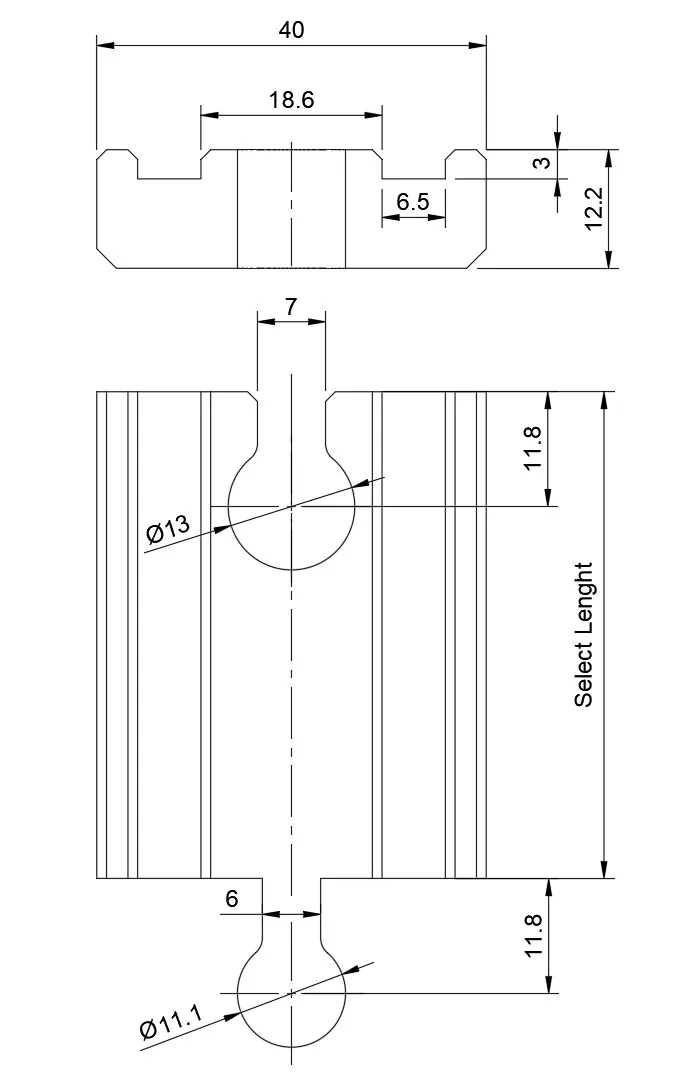

The tracks are intended for wooden children’s railway-style systems. You can check the dimensions before printing and compare them with your existing track system.

Files included:
50 mm, 75 mm, 100 mm, 150 mm, and 200 mm straight track lengths
M-M straight tracks
M-F straight tracks
F-F straight tracks
Fusion files for making custom lengths
