Machamp Infographic Hueforge
Print Profile(2)
Bill of Materials
Description
Boost Me (for free)
With the changes to points, boosts are one of the best ways to support creators! Any support is welcome!
Want to sell my prints? Commercial License now available here: https://patreon.com/3ReePrinting
Membership
Commercial License also available here!
You can check out the rest of my Pokémon series here: https://makerworld.com/@3ReePrinting/collections/2982999
Requested by someone on Reddit!
Basic Yellow = Glow Yellow & Basic Blue Gray = Glow Blue for the glow effect

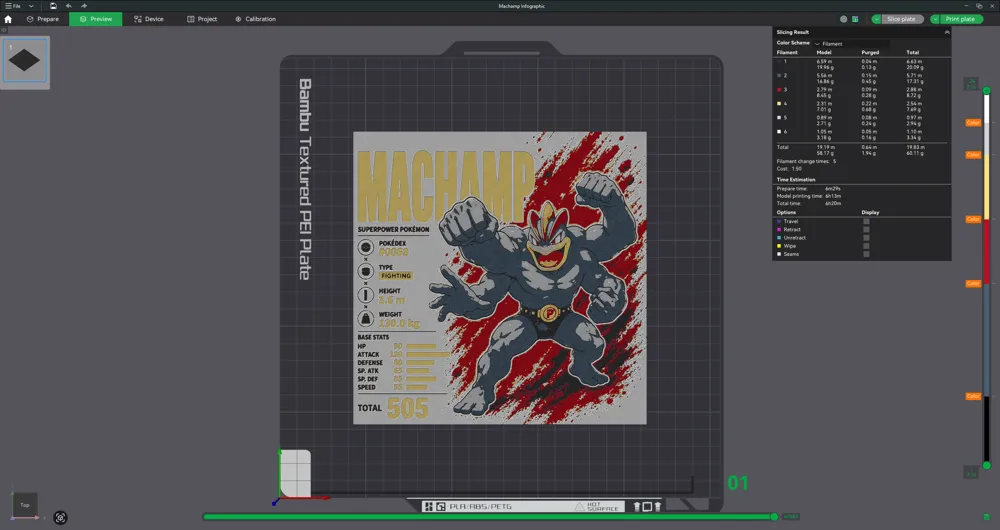

This print is the maximum build plate size for an A1 Mini, but it should work on any printer.
If you resize the model make sure you do NOT scale the Z axis or the print colors will not be in the same position
Print at 100% infill with a layer height of 0.08mm with a base layer of 0.16mm
The Model is 170x170mm in size
You may print at higher layer heights below the Base Thickness of 0.48mm
The Max allowed Thickness is 2.24mm and the Actual Thickness is 2.16mm
#000000 PLA BambuLab Basic Black Transmission Distance: 0.6
#4c5f71 PLA BambuLab Basic Blue Gray Transmission Distance: 3
#c00d1e PLA BambuLab Basic Red Transmission Distance: 4
#f8ff80 PLA Bambulabs Matte Lemon Yellow Transmission Distance: 6
#ffffff PLA BambuLab Matte Ivory White Transmission Distance: 3.5
This print uses 5 unique filaments
Swap Instructions:
Start with Black
At layer #8 (0.72mm) swap to Blue Gray
At layer #14 (1.2mm) swap to Red
At layer #18 (1.52mm) swap to Yellow
At layer #22 (1.84mm) swap to Ivory White for the rest.
