Modular Filament Wall System

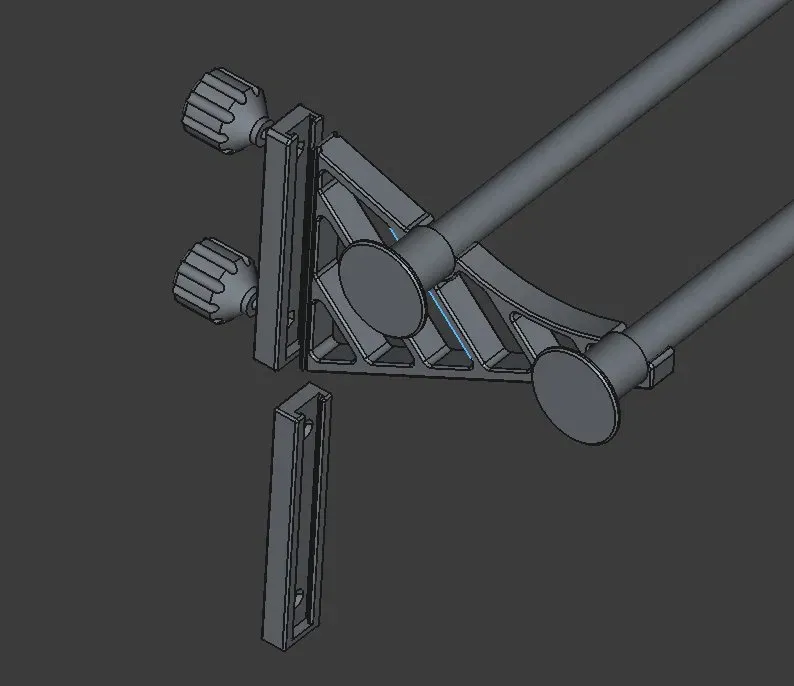

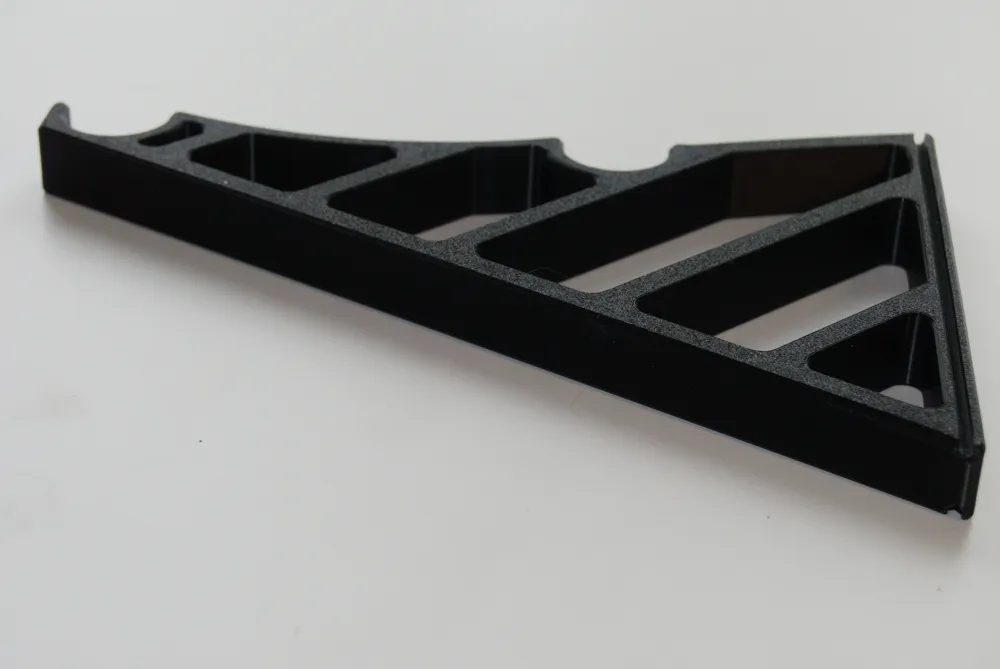

A lightweight, scalable wall-mounted filament storage system. Designed for simplicity and strength — the triangulated rib structure keeps weight minimal while maintaining excellent rigidity.
Features:
- All parts fit on A1 Mini build plate

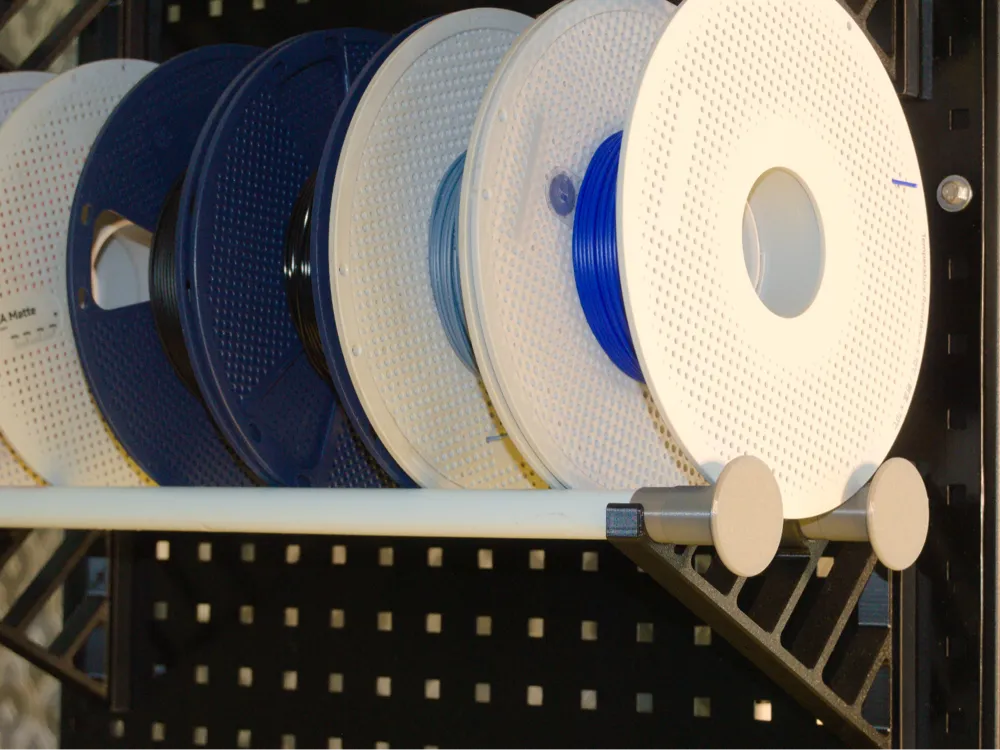

- Under 100g of PETG holds 7+ spools
- Uses any 20mm diameter rod — copper pipe, wooden dowel, broom handle...
- Fully modular — add more brackets and rails as your collection grows
- Two rail versions included: M6 screws or 5mm wood screws

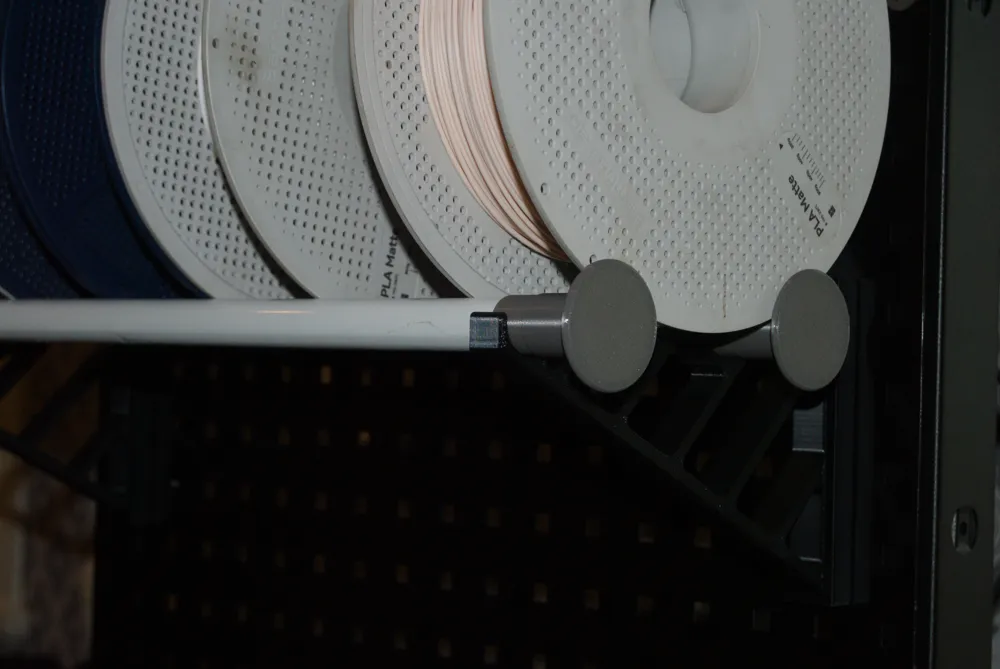

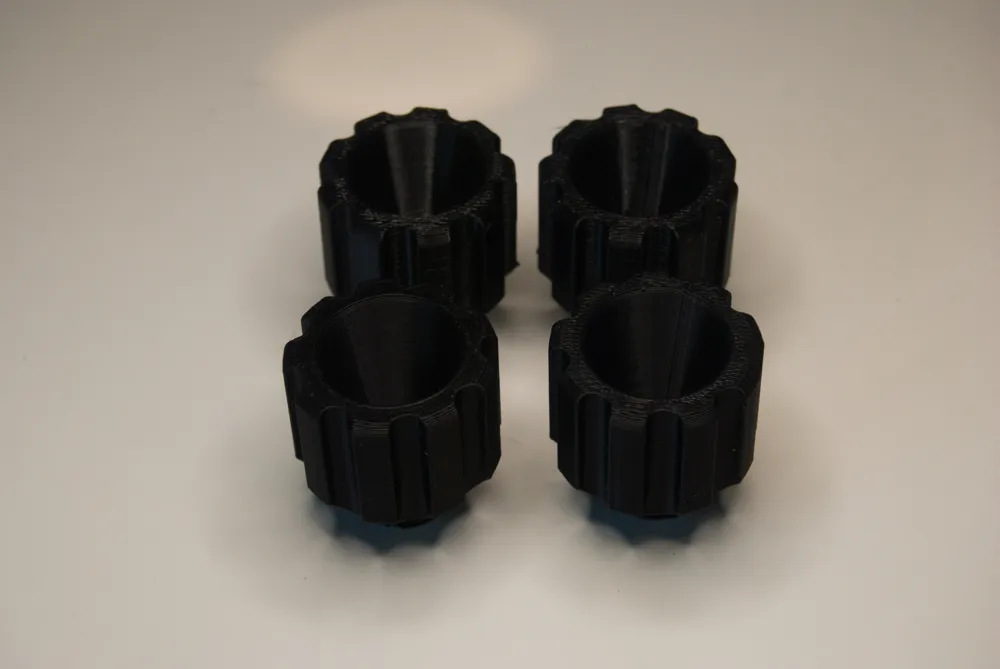

- End caps included to keep rods in place
Print settings:
- Material: PETG recommended
- Walls: 4
- Infill: 20% gyroid
- Outer wall speed: 50%
Hardware needed:
- 2x wood screws per rail
- 20mm diameter rod (any length)
