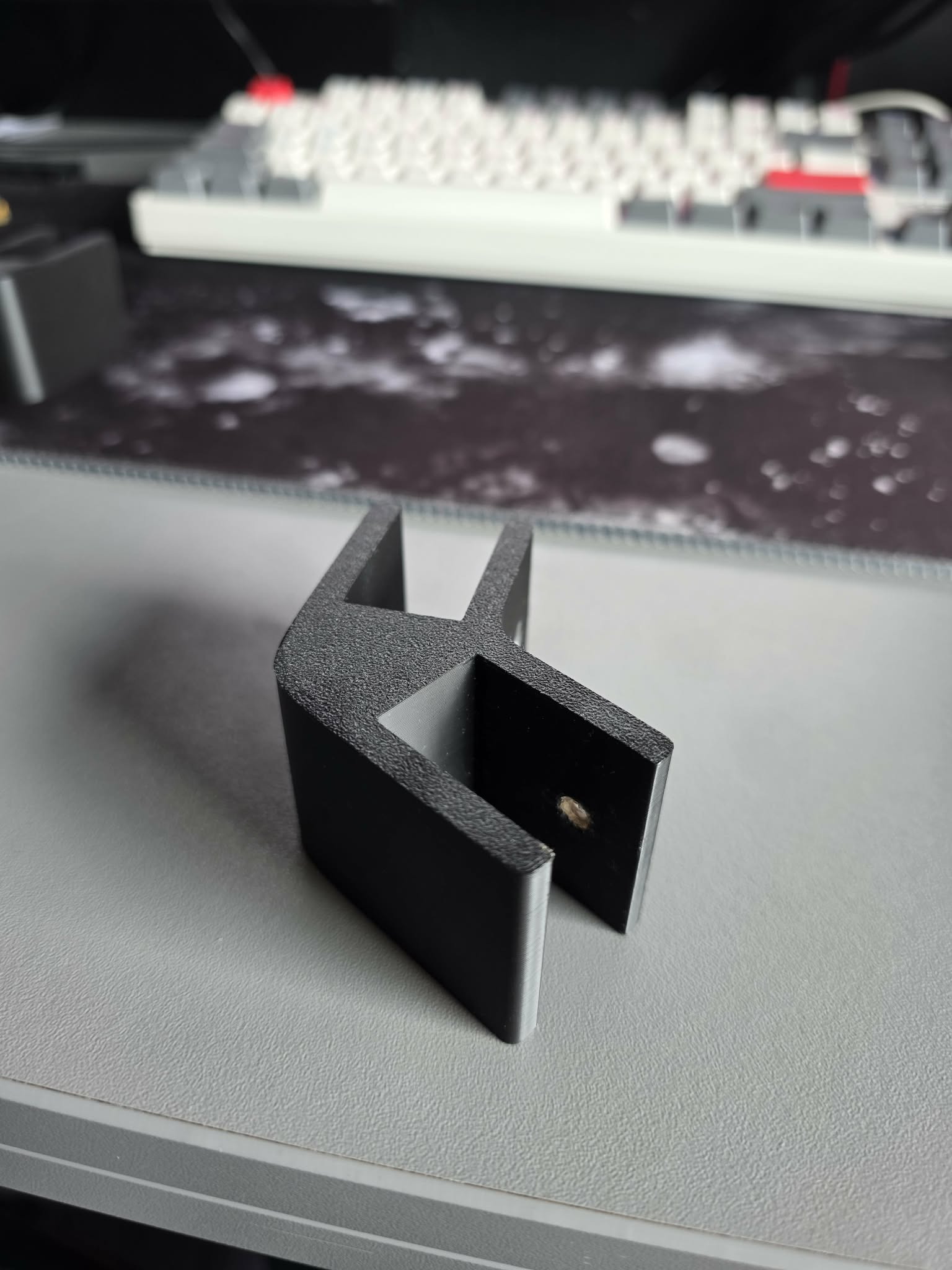

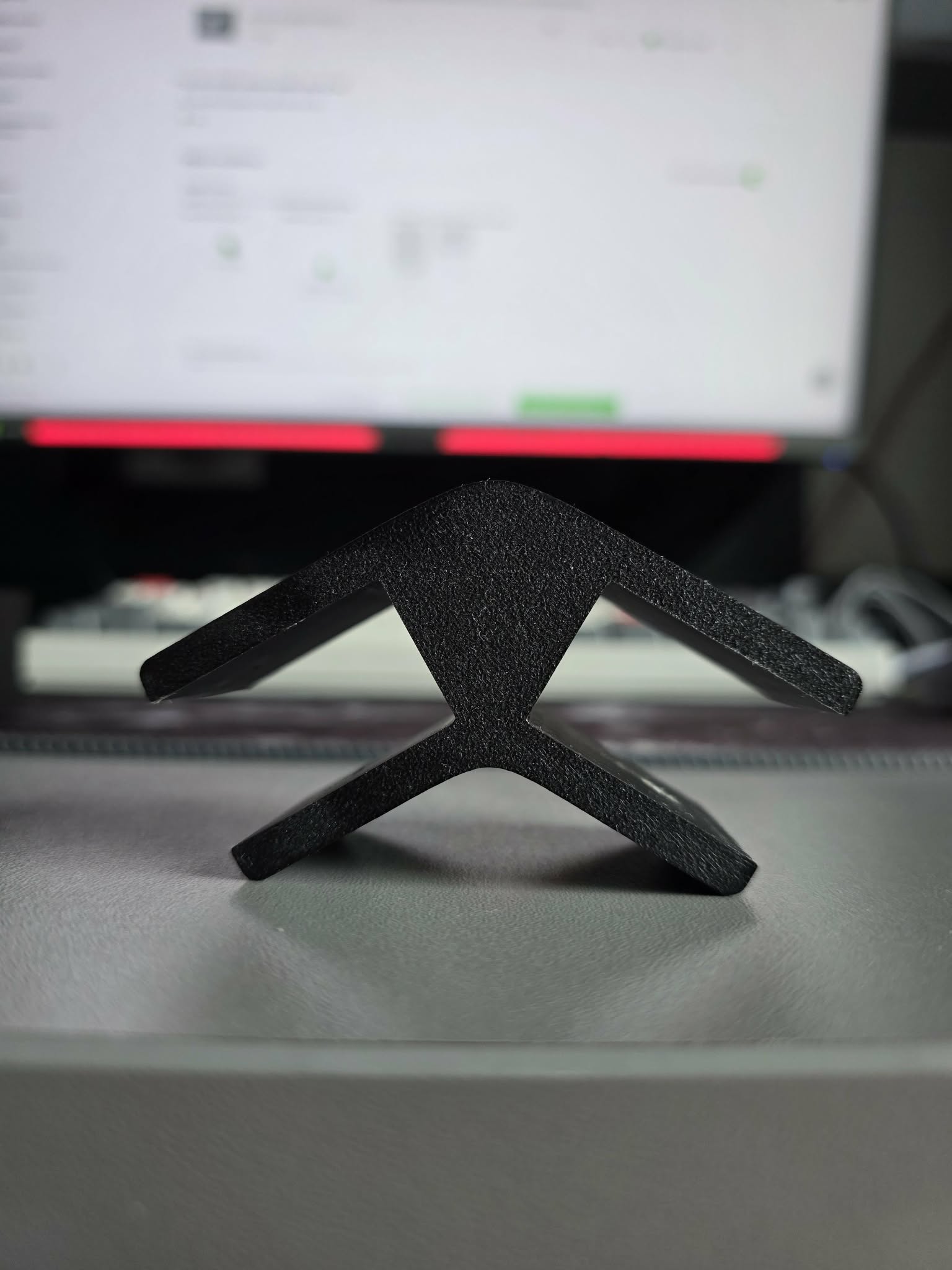

18mm Shelf Connectors – Strong & Easy-to-Print Brackets
These shelf connectors are designed for building sturdy shelves using standard 18mm chipboard (particle board). The design provides a simple and reliable way to assemble custom shelving units while keeping the construction clean and durable.
Perfect for workshops, garages, storage rooms, and DIY furniture projects.
🔧 Required Hardware:
- 18mm chipboard / particle board
- 16mm wood screws
- 3D printed connectors
🔥 Key Advantages:
- Strong and durable design
- Easy assembly with common hardware
- Suitable for custom shelf sizes
- Clean and professional appearance
- Perfect for DIY furniture projects
Recommended Print Settings:
- Material: ABS (recommended) or PETG
- Infill: 80% for maximum strength
- Layer Height: 0.2mm
- Walls: 4–6 perimeters
- Top/Bottom Layers: 5+
- Supports: Not required
Why ABS?
ABS offers excellent durability, impact resistance, and better long-term performance under load, making it ideal for structural parts such as shelf connectors.
Assembly:

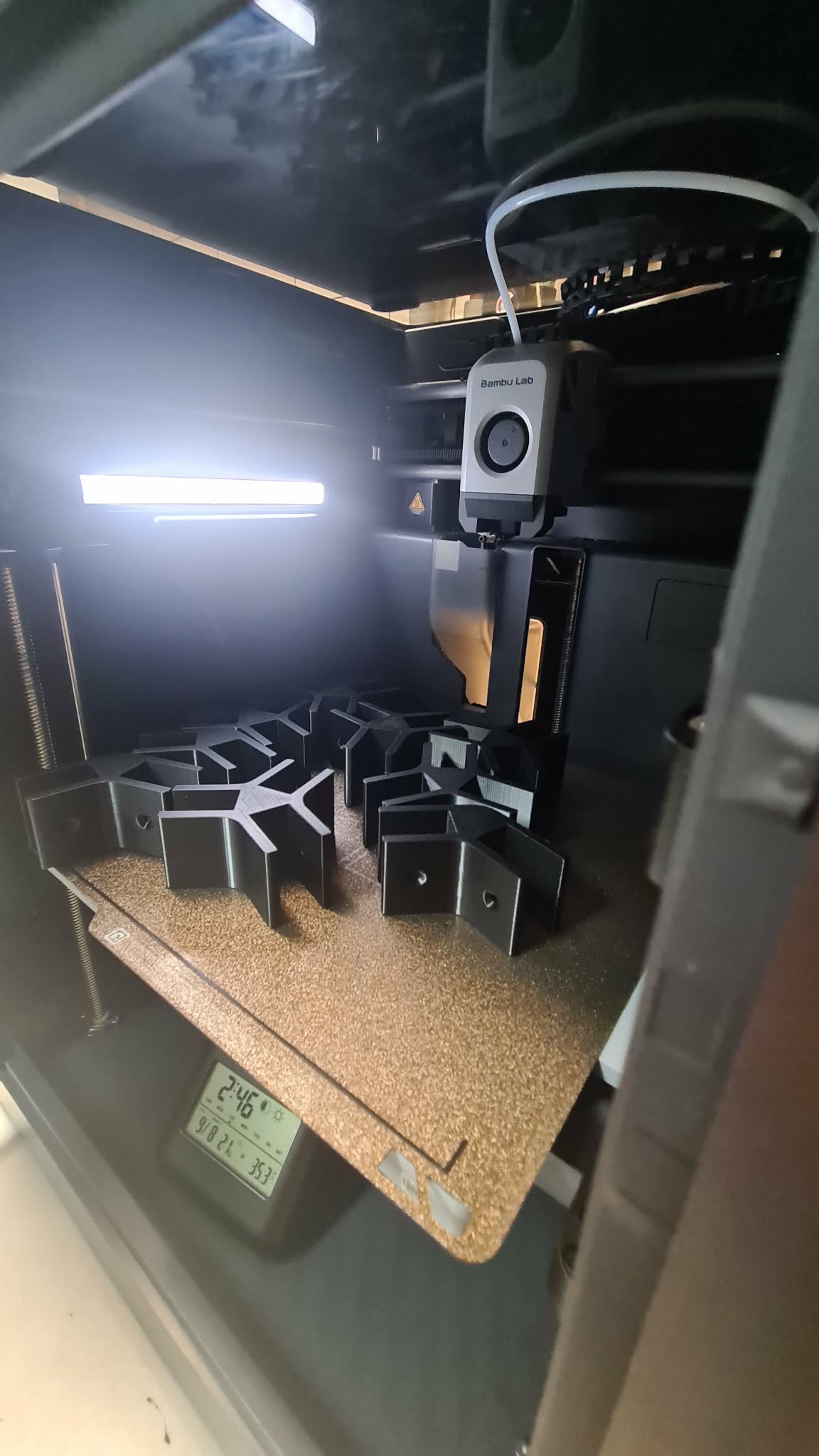

- Print the required number of connectors.
- Prepare 18mm chipboard panels.
- Position the connectors at the corners.
- Secure them using 16mm wood screws.
- Assemble your shelf and enjoy a strong, custom-built storage solution.
