Drop anchor. Turn up the volume.

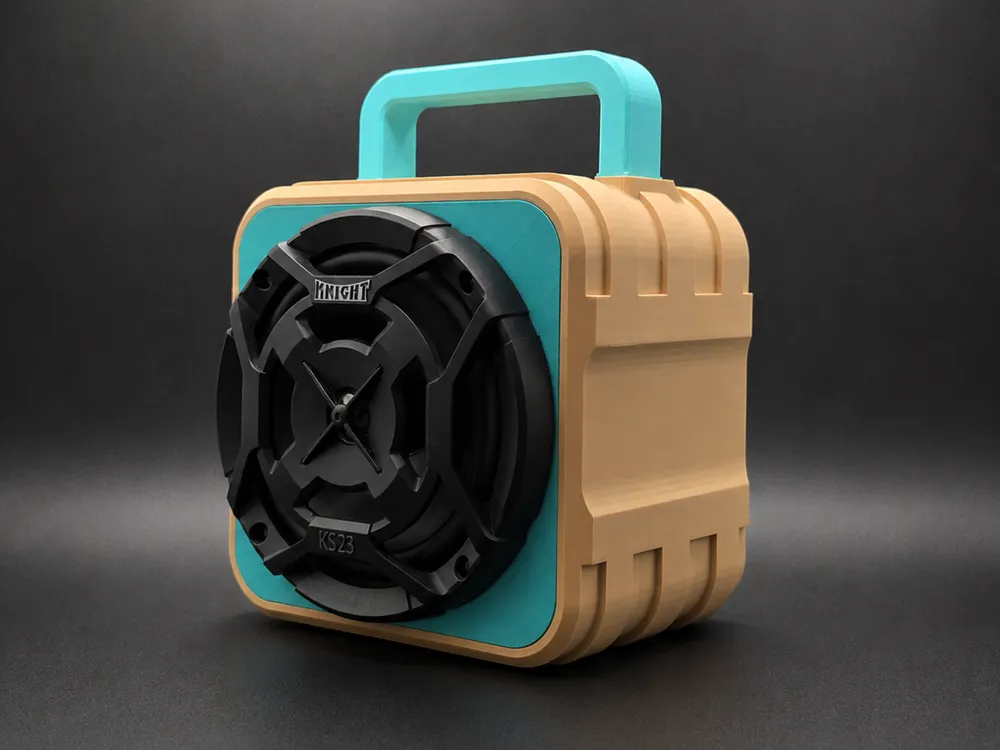

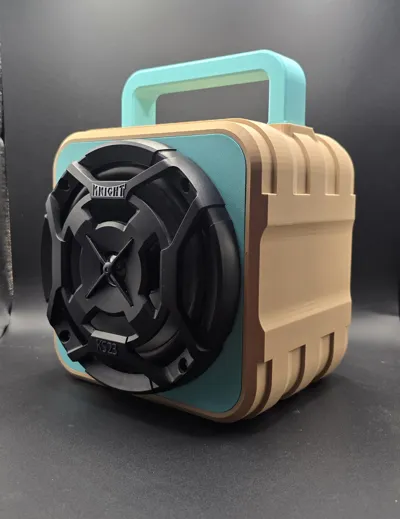

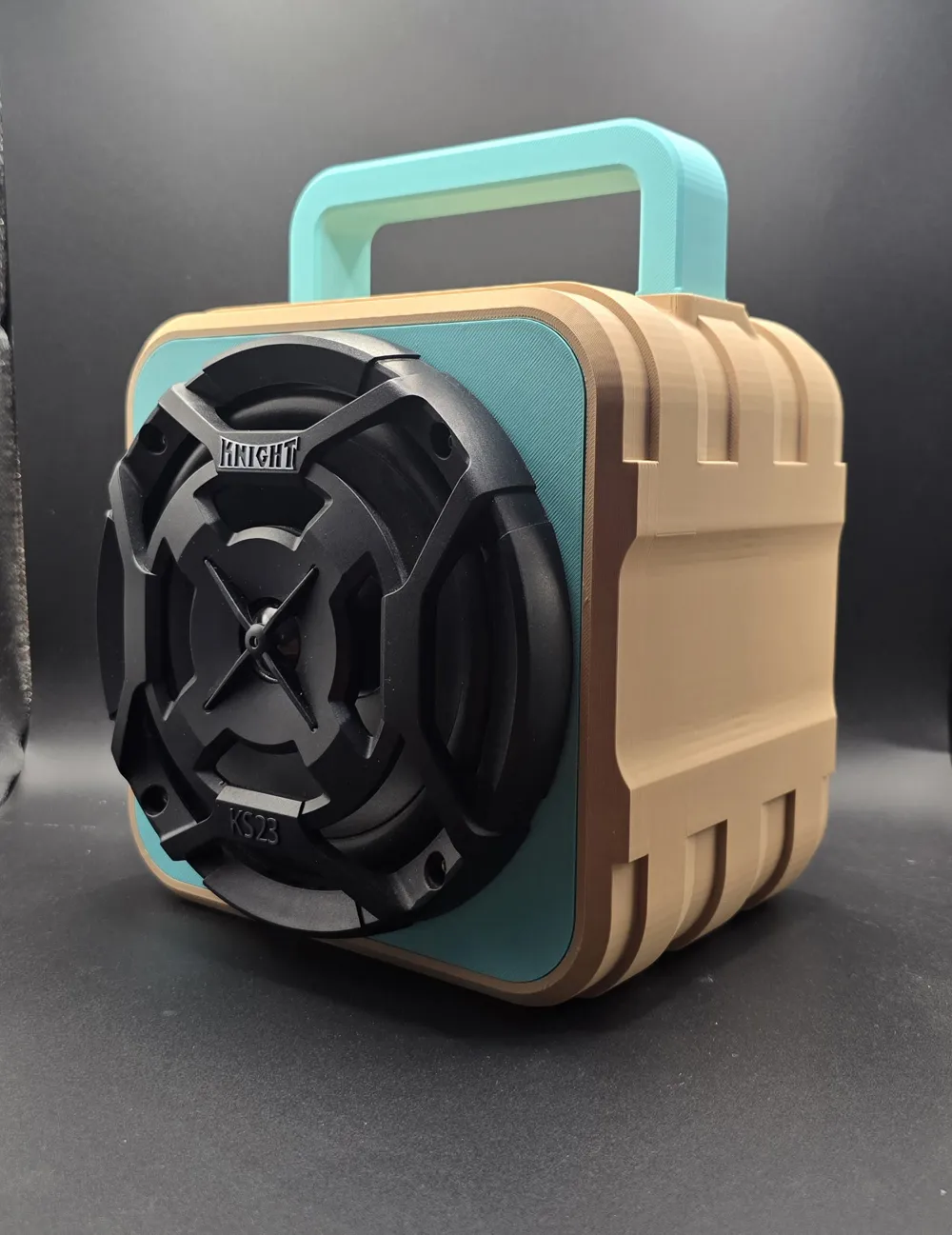

Meet the Dock Box, a portable 3D-printed boom box inspired by rugged dockside gear. Designed around the versatile TW100U amplifier, the Dock Box can run on either a 12V or 24V battery setup and supports the amplifier's built-in Sync Mode, allowing you to link multiple Dock Boxes together for an even bigger sound experience.

Built with simplicity in mind, the Dock Box is an easy print with zero supports required, making it a great weekend build for makers of all experience levels. The enclosure is designed to accommodate most 6.5-inch speakers, giving builders flexibility to customize their setup.

Assembly Notes

Orginal Dock Box

• Speaker mounts using standard speaker mounting screws.
• Amplifier secures with 4 mounting screws.
• Front plate is installed using super glue.
• Handle is locked into place with 2 screws and can be glued for additional strength.
• No visible assembly hardware for a clean, professional appearance.

Screw Together Dock Box

• Speaker mounts using standard speaker mounting screws.
• Amplifier secures with 4 mounting screws.
• Front plate is installed using 8/32 heat inserts and matching .5in screws

• Handle is locked into place with 2 screws(¼-20-1.25in)



Features

✅ TW100U Amplifier Compatible
✅ Runs on 12V or 24V Battery Systems
✅ Multi-Speaker Sync Mode Support
✅ Fits Most 6.5" Speakers
✅ Support-Free Printing
✅ Clean Hidden-Hardware Design
✅ Portable Carry Handle
✅ Easy Assembly

Electronics Used
Speakers

KnightATV KS23

https://knightatv.com/products/ks23-6-5-waterproof-speakers?variant=50346856513832

Recoil 6.5 Speaker Set (Budget Friendly Option )

https://amzn.to/4wbbNi4

Power Button(16mm)

Single: APIELE

https://amzn.to/4oZhwoh

Double: Gebildet

https://amzn.to/4gbb0Zb

Battery:

24V

https://amzn.to/4fqahmG

Amplifier:

1 Amp

https://amzn.to/3Qn3S1k

2 Pack
https://amzn.to/3SF1bc1

Wiring Componets(Optional)

20pcs Lever Connectors

https://amzn.to/3Tq5Fnn

TPU FILAMENT (Flexible Housing)

https://amzn.to/4b12AA4

Filament Used:

Teal PETG

https://amzn.to/4fc0X58

Tan PETG

https://amzn.to/4vZ4fil

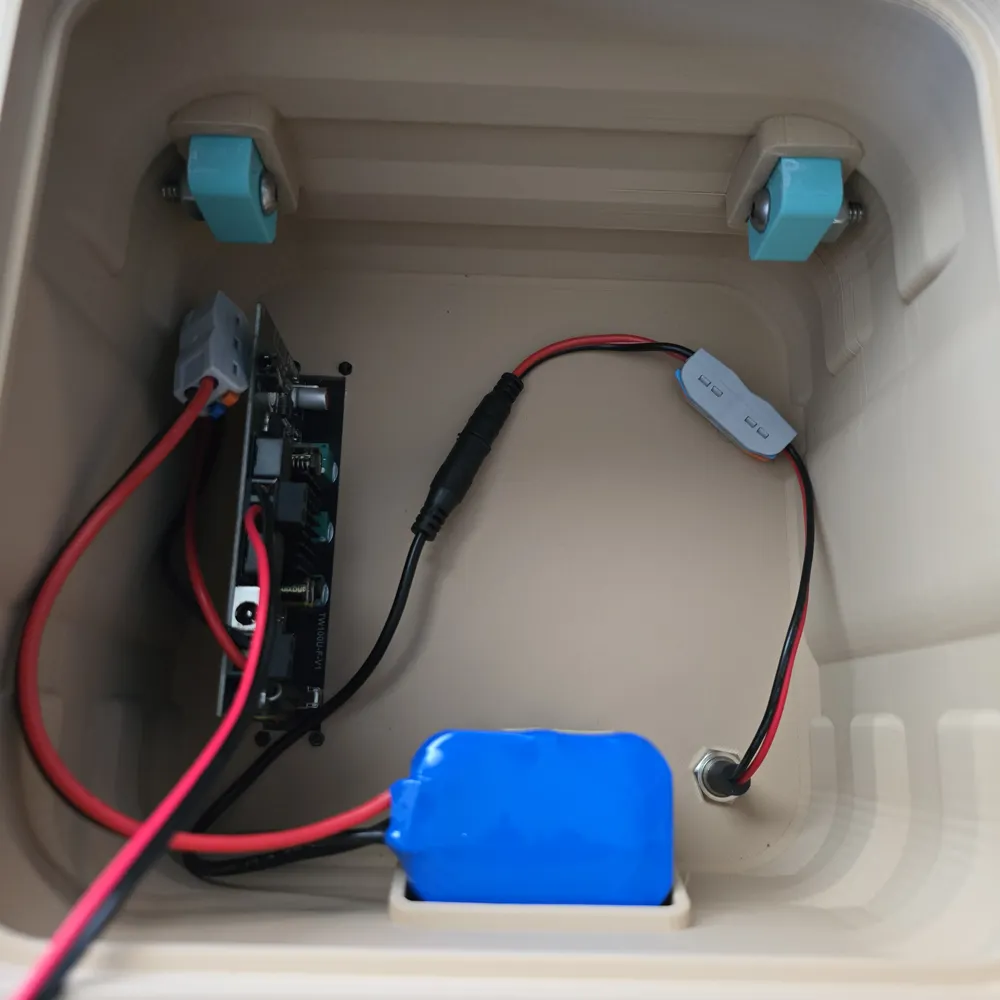

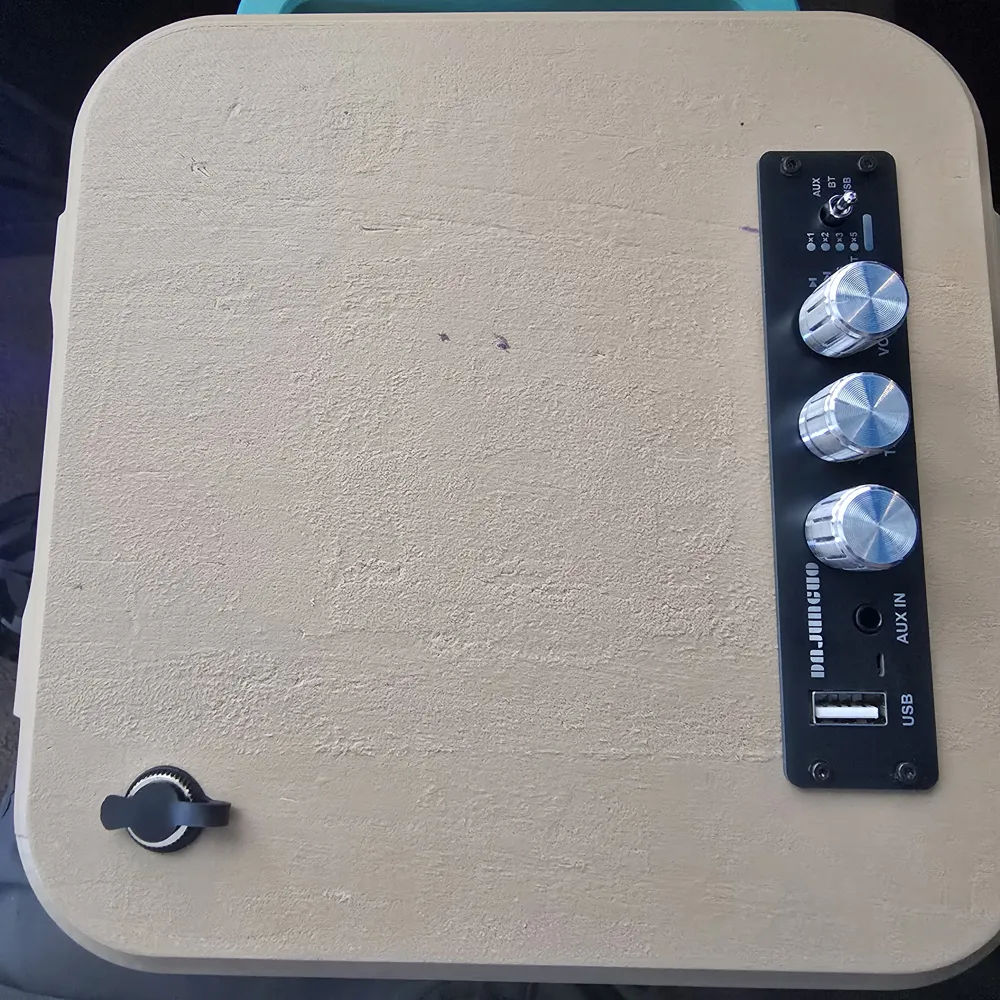

• Charging port threads in
• Battery is placed inside the housing mounted with 2 sided tape

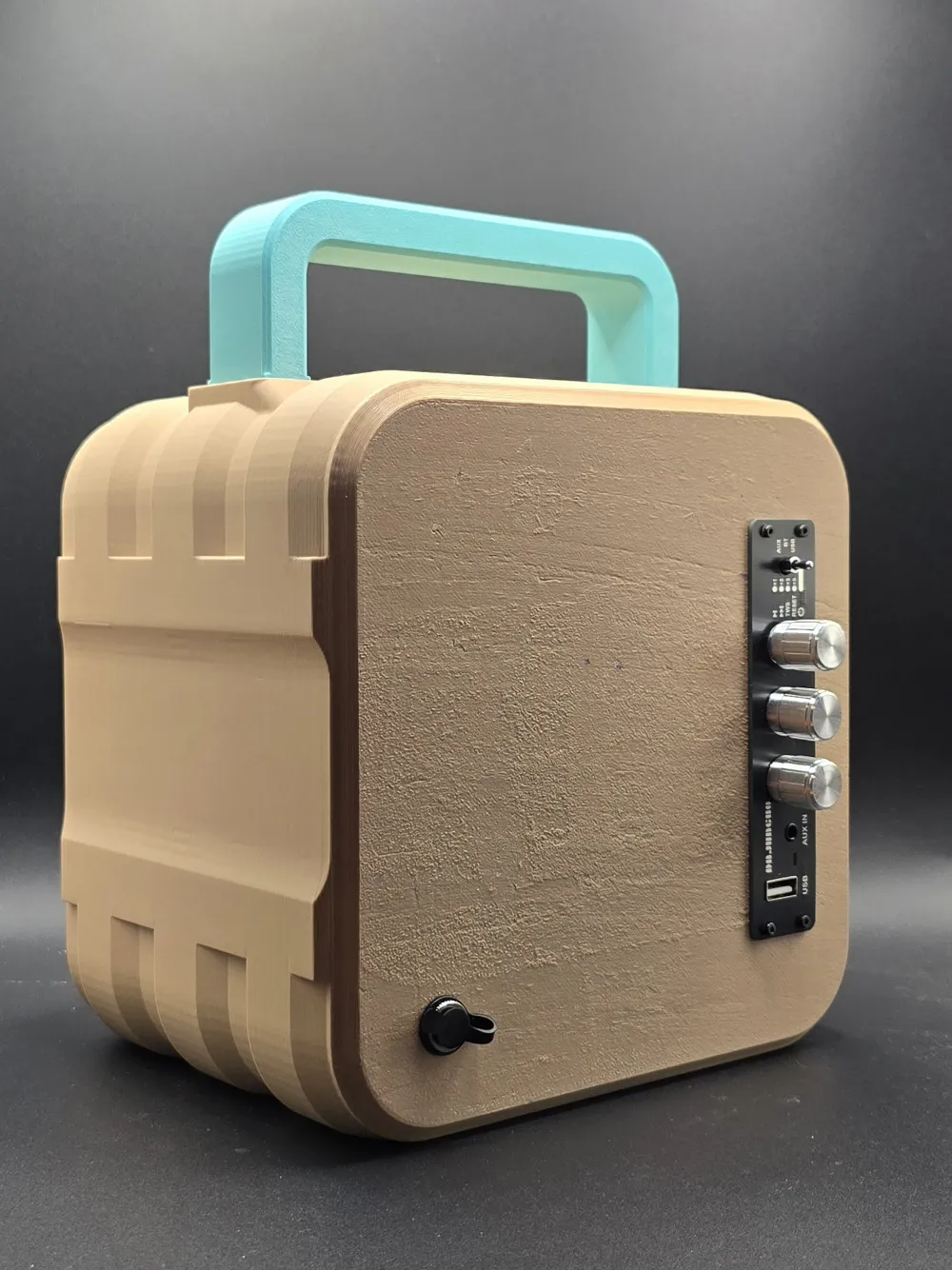

• Amplifier is screwed into the rear of housing

____________________________________________________________________________________________________________

Designed for real-world use and reliable printing.
If you run into issues or have improvement ideas, leave a comment.
