Description
Boost Me (for free)
Hi! If you like what I do and have an unused Boost, it would go a long way towards me being able to produce more anime Hueforges more rapidly!

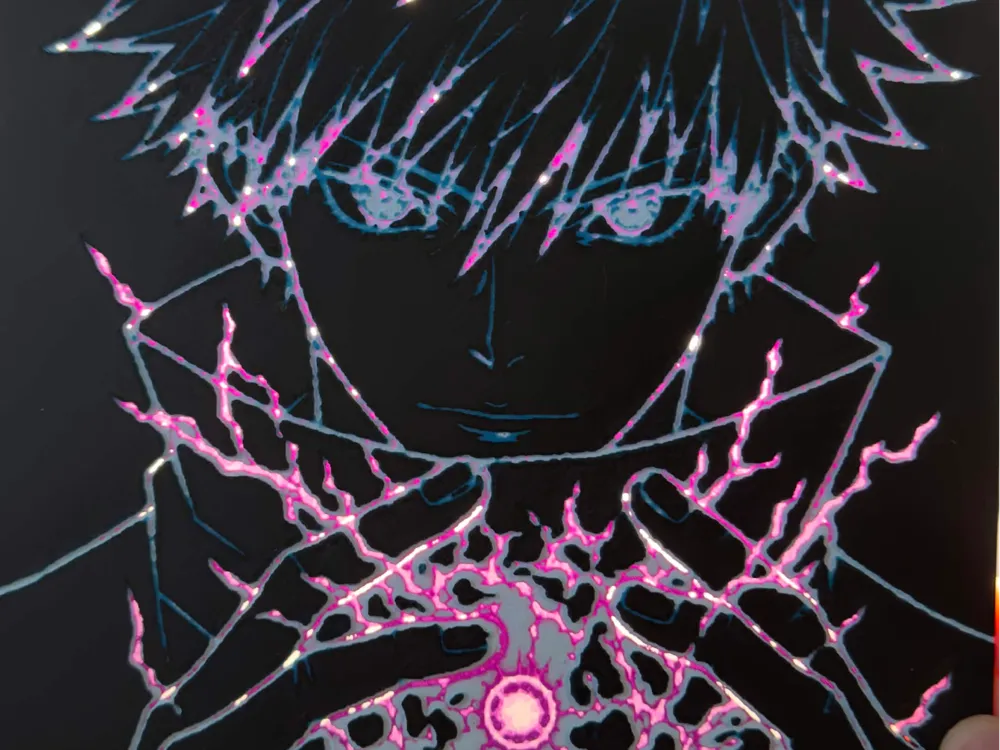

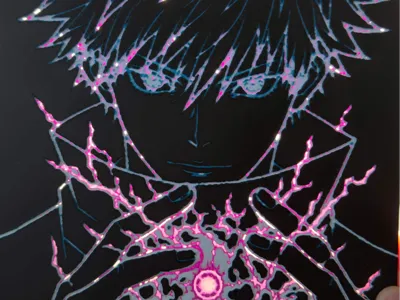

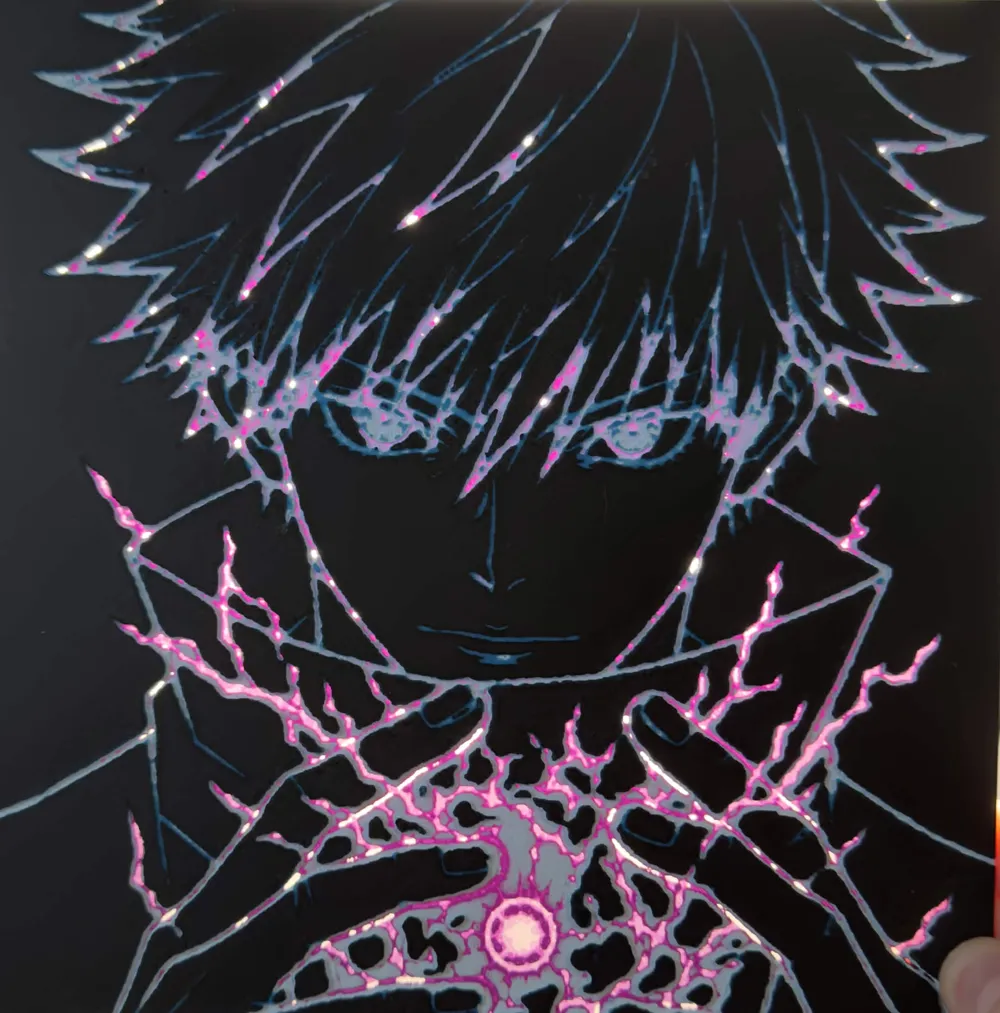

This is a backlit model intended to be displayed in front of a light source. Using a white first layer it allows the image to positively glow when placed in front of a light - the images truly dont do effect justice! The colors listed are what I used, but are certainly swappable to other colors or shades.
The physical version uses the filament colors listed below. It is designed as a flat display piece that can be placed on a desk stand or mounted/framed after printing.
Print at 100% infill with a layer height of 0.04mm with a base layer of 0.2mm
The Model is 200x200mm in size
You may print at higher layer heights below the Base Thickness of 0.6mm
The Max allowed Thickness is 3.6mm and the Actual Thickness is 2.28mm
#ffffff PLA BambuLab Basic Jade White Transmission Distance: 0.5
#5e43b7 PLA Bambu Basic Purple Transmission Distance: 1.3
#8bd5ee PLA BambuLab Matte Ice Blue Transmission Distance: 3.5
#0e2070 PLA HueForge Navy Blue 1.3 Transmission Distance: 8
#000000 PLA BambuLab Basic Black Transmission Distance: 0.6
This print uses 5 unique filaments
Swap Instructions:
Start with Jade White
At layer #13 (0.68mm) swap to Purple
At layer #26 (1.2mm) swap to Ice Blue
At layer #42 (1.84mm) swap to Navy Blue 1.3
At layer #52 (2.24mm) swap to Black for the rest.
