Password Keypad Switch
Print Profile(1)
Description
This modular keypad password switch, with its nine-square grid design, breaks away from the rigid traditional panel appearance. It innovates home switches from three dimensions: aesthetics, fun, and practicality.
Aesthetically, it draws inspiration from minimalist digital industrial design, featuring a pure white base paired with replaceable red and blue keycaps. The rounded keycaps have clean, sharp lines, replicating the texture of a light luxury keyboard. The low-saturation color scheme is suitable for modern, minimalist, and light luxury home decor styles, allowing for flexible coordination with wall furnishings to become an exquisite wall decoration.

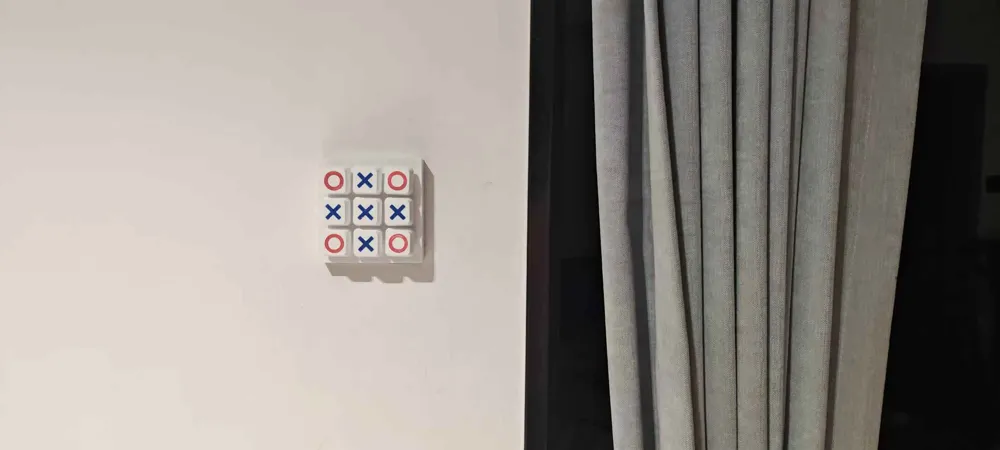

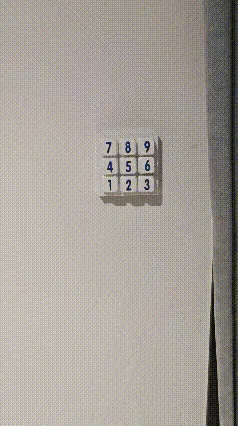

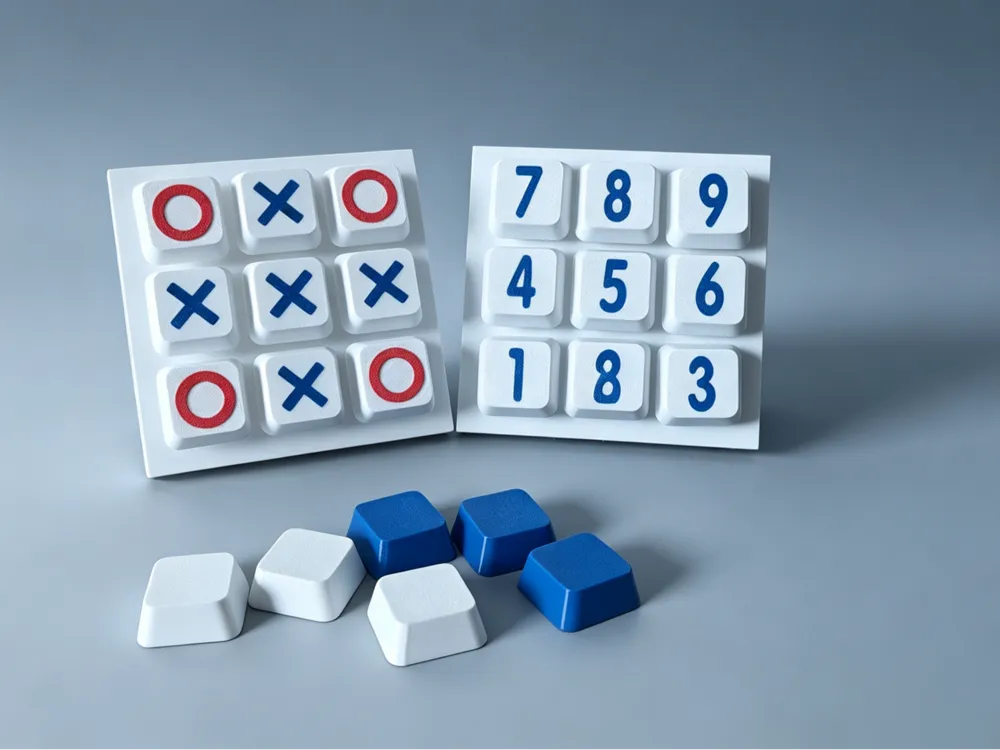

For fun, the keycaps can be freely disassembled and replaced, allowing for both numerical password combinations and custom unlock codes using O and X symbols, similar to a Tic-Tac-Toe assembly game. Unlocking passwords is no longer monotonous, making home unlocking full of interactive enjoyment.
Practically, the nine-square grid layout has clear logical divisions and offers a rich variety of custom password combinations. Modular single keys can be replaced individually, making future maintenance convenient. It balances home decor aesthetics with daily electricity safety needs, achieving integration of decoration and functionality.
Installation:

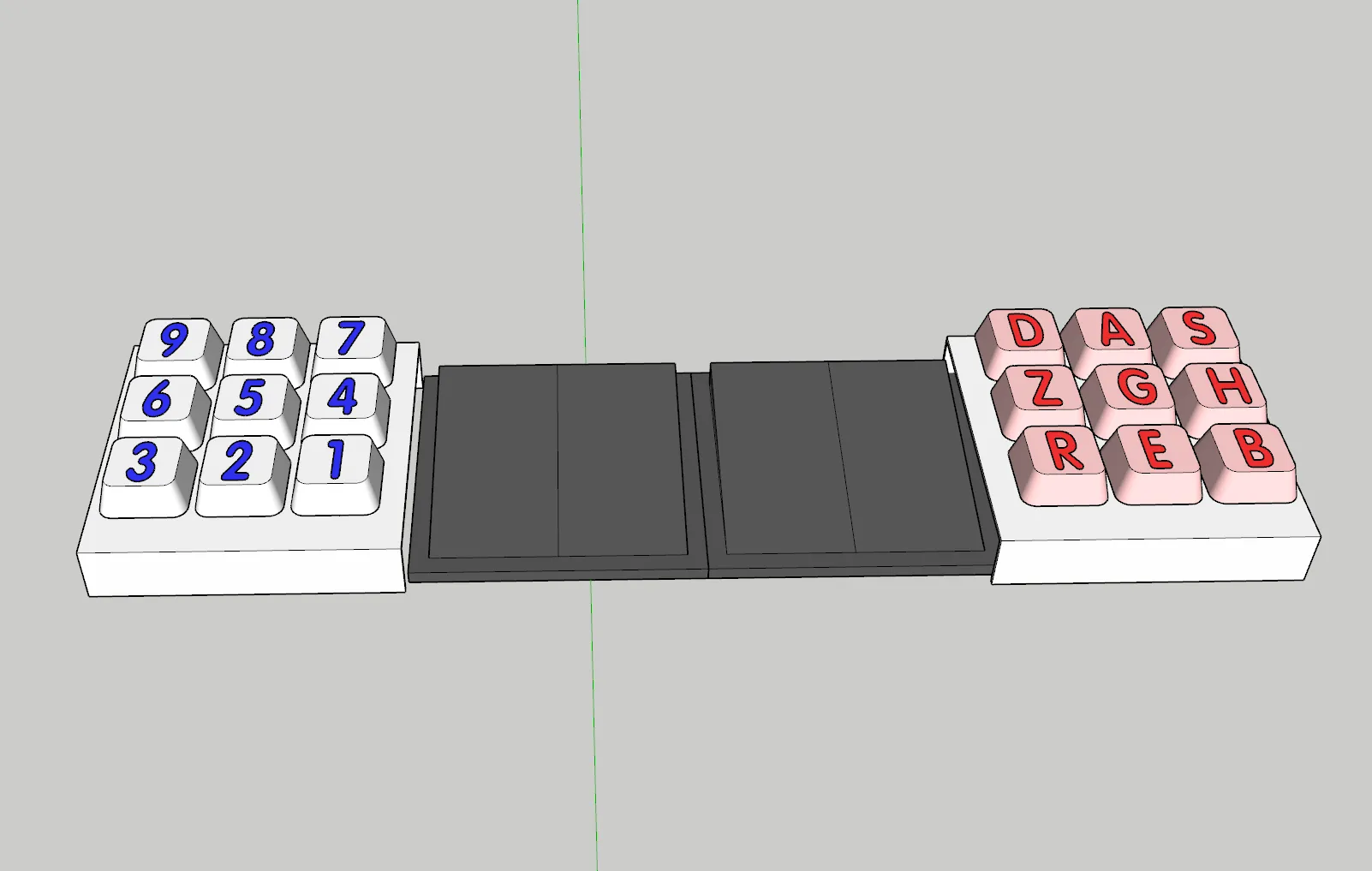

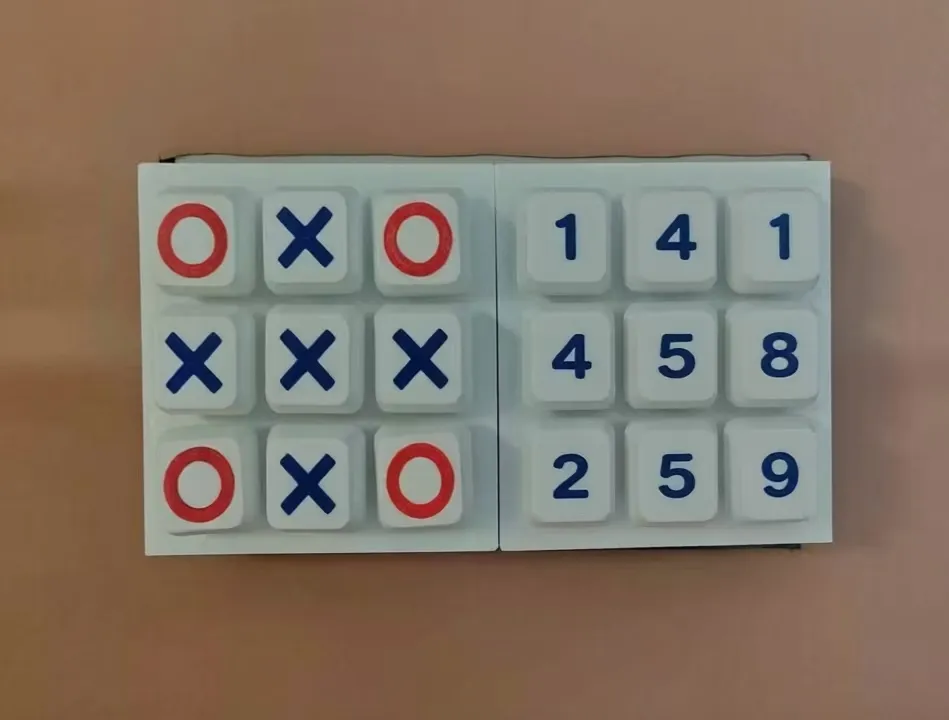

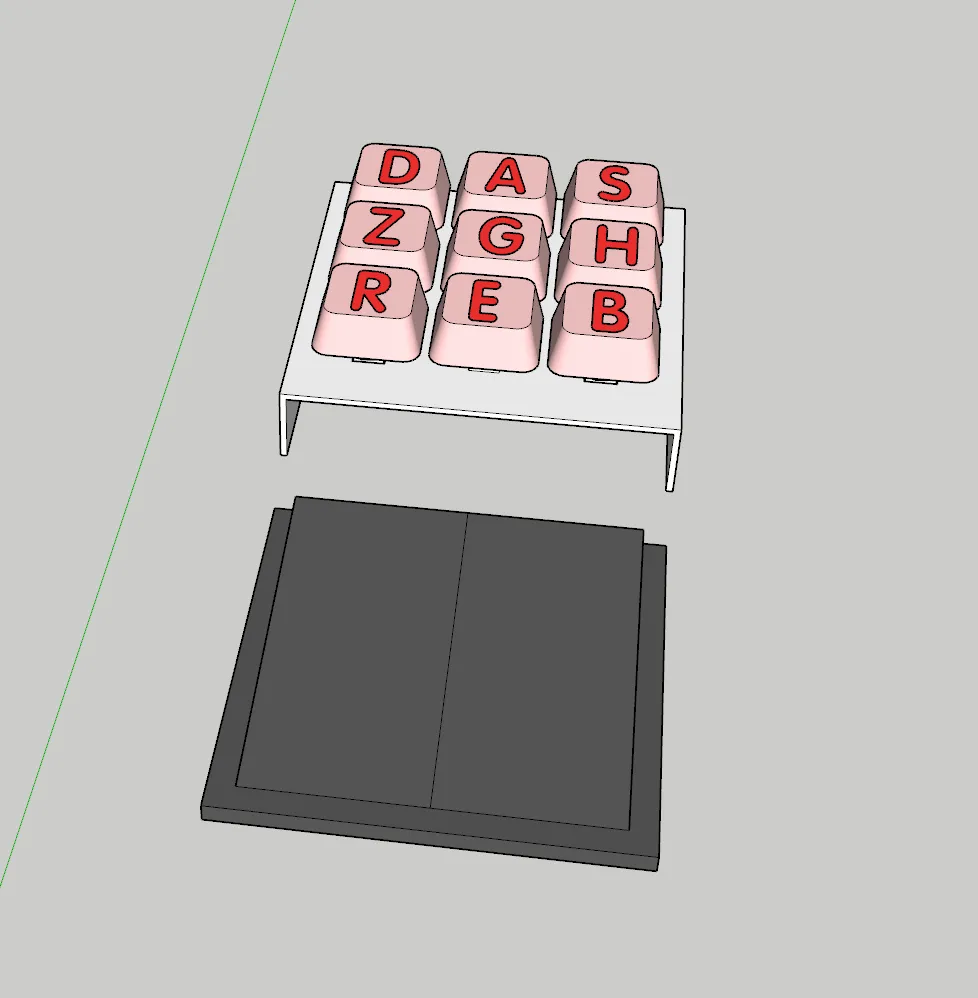

The panel adopts a 3-sided enclosure, so one side is frameless. This design is, firstly, to adapt to some non-standard Type 86 panels, and secondly, to allow two panels to be assembled together to form a double panel. It is fixed using strong nano double-sided tape.

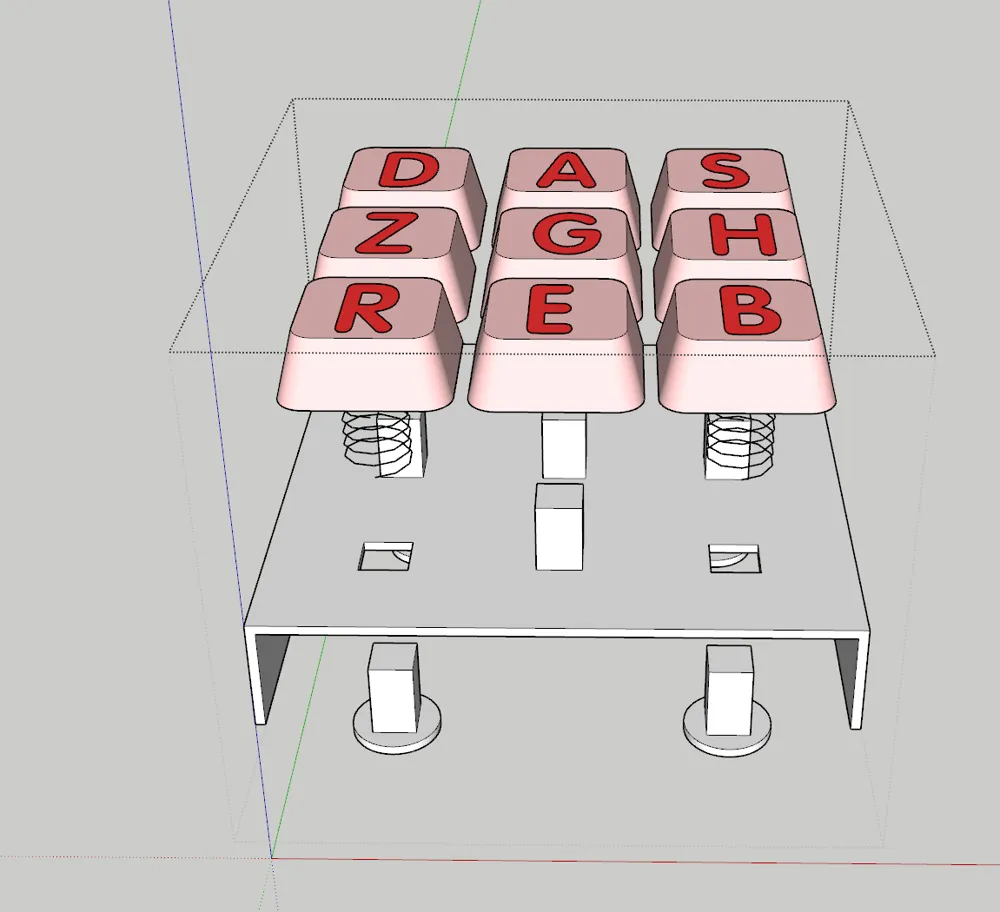

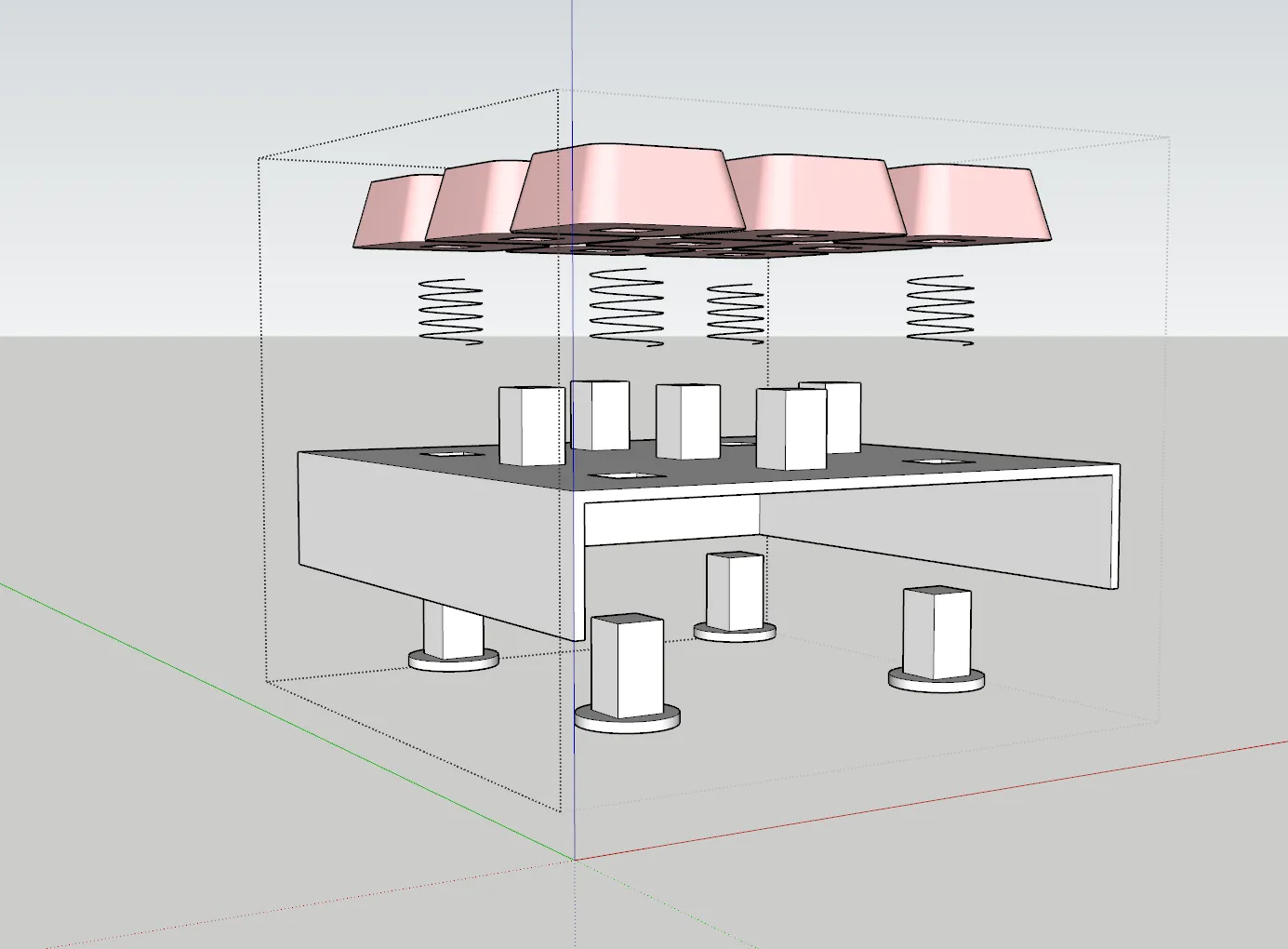

The keys require self-purchased springs, you can buy springs with a wire diameter of 0.4mm, an outer diameter of 10mm, and a length of 10mm. The pressing feel is quite comfortable.
I've included links to what I purchased on PDD (Pinduoduo); you can also choose items of the same size yourself.
Materials: 1. Strong nano double-sided tape https://mobile.yangkeduo.com/goods.html?ps=3zNeiRAqpF
2. Spring (wire diameter 0.4mm, outer diameter 10mm, length 10mm)
https://mobile.yangkeduo.com/goods2.html?ps=kOQQw5mV4j
