DIY "Prism" NERF Foam Dart Target — Ultimate Cost-Effectiveness, Maximum Strike Feedback
Today I'm bringing you an electronic target I designed myself — Prism
Those who often shoot targets at home must understand that it's hard to see if you hit from a distance. This target was created to solve that very problem

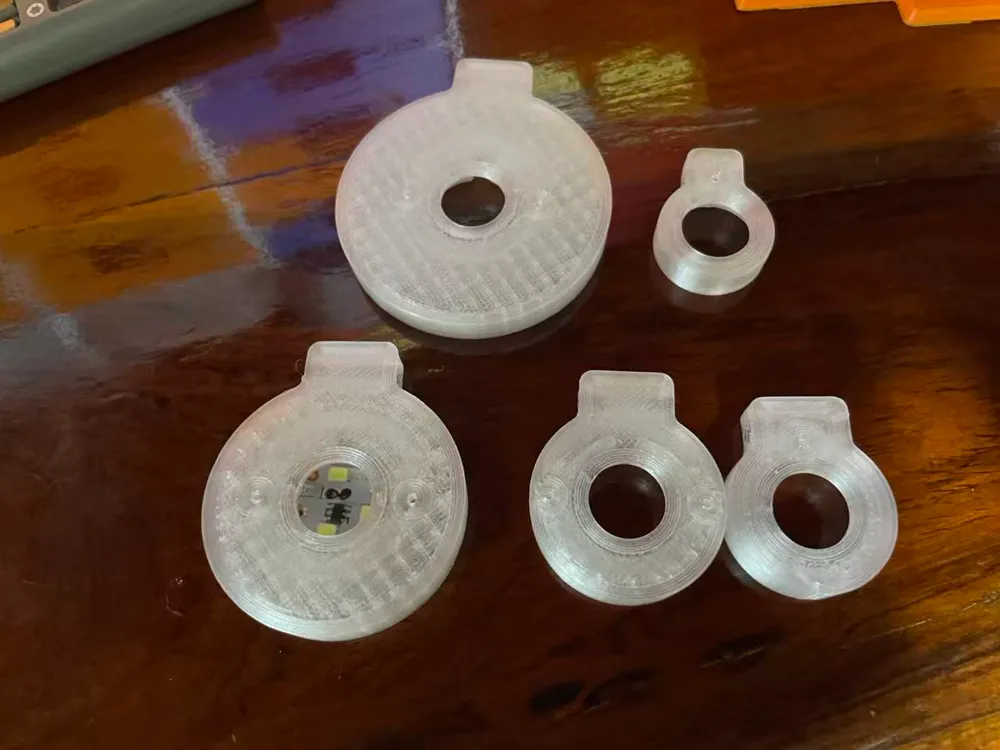

There are five sizes available: 20, 25, 30, 40, and 50 mm in diameter. Just print according to your needs
It is recommended to print with PETG, PETG-CF, or TPU. PLA is too brittle
Try not to change the print parameters; the strength has been adjusted after testing

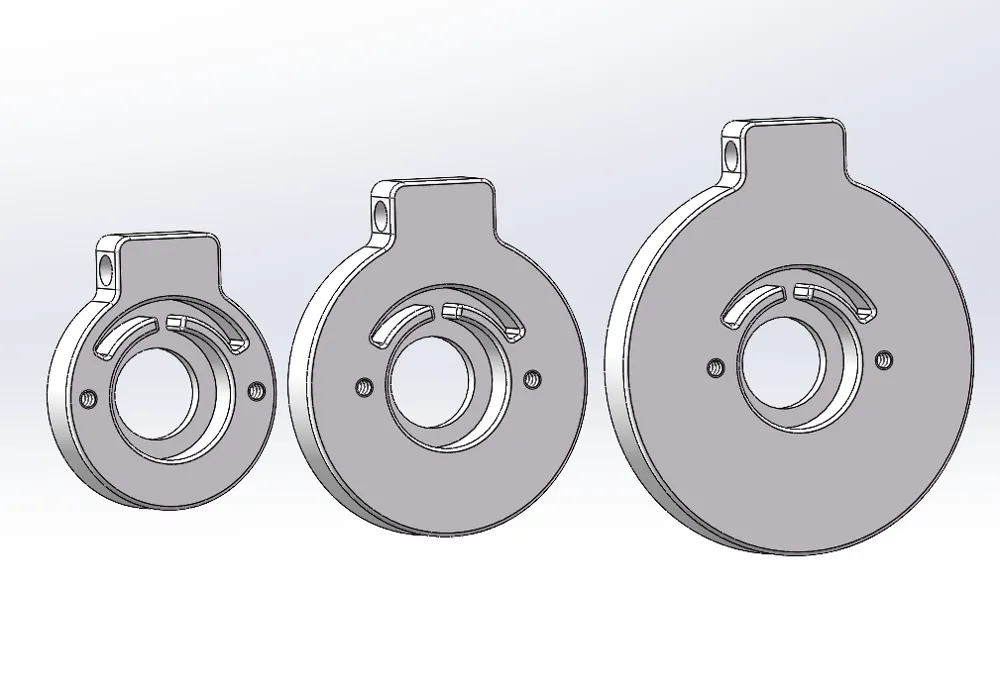

To match different sinkage rates, an internal mounting structure was specially designed
Core Features

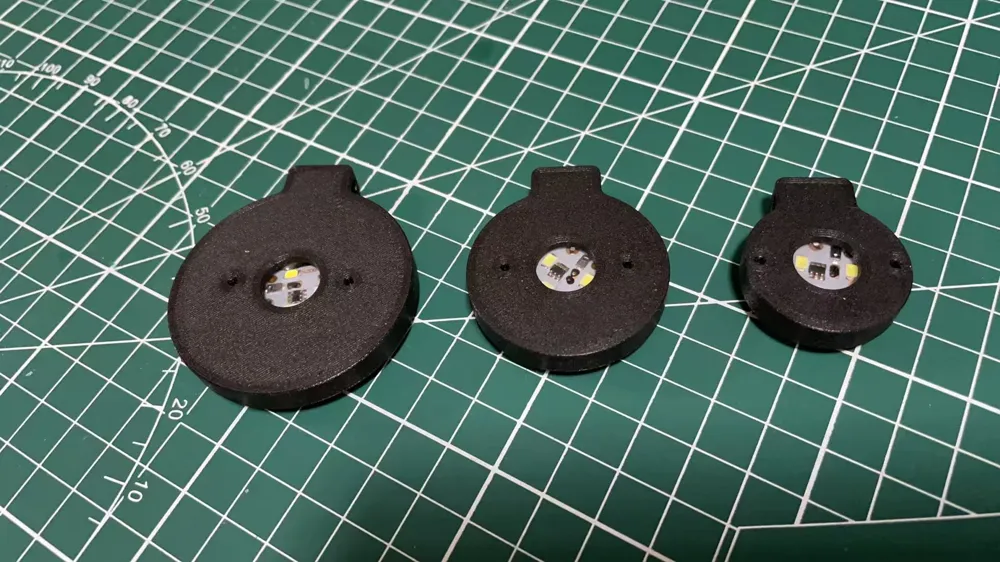

- Visual Impact: Built-in high-brightness LED array flashes brightly upon impact, providing very strong feedback, allowing you to confirm a bullseye at a glance
- Durable and Sturdy: The structural design has been mechanically optimized, and the shell is robust, able to withstand even continuous firing from heavy-duty blasters, saying goodbye to plastic fragments
- Super Affordable: The total cost is extremely low, even cheaper than those "toy-grade" electronic targets on the market, truly making it accessible for everyone to play
This project is completely open source. I will closely monitor your feedback, and all reasonable suggestions will be updated in the next version
BOM List
Impact LED light x1
Specific dimensions: Diameter 16-17mm, thickness 5mm or less
You can buy the built-in small lights on Pinduoduo (PDD) at 0.7 yuan each; actual tests show they last for a month without issues

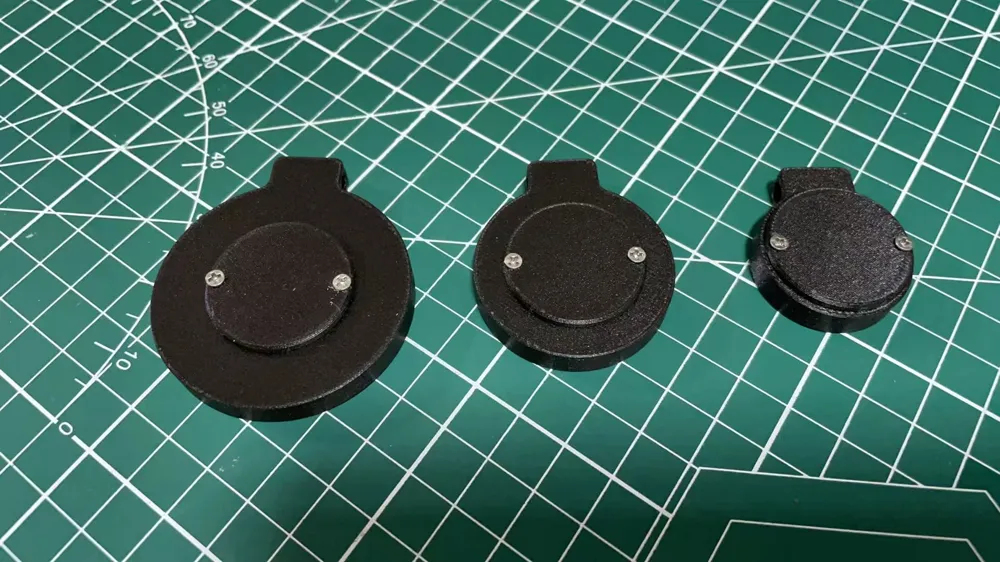

M2x8 screws x2
Just buy them on PDD; you can get hundreds for a few yuan with free shipping, costing just a few cents each
Iteration Updates
2026-06-10
User feedback indicated that the 50mm version lacked sufficient strength; strength has been readjusted. For those who can, it is recommended to print larger sizes with TPU
2026-06-09
Added 20mm and 25mm versions, increasing the challenge of target shooting (the back cover has also been updated)!!!
30, 40, and 50mm back covers are universal
