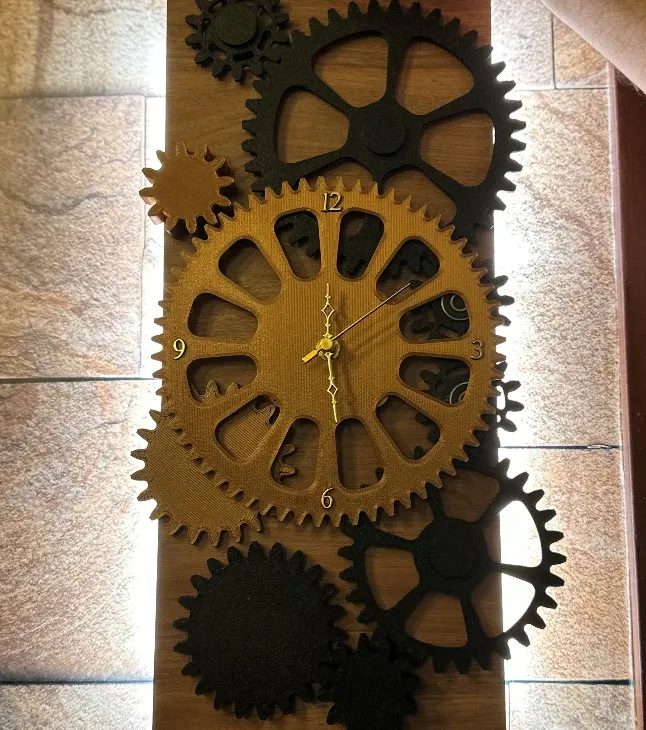

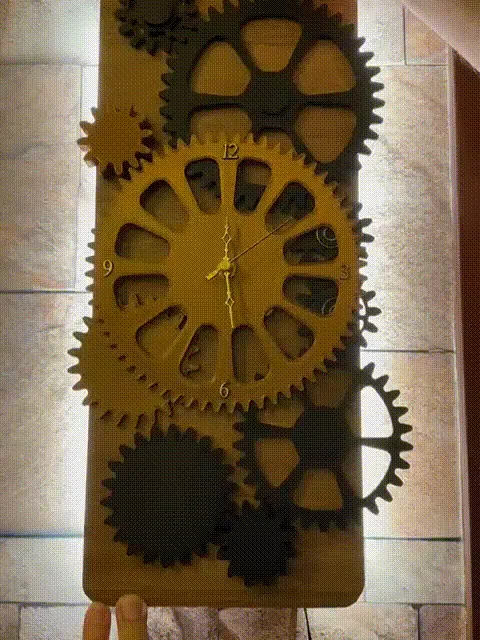

Gear Clock

Gear clock

All elements are together in the same STL file to make it easier to see where each part goes. Just use the separation of elements in the slicer.

All elements are glued with super glue.

I used an MDF board as a base, but there is a board element in the model if you want to print it.

608 bearings are used in all gears.

I glued some fixed gears for decoration.

For movement, there is a 5rppm microwave plate synchronous motor.

There is a 12v power supply feeding two small segments of LED strip.

Finally, a micro switch to turn the motor and power supply on and off.

If you need more details, let me know.

Minimal supports are used, only on the rear spacer that goes to the micro switch.
